Kinze Mach Till


Mach Till

Product Information

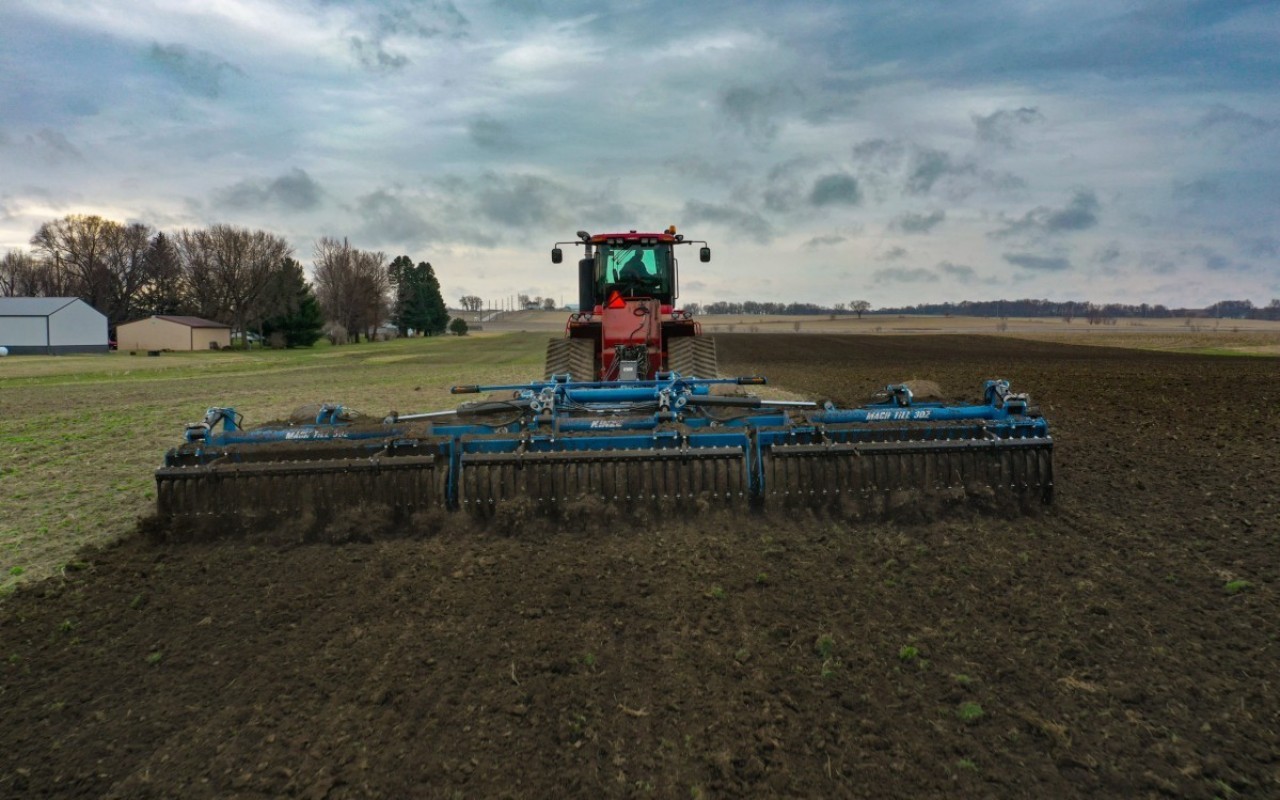

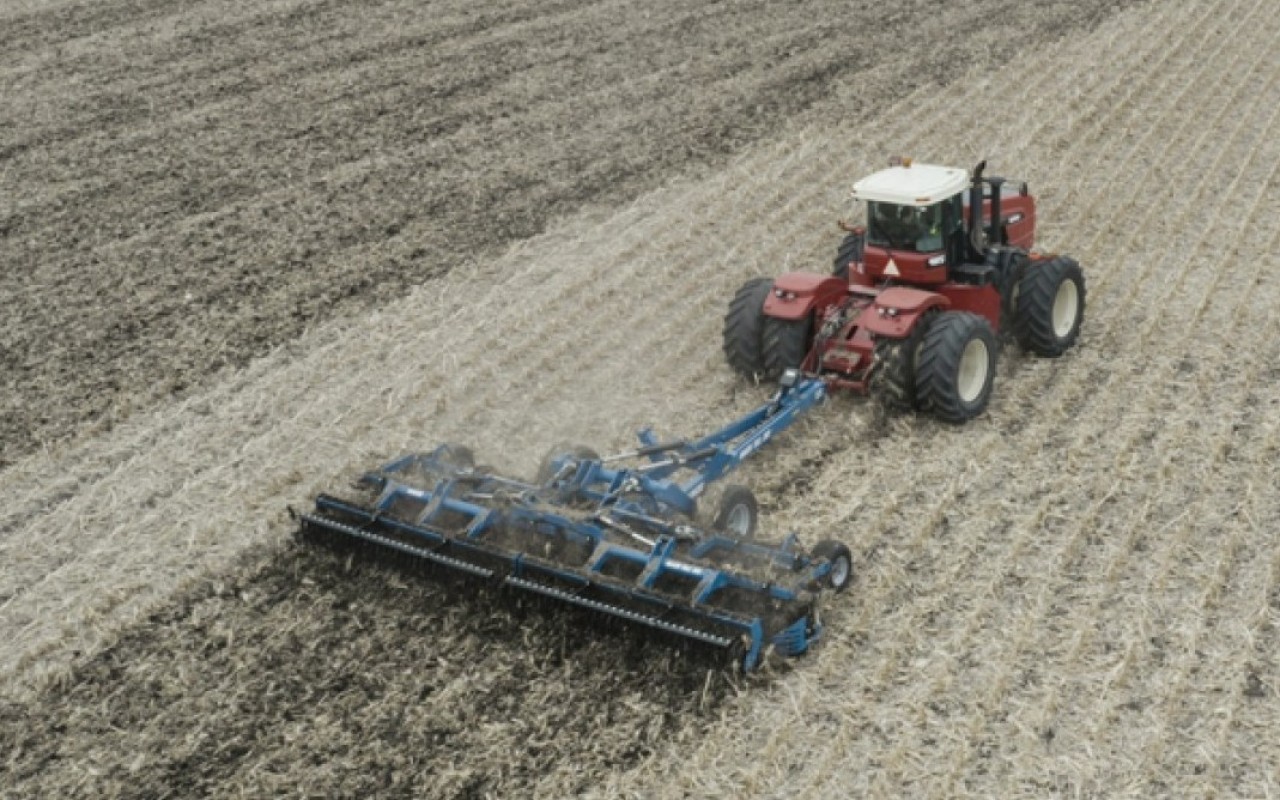

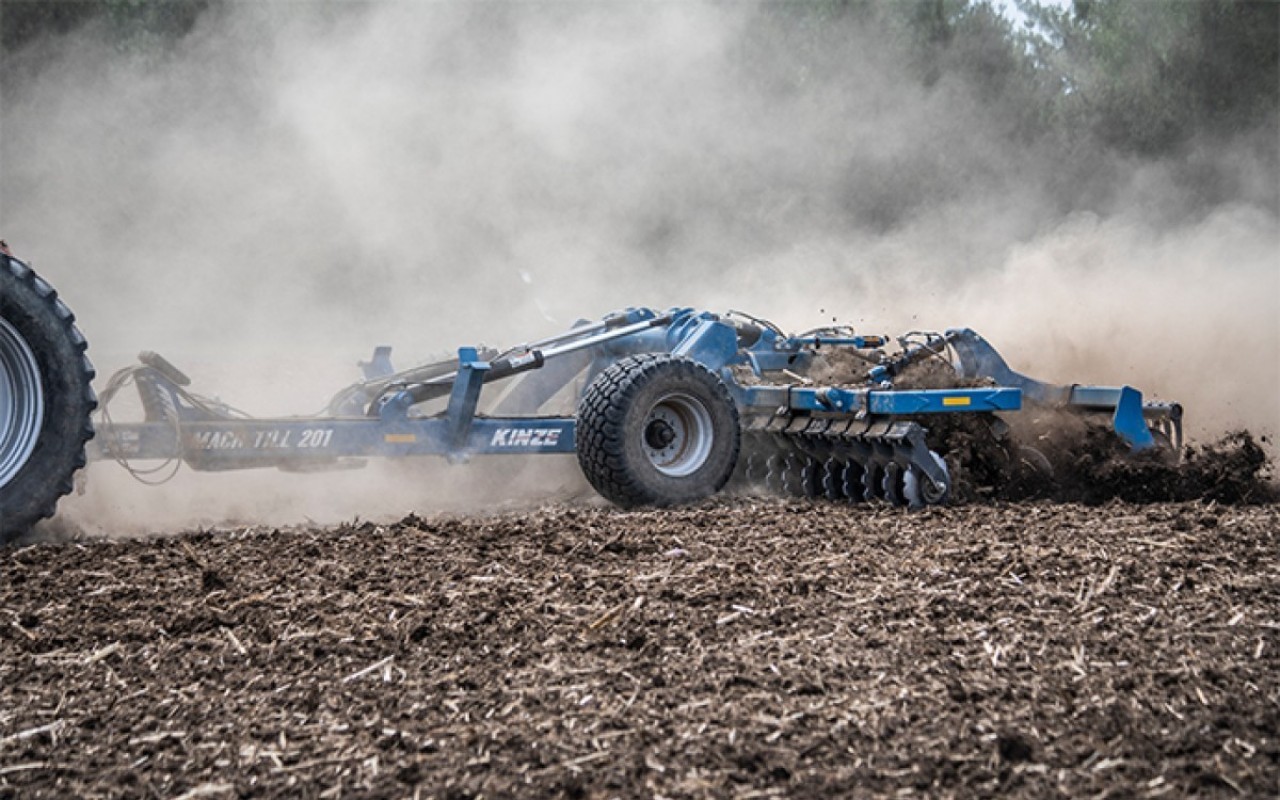

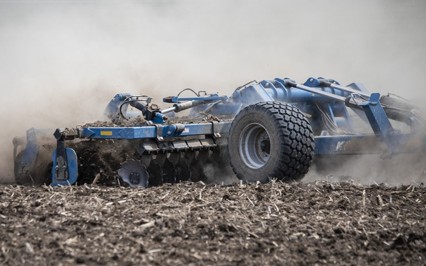

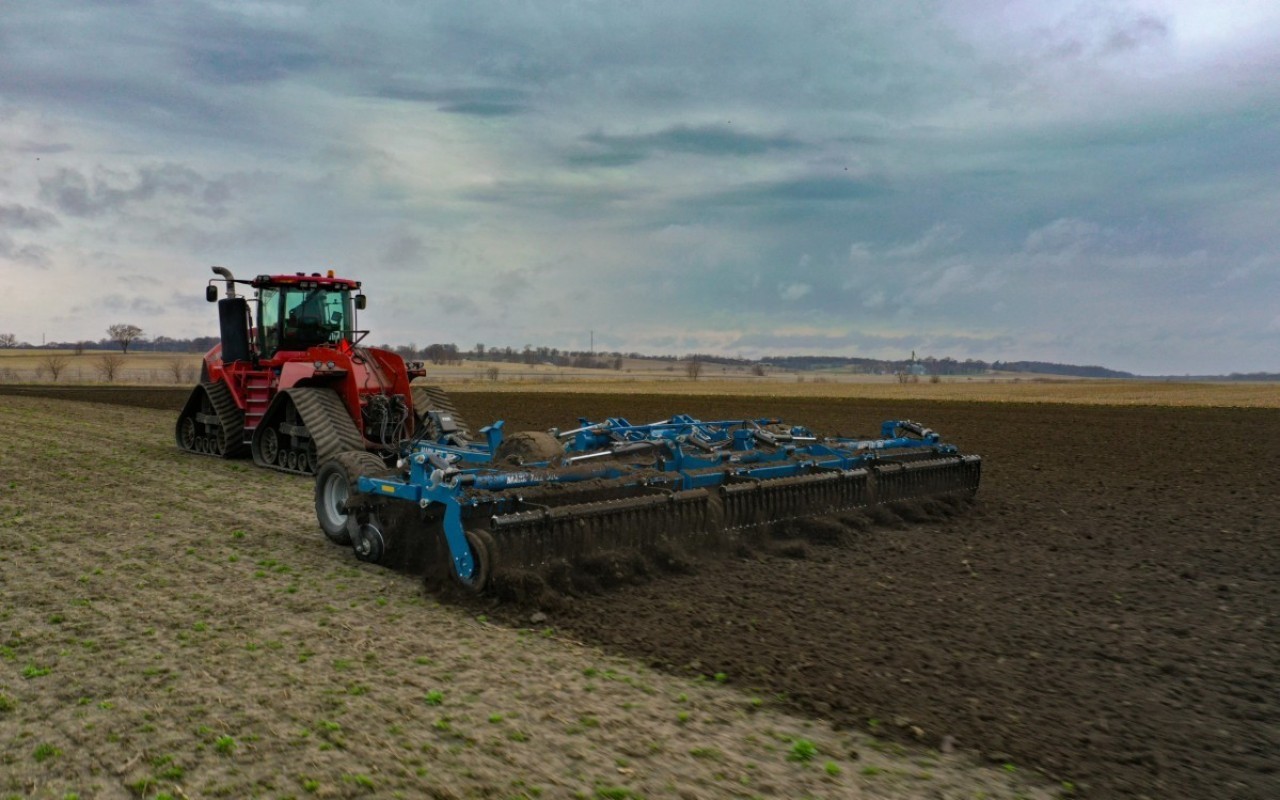

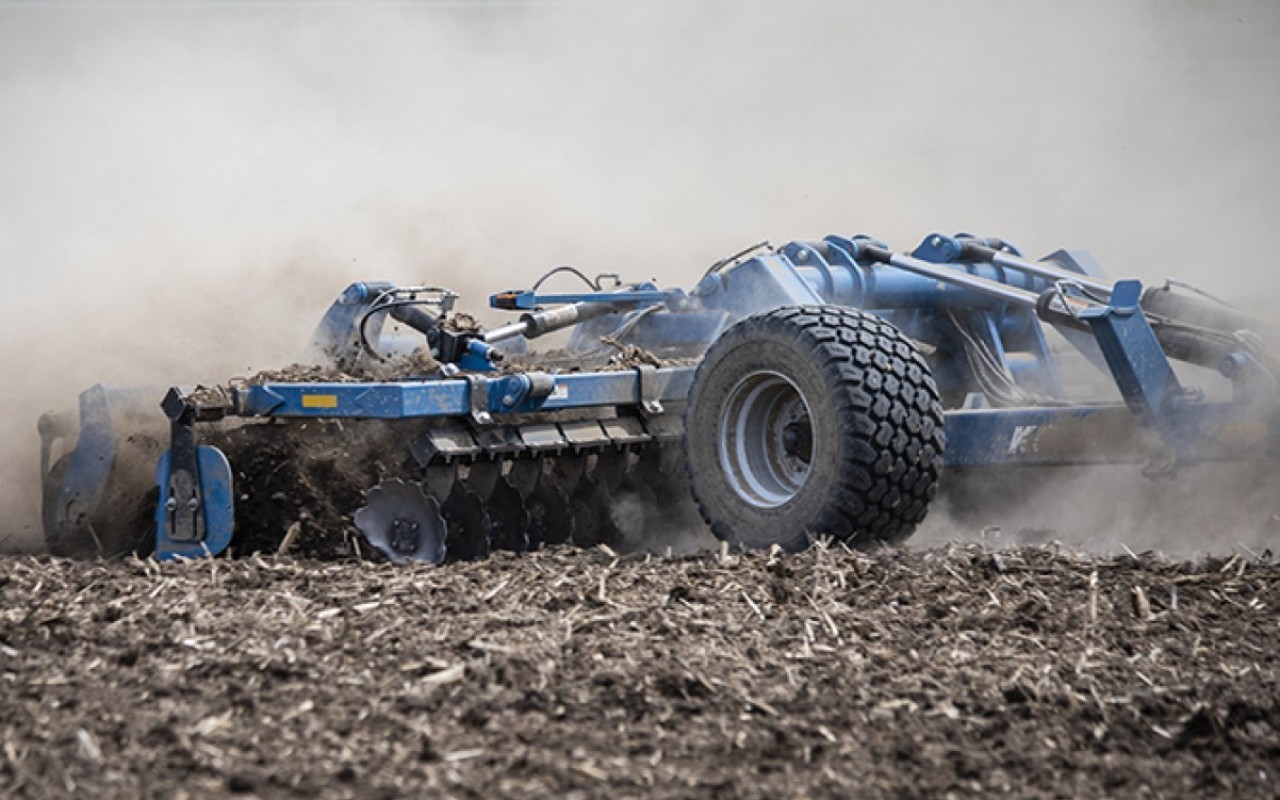

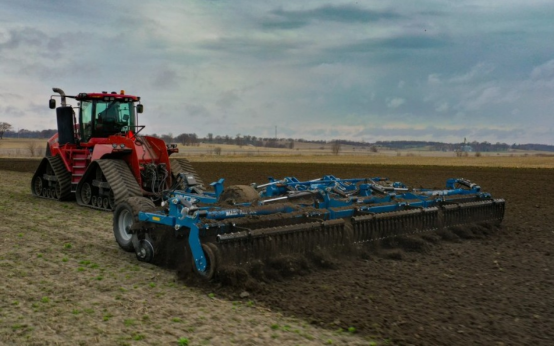

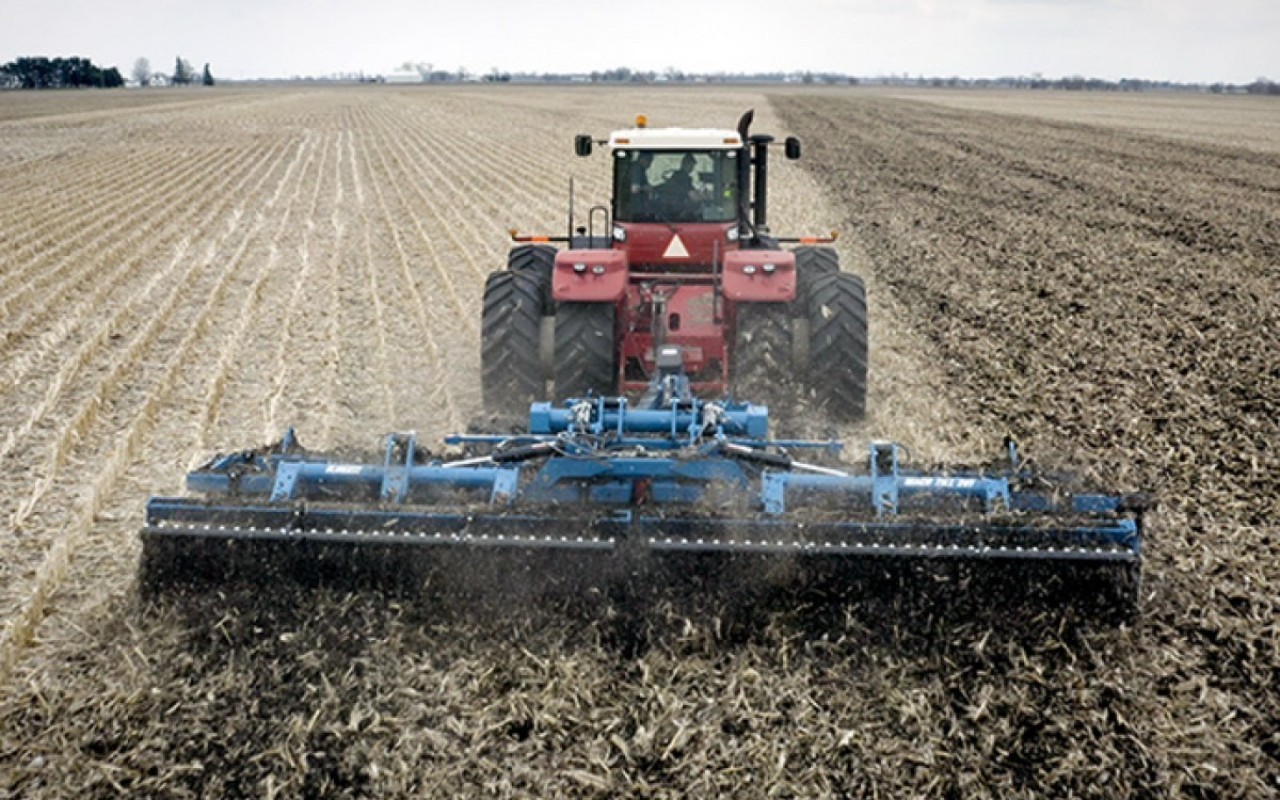

The Kinze Mach Till is a high-speed tillage solution for progressive farms that want to simplify their tillage passes, manage crop residue, and prepare their seedbed. With the ability to use the same tillage tool in both spring and fall, it provides an excellent return on investment.

This heavily built, versatile piece of farm equipment from Kinze Manufacturing operates at high speeds without compaction and has the capability of covering 30 to 60 acres per hour for improved productivity. The hybrid horizontal tillage system enhances your soil health with improved nutrient cycling and water infiltration, as well as reduces erosion. The low-maintenance design of this high-speed disc minimizes downtime and keeps it rolling through the field when it matters most.

View all discs

Contact Us Quote Request Similar Inventory


Extra Information

Product Features

Our Kinze Mach Till discs come standard with:

  • Double V 20” blades, notched front, smooth back with option of 22" blades
  • Heavy Duty Rubber Packers with Maxlite Scrapers
  • Right & Left Hand Gauge Wheels
  • 6mm disc blades
  • Floater Tires

Discs: The 20” concave smooth discs and double-V discs provide an aggressive cutting edge while eliminating soil compaction layers and feature 10” spacing to enhance residue flow and eliminate plugging.

Independent disc technology: Each disc is mounted on an independent disc arm that provides 11 ½” of clearance to avoid rocks and other obstacles while following the contours of the land.

Superior residue flow: Two rows of independently torsioned concave discs and a corrugated rubber roller work to mix, break up, and level the soil for spring seedbed preparation or fall soil and residue management.

Heavy-duty, high-flotation design: The heavy-built frame provides the weight necessary for working in all soil conditions and is supported by four high-flotation tires.

Easy, low maintenance operation: Maintenance-free double-sealed bearings, carbide roller scrapers, composite bushings, and oversized pins throughout provide many acres of low maintenance operation.

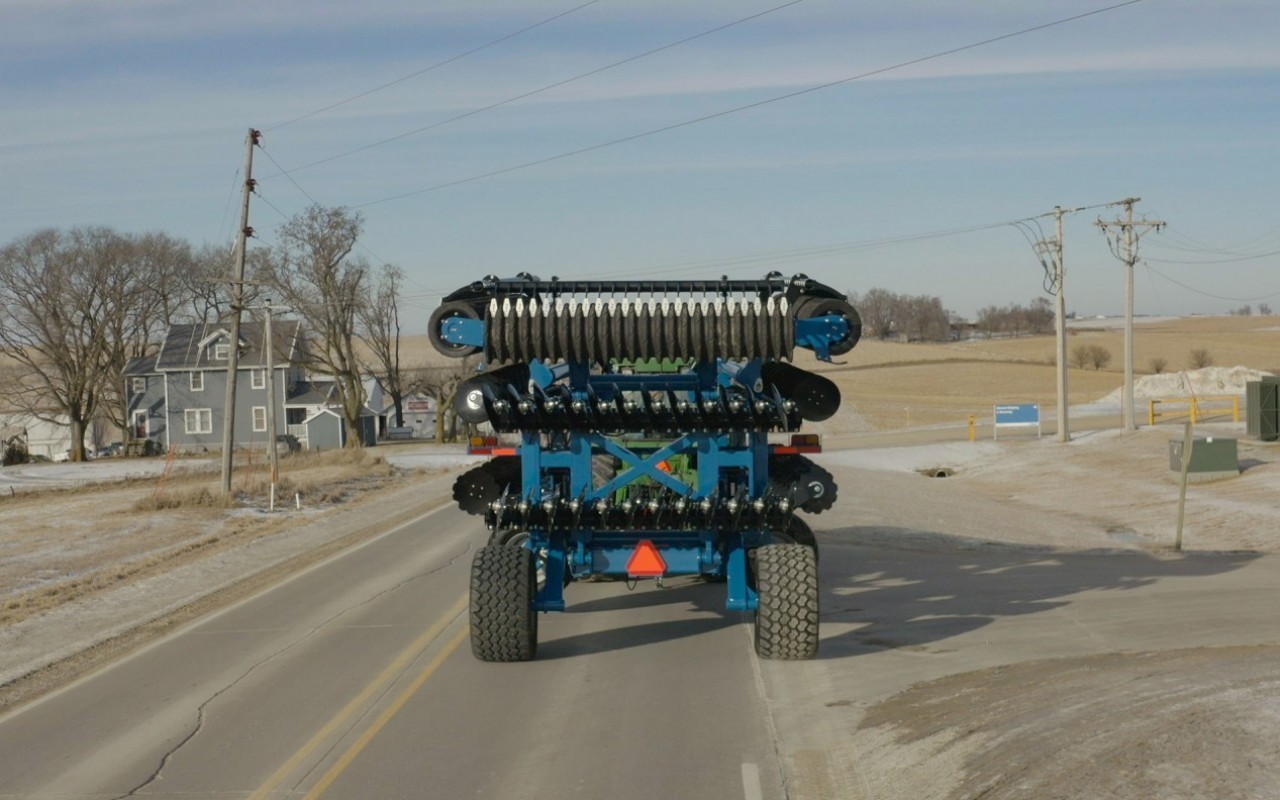

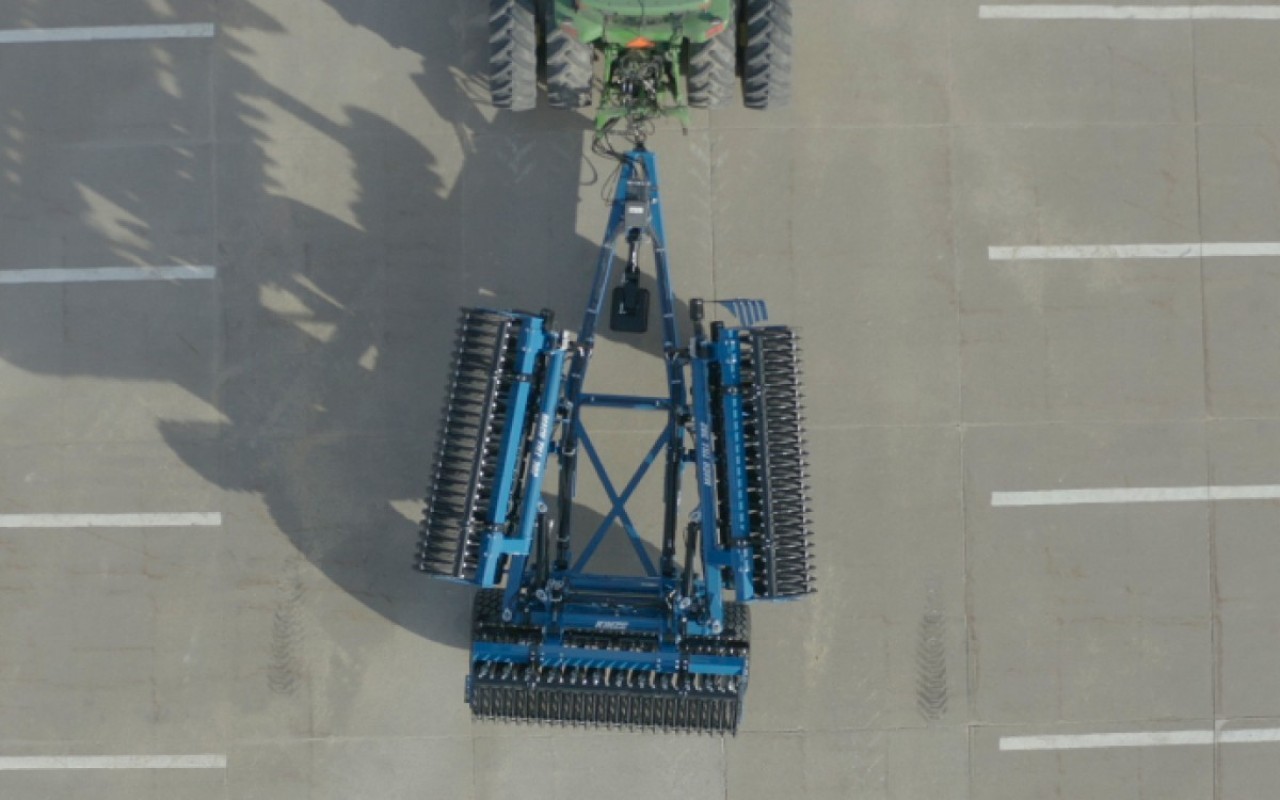

Narrow design: The narrow machine width enables safe and easy transportation from field to field. The transport width of our units range from 11 feet to 13 feet.

Kinze is a family business centered around integrity, innovation, excellence, customer focus, and respect. Established in 1965 by Jon Kinzenbaw of Williamsburg, Iowa, Kinze Manufacturing has grown into one of the largest specialty manufacturers in North America. Their lineup of high-quality products includes tillage equipment, grain carts, and more.



View Specs for All 5 Models Available » Specs

Operating Width 20' --
Required HorsePower 350 - 390 --
Average Acres/HR 25 --
Transport Width 13' - 10" --
Frame Sections 2 --
Total Weight 20,080 lbs --
Hitch Weight 4,000 lbs --
Required SCVs 4 --
