Tridekon Grain Boss Extractor


Grain Boss Extractor

Product Information

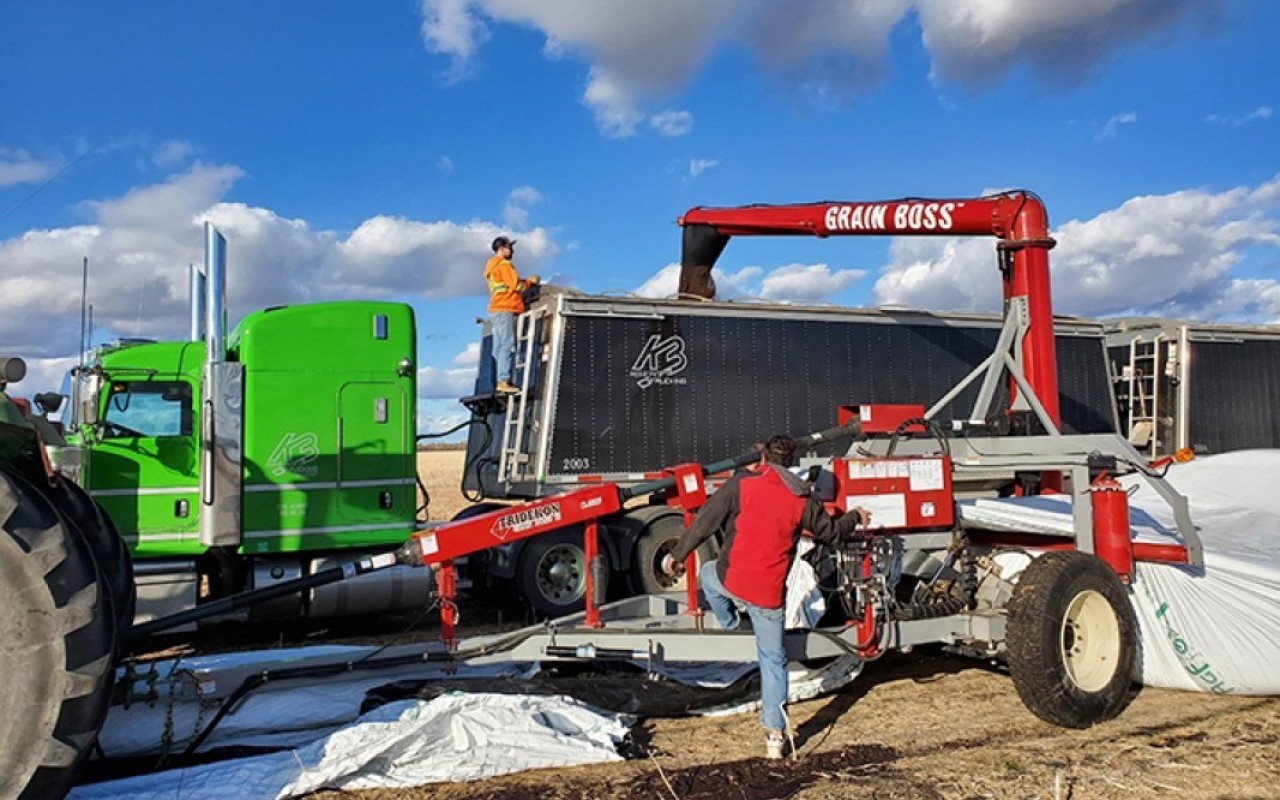

The Tridekon Grain Boss Grain Bag Extractor maximizes efficiency with superior maneuverability, versatility, and capacity. Available in both 13” and 16” models, the Grain Boss will handle all your grain bag extracting requirements.

Canadian-made for Canadian winters, the Tridekon grain bag unloader can move up to 300 bushels per minute in all terrain – including mud and snow. The 540 PTO direct drive system pulls the extractor through the bag, while the steerable drive wheels allow for on-the-go adjustments to correct for a crooked bag or to keep the tractor in line. Featuring a 360° unloading auger, a narrow pull-through roller design, and a high-capacity output auger, the Tridekon Grain Boss will minimize downtime and increase productivity.

Contact Us Quote Request Similar Inventory

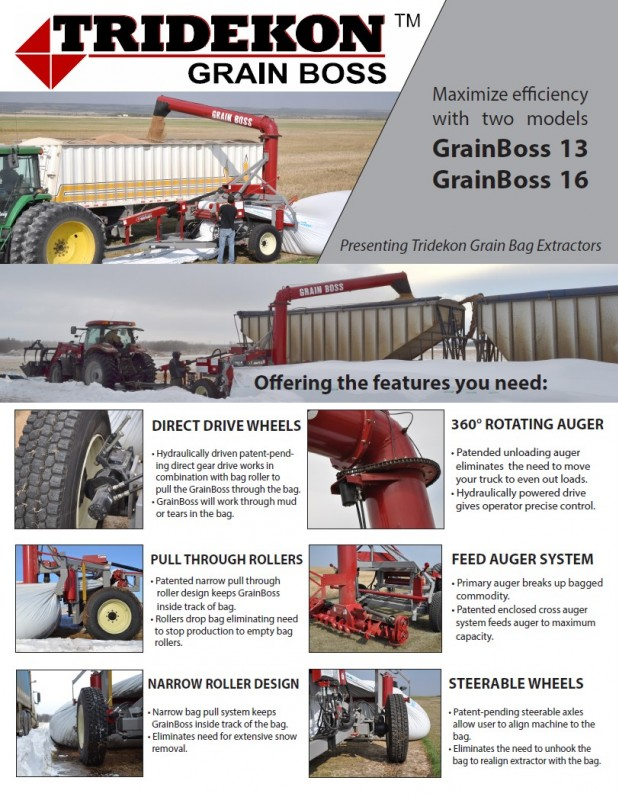

Features

  • 360° Unload Auger & High-Capacity Output Auger

    360° Unload Auger & High-Capacity Output Auger

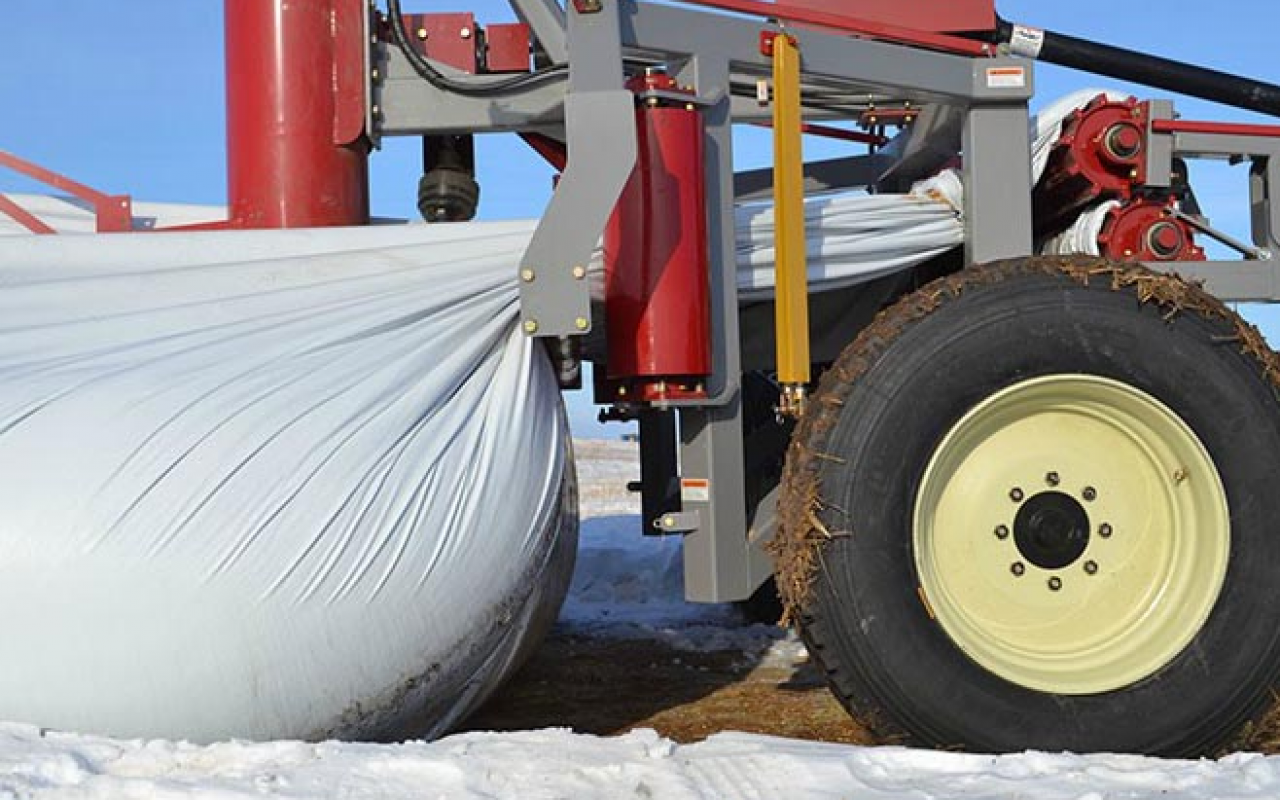

  • Pull-Through Roller Design

    Pull-Through Roller Design

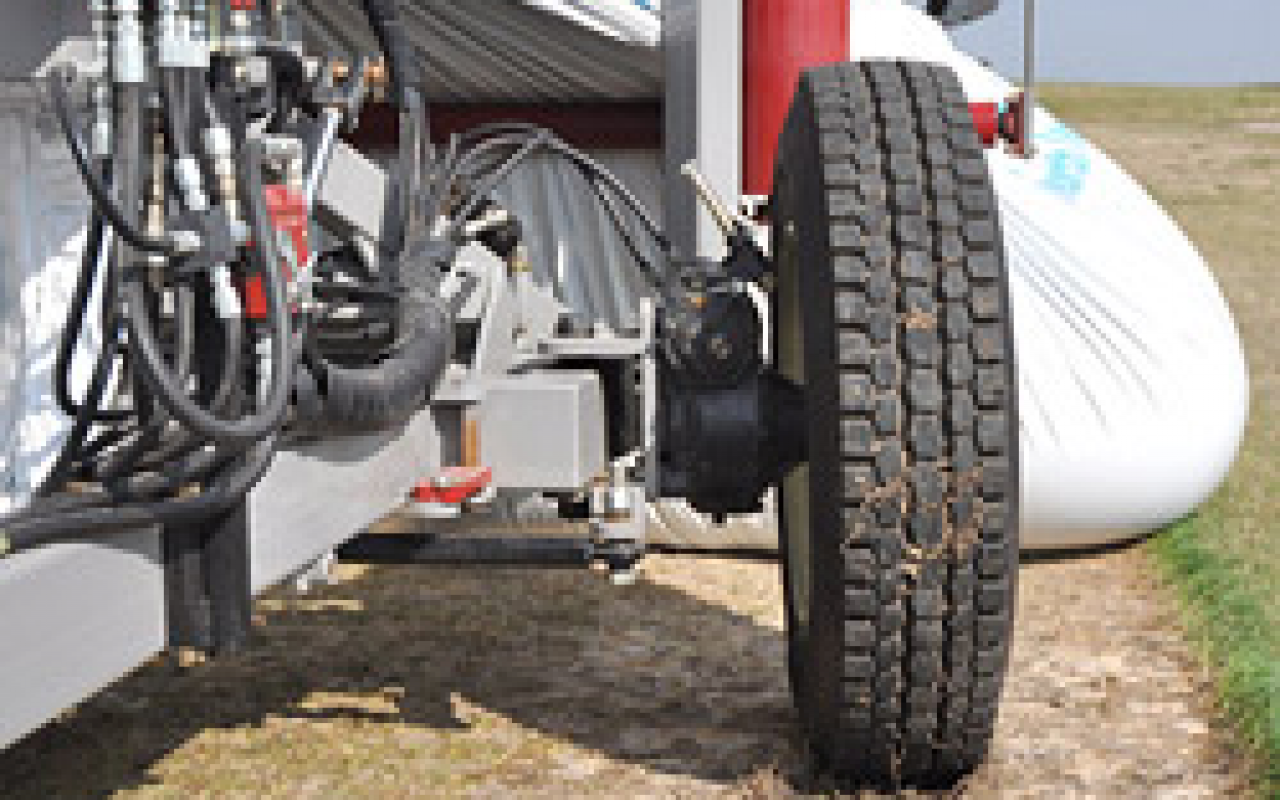

  • Steerable Drive Wheels

    Steerable Drive Wheels

  • Quick Set Up & Clean Up

    Quick Set Up & Clean Up



Extra Information

Capacity: The high output auger moves 300 bushels per minute (16” model) and 200 bushels per minute (13” model).

Alignment: The steerable wheels ensure the extractor is always aligned with the grain bag.

Maneuverability: The combination of the narrow roller and pull-through roller design, along with the direct drive wheels, allows for easy maneuverability through bags that have tears, holes, and bends – even in snow and mud.

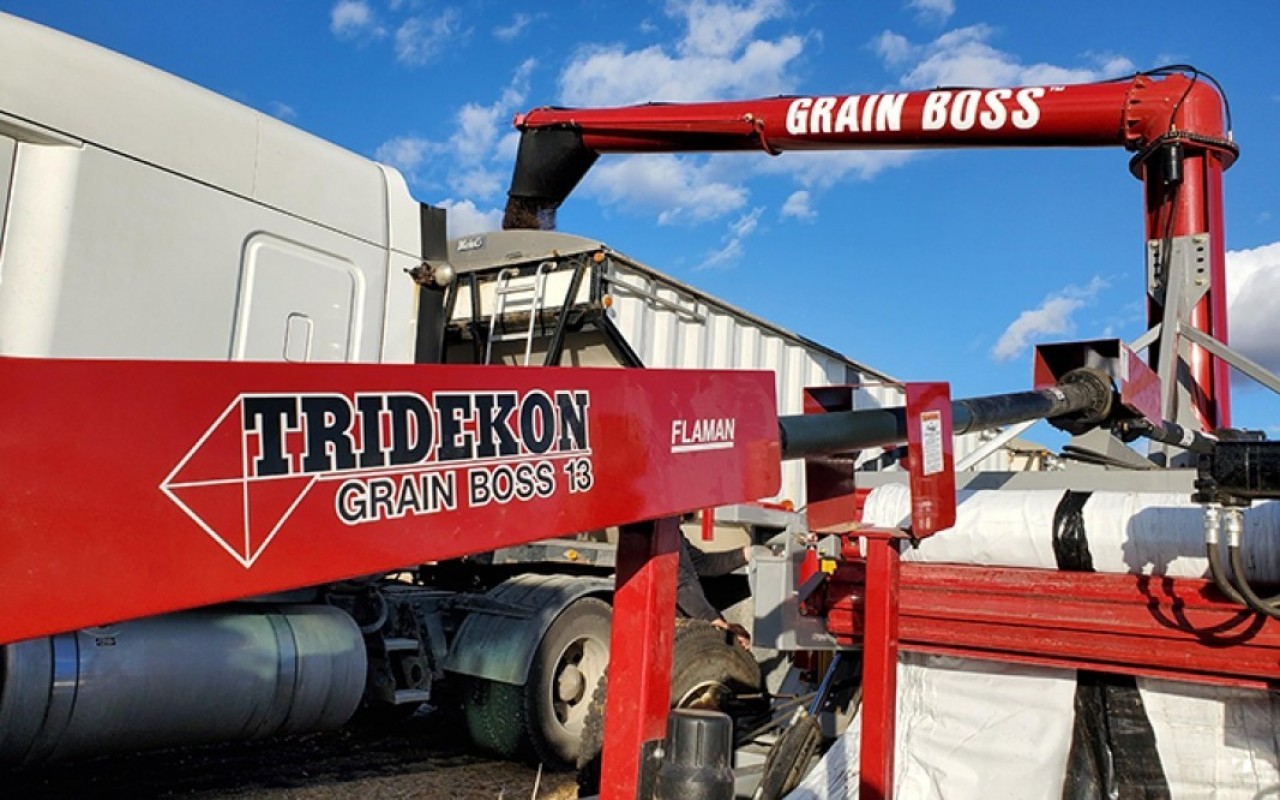

360° Rotating Auger: The unloading auger allows for unloading on both sides of the machine and can easily be operated by a single user. The hydraulically powered drive gives the operator precise control.

Versatility: The extractor works with 9’ – 12’ diameter grain bags and has the capability of unloading grain into a field or shed.

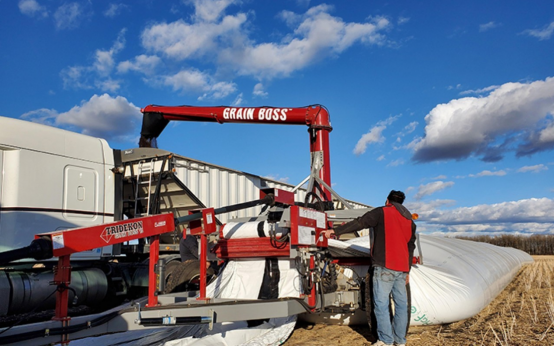

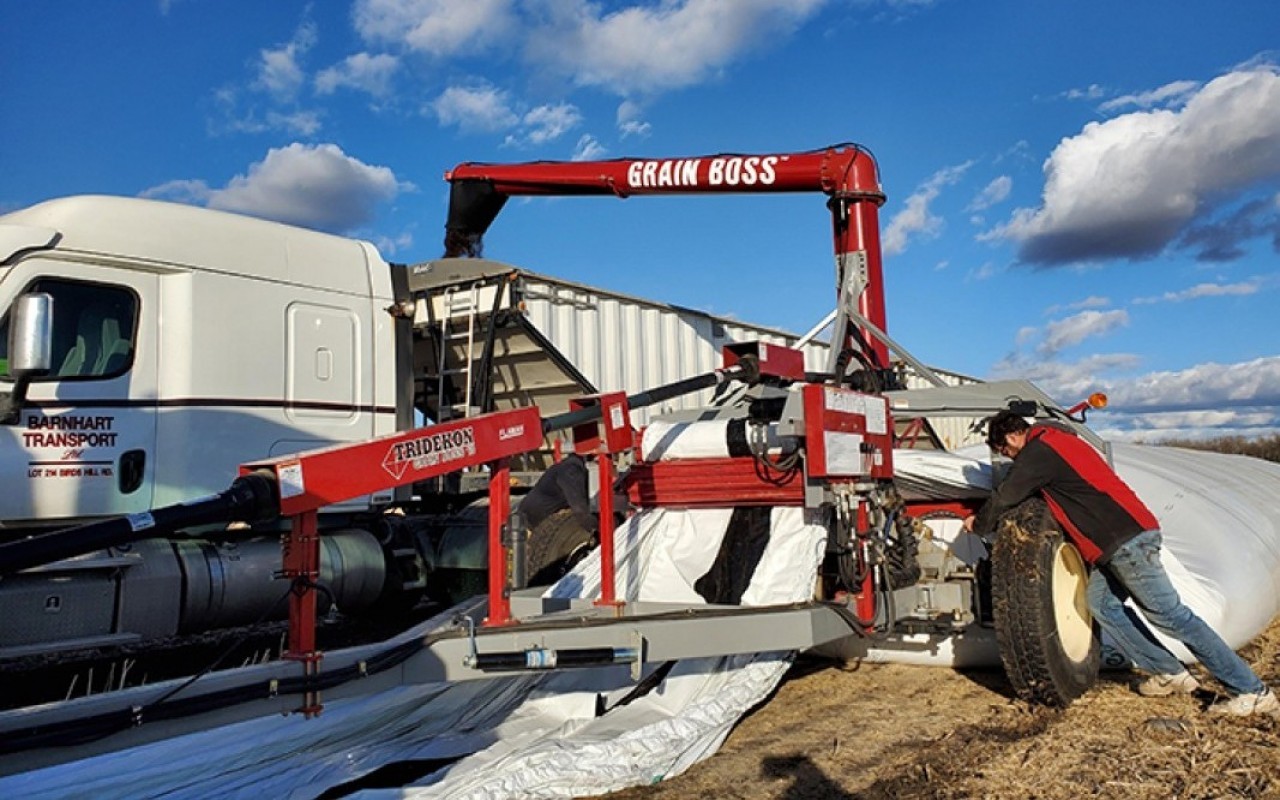

Set Up and Clean Up: Hooking up the extractor to a grain bag is quick and easy, and the empty bag only needs to be dealt with once after the work is done. The extractor can be folded into transport mode in under one minute.

12’ Bag Extensions: To more effectively and quickly clean out the larger 12’ diameter bags, cross auger extensions are available as an option. These extensions couple onto all Grain Boss extractor models in minutes.



Specs

Height 14'4" 14'4"
Transport Width 12' 12'
Length 23' 23'
Weight 5,984 lbs 6,952 lbs
RPM 540 540
Oil Flow 6 gallons 6 gallons
Oil Pressure 2000 PSI 2000 PSI
Auger Diameter 13" 16"
Min. Horse Power 120 HP 160 HP
Capacity 12,000 bu/hr 200 bu/minute 18,000 bu/hr 300 bu/minute
