Extra Information

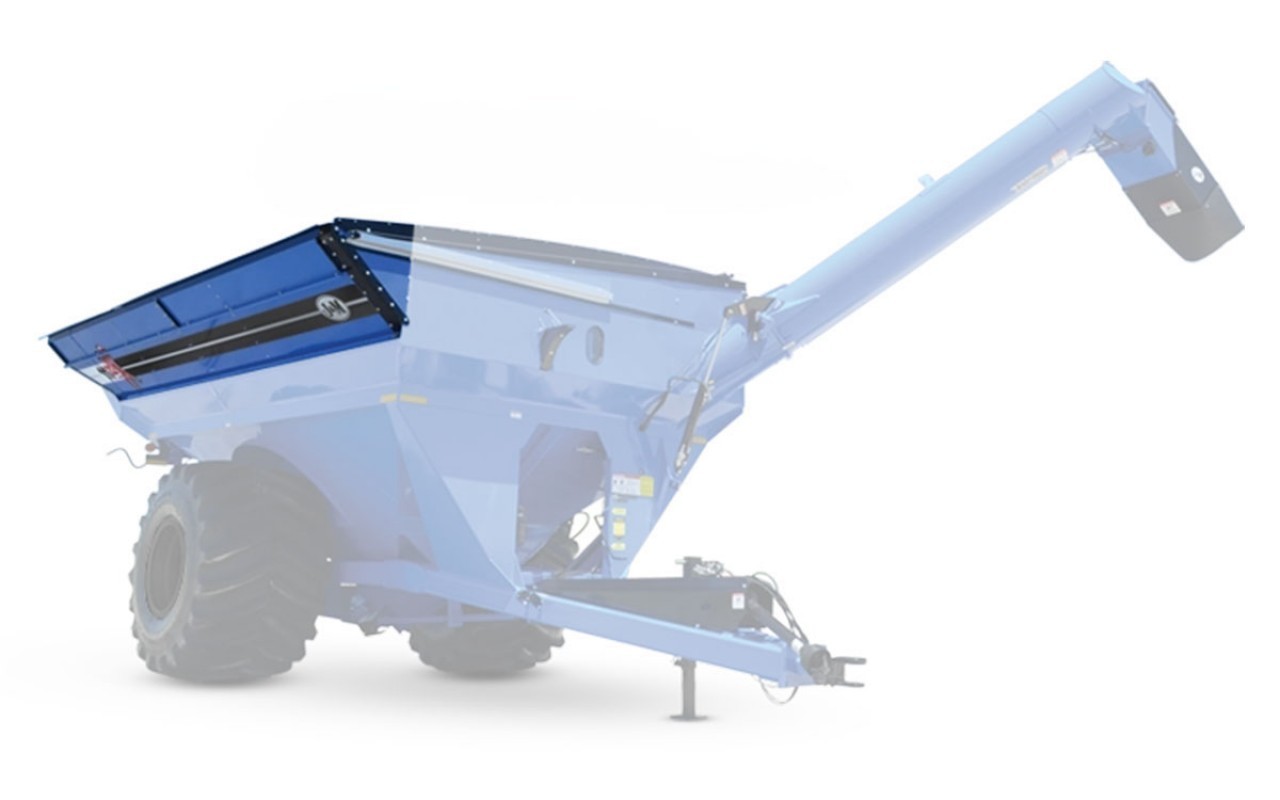

The low side of the 12 Series grain cart features a bolt-on tank design that extends toward the combine auger for an additional two feet. The same feature appears on 22 Series X-Tended Reach models, along with J&M’s patented leaner tank design. J&M grain cart's straight auger design offers equal side reach and greater forward reach compared to the competitor’s bent auger design.

Other Features

Other features include iFarm Scale, Rolling Michel's Tarp, 1 ¾” PTO drive, and J&M X-Tended Reach Grain Carts with Special Edition Canadian Decal Package.

Heavy-duty components keep your grain cart rolling for years, even in extreme conditions.

• 20-bolt hub with  2.4 million ft.-lbs. of holding force
• Gearboxes with solid 2" output shaft
• Inner and Outer Gearbox Bearings rated at 6,900 and 7,000 lbs.

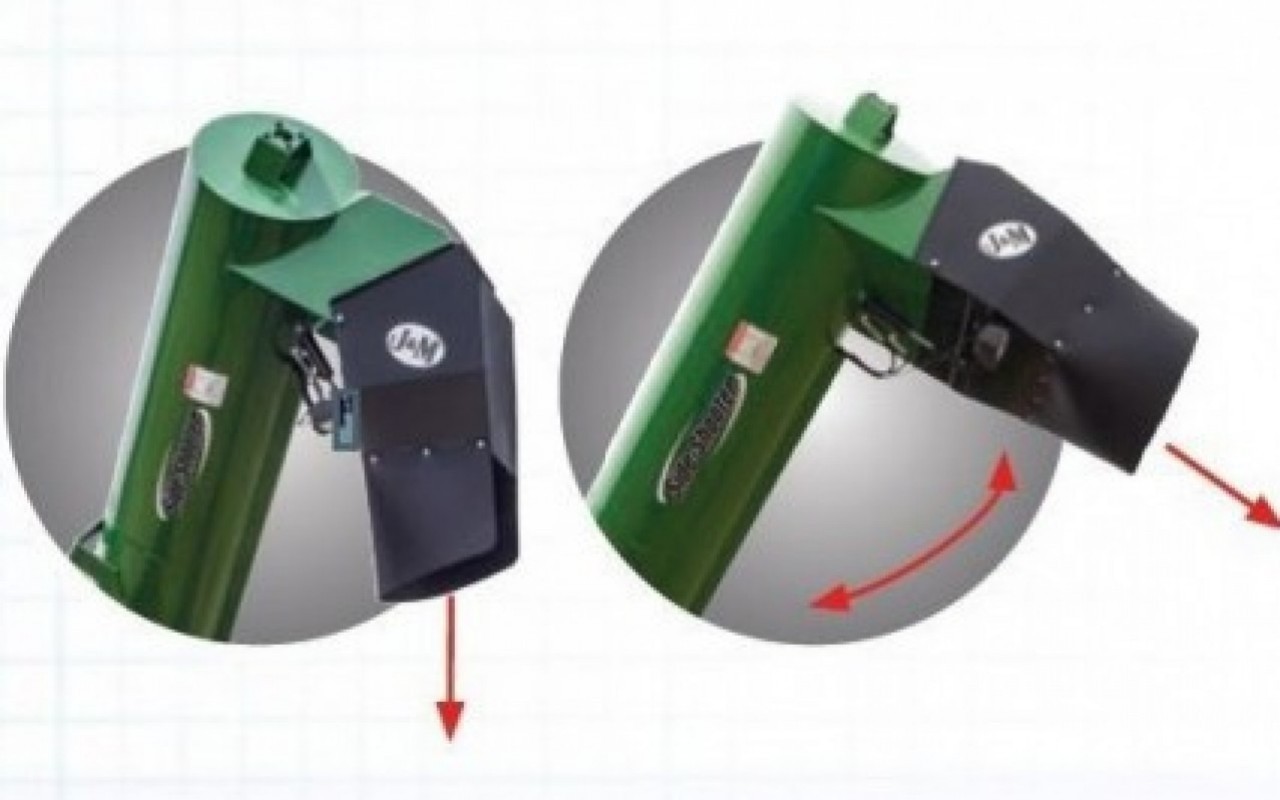

3-Position Auger with telescoping hydraulic flow control spout.

• Storage Position to keep auger within footprint during storage and transport.
• Field Position to keep stress off auger hinge and raise the auger off the ground.
• Unload Position extends the auger, giving you maximum upward, outward, and forward reach while unloading.

V-Truss Axle Added Strength Prevents Twisting or Bending

Heavy-duty steel and a reinforced V-Truss Design resist bending and twisting to protect the cart from premature wear. Standard on all single-wheel carts.

Advanced Augers and Flighting

Augers are computer-balanced within 1 oz. and feature reinforced flighting at key wear points plus 7/16” flighting 7” or 10” intake pitch for optimum speed and durability.

Superior Cleanout

Tank design allows grain to enter the sump at different speeds. This creates a boiling effect that prevents bridging - even in high-moisture grains.

Undercarriage Options

Single Wheel: Featuring 1250/50R32 flotation tires and heavy-duty 20-bolt hubs, designed to float a gross load of a 1500-bushel grain cart over whatever you encounter.

Walking Tandem Dual Wheels: Overcome rough, uneven terrain with exclusive walking tandem dual wheel undercarriage.

Track Systems: Designed to minimize compaction with a larger pound-for-pound footprint than competitors and ground pressures below 15 psi. Two track system options offer oil bath hubs, self-lubricated sleeve bearings, and spring tensioner for virtually maintenance-free day-to-day operations:

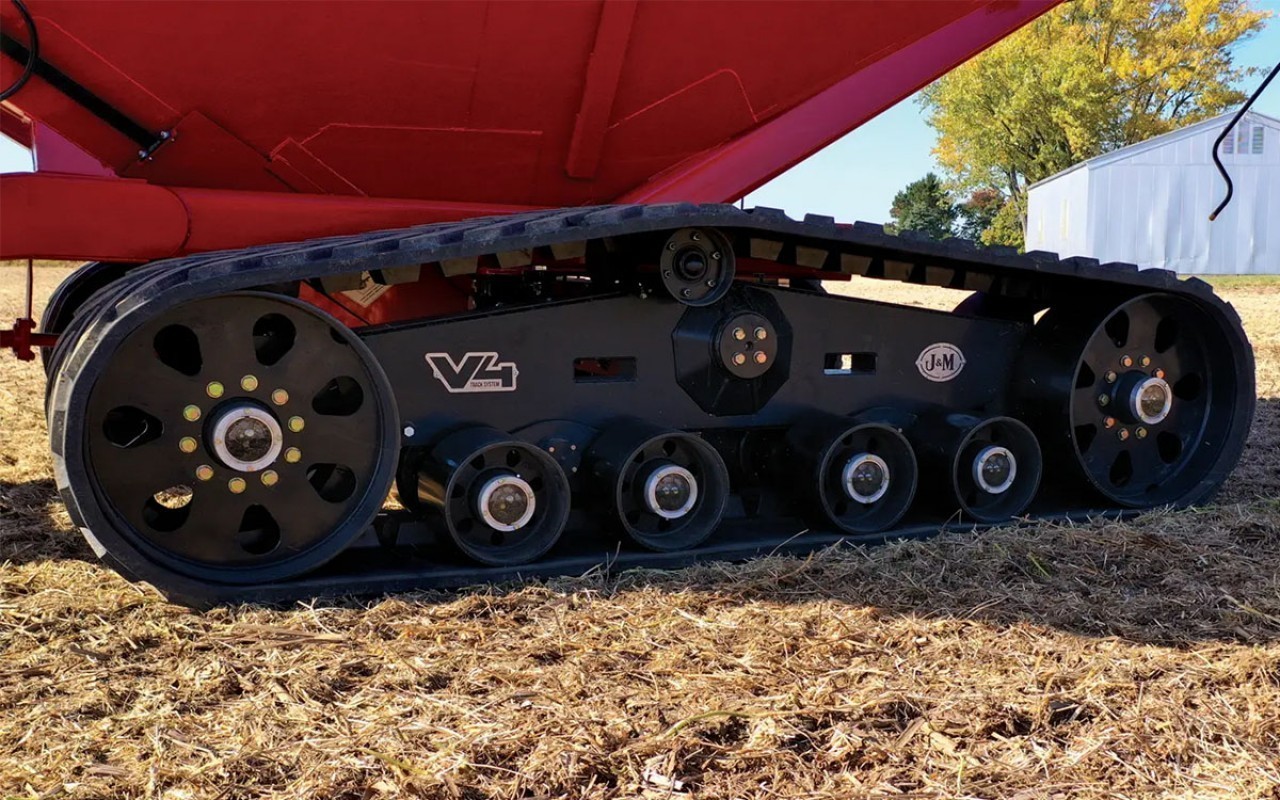

V4 Track System, with easy swivel-hitch adjustments, set-it-and-forget-it tensioner, and upper tensioning roller to limit belt flop.

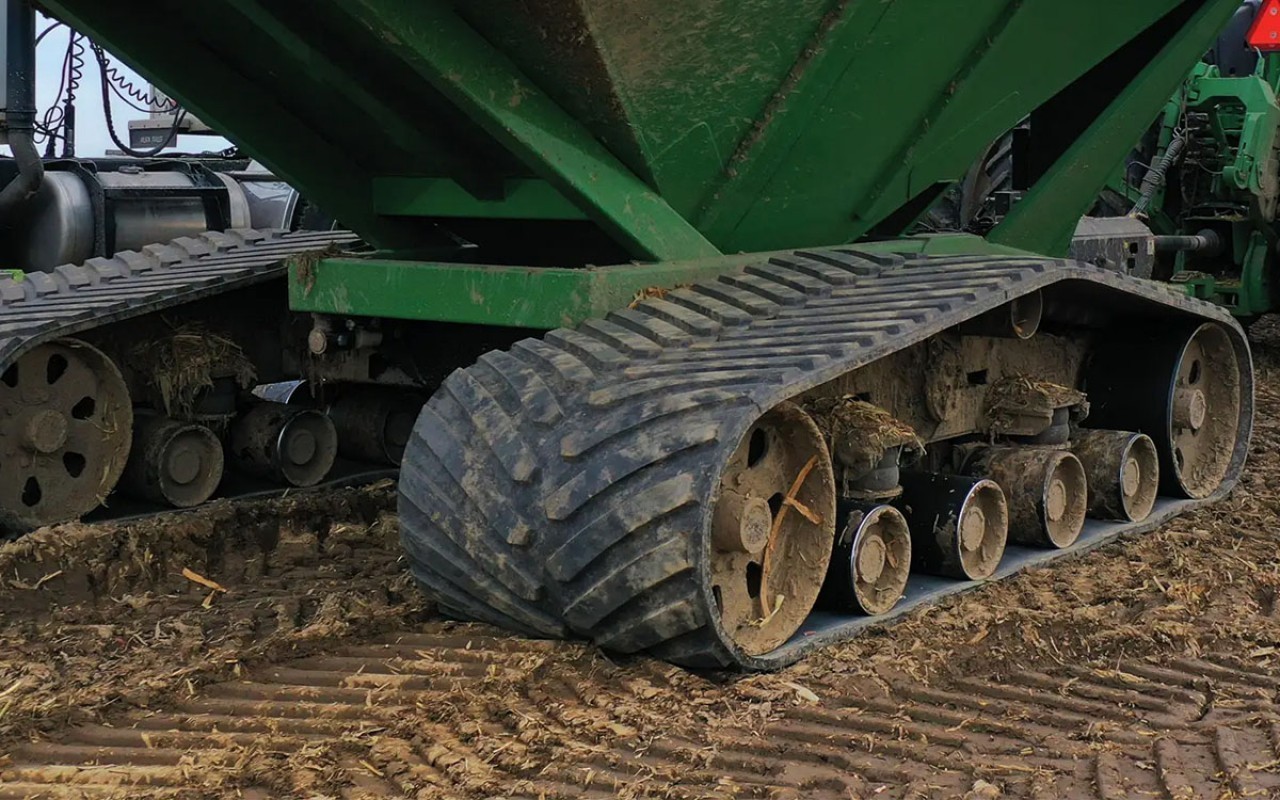

Stabilizer Trax2 System, designed for longer tank life and less maintenance with all standard J&M track features plus patented track suspension for less tank vibration, easier climbing, and the industry’s strongest bearing set.

Options

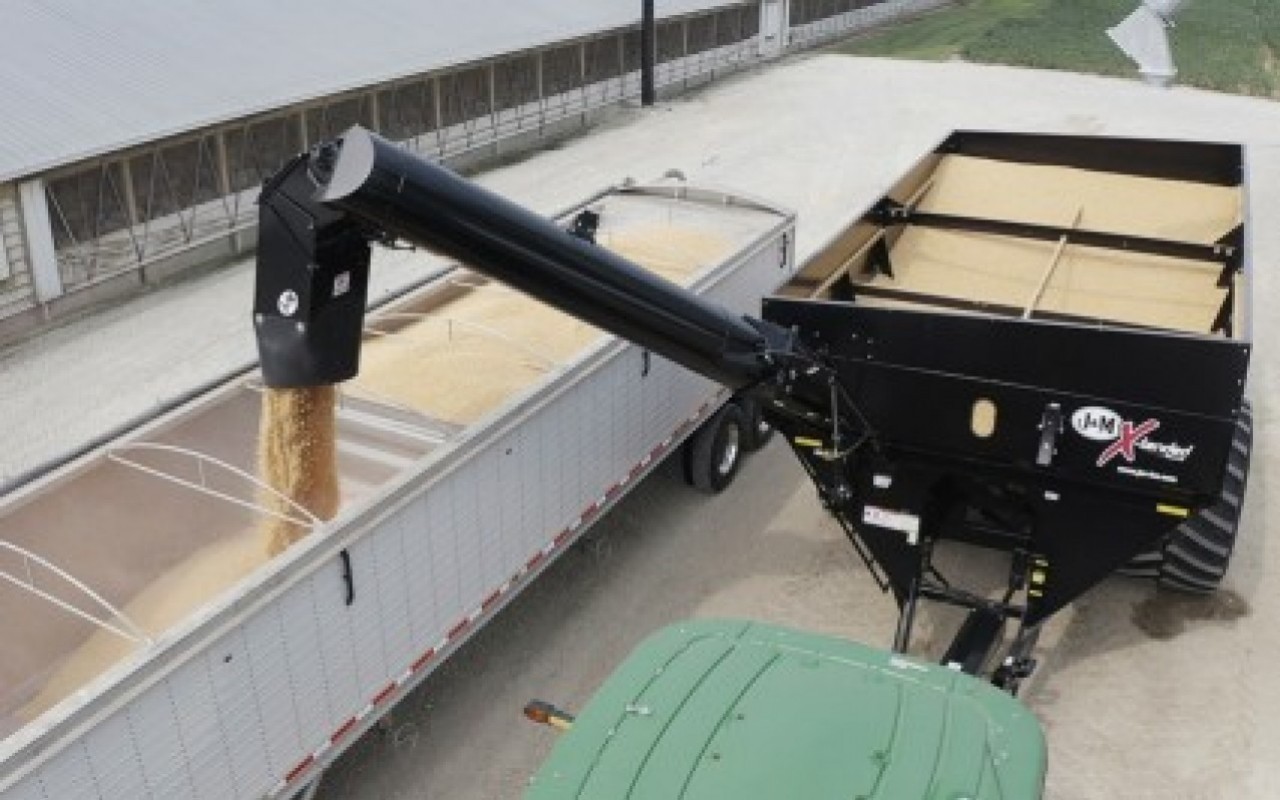

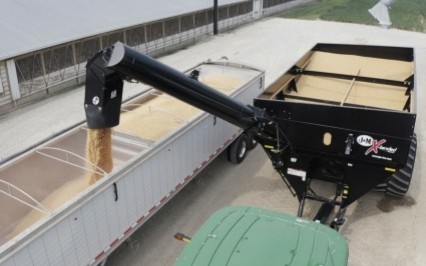

Right-hand Discharge – On select X-Tended Reach models - more visibility, comfort, and access to controls while unloading.

Swivel Ball Hitch – Tight 45-degree articulation eliminates grain cart “slam,” reducing shock loads on both your tractor and grain cart.

Scale and Scale Add-Ons Options – accurate readings for crop tracking, semi-loading and documenting crop-sharing and insurance records.

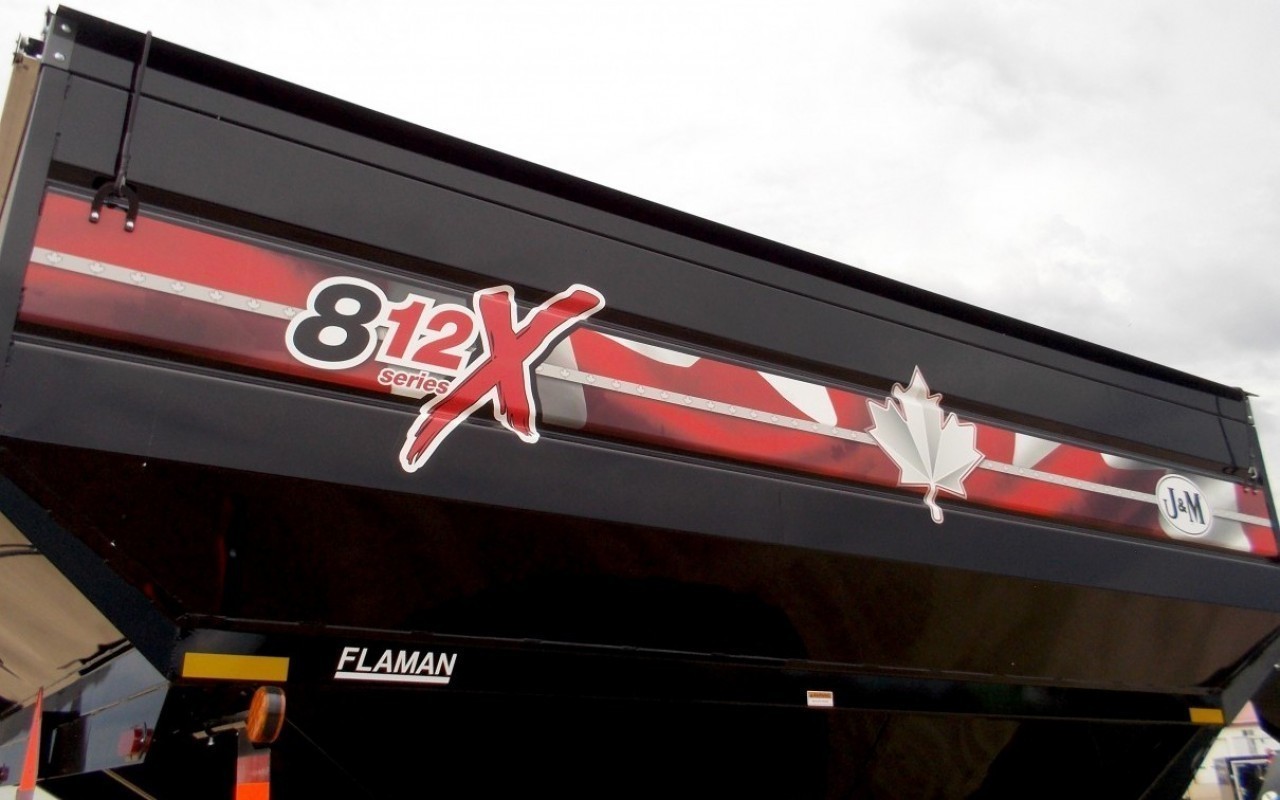

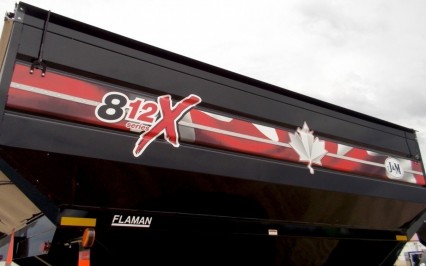

Canadian Decal Package – Show you patriotic colours with Special Edition maple leaf decal.

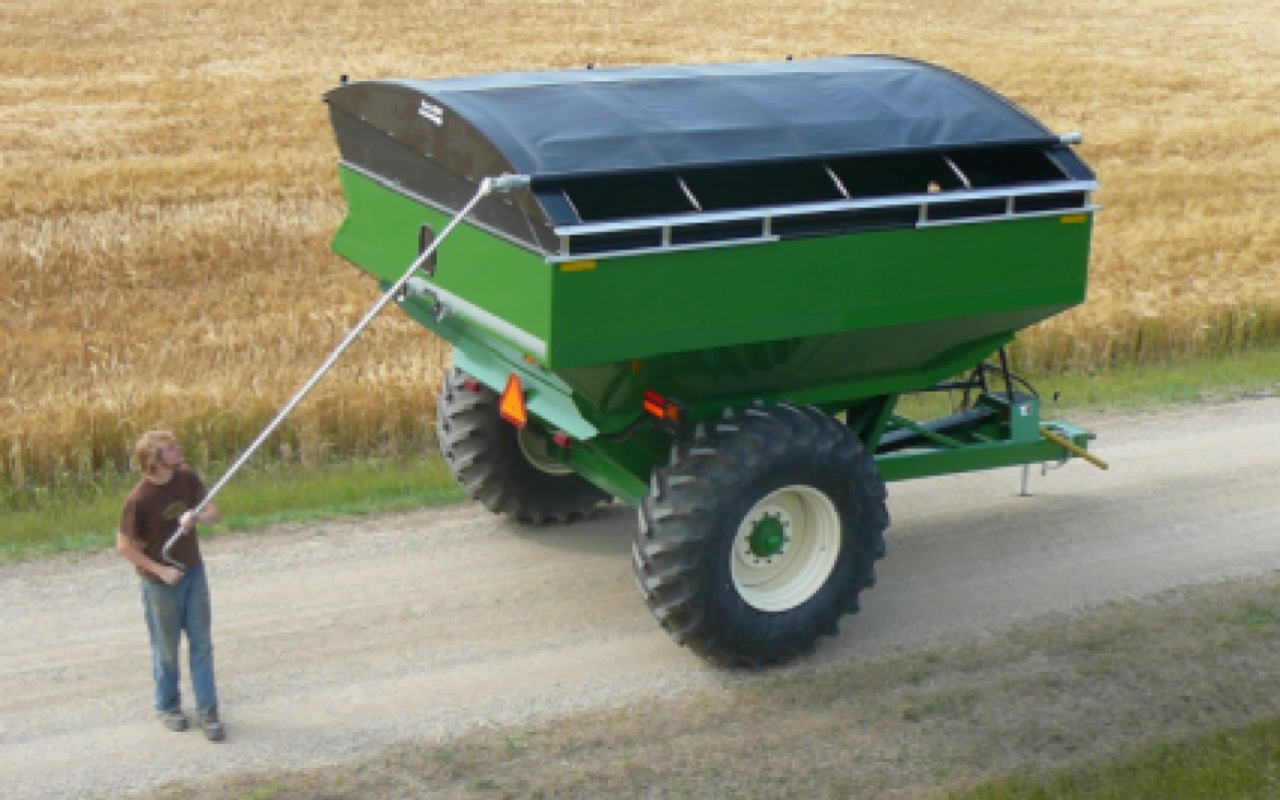

Roll Tarp Kit – Keep commodities safe during unpredictable harvest season weather. 18 oz. Glide Right system with grooved rollers, front and rear return springs. Consistent tracking, prevents misalignment, binding, and uneven rolling. Electric roll tarp option available.

Where to Find J&M 12 and 22 Series Grain Carts

Our Grain Cart experts will be happy to tell you more about the features, options, and benefits of these 12 Series or 22 Series X-Tended Reach Carts and help you find the model best suited to your grain operation. Call or visit your nearest of our 11 Flaman locations across Alberta, Saskatchewan, and Manitoba.
