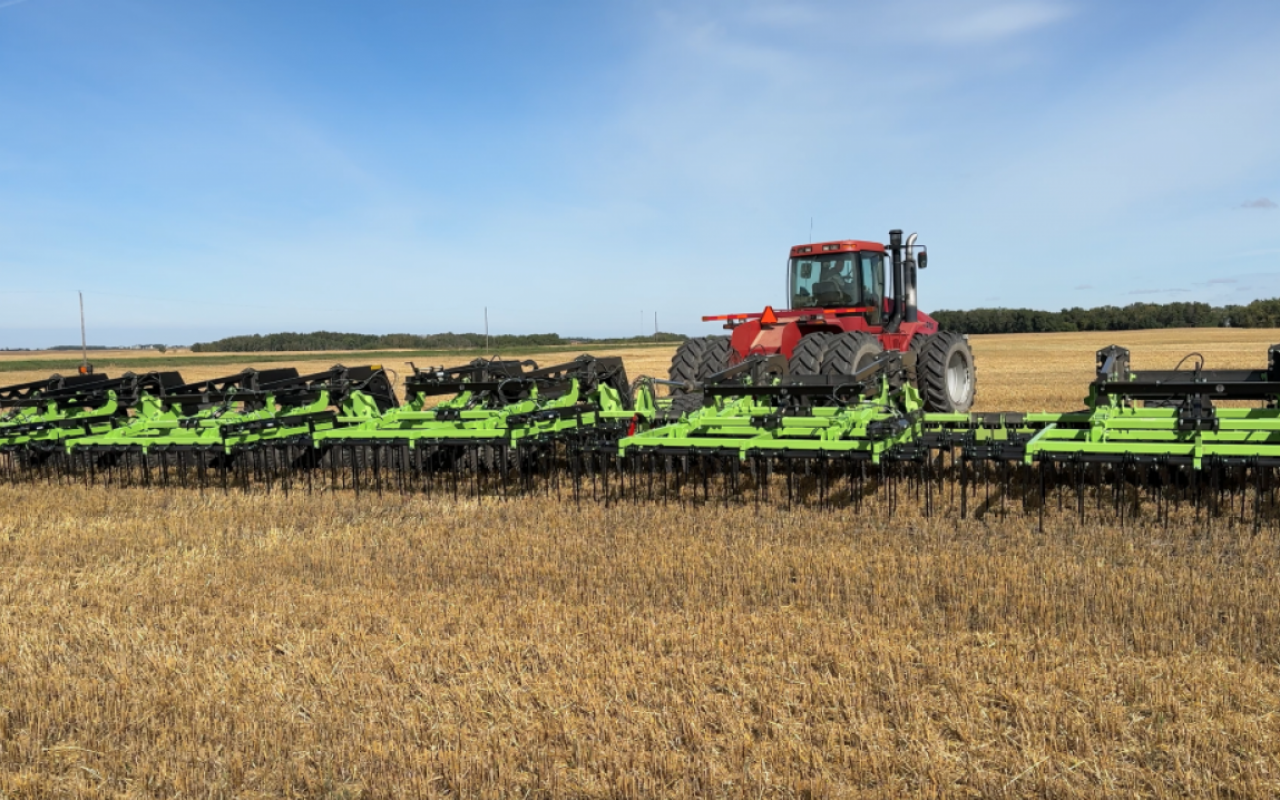

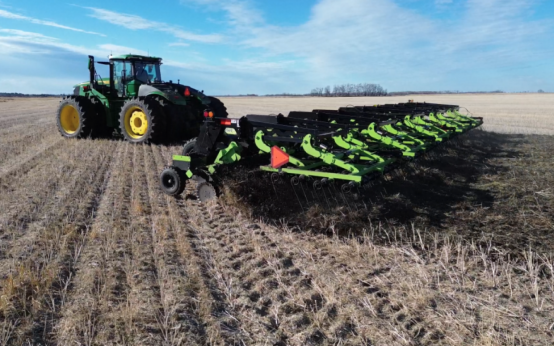

Here’s how the 36 ft Schulte THX360 and 60 ft THX600 till harrows improve your post-harvest and pre-seeding prospects. Both tear through heavy, post-harvest straw and chaff, improving your field’s water penetration, soil warming, and weed germination for pre-seed burn-off. It’s a two-step, two-wave process:

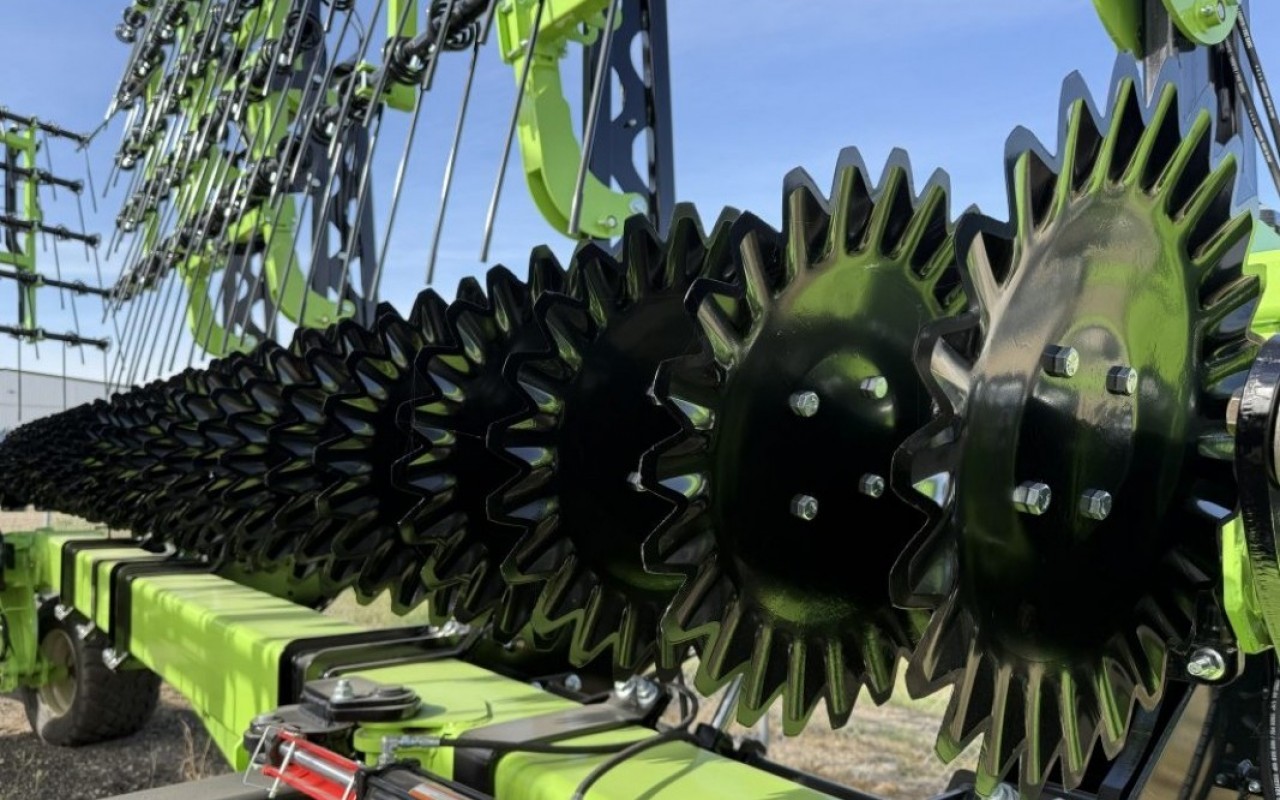

- A single row of 20 inch, 10-degree concave discs on 8.5”inch spacing hits the ground, sizing the straw and mixing the chaff into the top layer of your soil.
- The five-bar heavy harrow evenly distributes, levels and breaks up residue the discs discharged with its 5/8 x 26 inch tines.
Extra Information
Features
- 4-bolt service-free hub: Includes a rubber torsion shank, specially designed to follow the ground and last long.
- Single point depth control: Simple slide movement sets disc depth.
- Durable harrow tine coil design: Outside of tines is wider to reduce working stresses in the field.
Spring, Manual Hydraulic or Electronic Hydraulic Harrow Force Control: All three options increase or lessen the force against your harrows, due to ground conditions. The spring option adjusts harrow-spring down pressure only. The two hydraulic options allow you to move the tines up or down via the hydraulic cylinders. The manual option works via a valve on the hitch, and the electronic option is controlled from your tractor cab.
- Cable-Free Wing Knuckles: No more catching. Cast-iron knuckles feature a hydraulic-actuated lock with a lock pin to prevent unwanted actuation while you’re working.
Get the Till Harrow advantage working in your fields. Contact your local Flaman location today and ask for more on our Schulte THX360 and THX600.
Specs
| Working Width | THX-360 36 feet | THX-600 60 feet |
| Transport Width | 15 feet 3 inches x15 feet | 15 feet 3 inches x15 feet |
| Transport Length | THX-360 - 33 feet 6 inches | THX-600 - 45 feet |
| Main Frame | 12 x 12 inch tubing with 3/8 inch thick walls | 12 x 12 inch tubing with 3/8 inch thick walls |
| Section Width | 12 feet | 12 feet |
- Working Width
- Transport Width
- Transport Length
- Main Frame
- Section Width
-
THX360
- THX-360 36 feet
- 15 feet 3 inches x15 feet
- THX-360 - 33 feet 6 inches
- 12 x 12 inch tubing with 3/8 inch thick walls
- 12 feet
-
THX600
- THX-600 60 feet
- 15 feet 3 inches x15 feet
- THX-600 - 45 feet
- 12 x 12 inch tubing with 3/8 inch thick walls
- 12 feet
