Product Information

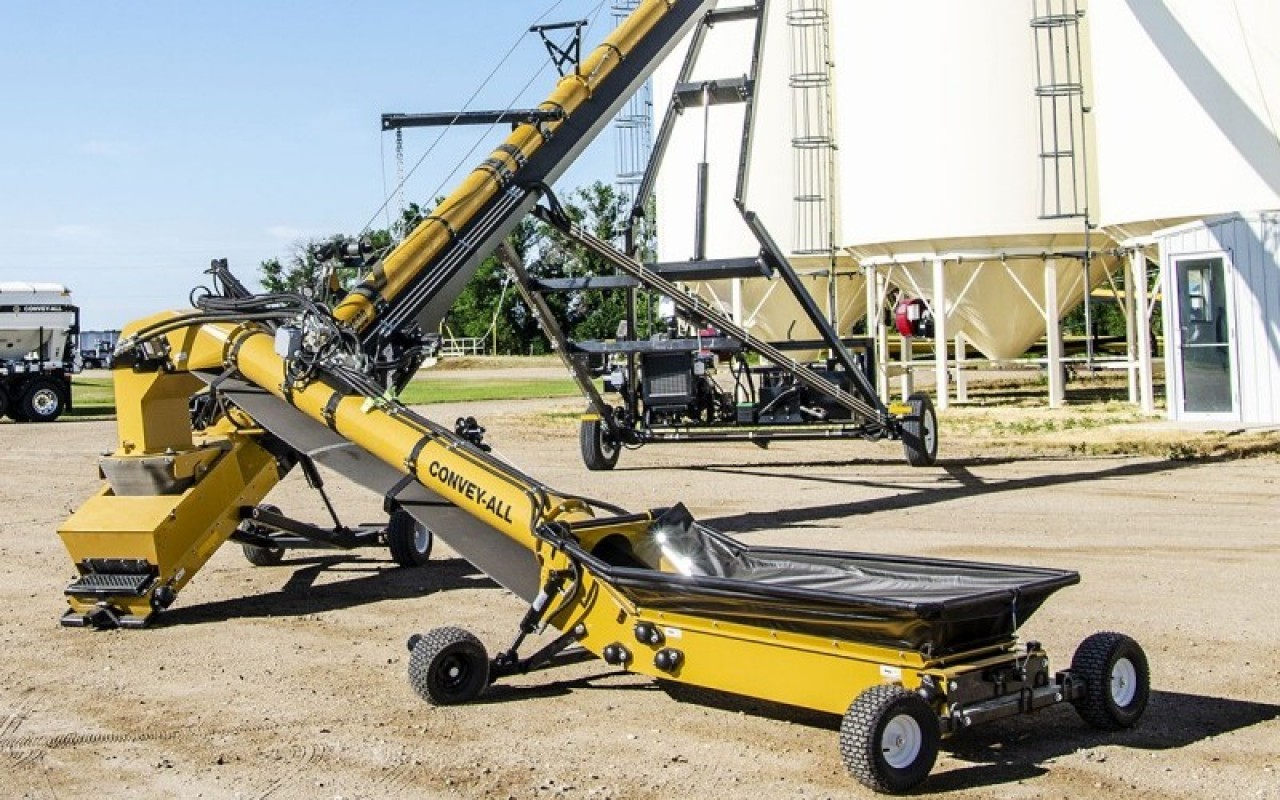

Convey-All has a complete range of tube conveyor lengths. A size
for any job. Our easy moving, long reaching tube conveyors are great for
filling bins or making large piles. Convey-All swing conveyors are designed to be
efficient and simple to use. The engine and control station are set low for
easy access.
The undercarriages are rugged and heavy duty, using
structural steel and fabricated for bolt-together durability.
Applications for handling include seed, grain and fertilizer.
Contact Us Quote Request Similar InventoryFeatures
-

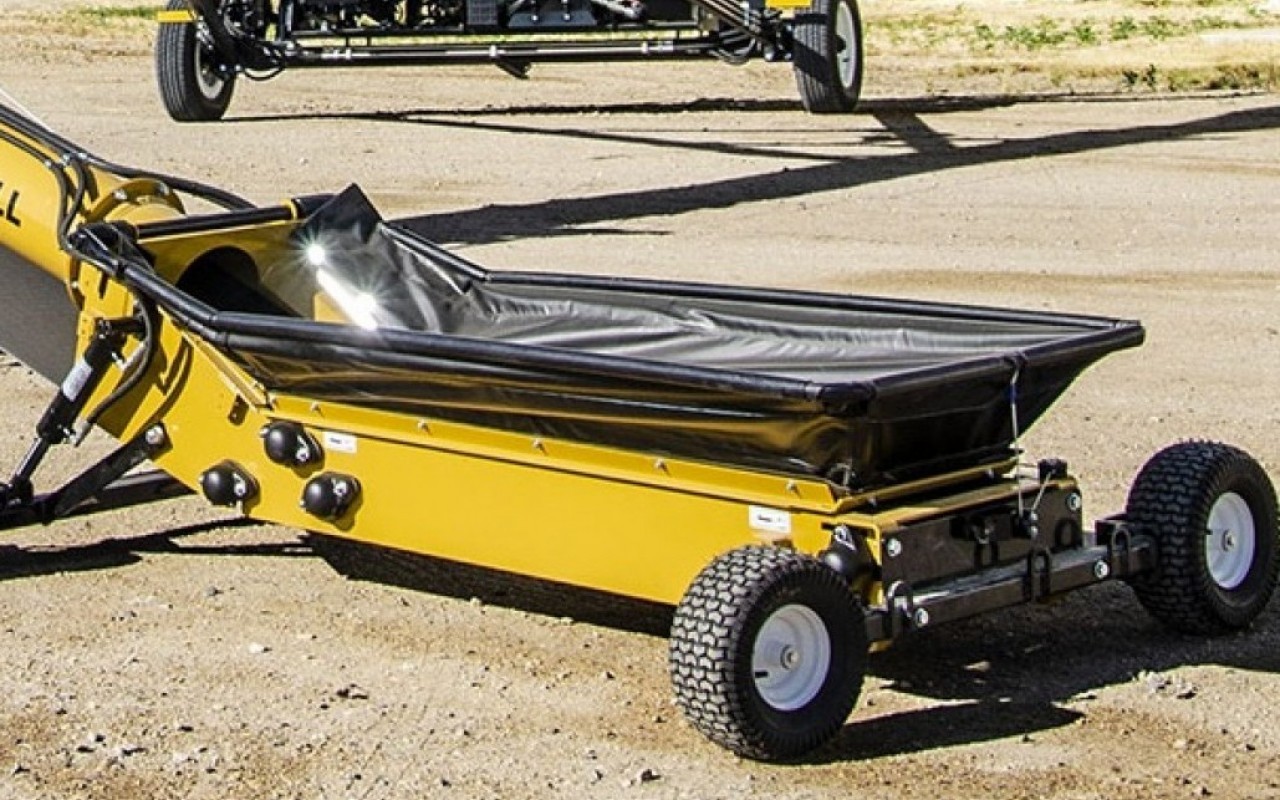

Collapsible Hopper
-

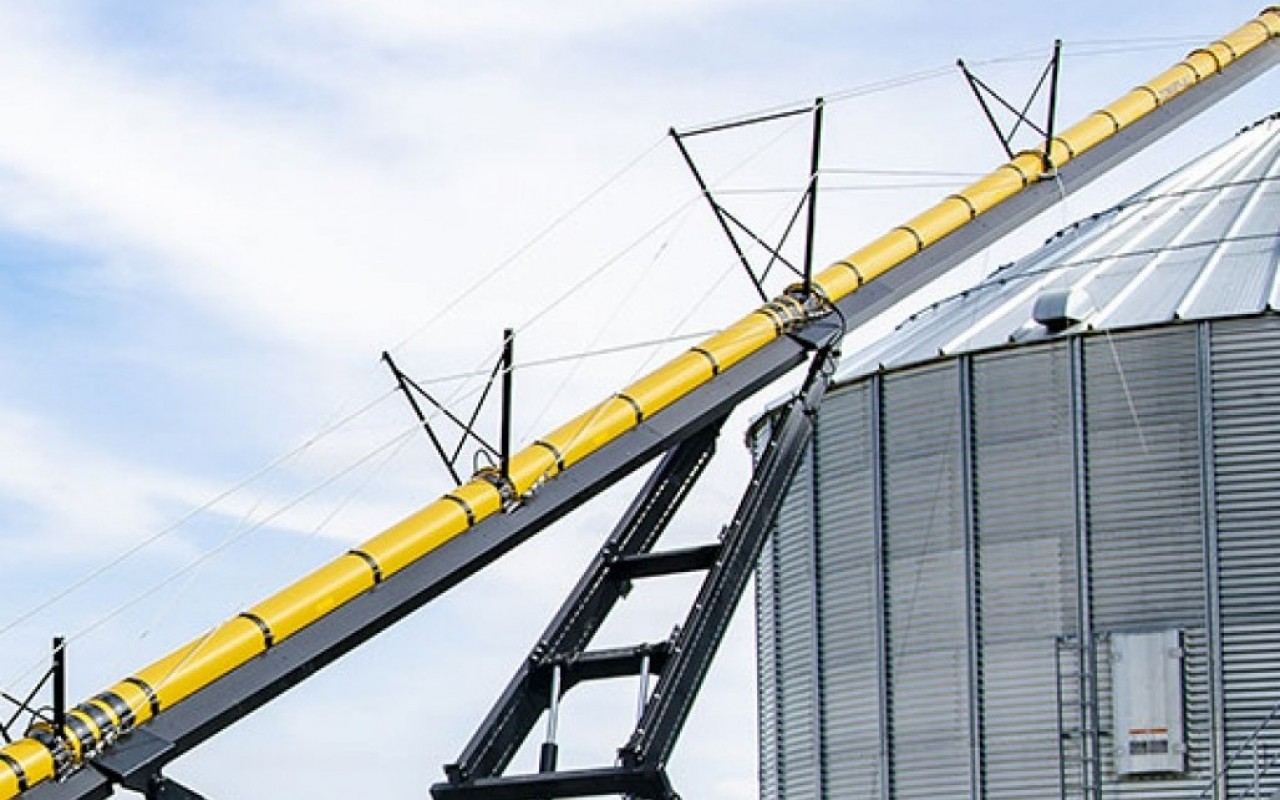

Full Length Windguards
-

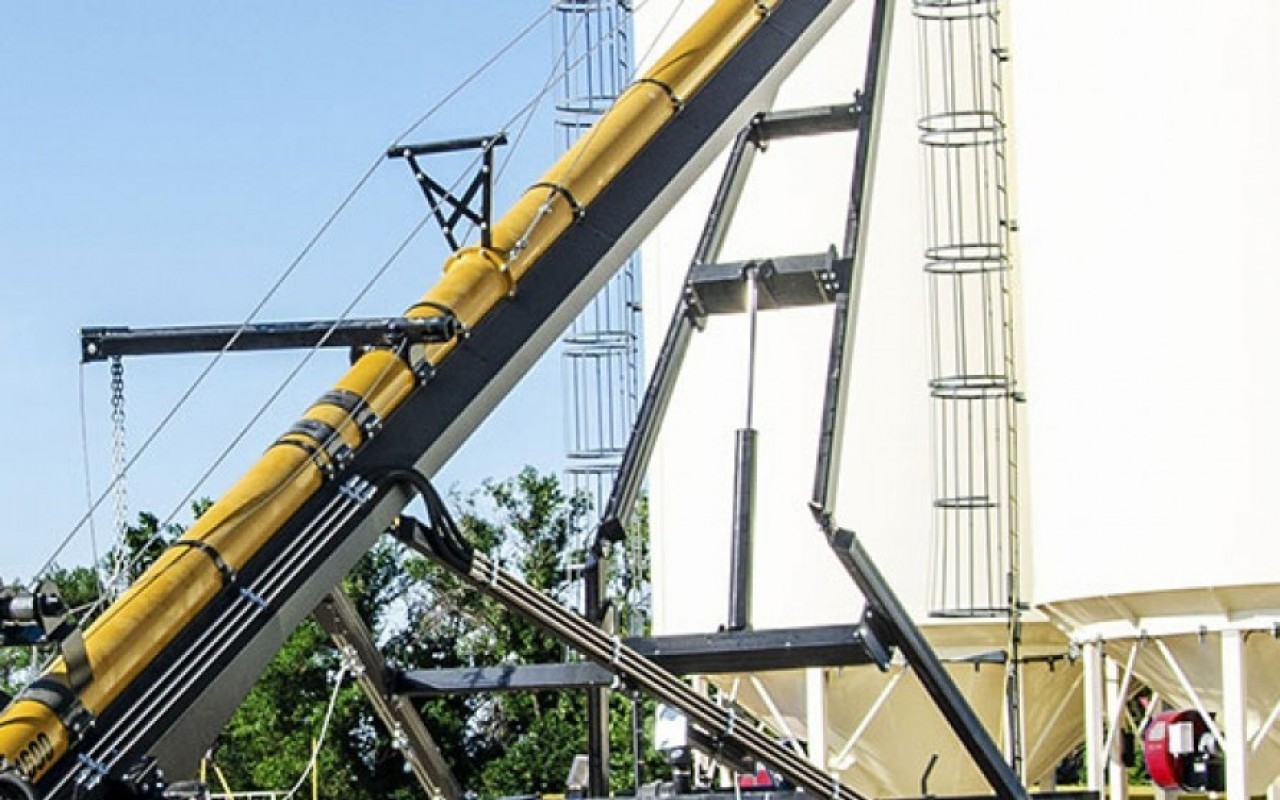

Heavy-Duty Scissor Lift Undercarriages
-

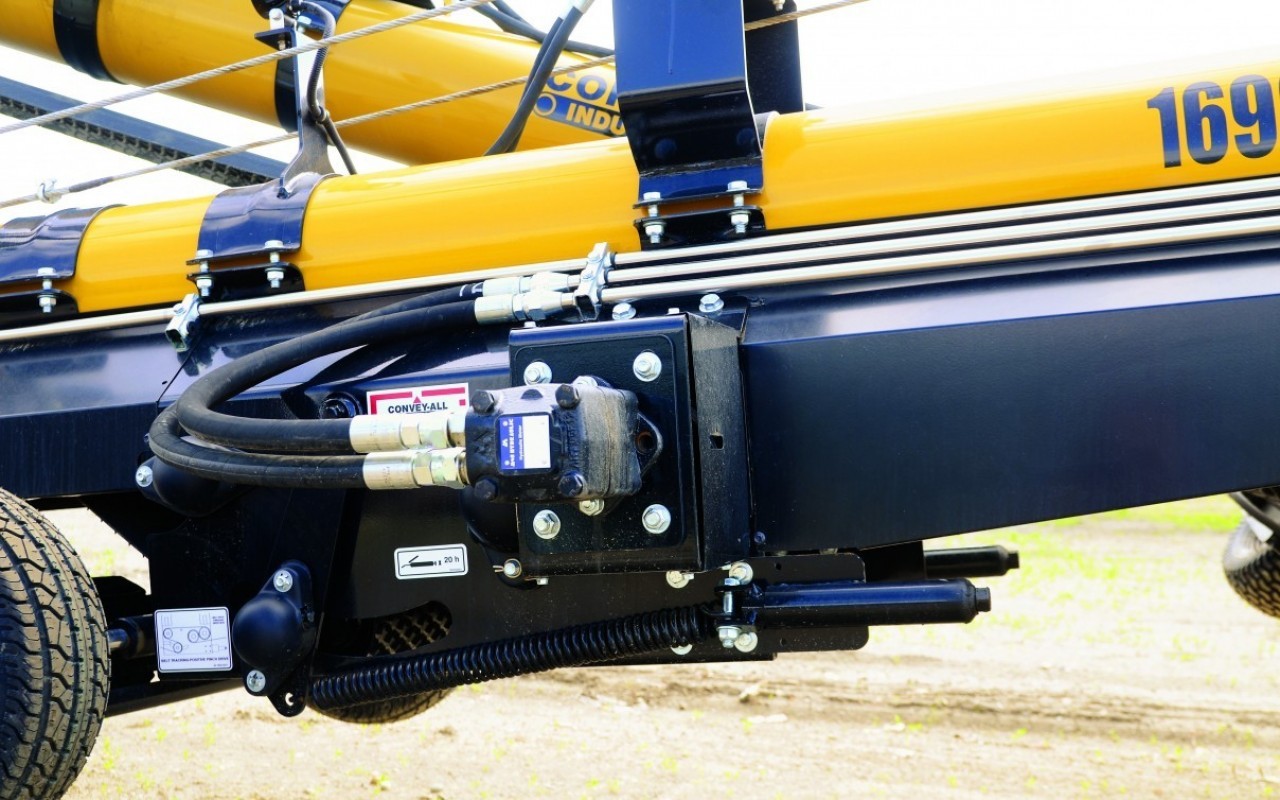

Positive Pinch Drive Box
Extra Information

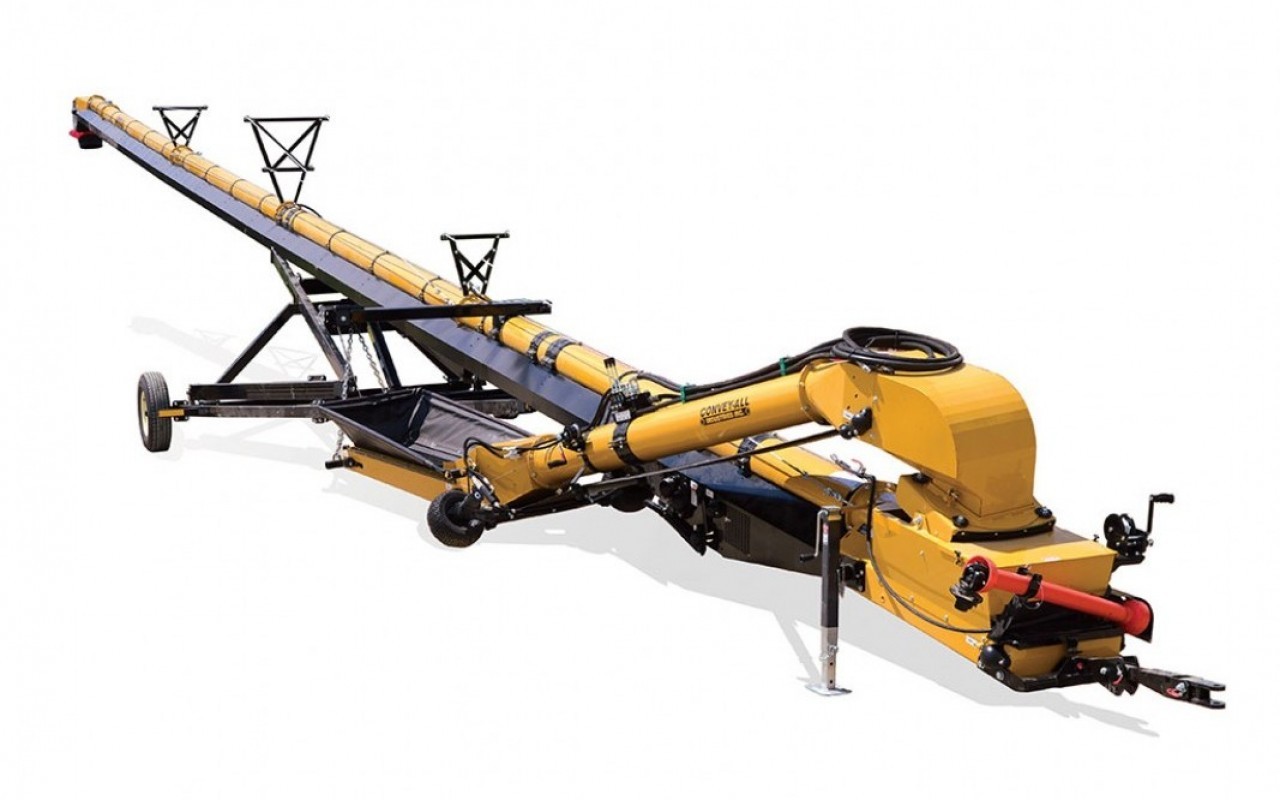

The 1600 Series Bin Fill Conveyors are available in lengths from 55’-100’. These conveyors feature a 16’’ belt in a 10’’ tube, and can move up to 9,000BPH. The 1690 model is also available with an optional mover kit: Side or End PTO, Gas, Diesel, Electric, or Hydraulic Drive and a Hydraulic Lift.
The 2200 Series Bin Fill Conveyors are the largest and fastest Bin Fill Conveyors. With a 22" belt in a 14" tube, these conveyors will move product up to 12,000BPH.
View Specs for All 3 Models Available » Specs
| Length | 100' | -- |
| Belt Width | 16" | -- |
| Under Carriage | Scissor Lift | -- |
| Axle Width | 13'6" | -- |
| Transport Height | 14'7" | -- |
| Transport Length | 105'10" | -- |
| Diesel Option | -- |
- Length
- Belt Width
- Under Carriage
- Axle Width
- Transport Height
- Transport Length
- Diesel Option
-
16100
- 100'
- 16"
- Scissor Lift
- 13'6"
- 14'7"
- 105'10"
-

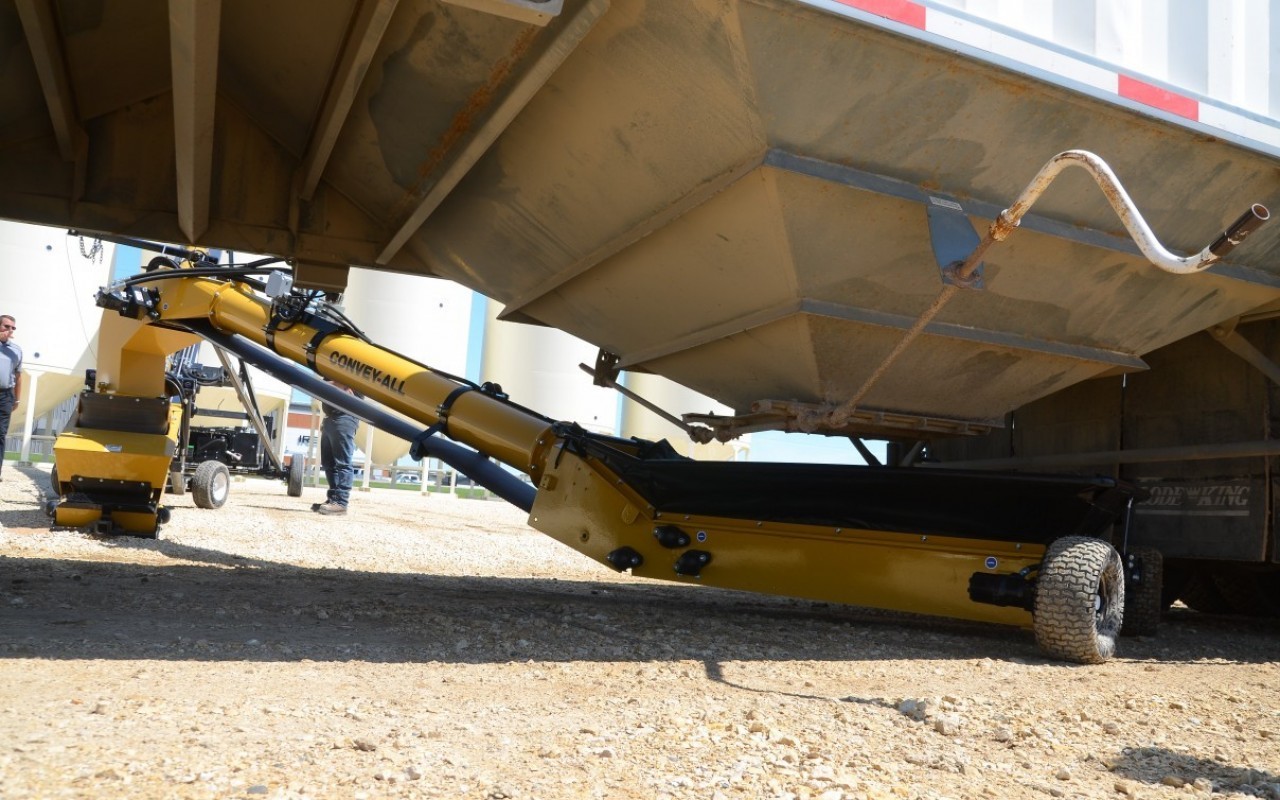

1690
- 90'
- 16"
- Scissor Lift
- 12'6"
- 12'2"
- 96'
- 50 HP Kubota Diesel & Mover
-
22110
- 110'
- 22"
- Scissor Lift
- 13'6"
- 14'6"
- 108'11"
- 80 HP Cummins Diesel & Mover
