Product Information

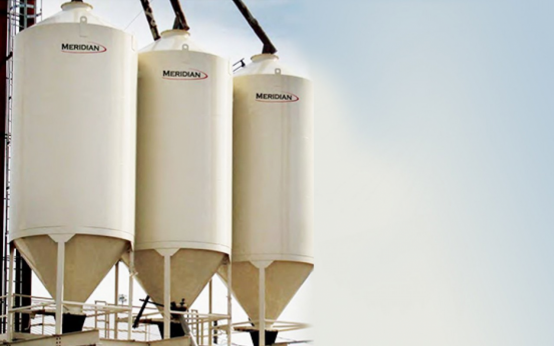

The variance of flow characteristics may result in some products bridging inside your bins. For commodities requiring a steeper cone and more capacity than a feed bin, the solution is the Meridian Steep Cone series. These fertilizer bins are built with the same standards as the fertilizer series but feature a 55° bottom cone in capacities up to 150 MT.
Features
-

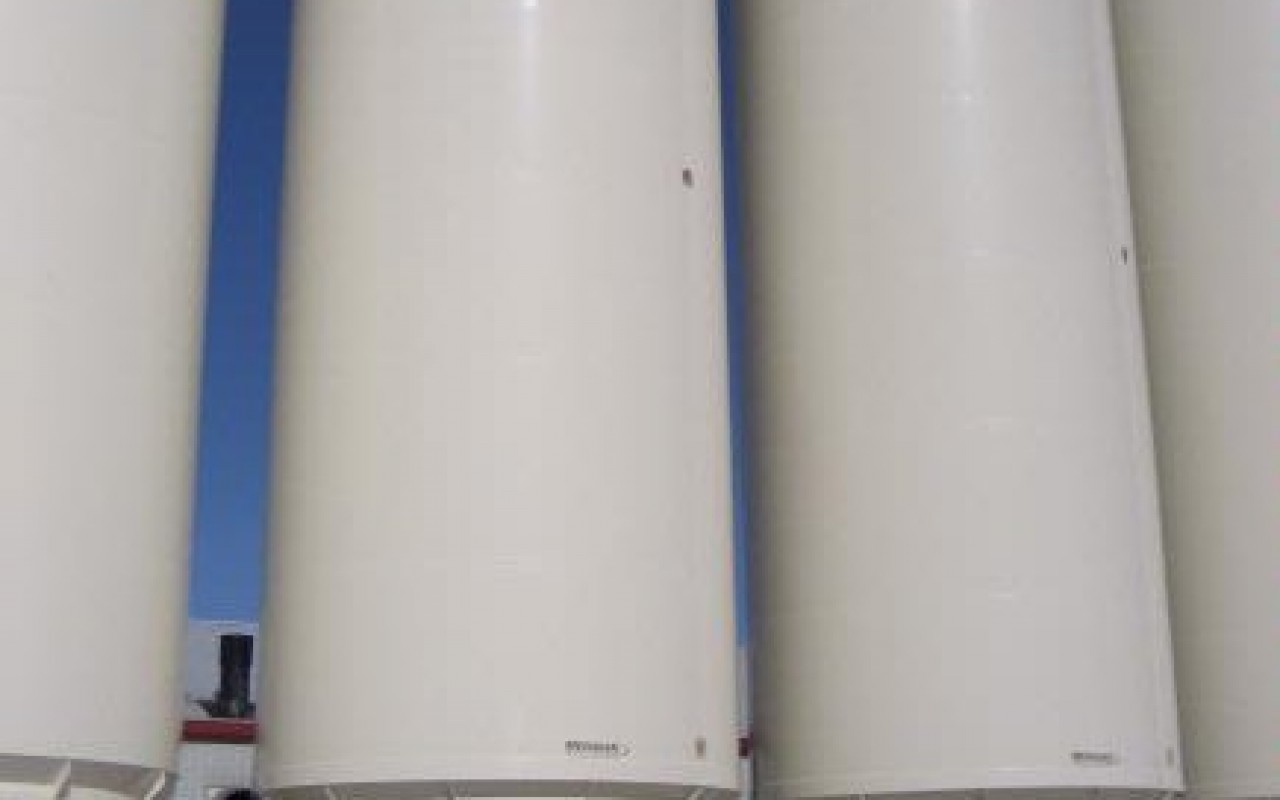

All Welded, Smooth-wall Construction
-

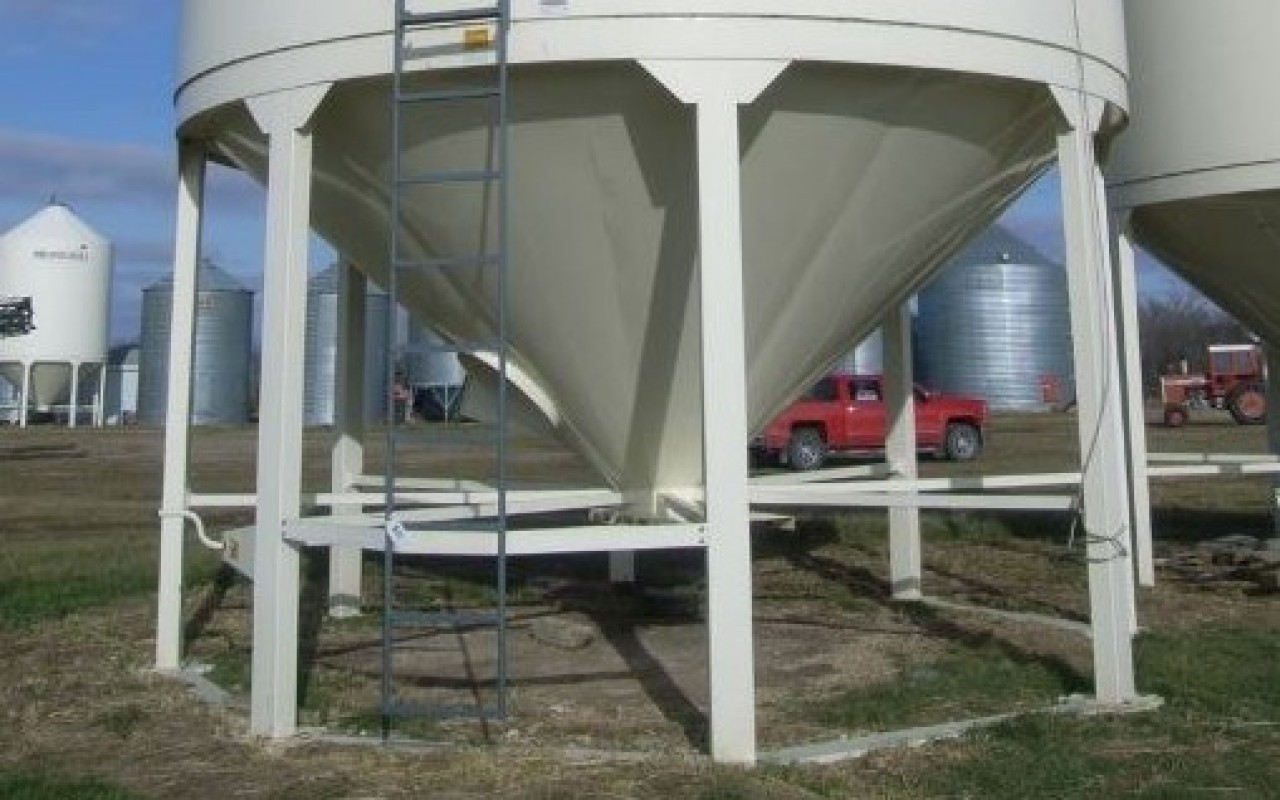

HSS Legs & Bracing
-

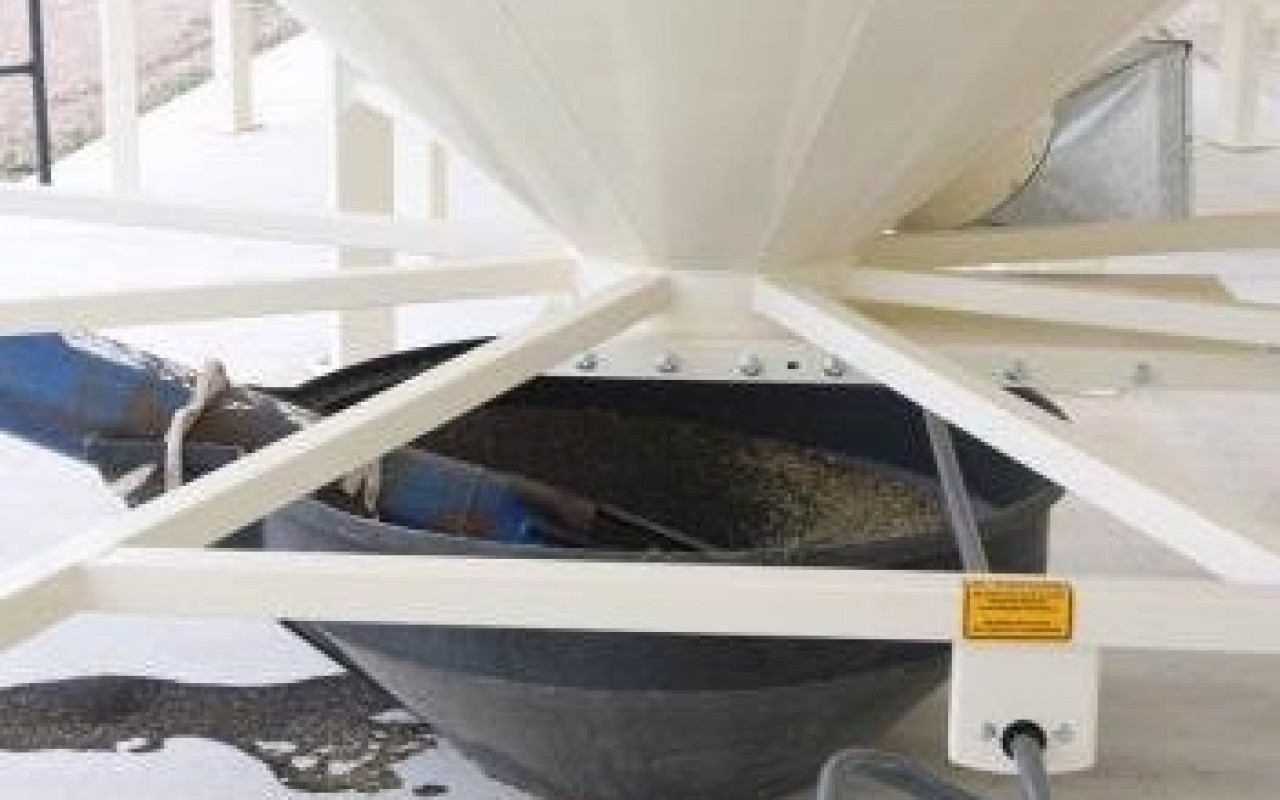

Premium Rack-n-Pinion Slide Gate w/Crank
-
Vented Top Lid
-

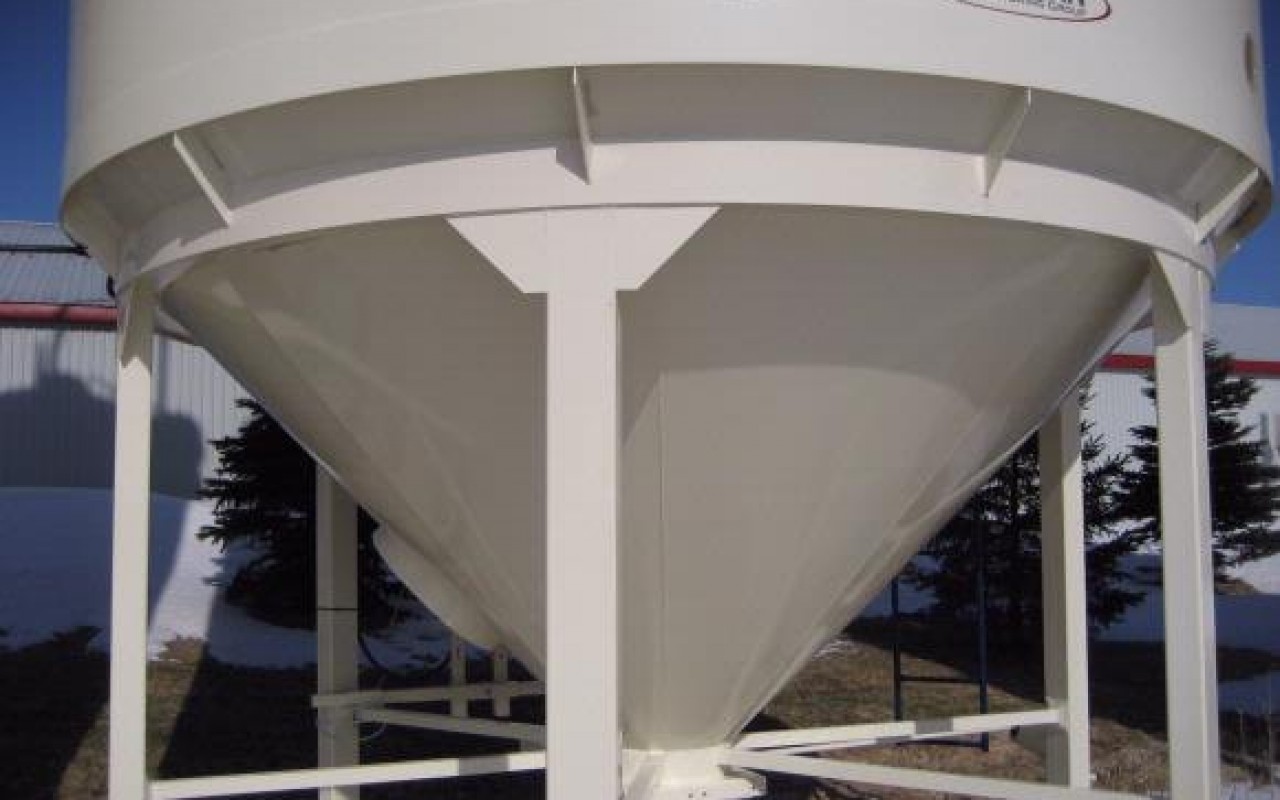

55 or 60 Degree Bottom Cone
-
24" Clearance Under Slide Gate
Extra Information
Standard Features
- All welded, smooth-wall construction
- Minimum 12 gauge steel roof, sidewall and cone

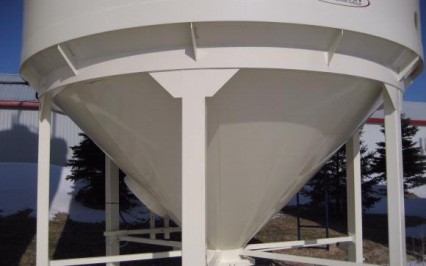

- HSS (Hollow structural steel) legs and bracing

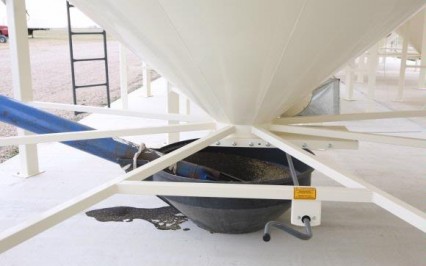

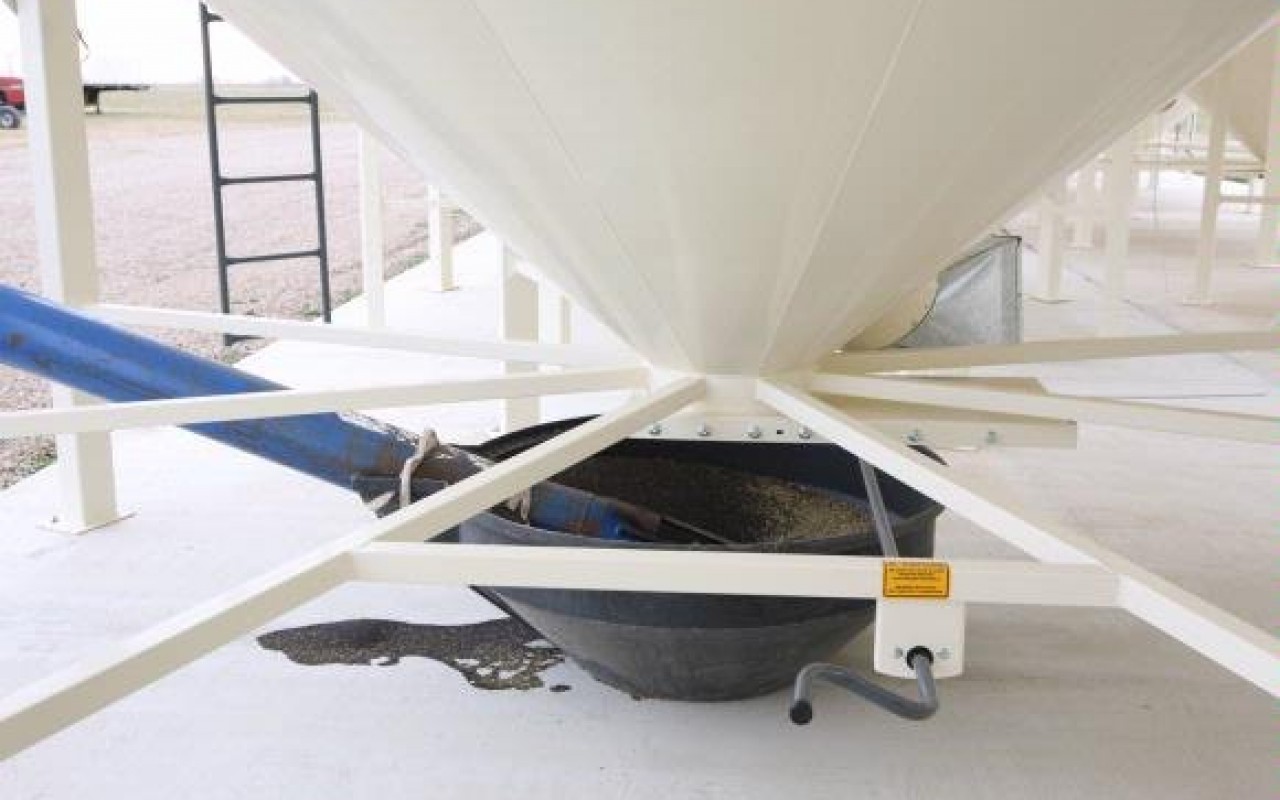

- Premium Rack-n-Pinion slide gate with crank
- Complete sidewall and roof ladder
- 25' top opening

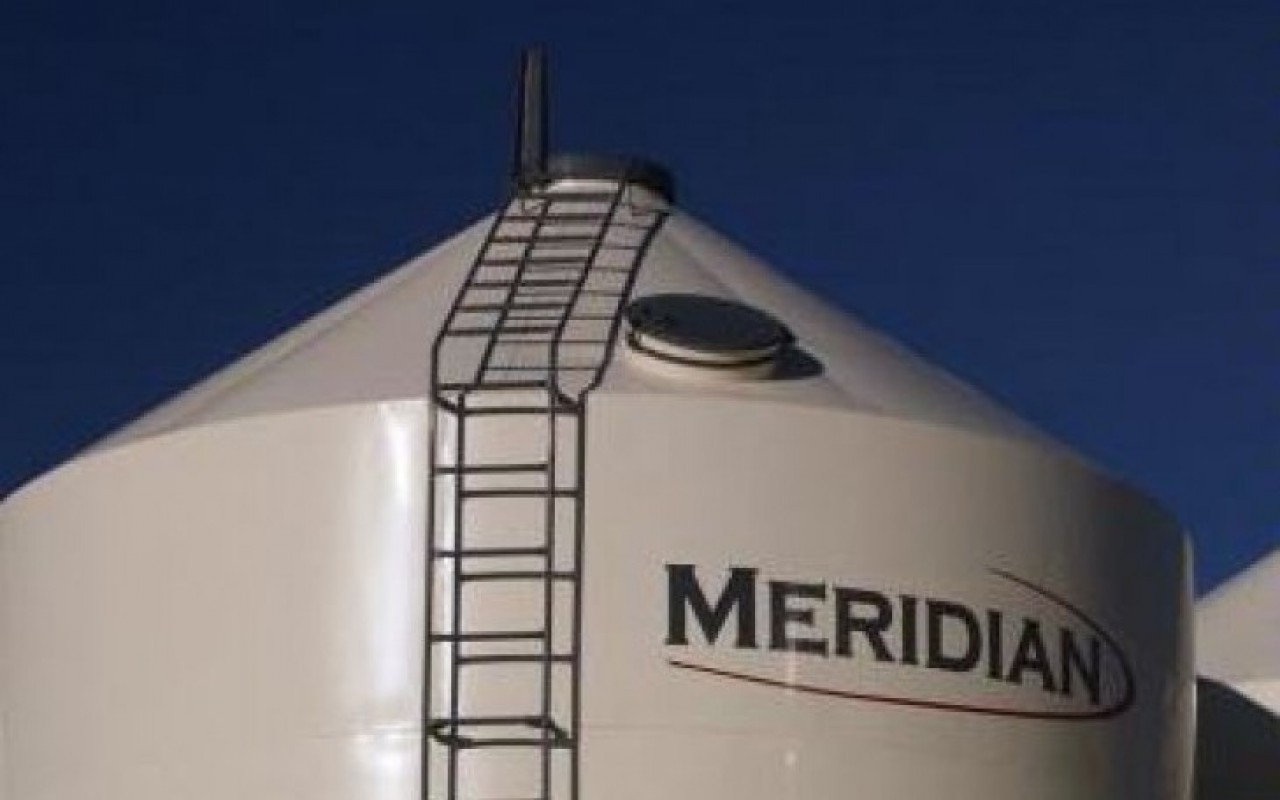

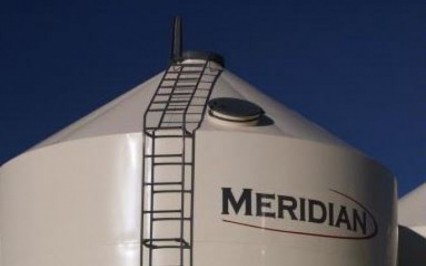

- Vented Top Lid – Spring loaded and ground operated
- 55° or 60° bottom cone depending on model
- 35° roof cone
- 24" clearance under slide gate
Accessories
- Bottom Manway
- Roof Manhole
- Bin Level Indicators
- Auger Boots and Auger Mounting Tabs
- Ladder cage and Handrails
- Steel Base
View Specs for All 24 Models Available » Specs
| Bushels | 889 | -- |
| Cubic Feet | 1045 | -- |
| Capacity - Tonnes | 29 | -- |
| Height | 18'10" | -- |
| Auger Required (minimum) | 35' | -- |
| Top Opening | 25" | -- |
- Bushels
- Cubic Feet
- Capacity - Tonnes
- Height
- Auger Required (minimum)
- Top Opening
-
1205-55
- 889
- 1045
- 29
- 18'10"
- 35'
- 25"
-
1208-55
- 1177
- 1385
- 39
- 21'10"
- 41'
- 25"
-
1210-55
- 1369
- 1611
- 45
- 23'10"
- 41'
- 25"
-
1212-55
- 1562
- 1837
- 52
- 25'10"
- 46'
- 25"
-
1215-55
- 1850
- 2176
- 61
- 28'10"
- 51'
- 25"
-
1410-55
- 1957
- 2302
- 65
- 25'11"
- 46'
- 25"
-
1412-55
- 2219
- 2610
- 73
- 27'11"
- 51'
- 25"
-
1415-55
- 2611
- 3072
- 86
- 30'11"
- 56'
- 25"
-
1417-55
- 2873
- 3380
- 95
- 32'11"
- 61'
- 25"
-
1420-55
- 3266
- 3842
- 108
- 35'11"
- 61'
- 25"
-
1510-55
- 2484
- 2923
- 82
- 27'11"
- 51'
- 25"
-
1512-55
- 2805
- 3300
- 93
- 29'11"
- 56'
- 25"
-
1515-55
- 3286
- 3866
- 109
- 32'11"
- 61'
- 25"
-
1517-55
- 3607
- 4244
- 119
- 34'11"
- 61'
- 25"
-
1520-55
- 4088
- 4810
- 135
- 37'11"
- 71'
- 25"
-
1525-55
- 4890
- 5753
- 162
- 42'11"
- 71'
- 25"
-
1530-55
- 5692
- 6697
- 188
- 47'11"
- 81'
- 25"
-
1610-55
- 2678
- 3150
- 89
- 28'1"
- 51'
- 25"
-
1612-55
- 3020
- 3552
- 100
- 30'1"
- 56'
- 25"
-
1615-55
- 3532
- 4156
- 117
- 33'1"
- 61'
- 25"
-
1617-55
- 3874
- 4558
- 128
- 35'1"
- 61'
- 25"
-
1620-55
- 4387
- 5161
- 145
- 38'1"
- 71'
- 25"
-
1625-55
- 5241
- 6166
- 173
- 43'1"
- 71'
- 25"
-
1630-55
- 6096
- 7172
- 202
- 48'1"
- 81'
- 25"
