Offset, Tandem, & High Speed Discs

Schulte Soilstar DHX Disc Harrow

Product Information

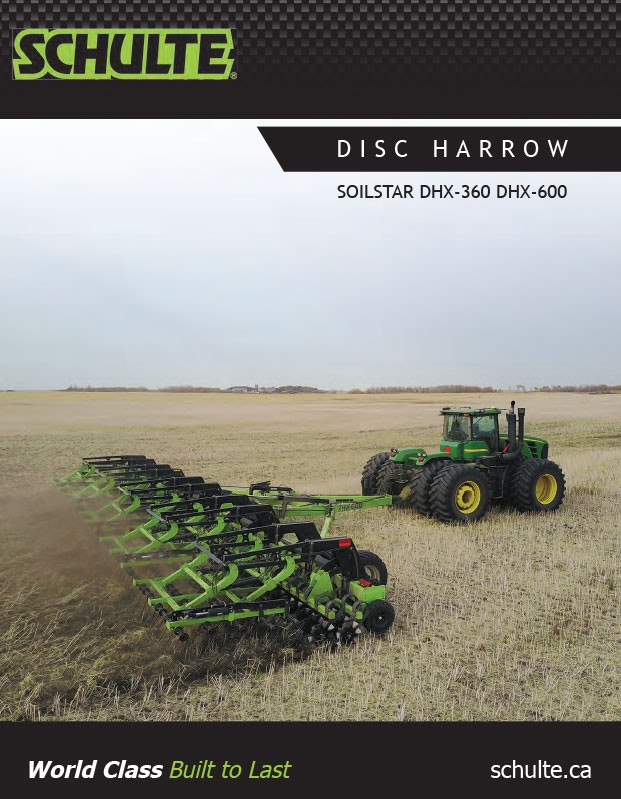

Brochure

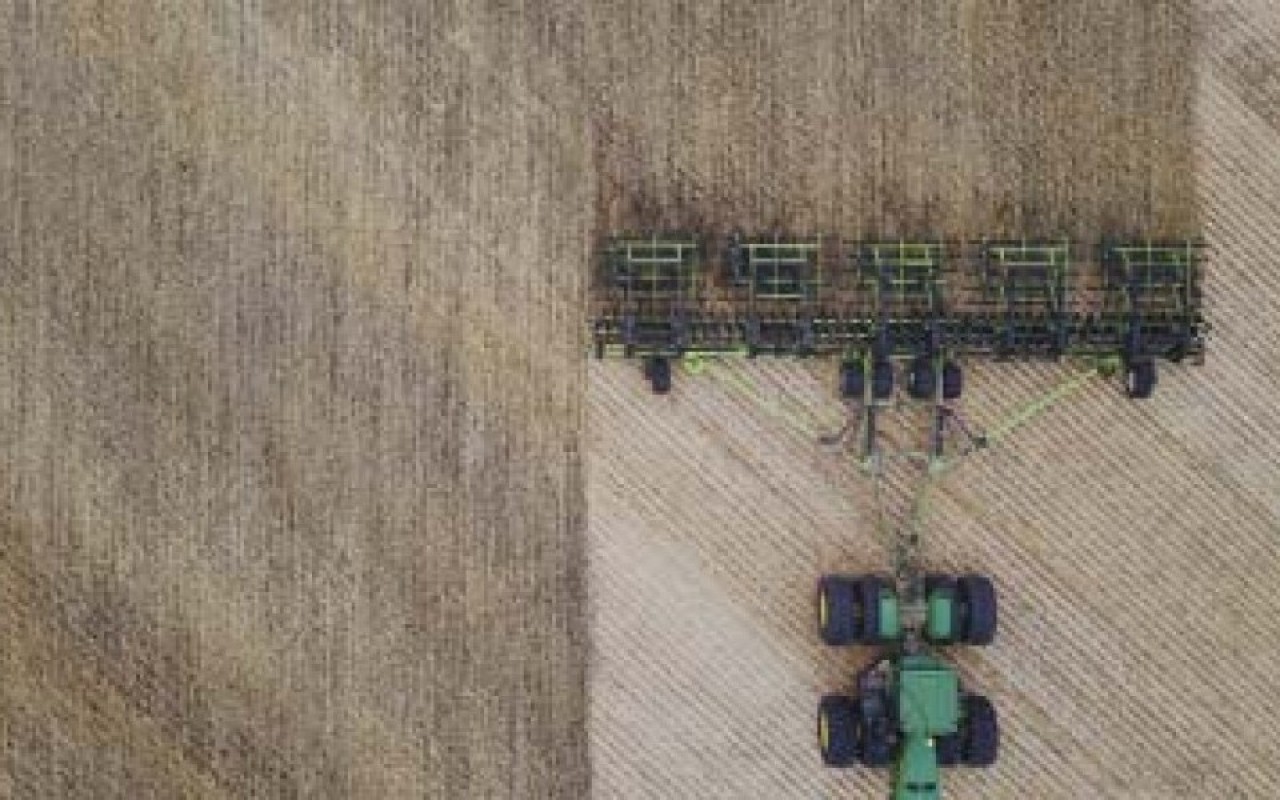

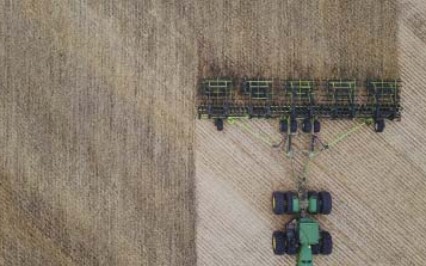

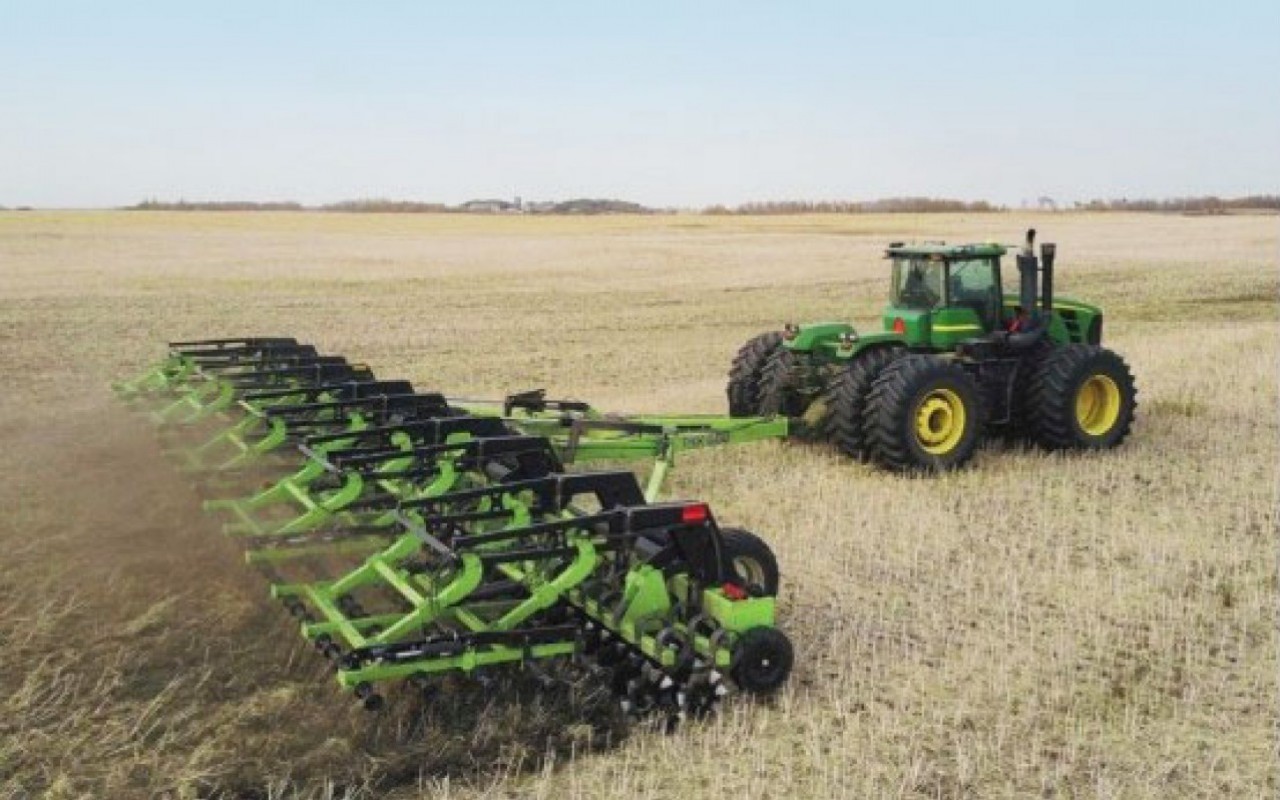

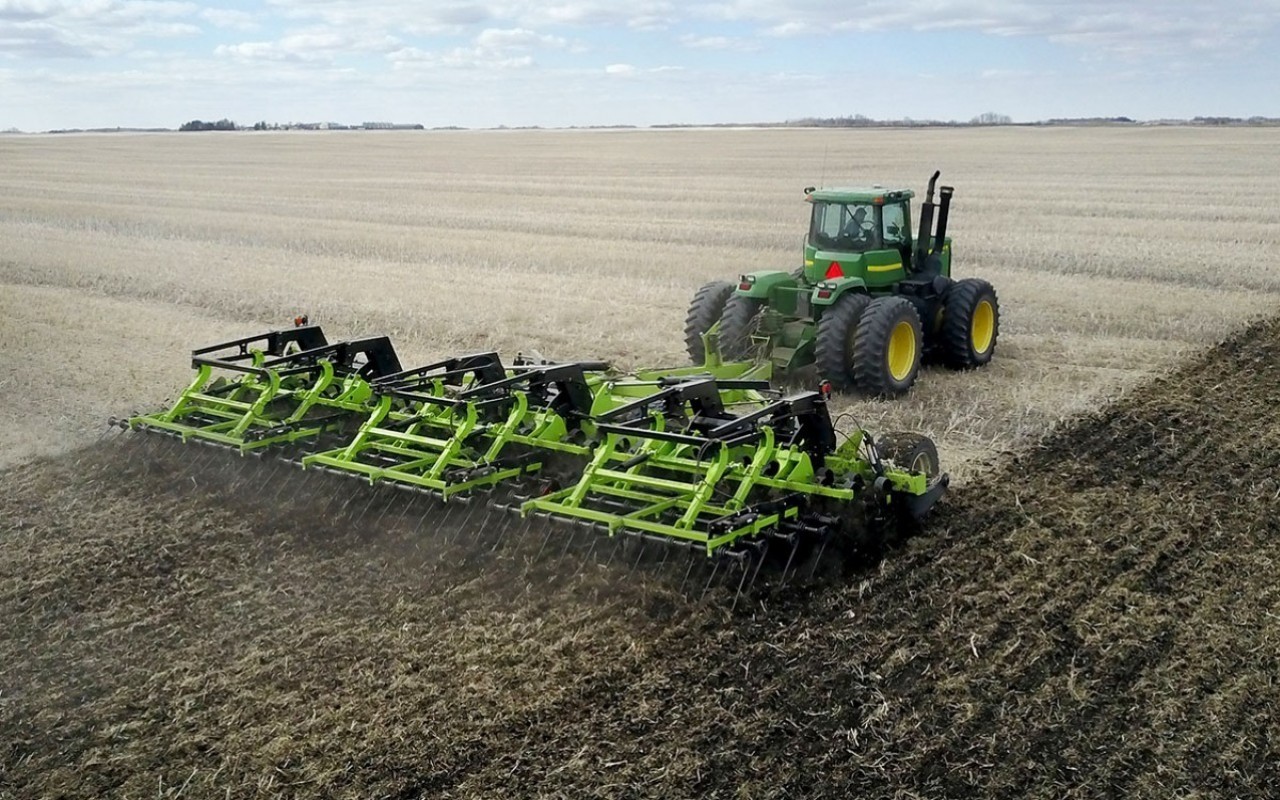

The Schulte Soilstar Disc Harrow manages the increased straw from high crop yields by breaking down residue post-harvest. Done with a double row of wavy coulters and heavy harrow.

All this helps with great water penetration over the winter and easier seeding. Use in the spring to promote weed seed germination for a proper pre-seed burn-off.

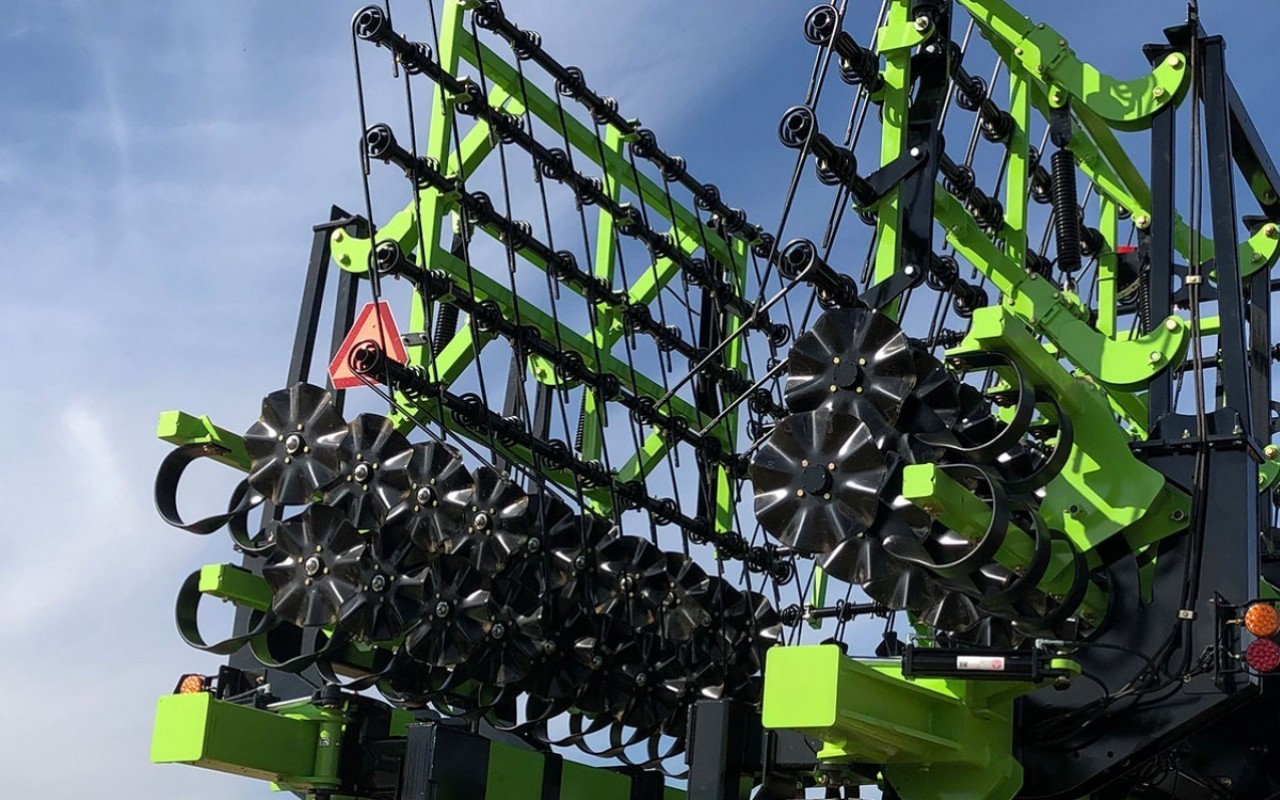

DHX-360 and 600 are the evolution of the heavy harrow. With height-adjustable twin row of discs and a 5-bar heavy harrow. Efficiently chop up straw and mix residue with the ground all while leveling off the seedbed.

Features

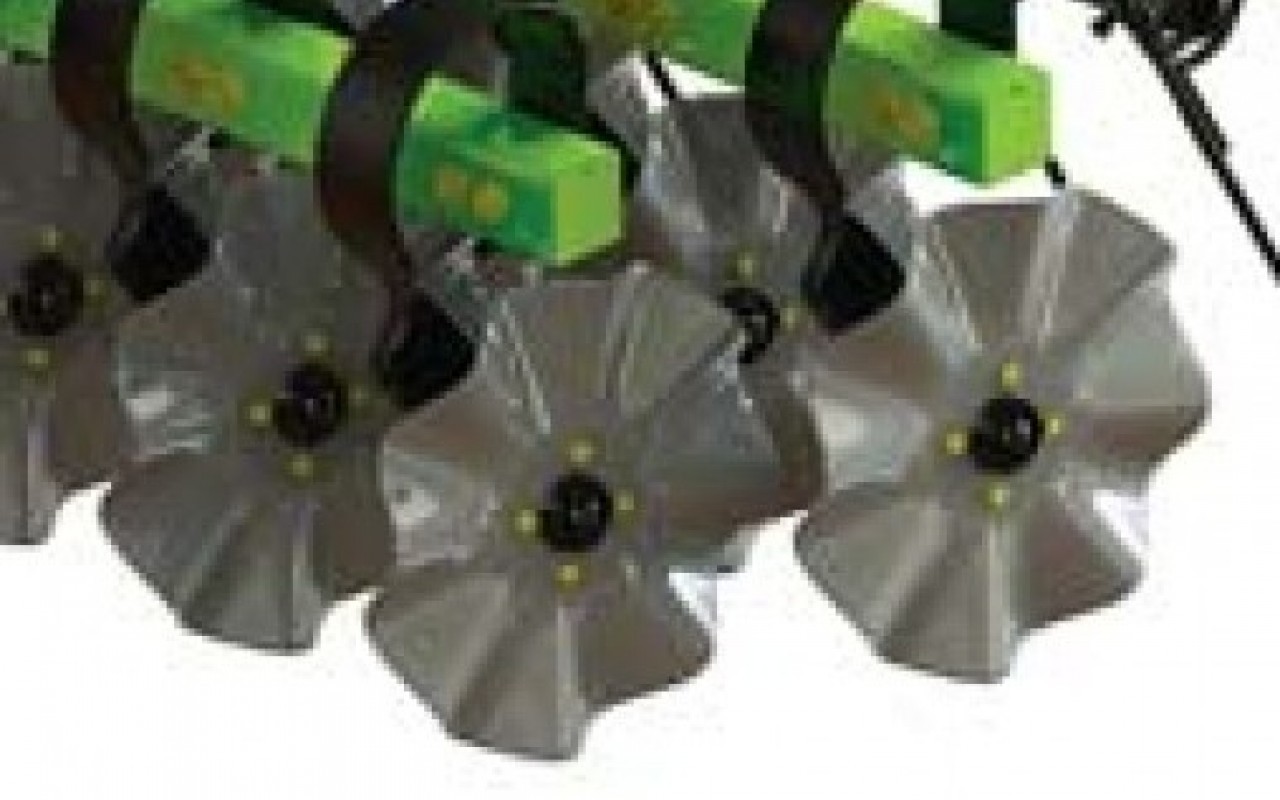

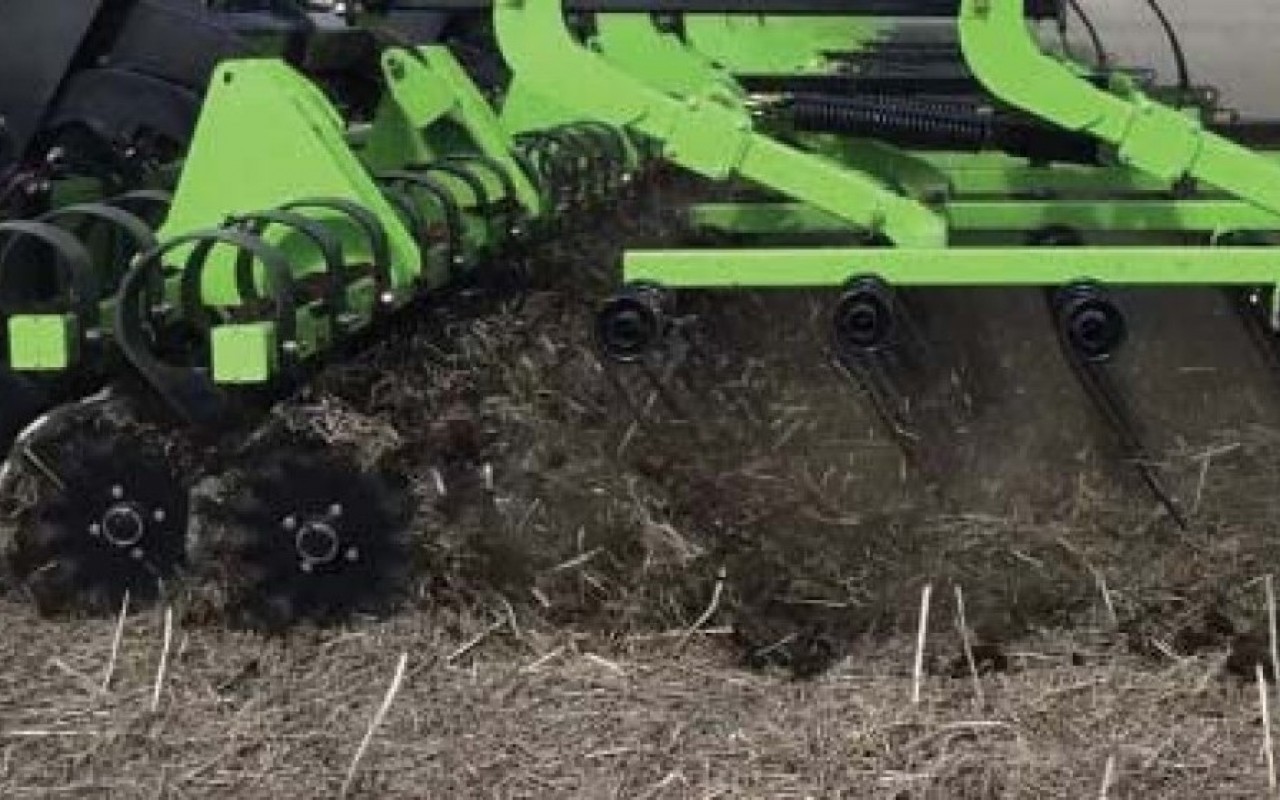

Double row of wavy coulters

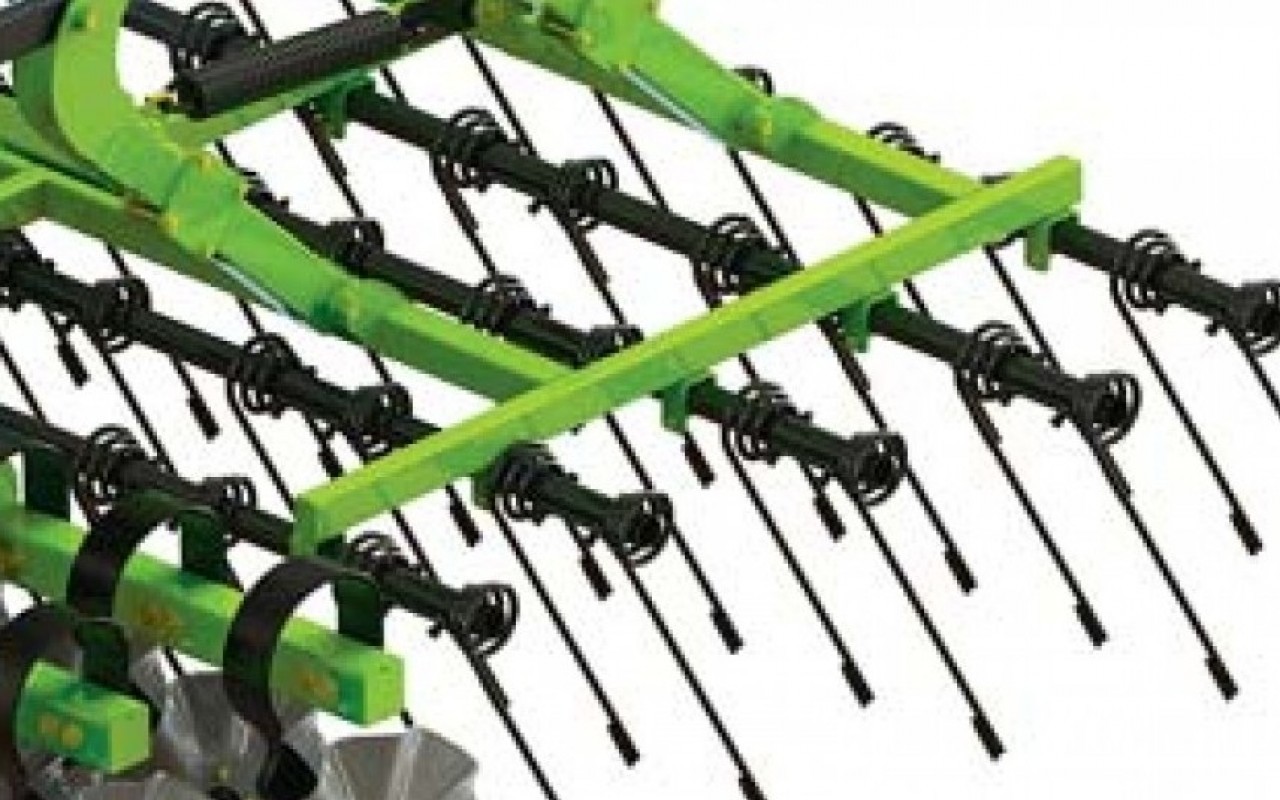

Five bar heavy harrow

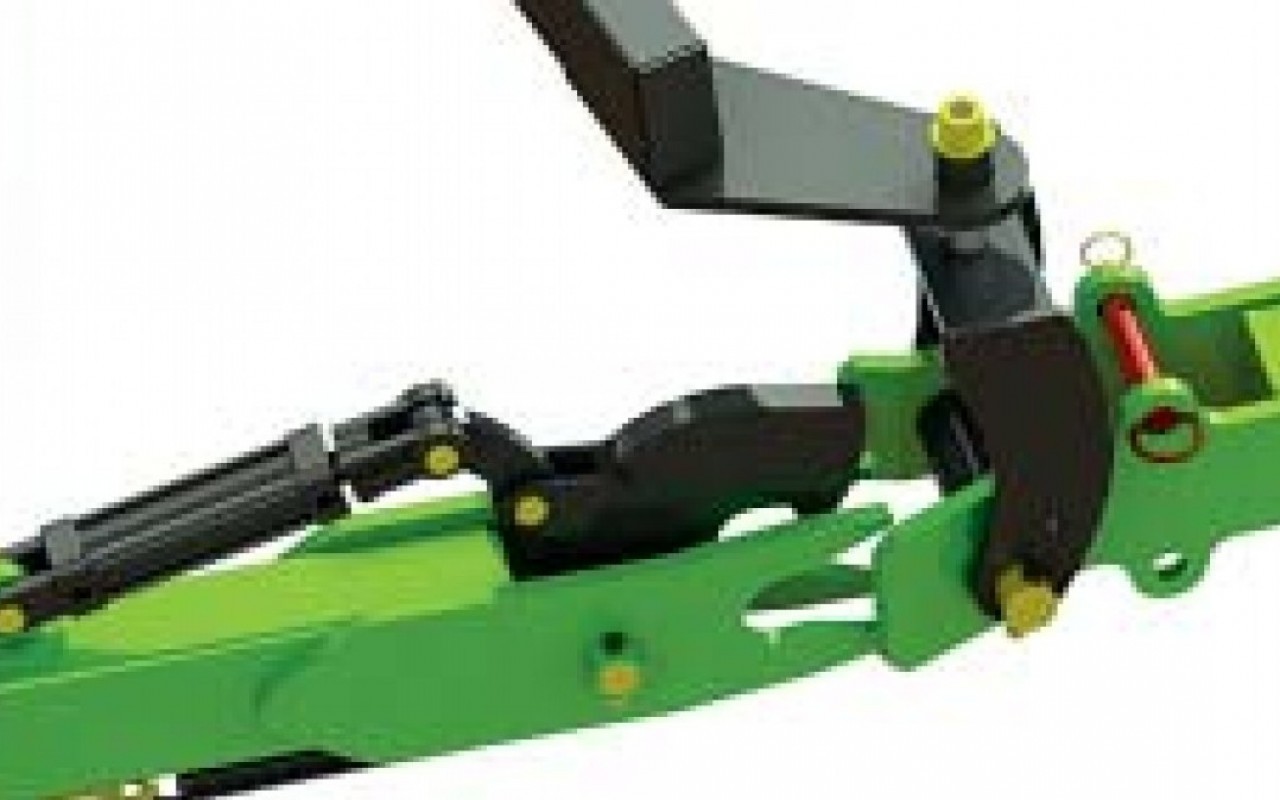

Hydraulic lock for wing tension links

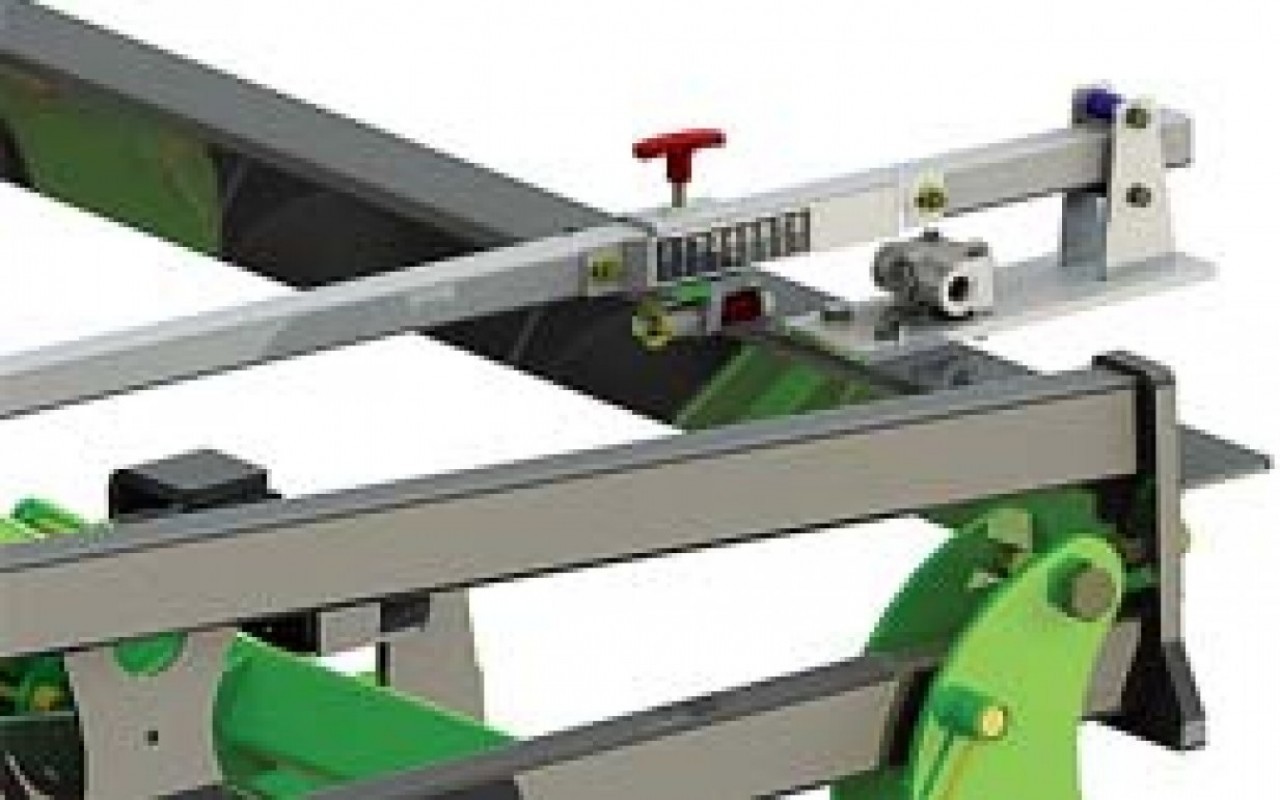

Single point depth control

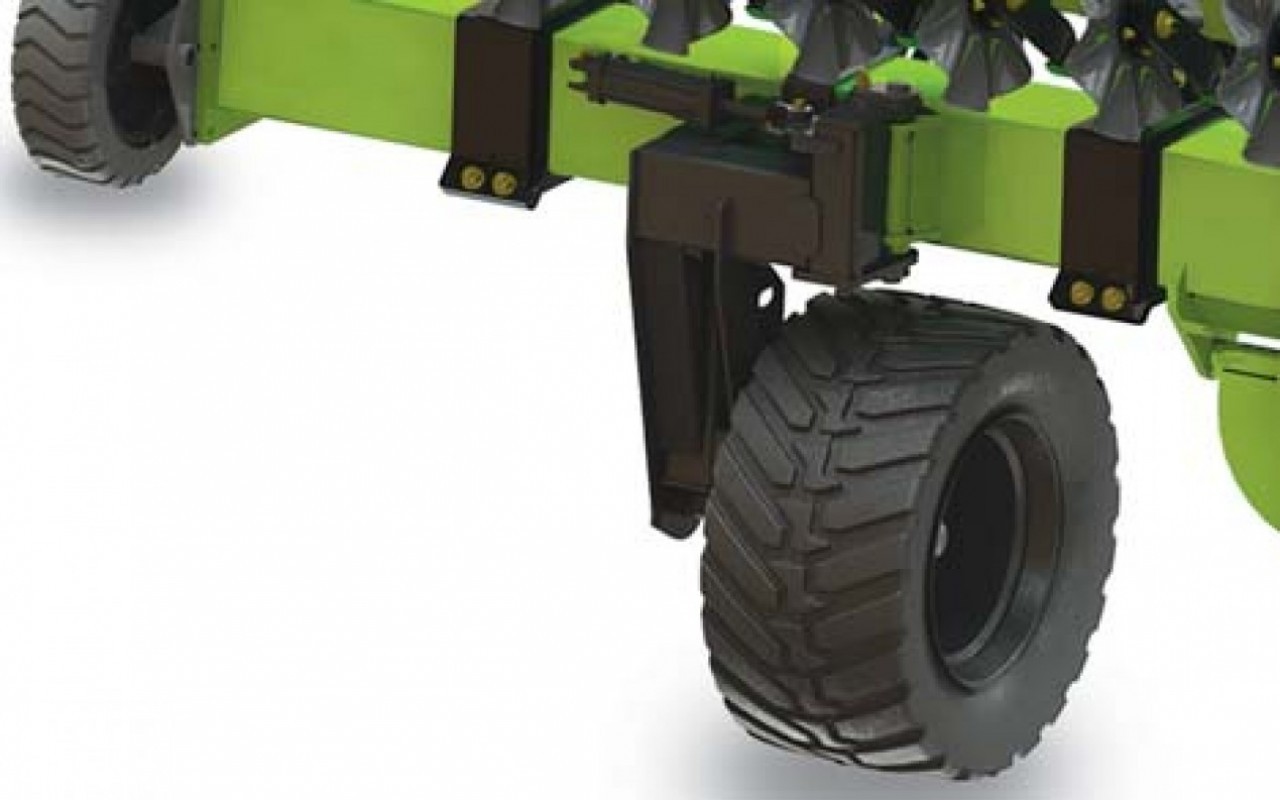

Steerable wing wheels

^Back to top

Specs


Working Width	36'	60'

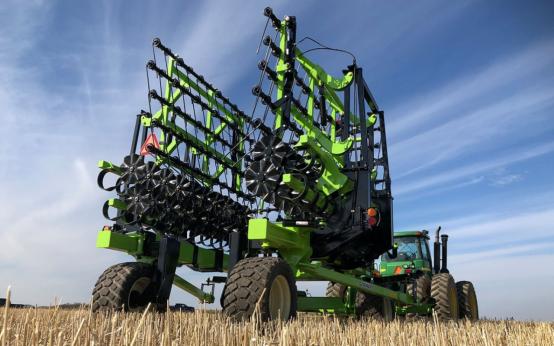

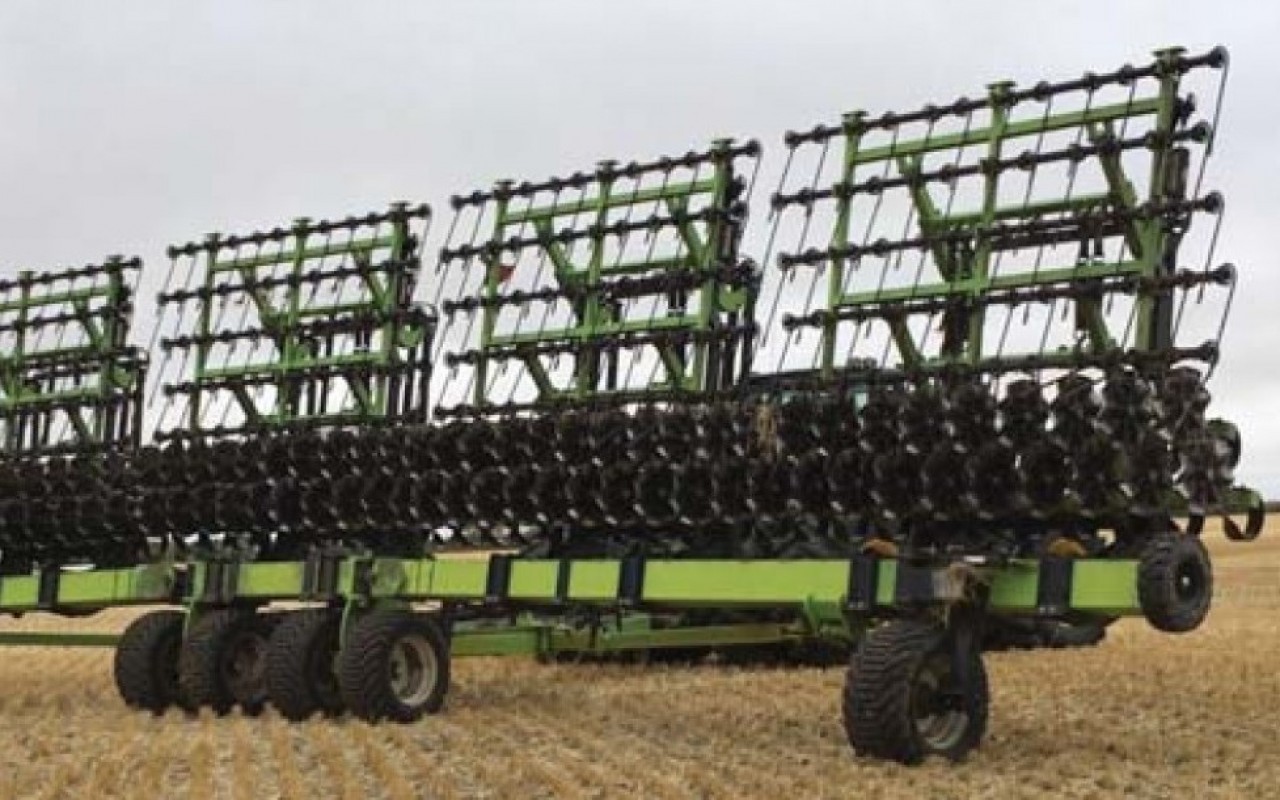

Transport Width	15.25'	15.25'
Transport Height	14.5'	14.5'
Transport Length	33.5'	45'
Weight	25,000 lbs	32,000 lbs
Number of Disc/Harrow Sections	5	5
Size of Discs	18"	18"
Disc Spacing	7.2"	7.2"
Harrow Tyne	5/8" x 26" with tip	5/8" x 26" with tip
Disc Angle	4° fixed	4° fixed

^Back to top

Schulte Soilstar DHX Disc Harrow

Specifications

Working Width
Transport Width
Transport Height
Transport Length
Weight
Number of Disc/Harrow Sections
Size of Discs
Disc Spacing
Harrow Tyne
Disc Angle

DHX-360
- 36'
- 15.25'
- 14.5'
- 33.5'
- 25,000 lbs
- 5
- 18"
- 7.2"
- 5/8" x 26" with tip
- 4° fixed
DHX-600
- 60'
- 15.25'
- 14.5'
- 45'
- 32,000 lbs
- 5
- 18"
- 7.2"
- 5/8" x 26" with tip
- 4° fixed
