Schulte SDX-144 Snow Blower


Schulte SDX-144 Snow Blower

Does deep snow come between you and the bins, feedlots, grain bags, or other areas you need to access?

With its 12’ cutting width and 1000 RPM gear-driven drive system, Shulte’s SDX-144 Snow Blower gets winter out of your way fast.

Its large 23” bottom auger cuts into hard-pack snow with ease, feeding hard snow chunks into a 38” five-paddle fan, which thoroughly breaks them up. Then, it feeds them into a blower powered by a size G9 Bondioli power shaft, dispersing the white stuff through a 300-degree rotating chute.

Contact Us Quote Request Similar Inventory


Features

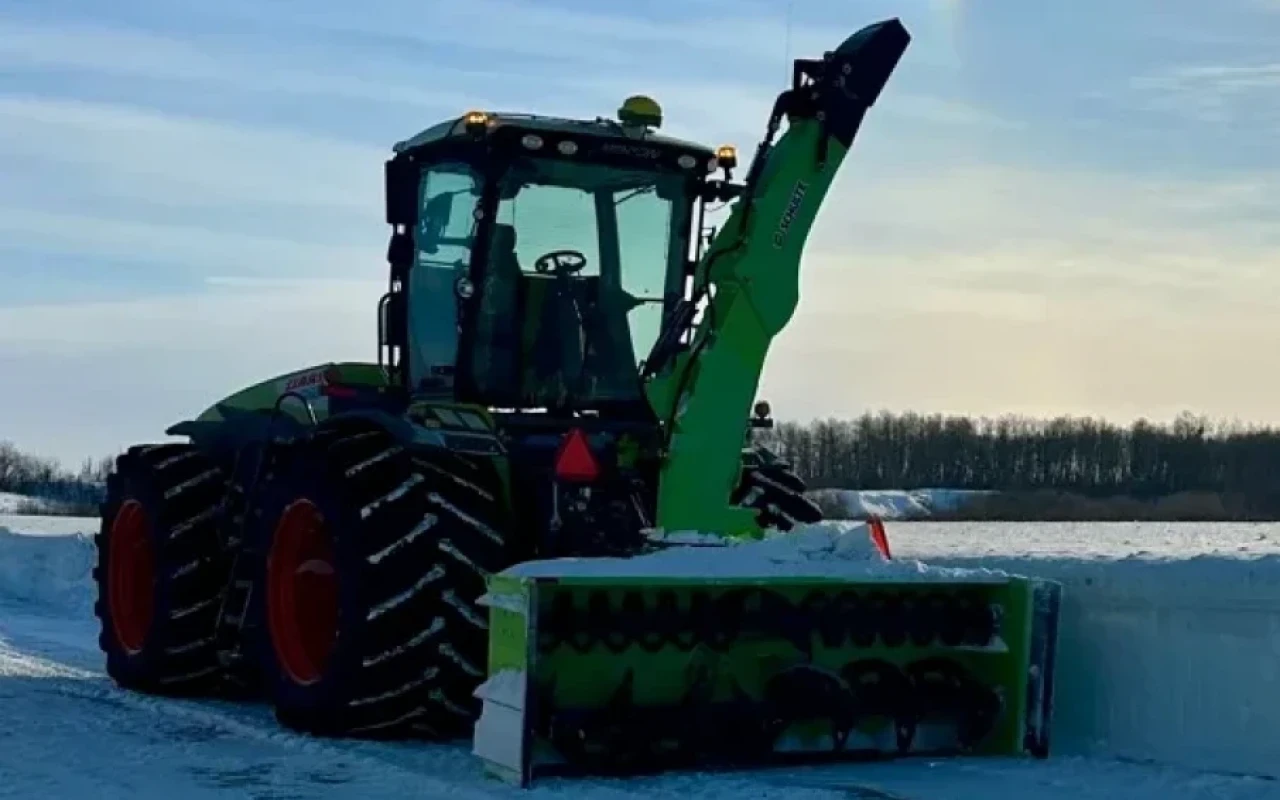

  • 144" Snow Blower

    144" Snow Blower

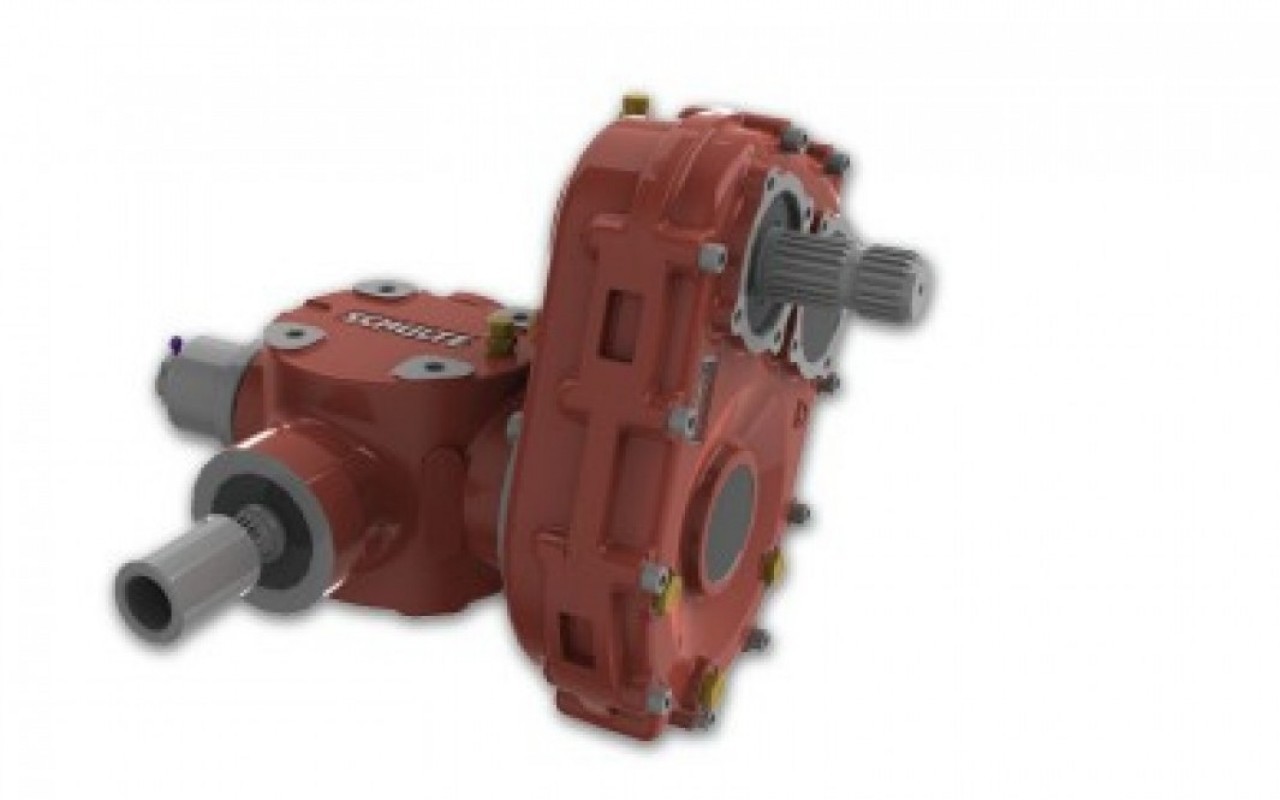

  • Gear Box

    Gear Box

  • Heavy Duty Chute Kit with Double Chute Deflector

    Heavy Duty Chute Kit with Double Chute Deflector

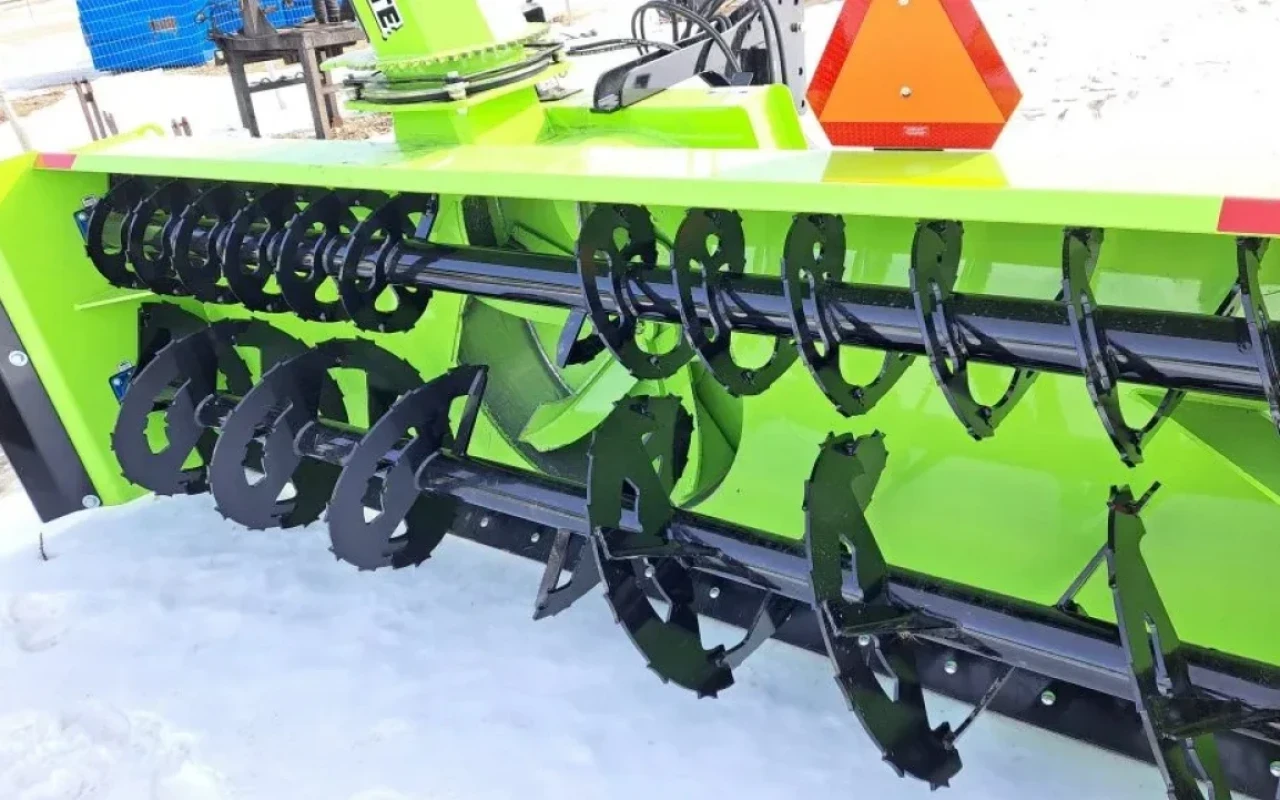

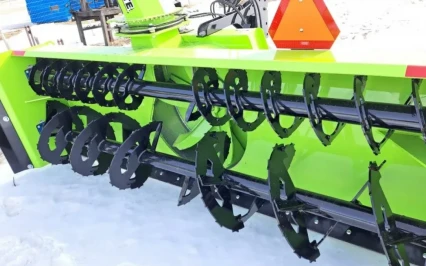

  • 23" Bottom Auger

    23" Bottom Auger



Extra Information

Options

  • Gauge wheels for highway or pavement use only
  • Hydraulic cylinder for chute deflector adjustment

Industry-Leading Design

  • The SDX-144 is rated for 180 to 350 HP tractors with CAT III or CAT IV 3-point or quick hitches and can be mounted on the front or rear.
  • The bottom auger is made of 4.5” OD pipe & 3/8” QT plate with serrated teeth for superior toughness and pickup.
  • The open-centre, cup-style fan is one of the largest in the industry.
  • The blower is powered by a shear pin-protected, size G9 Bondioli power shaft.
  • A UHMW bearing area protects the rotating chute from freeze-up in cold conditions.

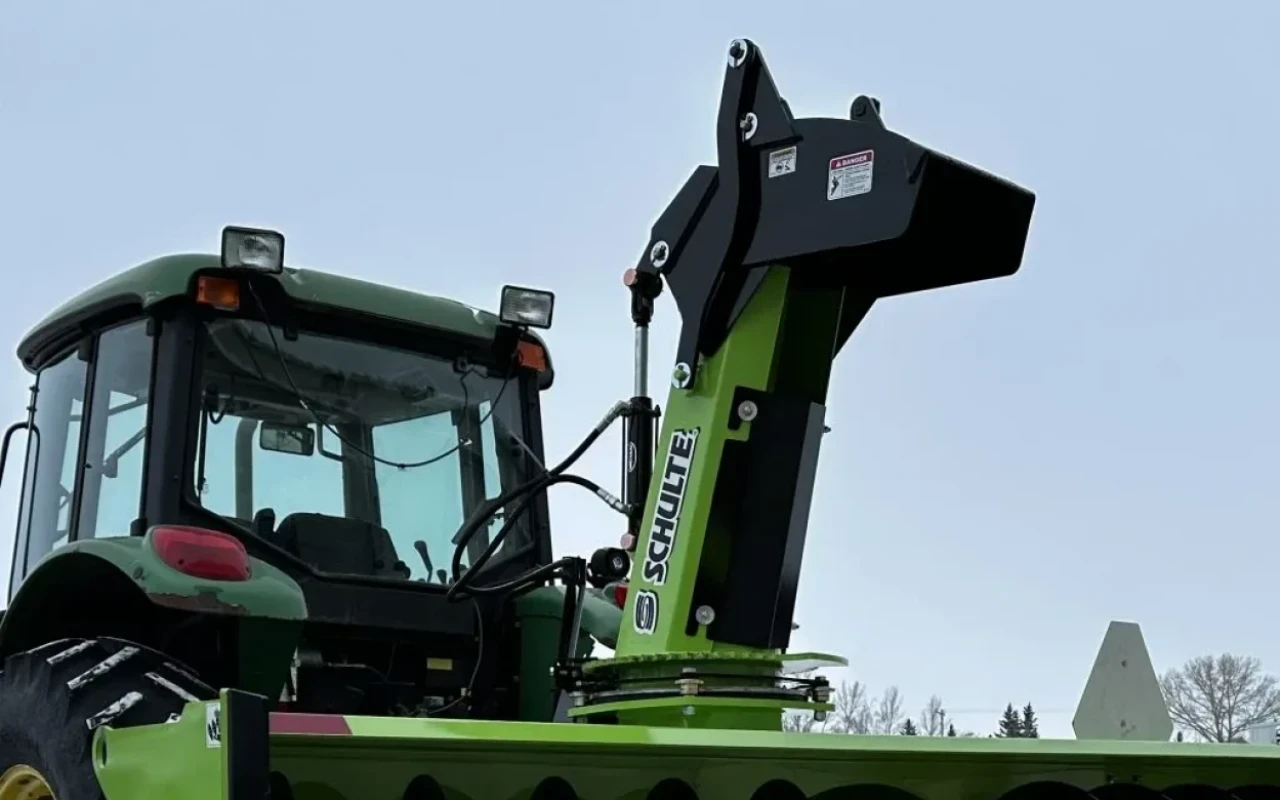

  • The new double deflector design minimizes blowback when the chute deflector is in the down position.
  • 3-Position adjustable stake arms help set required driveline lengths.
  • Enclosed chain case shields the drive chain from debris.

Call or drop by your nearest Flaman location and ask about the features that make the Schulte SDX-144 Snow Blower an excellent choice for clearing your way to any area you need to access this winter



Specs

Cutting Width 144"
Tractor Horsepower 180 - 350 HP (132 - 261)
Cutting Height 45.5"
Weight 3066 lbs
Capacity - Dry and Wet Snow 762 tons/ hr
Fan Type 5 Paddle
