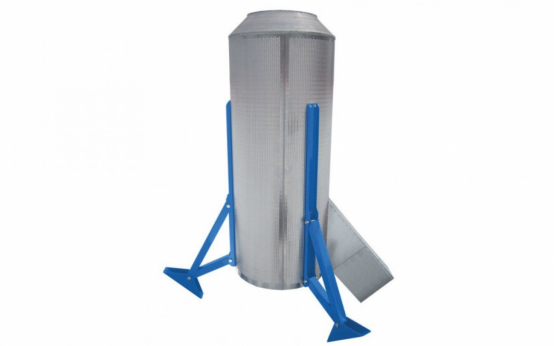

Grain Guard Rocket-Next Gen Bin Aeration


Rocket-Next Gen Bin Aeration

Product Information

Farmers have trusted the dependable grain bin aeration expertise of Grain Guard for over 25 years. Now the classic Rocket design has been improved - The Rocket Next Generation is an innovative, stronger, and even more reliable Rocket.

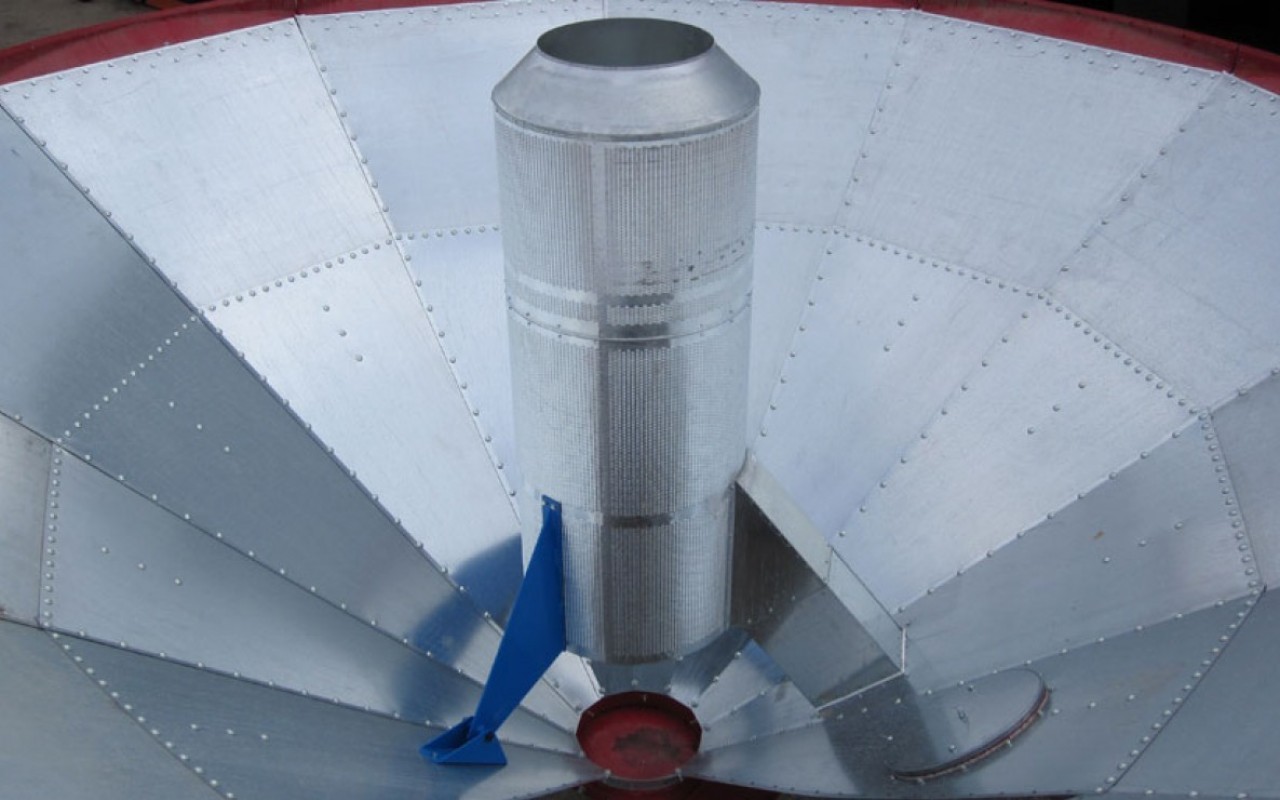

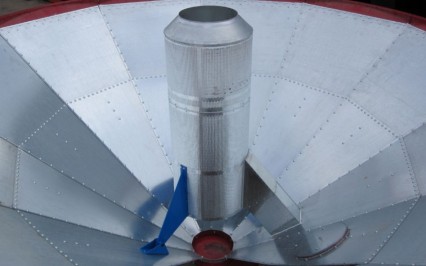

The smooth louvered surface allows for cleaner unloading. This new aeration system has improved performance through re-design to provide more air delivery to the center of the hopper, where the air is most difficult to move.

Need a fan to pair with this system? See our Full Centrifugal Fan

Contact Us Quote Request Similar Inventory


Features

  • seamless clean-out

    seamless clean-out

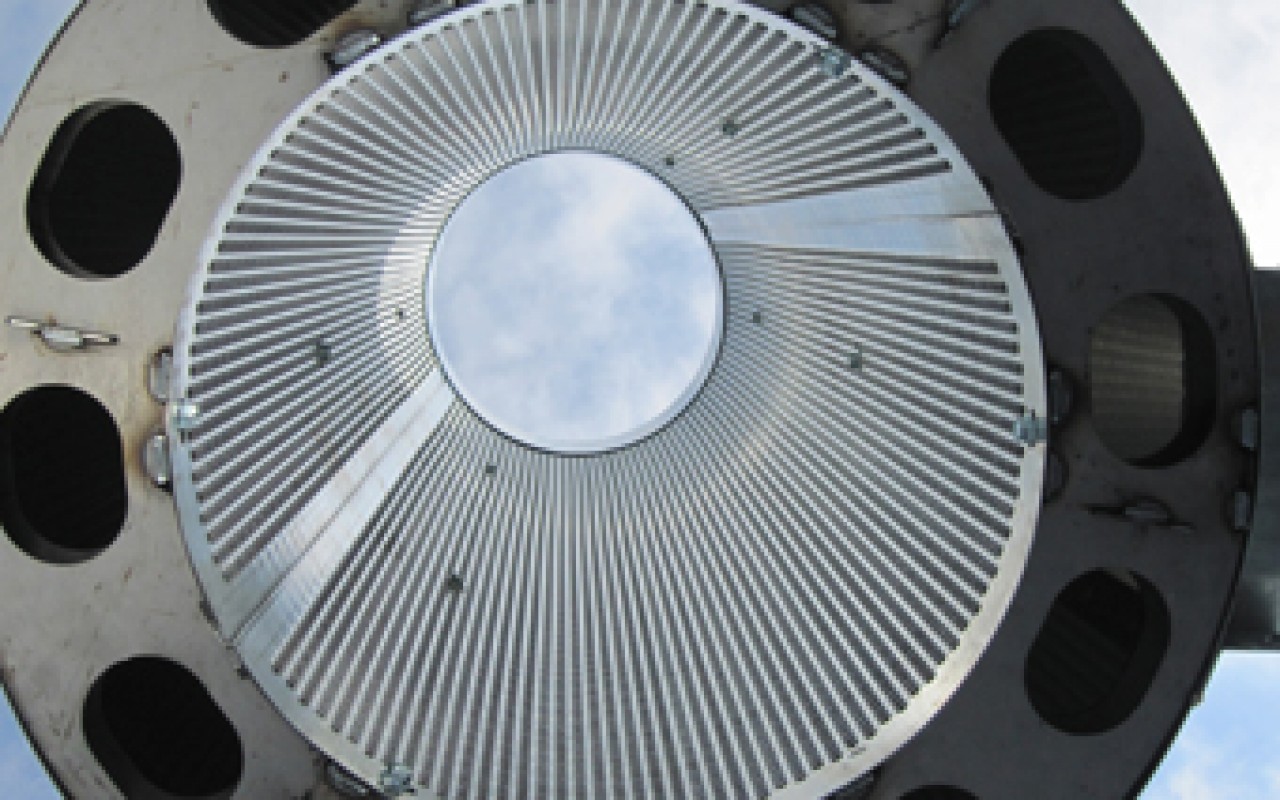

  • Laser Cut Internal Ring

    Laser Cut Internal Ring

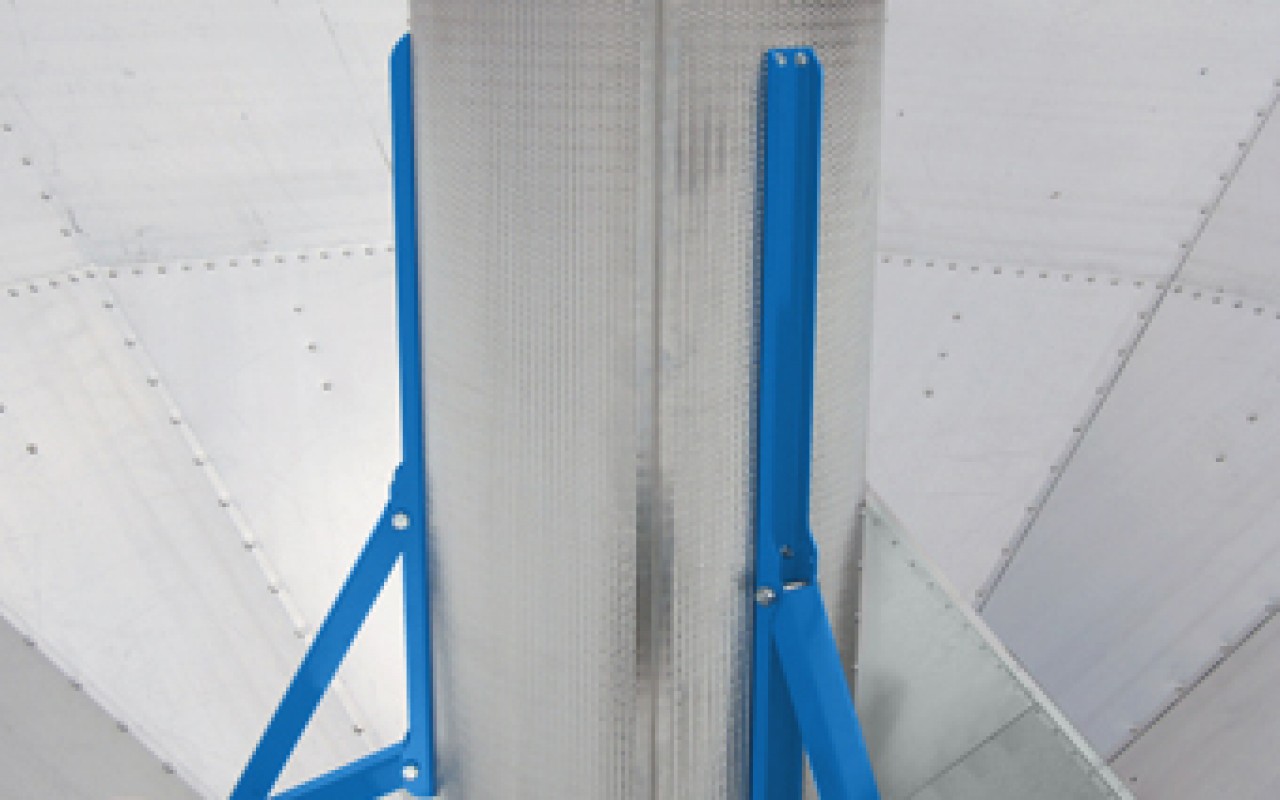

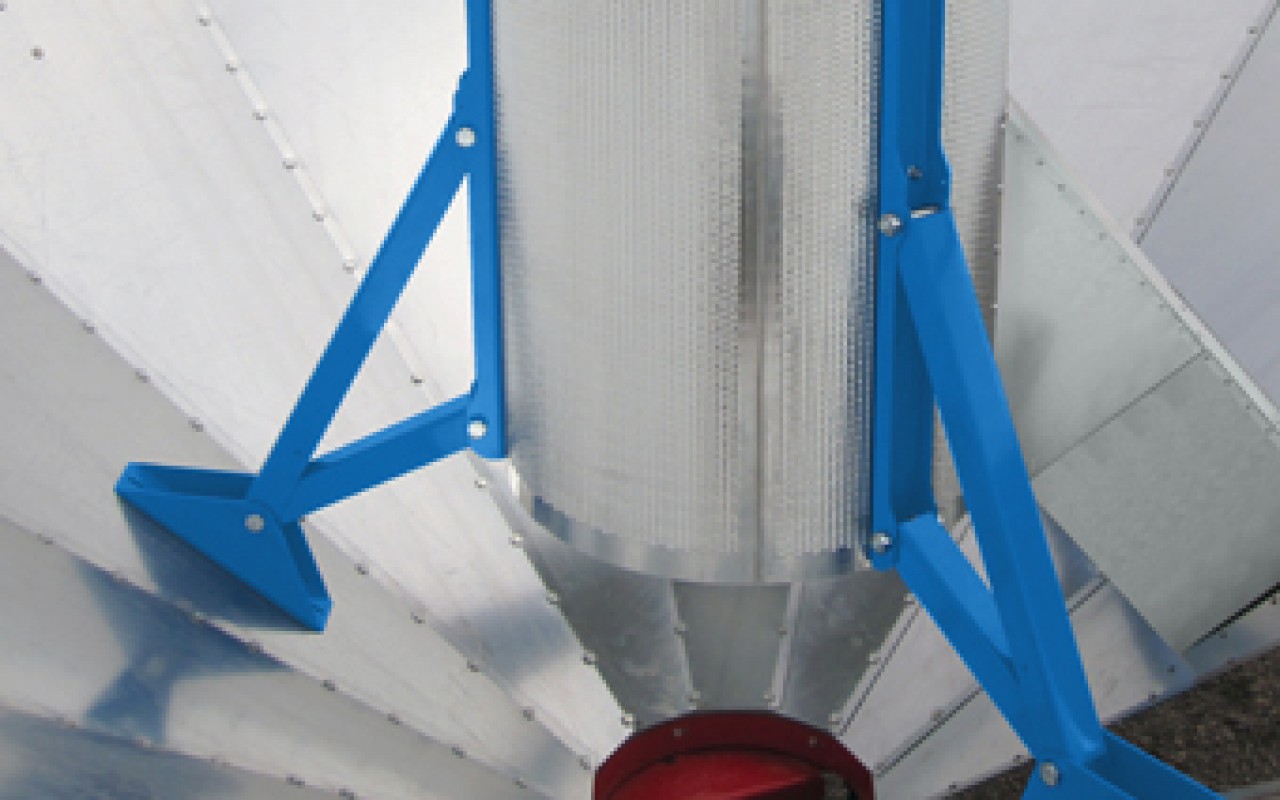

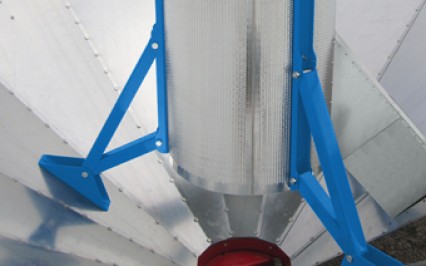

  • 3 Leg Design

    3 Leg Design

  • Smooth Louvered Surface

    Smooth Louvered Surface



Extra Information

The fan's new reduced weight, re-designed side legs, and internal support rings provide greater structural strength, up to 125% greater than the Classic Rocket. Plus, the improved design results in increased vertical loading up to 30' in grain height.

The design allows the installation of the Next Generation Rocket into commercial applications by simply adding extras legs, up to five on the 7000 series and up to eight on the 8000 series.

Features:

  • Improved air delivery performance
  • New reduced weight
  • Designed for increased structural strength
  • 3 leg design for better stability
  • Allows 30' grain height vertical loading

Withstands increase in side loads from irregular grain flow when unloading


GRAIN GUARD FANS

Conventional grain bin aeration systems only dry from the bottom up and often fall short of drying grain in the center and top half of the bin.

Grain Guard fans work better because they:

  • Force air into the center
  • Provide a drying front that conforms to the pile of grain
  • Reduce static pressure
  • Increase fan efficiency by as much as 20%
  • Reduce drying time by as much as 50%



View Specs for All 7 Models Available » Specs

Total Ft (sq) 23.50 --
Bin Wall Height (ft) 15 --
Airflow Capacity @ 1200cfm (ft2) 3000 --
Total Louvered Area (ft2) 19.80 --
Percentage of Open/ Louvered 6.5% --
