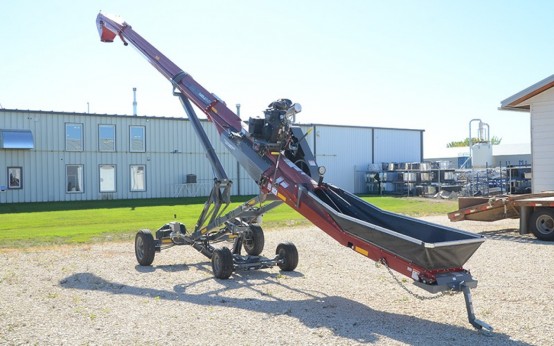

Canola Ready. High Capacity Output. Meridian Truck Load Conveyors are designed to gently and quickly move seed and grain. They can handle up to 12,000 bushels per hour, making them an excellent choice for tasks like loading planters and unloading bins. Ideal for handling oilseeds like canola, as well as pulses or grains.
Contact Us Quote Request Similar InventoryExtra Information
Meridian Reliabelt Truck Load Conveyors are available in 45 and 55-foot lengths. They feature a skived chevron belt that transports materials quickly and safely without causing damage. This unique belt design fits tightly between hopper flashings, significantly reducing spillage by preventing materials from falling underneath the belt.
TL 20-45 and TL 20-55
- Canola ready oilseed certified conveyor
- Adjustable double flashing to seal off hopper
- Skived belt for a tighter hopper seal
- Large 6" drive roller for maximum traction
- Belt scrapers to remove canola residue from the underside of the belt.
Features
- 20" chevron belt and 10" tube
- 4-way hydraulic mover
- Electric clutch
- Joystick power steering
- LED light kit
- 13" flexible downspout
- 40 HP Vanguard motor
To find out how a Meridian Reliabelt TL Conveyor will help you handle your seed safely and efficiently, contact your nearest Flaman location.
Specs
| Belt Size | 20” x 45’ | 20” x 55’ |
| Max Reach | 19’ | 21’ |
| Axle Width | 8' | 8' |
| Power | 40 HP Vanguard Motor | 40 HP Vanguard Motor |
- Belt Size
- Max Reach
- Axle Width
- Power
-
TL-2045
- 20” x 45’
- 19’
- 8'
- 40 HP Vanguard Motor
-
TL-2055
- 20” x 55’
- 21’
- 8'
- 40 HP Vanguard Motor
