Pro Grain Extractor


Extractor

Product Information

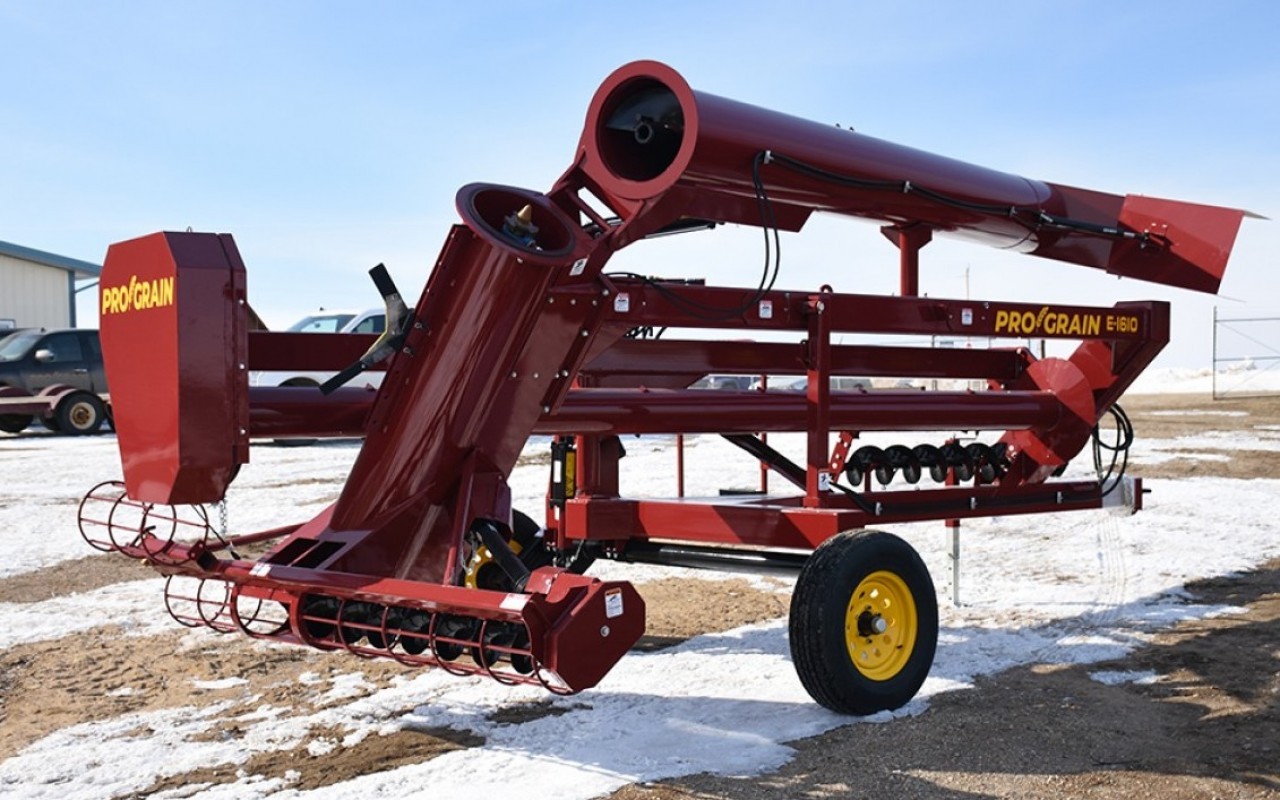

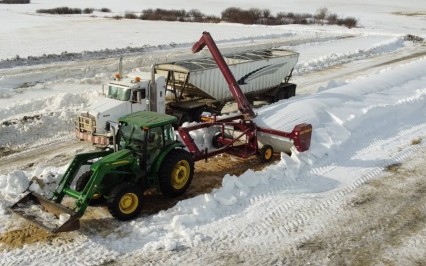

Manufactured in Saskatchewan, the Pro Grain E-1610 Extractor delivers fast, dependable, and efficient grain transfer from your grain bags to your transport truck. These heavy-duty machines are easy to set up, operate, and maintain, and can move approximately 10,500 bushels per hour.

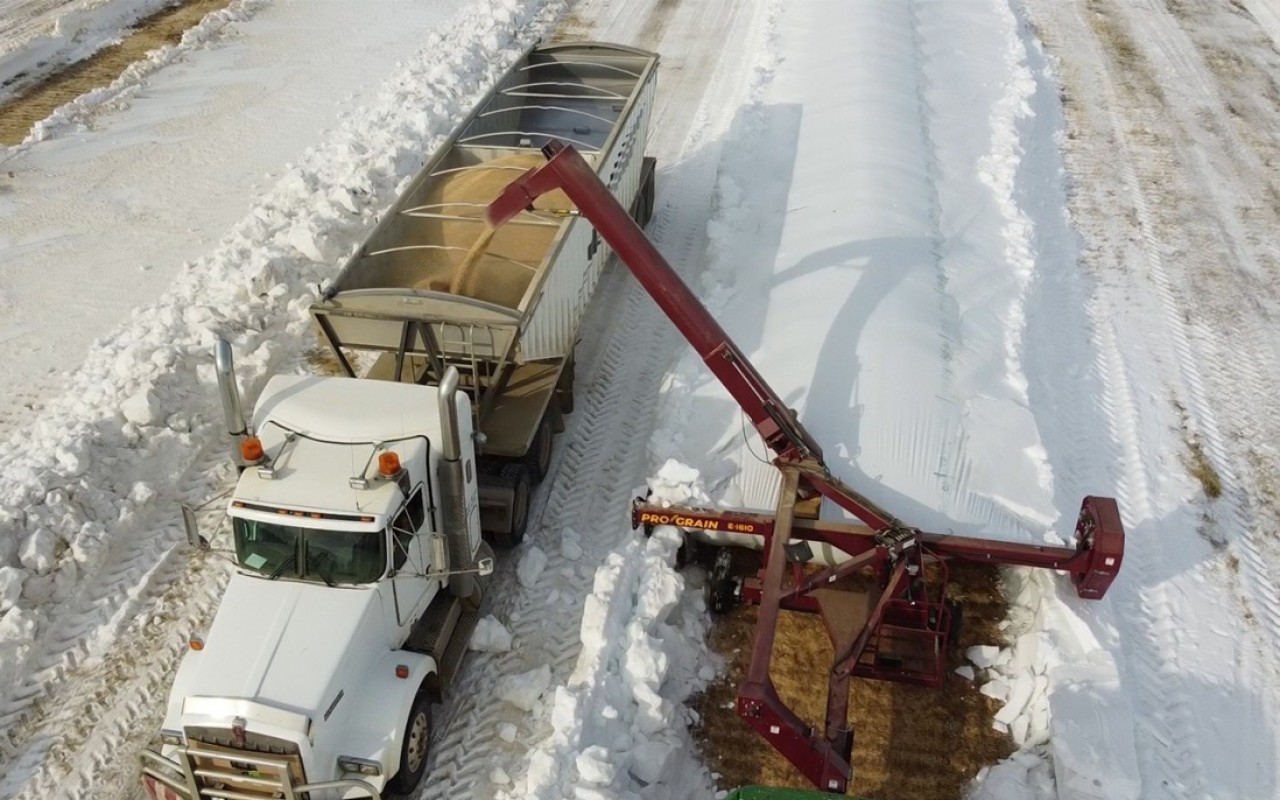

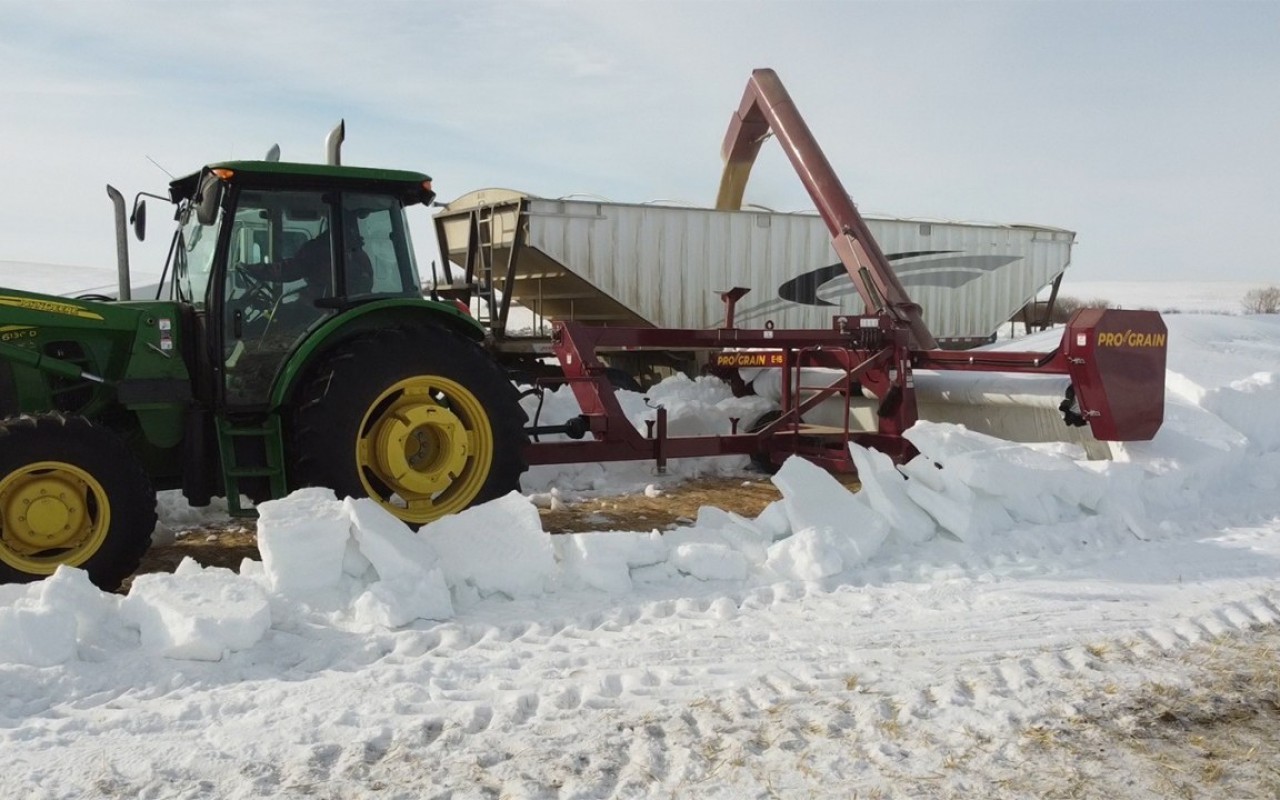

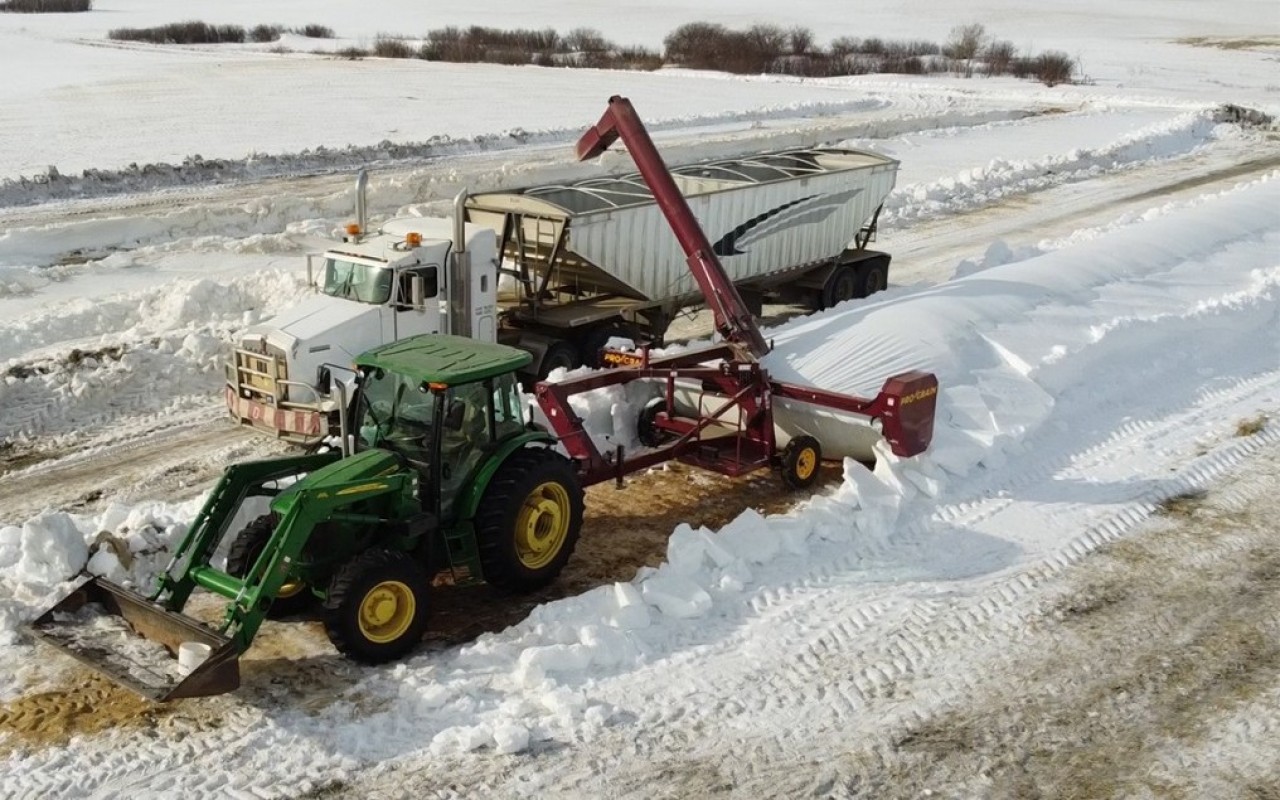

Featuring a 16” main auger and a 9” cross auger, the Pro Grain Extractor is designed to use with 10’ grain bags. The extractor pulls the grain in with the cross auger, which feeds the grain into the main auger, and then the bag roller pulls the tractor and extractor into the bag to keep the auger filled – so you can empty bags quickly and keep your trucks moving.

Contact Us Quote Request Similar Inventory


Features

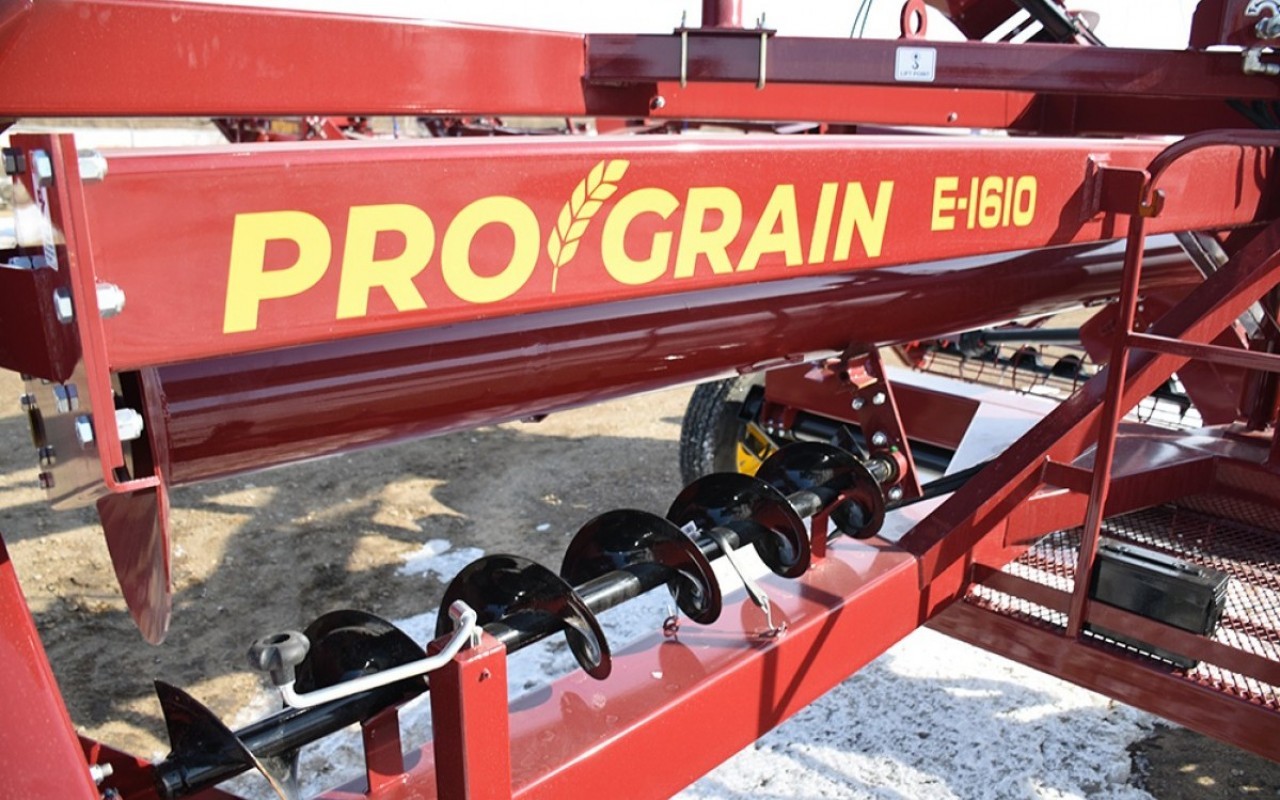

  • 16" Auger

    16" Auger

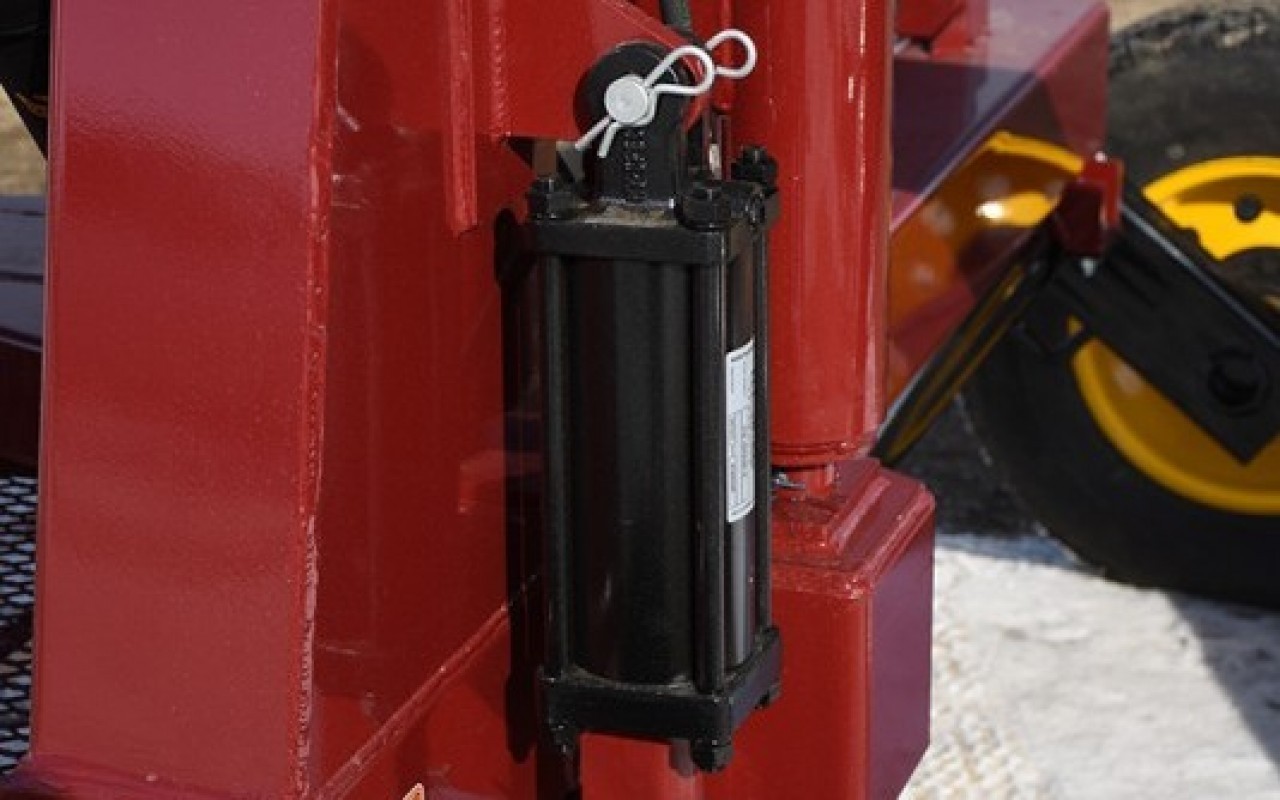

  • Hydraulic height adjusting axle

    Hydraulic height adjusting axle

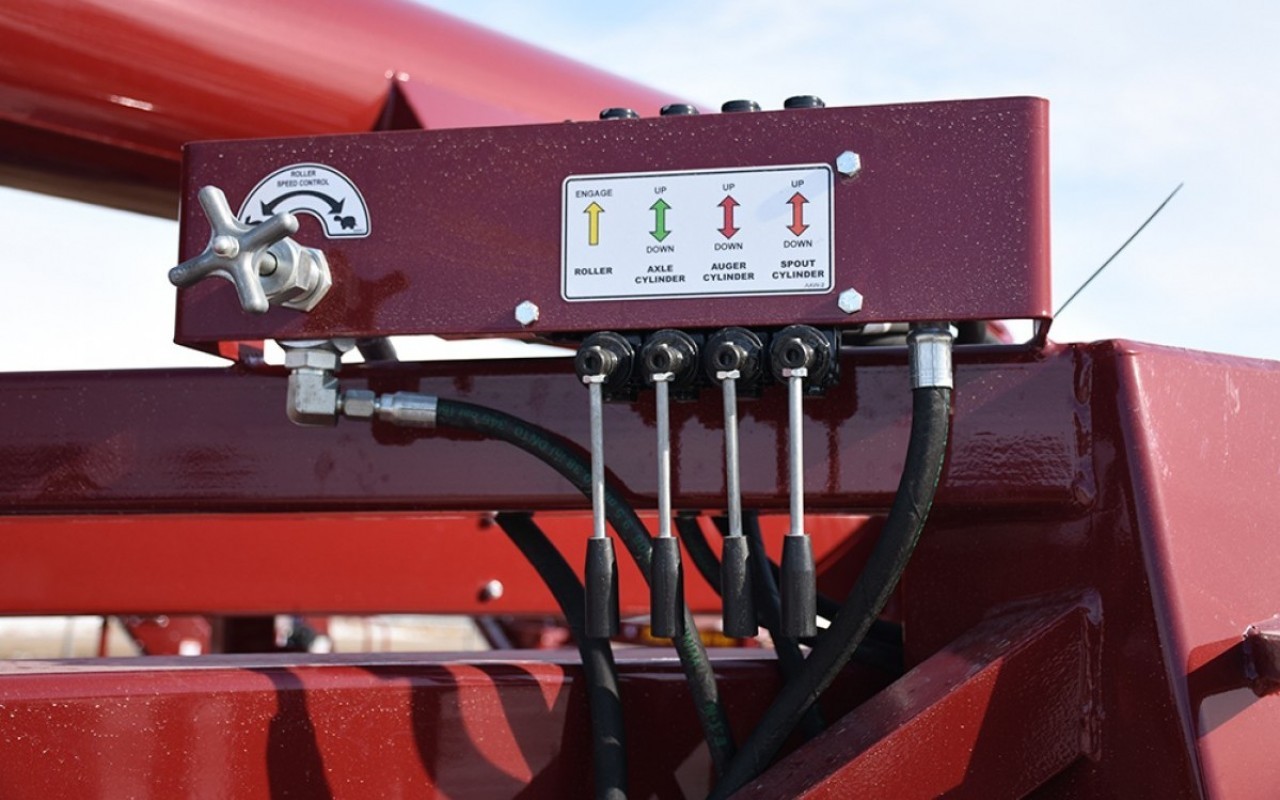

  • Flow controls & hydraulic controls for easy operation

    Flow controls & hydraulic controls for easy operation

  • Easy access to the free wheel levers

    Easy access to the free wheel levers

  • 16" auger provides fast grain extraction; spout extension available

    16" auger provides fast grain extraction; spout extension available

  • Large spaced flighting guard for high flow of grain

    Large spaced flighting guard for high flow of grain



Extra Information

Using 540 direct drive PTO, the Pro Grain Extractor increases harvest efficiency by providing fast, high-volume transfer from your bag to the truck. Easily operated by one person, these machines save on labour and storage costs.

Features:

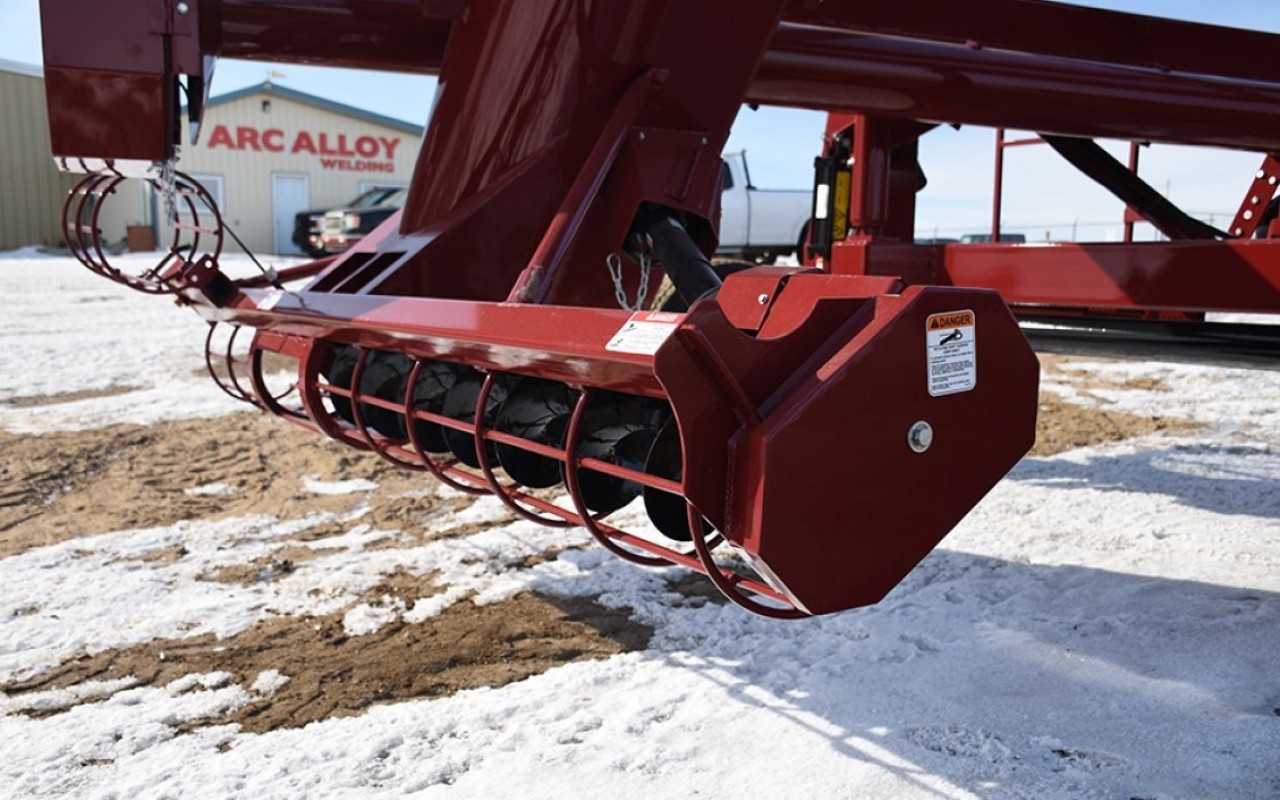

  • Bag catches hook onto the bags and continuously roll the bags in

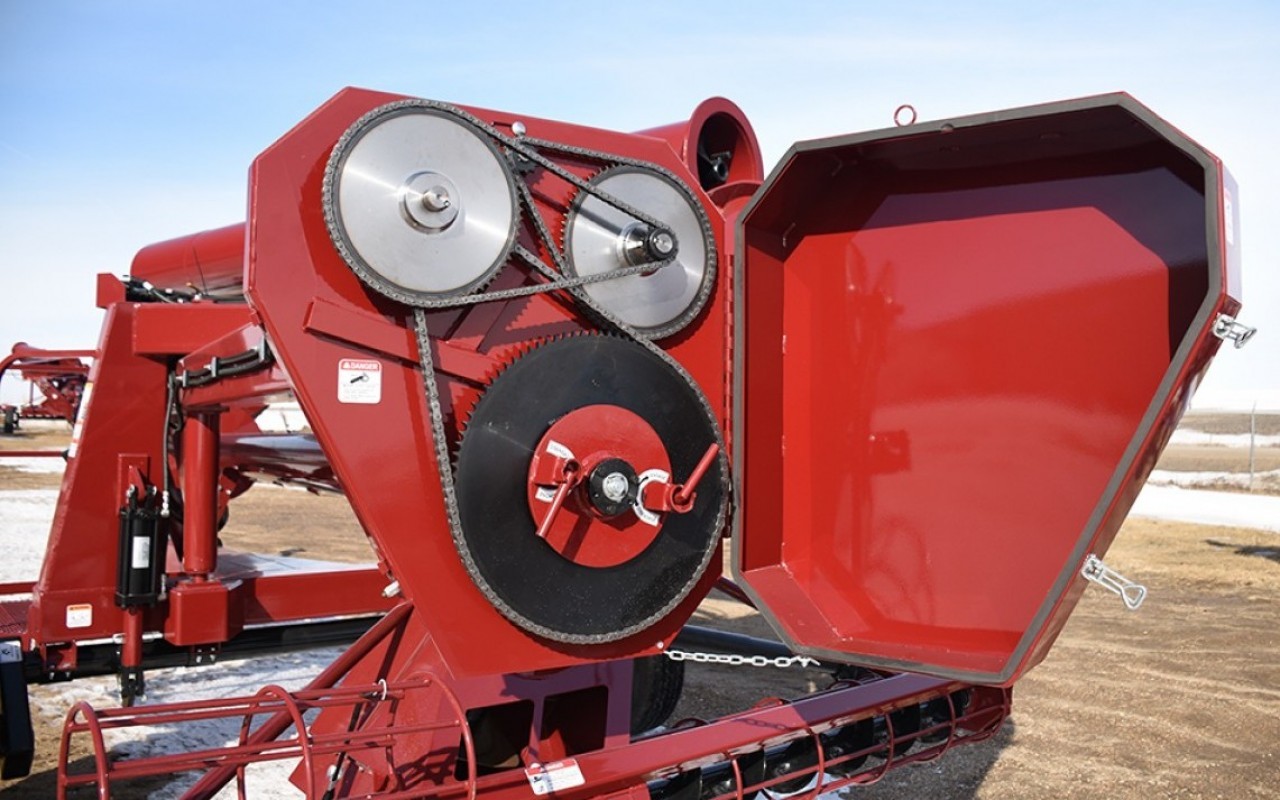

  • Roller drive system – engage and disengage the roller with spring-loaded switch handles

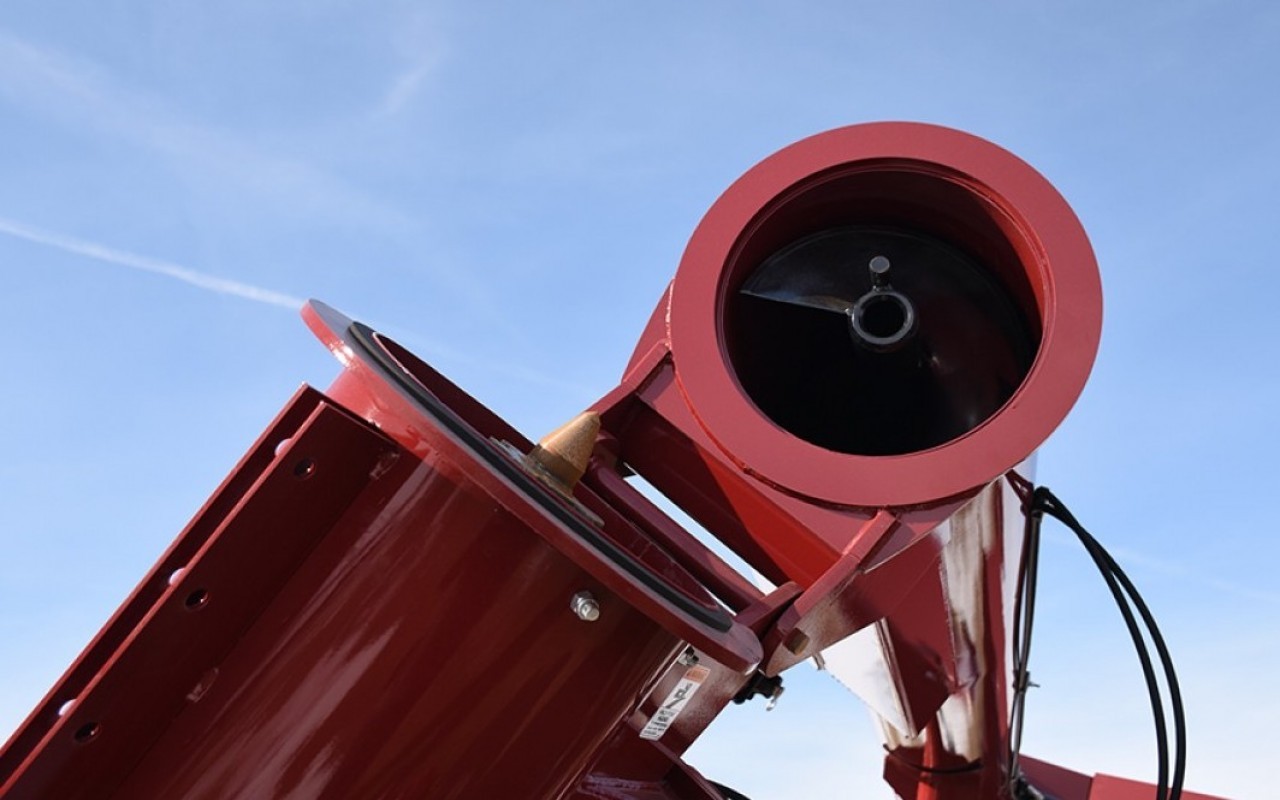

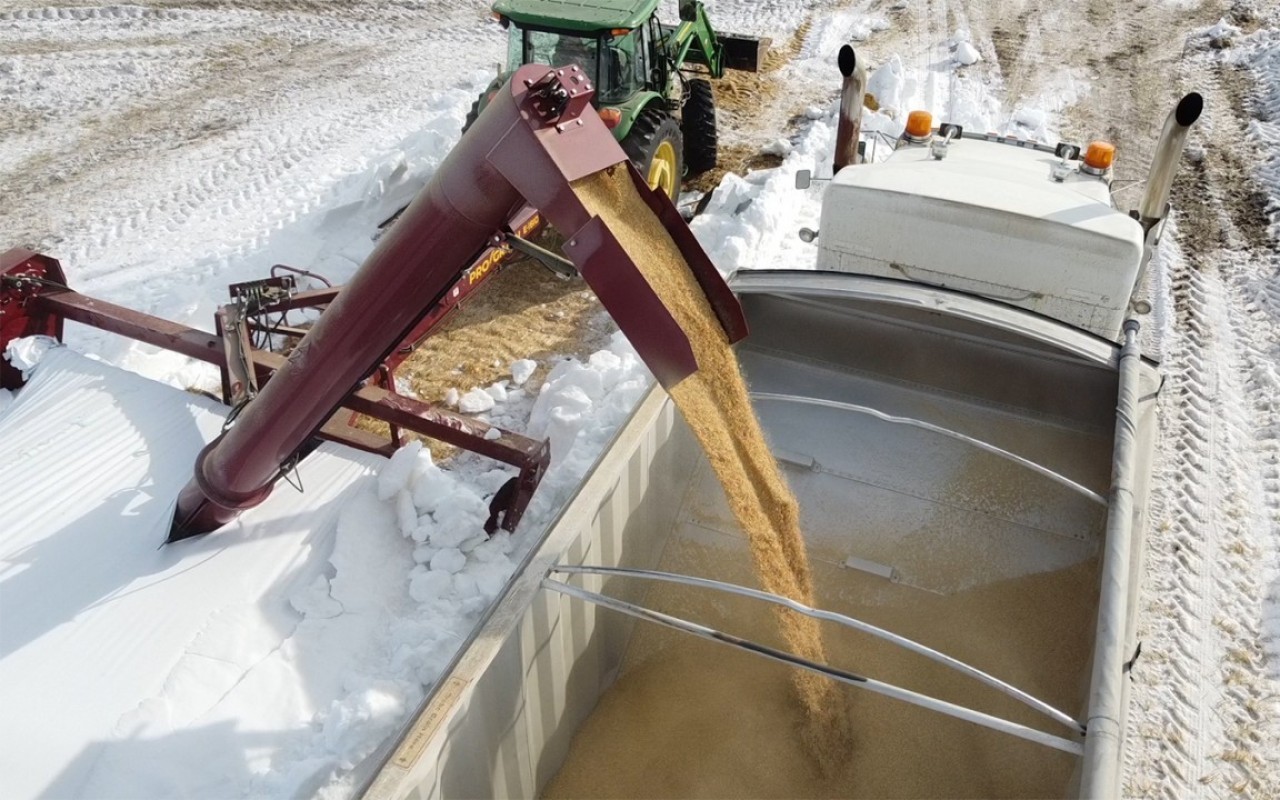

  • Adjustable spout helps in windy conditions and allows for an even flow into the trucks

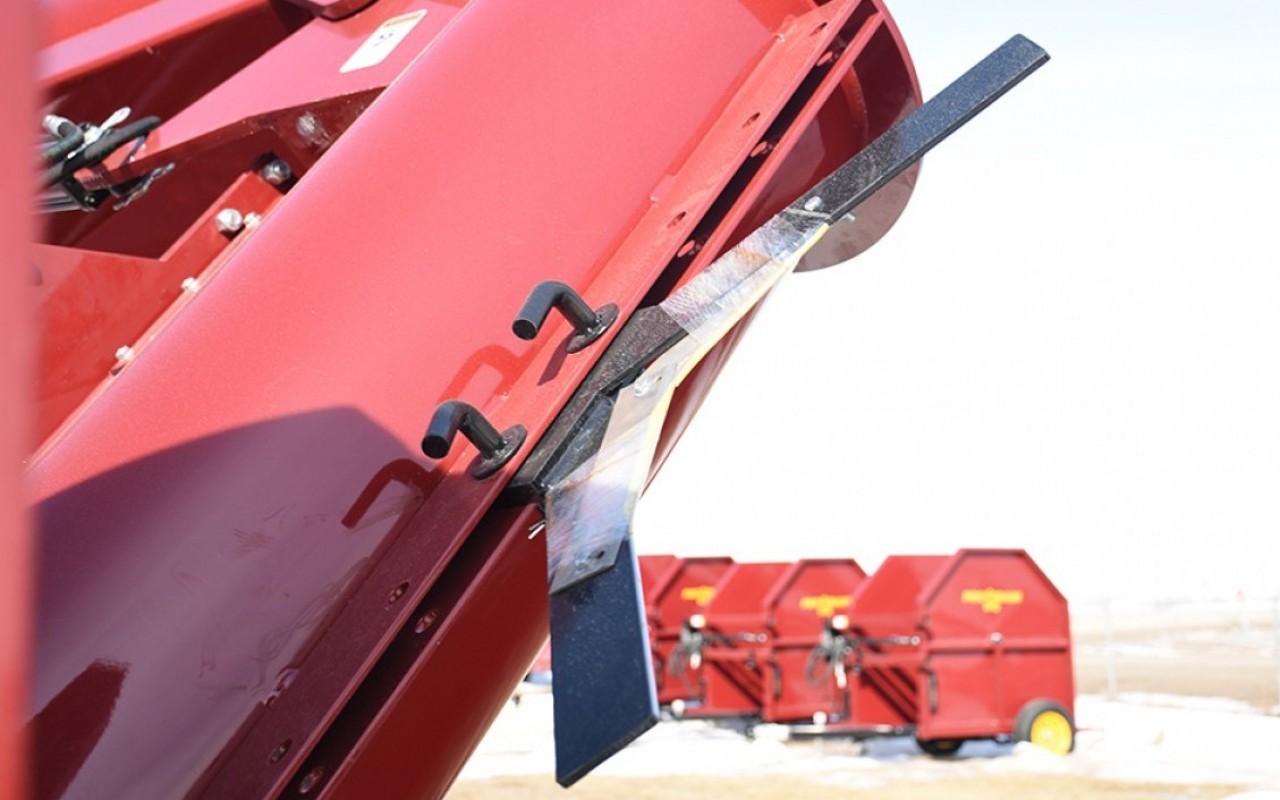

  • Blade cuts the bag down the middle and then can be flipped into safety area when not in use
  • Safely operate the extractor from the operator platform, which raises up to view into the grain bag
  • Flow control operates the speed of the machine being pulled into the grain to keep the auger fed



Specs

Bag Size 10'
PTO 540 Direct Drive
Capacity 10,500 BU/hr
Main Auger Size 16"
Cross Auger Size 9"
HP Required 80 HP
Required Flow 22 GPM min. @ 2,200 PSI
Warranty 2 Year Limited
