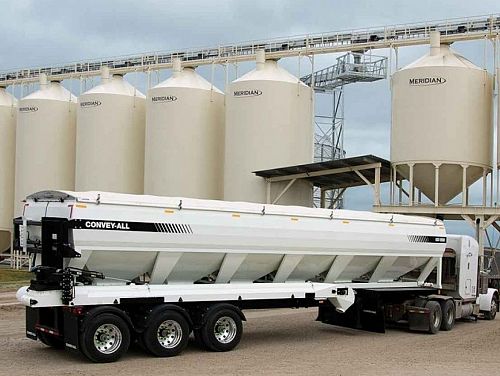

Convey-All Seed Tenders set the standard for effective and innovative
solutions for your farm and Agri-business. Dependability and efficiency are at
the core of every seed tender. These multi-compartment stainless steel tenders
are designed to transport seed and fertilizer simultaneously without damage or

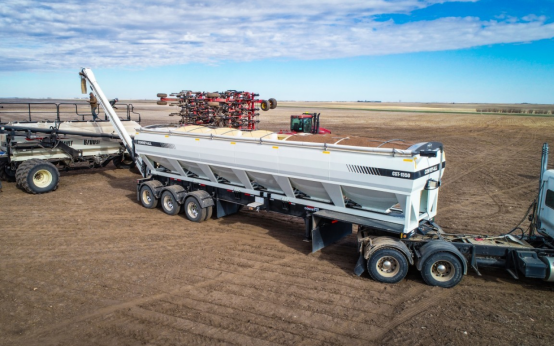

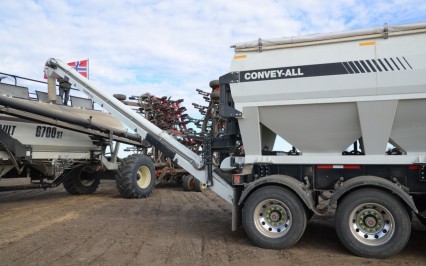

cross-contamination. The advanced unloading belt conveyor system ensures gentle
and time efficient seed delivery directly into your air seeder, reducing your
fill time significantly. These tenders will reduce your seeding down time
significantly while providing versatile use year-round. Weigh and transport
seed to your air seeder in spring, unload grain from your combine during
harvest and haul product to the market any time.
Features
-
Stainless Steel Lower Hopper and Conveyor
-
Self-Contained Hydraulics
-

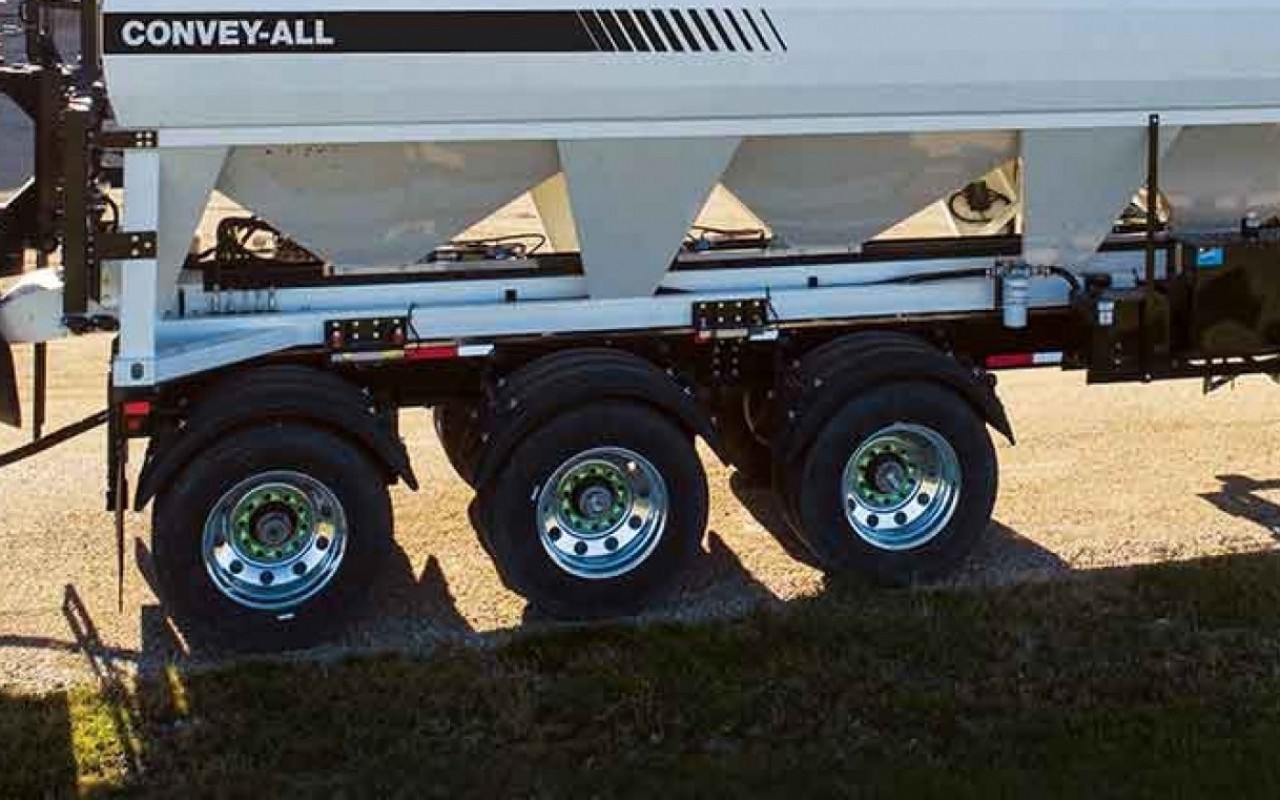

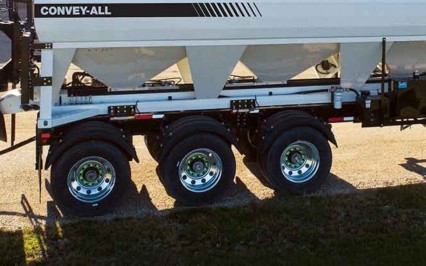

Aluminum Outer Wheels with Polyethylene Fenders
-

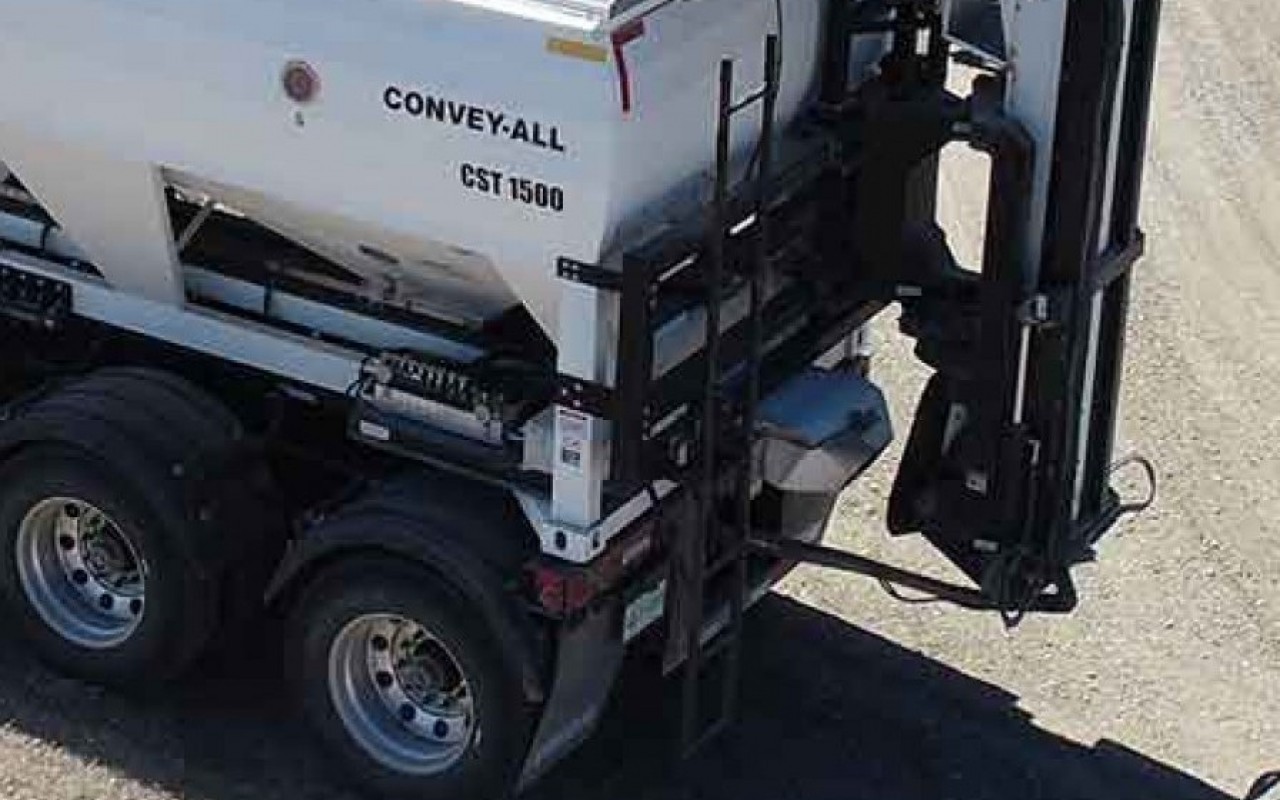

External Ladders
Extra Information

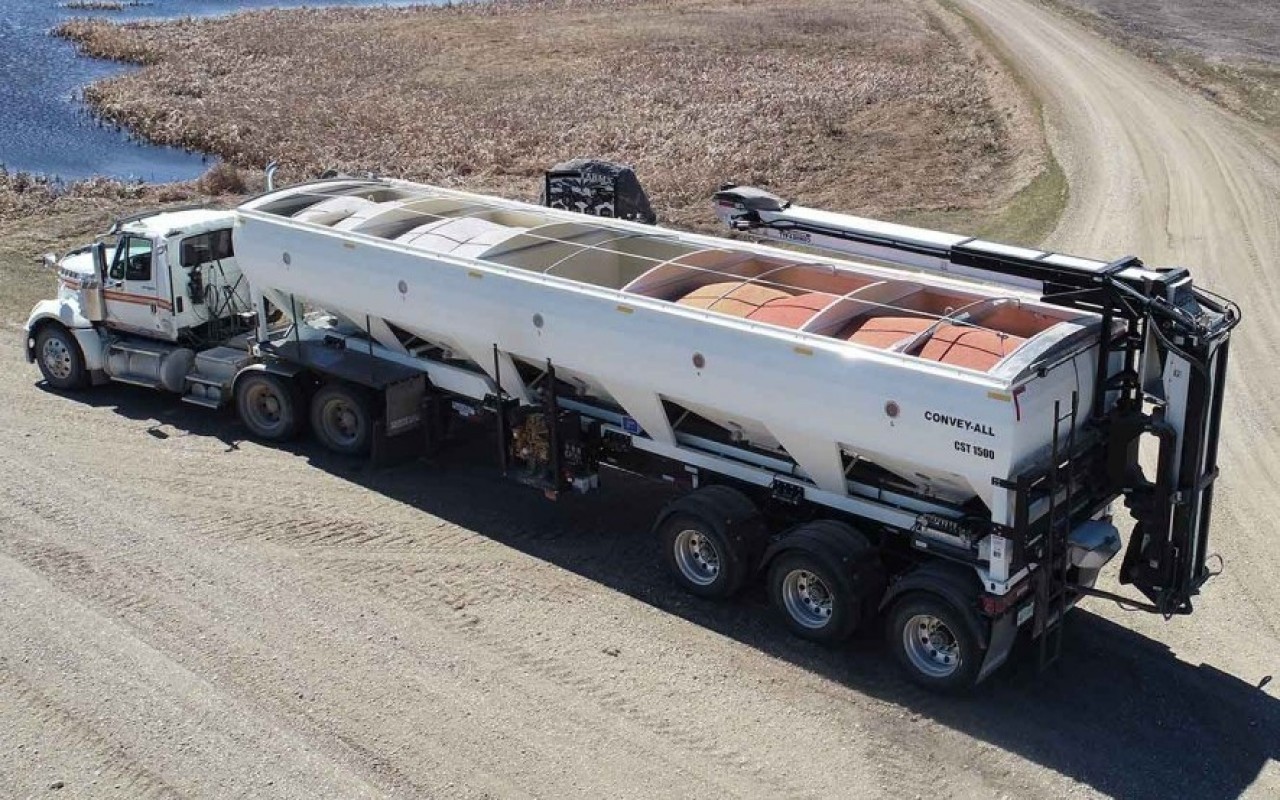

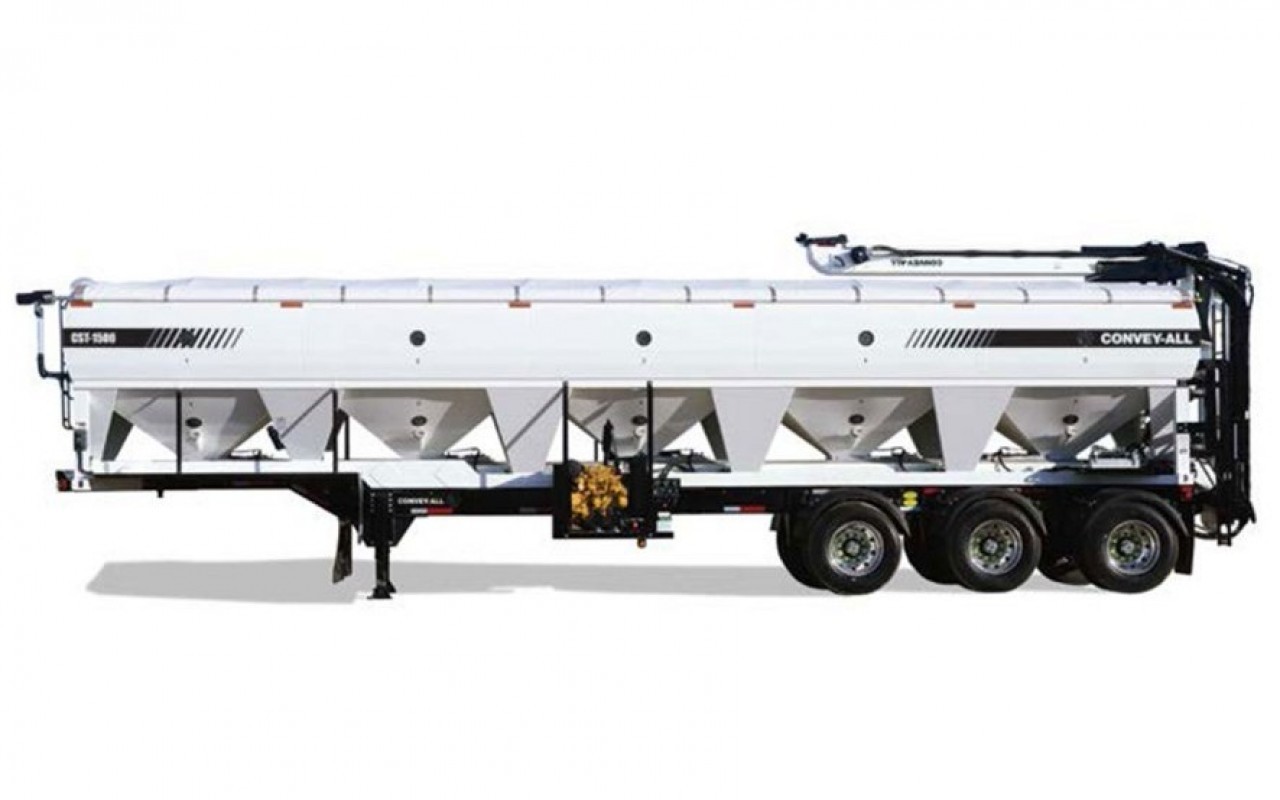

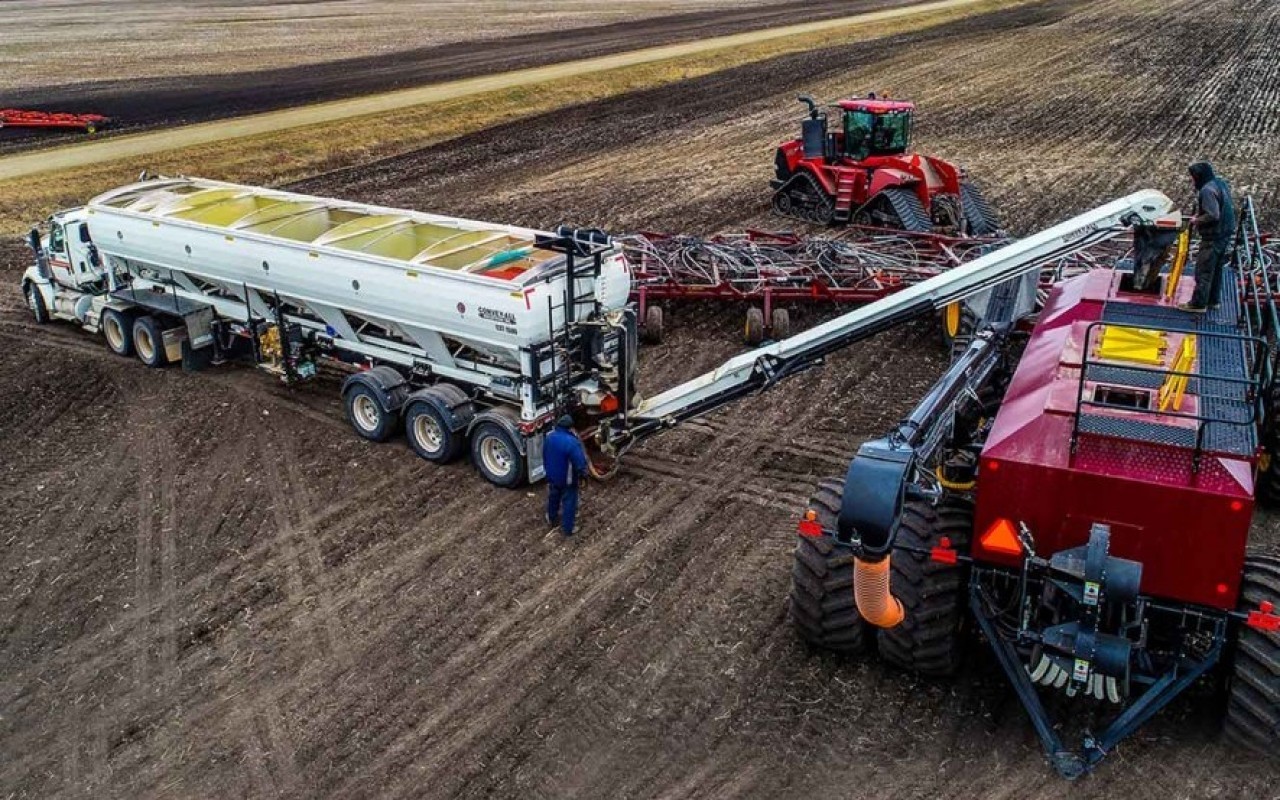

The CST-1500 is one of the largest tenders on the market. This five-compartment tender is able to transport fertilizer and seed at the same time. The use of conveyors, ensure no seed damage or cross-contamination, unloading at a rate of 2 tons per minute.

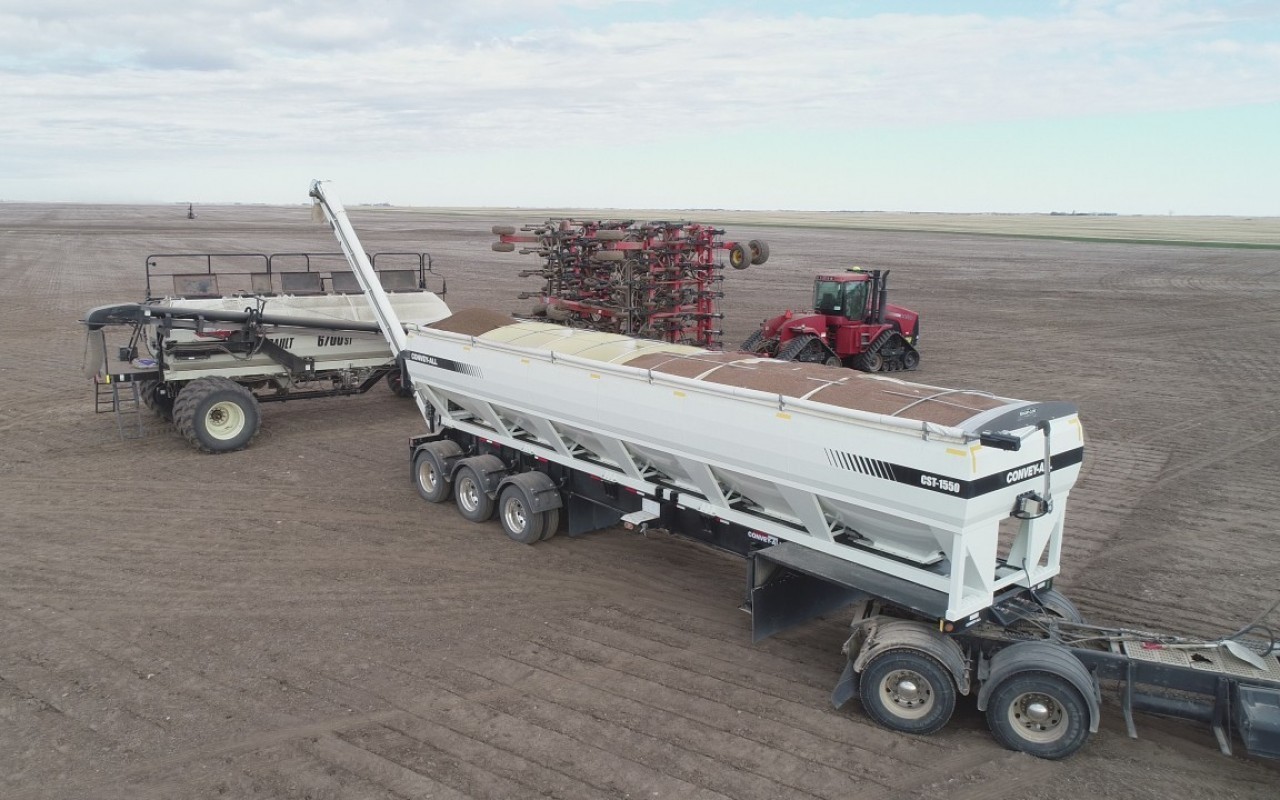

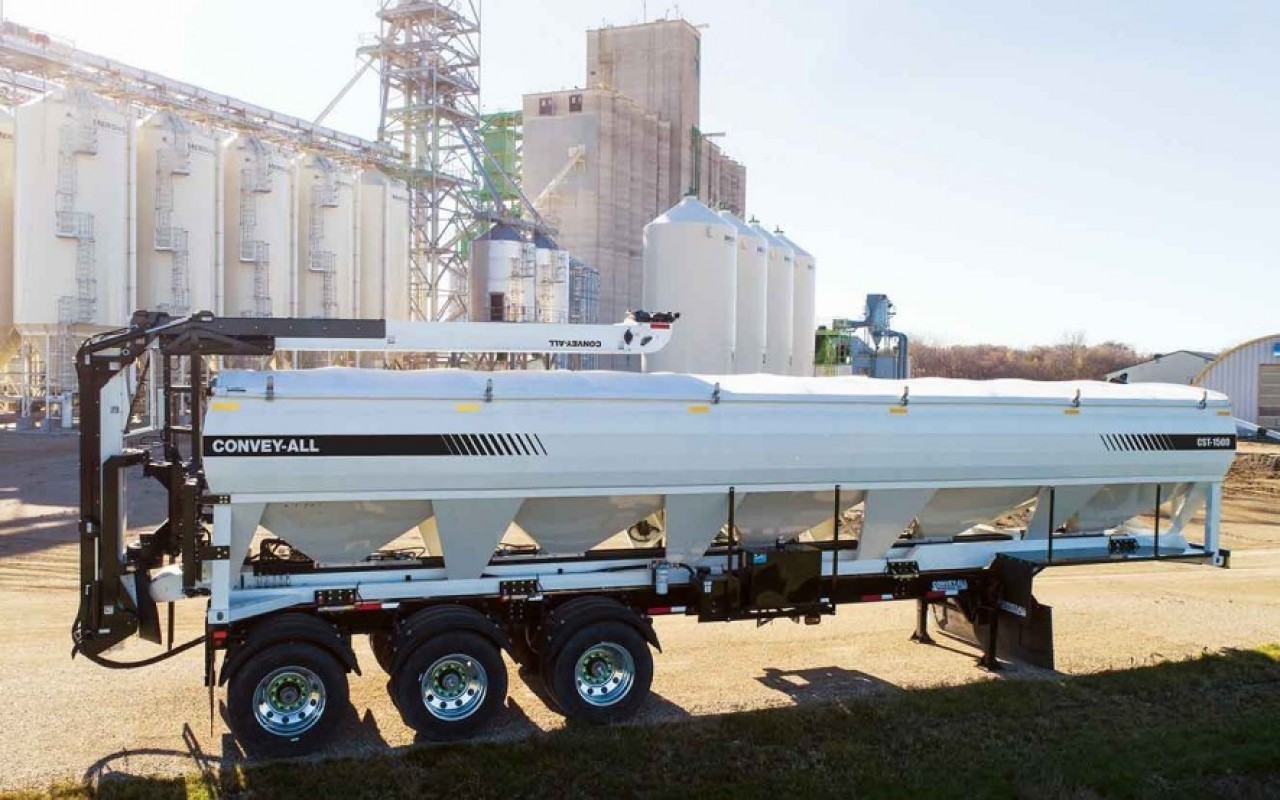

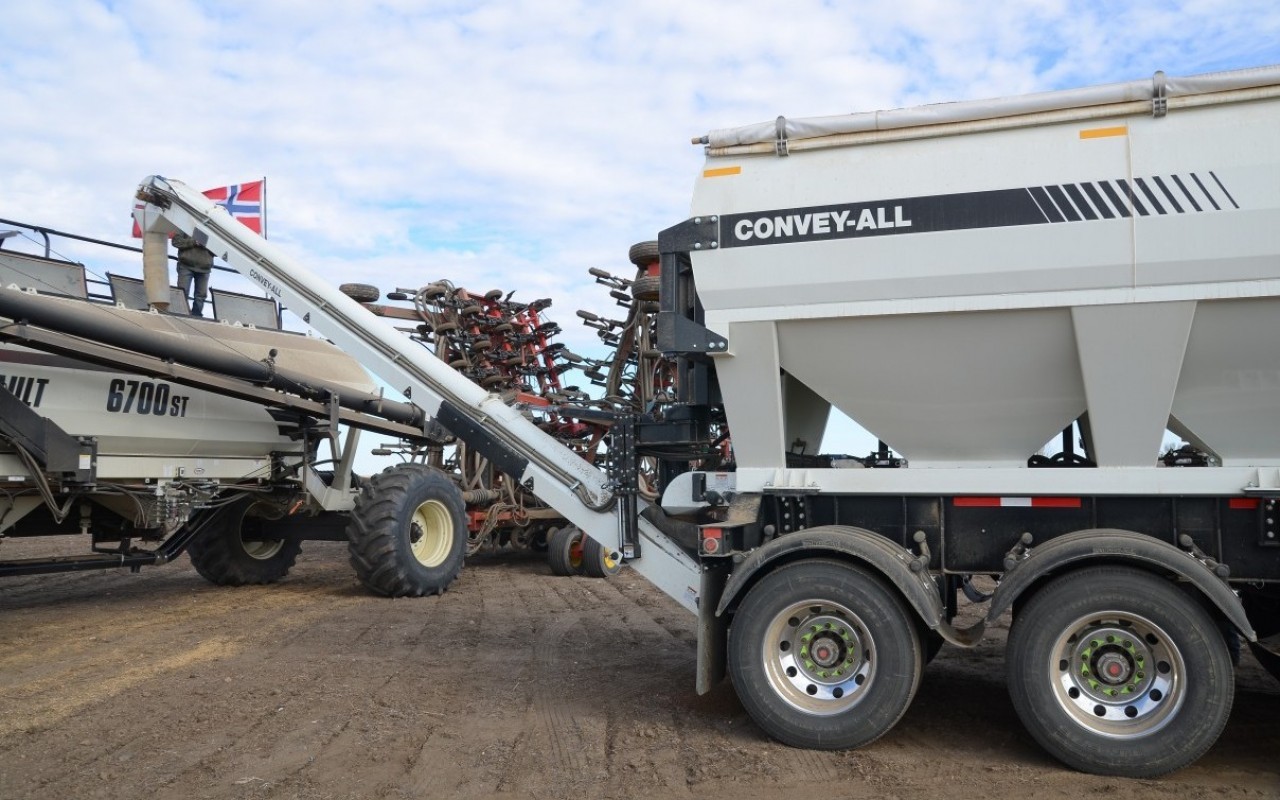

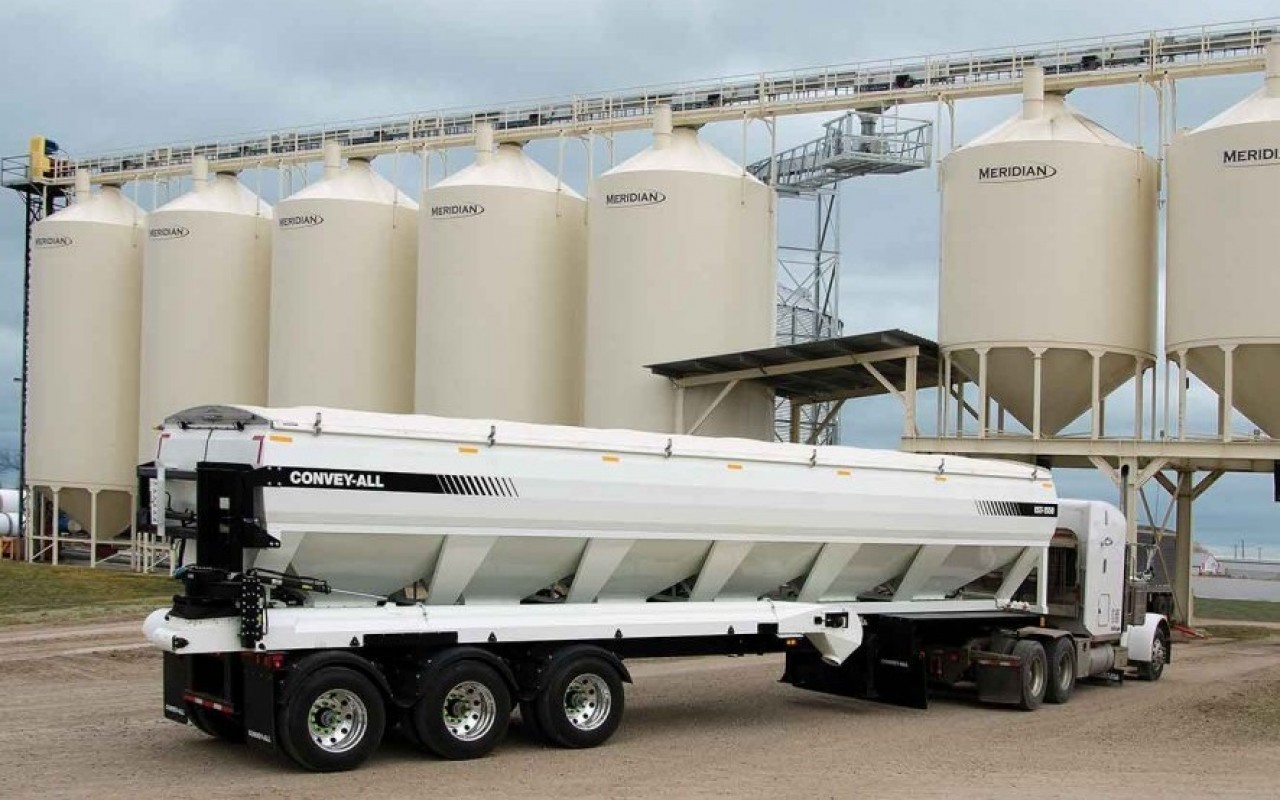

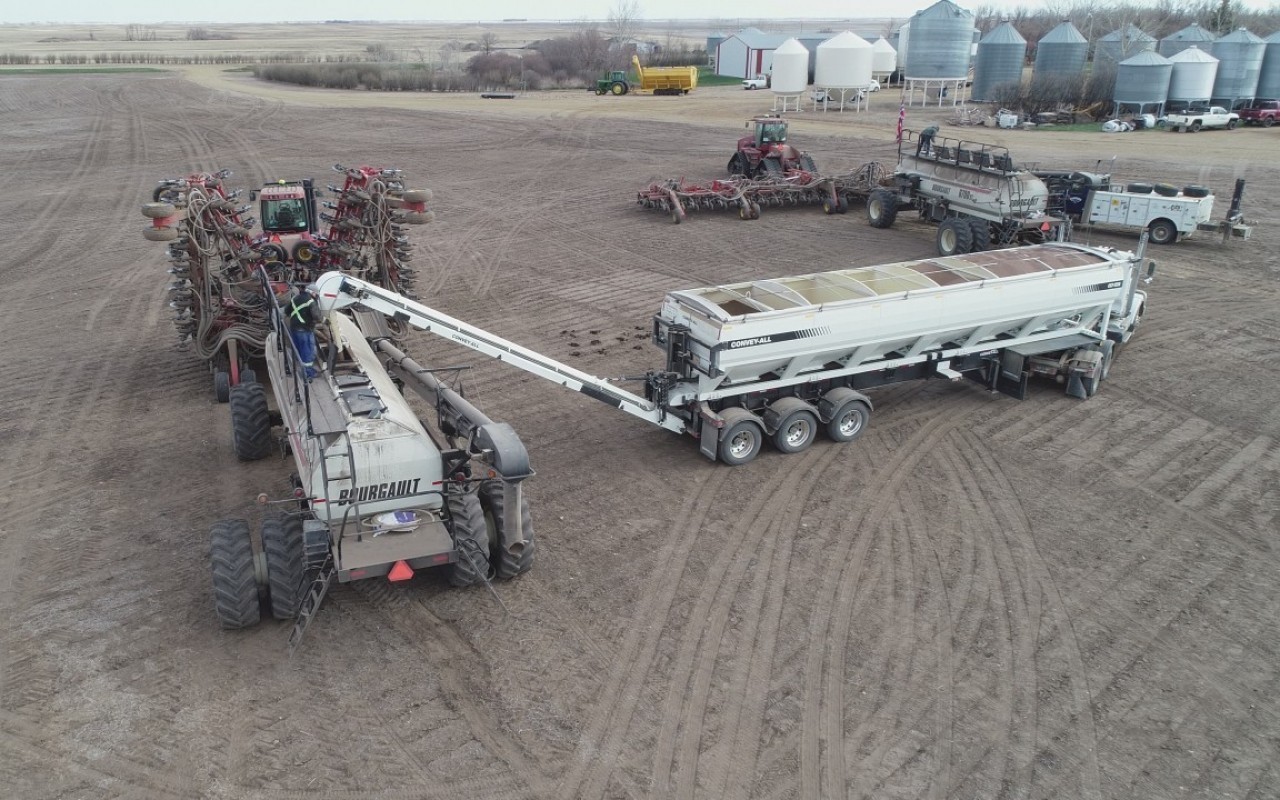

Powered by a 50 HP diesel engine, the CST-1550 is equipped with its own hydraulic system, taking your seeding process to new levels of efficiency. Save time with the advanced, unloading belt conveyor system that ensures gentle and efficient seed delivery directly into your air seeder. The six compartment, stainless steel tank is designed to transport seed and fertilizer simultaneously without damage or cross-contamination. At an unload rate of 2 tons/min, fill time is significantly reduced, unloading 1550 cubic feet under 20 minutes.
Other Features
- Tier 4 diesel engine (1550 model only)
- Tier 3 diesel engine (1500 model only)

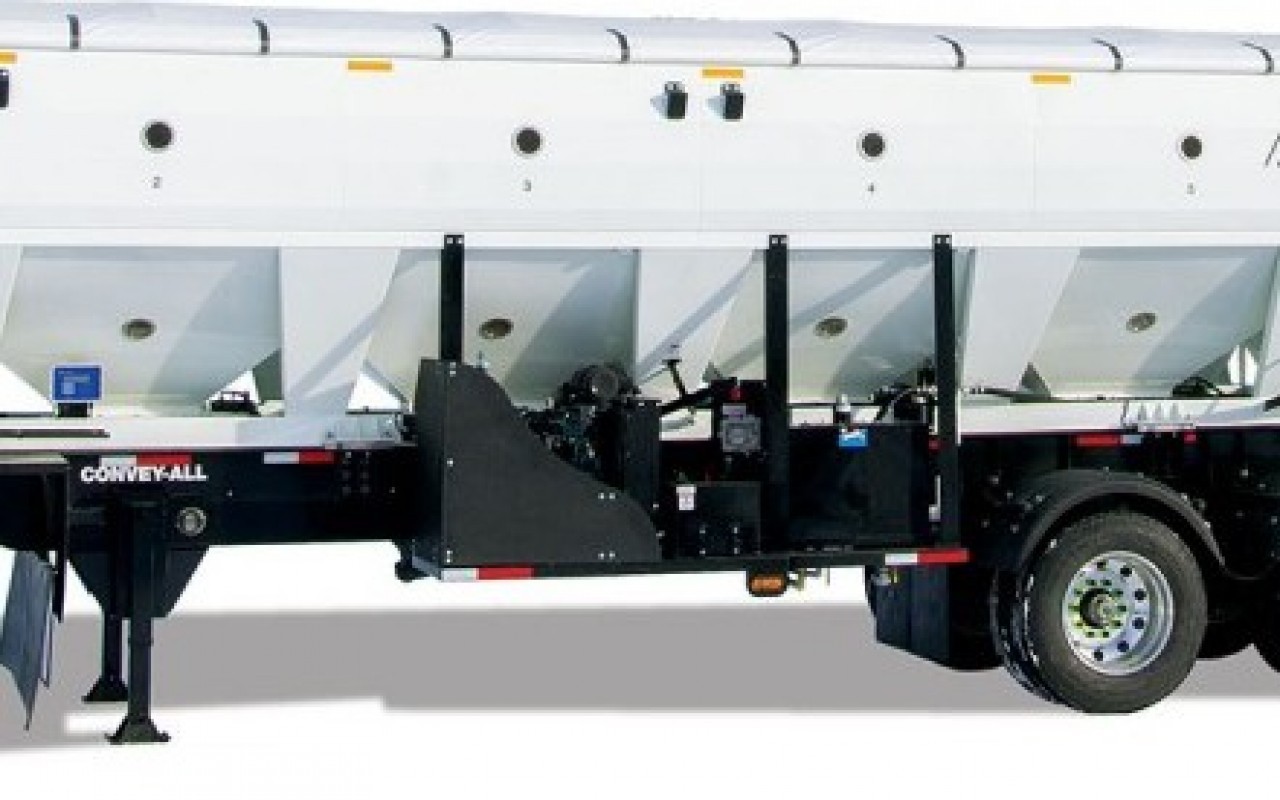

- 6 compartments (1550 model only)
- 5 compartments (1500 model only)
- Stainless steel slopes & gates
- 12 gauge hopper construction
- Two stage - epoxy/polyurethane coating system
- Aluminum anodized hydraulic valves
- Camera package
- LED working lights
- 2 sight glasses per compartment
- LED gate indicators
- Air ride trailer
Specs
| Capacity (cu.ft.) | 1551 | |
| Capacity (bushel) | 1248 | |
| No. of Compartments | 6 | |
| Conveyor Belt Width | 20" | |
| Paddle Belt Width | 16" | |
| Length | 25' | |
| Swing Diameter | 144 degree swing, 43'2" reach | |
| Empty Weight | 25,060 lbs | |
| Compartment Capacity | 8 ton | |
| Total Capacity | 48 ton |
- Capacity (cu.ft.)
- Capacity (bushel)
- No. of Compartments
- Conveyor Belt Width
- Paddle Belt Width
- Length
- Swing Diameter
- Empty Weight
- Compartment Capacity
- Total Capacity
-
CST-1550
- 1551
- 1248
- 6
- 20"
- 16"
- 25'
- 144 degree swing, 43'2" reach
- 25,060 lbs
- 8 ton
- 48 ton
