Chembine Chemical Mixer


Chemical Mixer

Product Information

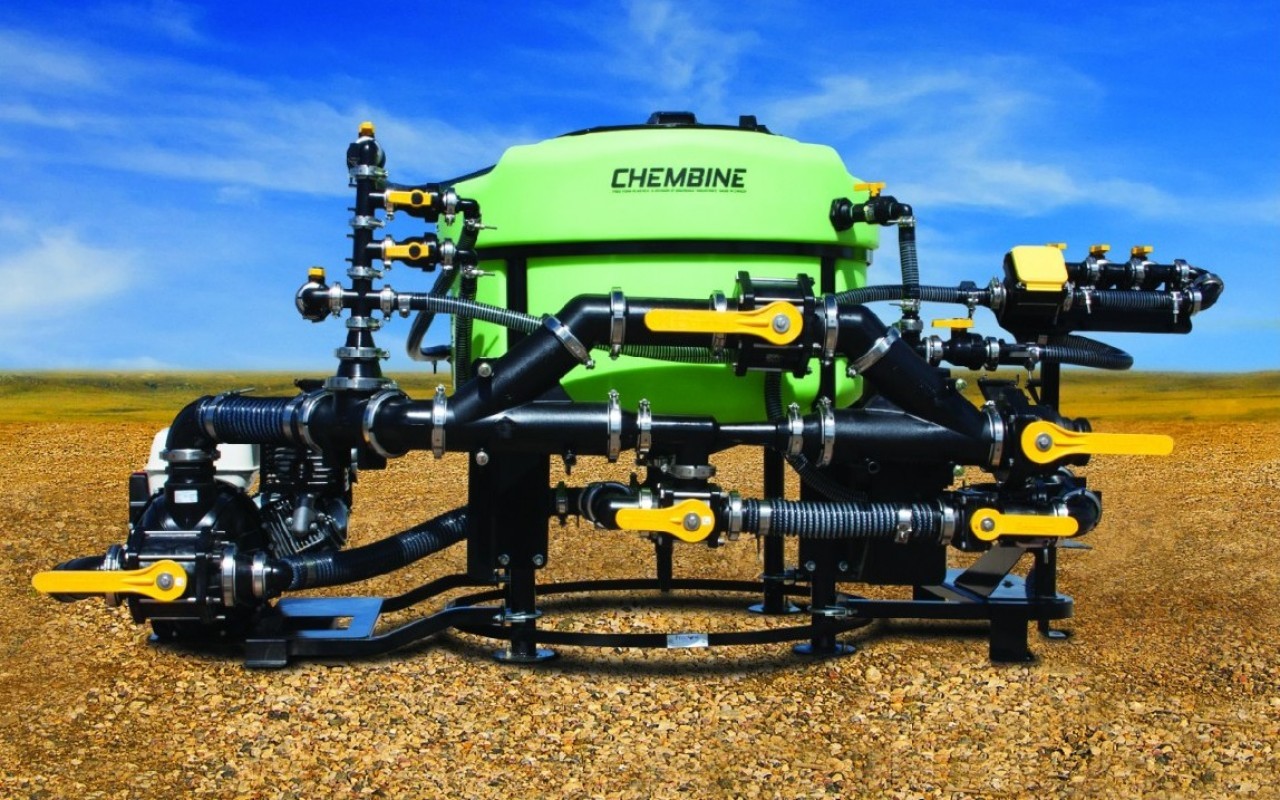

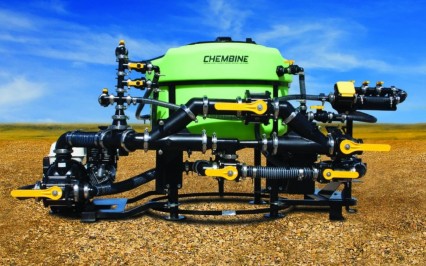

Designed and manufactured in Saskatchewan, the Chembine Chemical Mixer is a new and innovative agricultural solution for mixing and blending chemicals. This poly mixer tank has a capacity of 75 US gallons (62.5 imperial), offering a faster jug drain time, a superior knife cutting block for more complete drainage, quicker rinse times, and the latest agitation engineering for efficient mixing of both wet and dry chemicals.

Optional 6.5HP or 13 HP pump available.

Contact Us Quote Request Similar Inventory


Features

  • Secured hinged tank lid

    Secured hinged tank lid

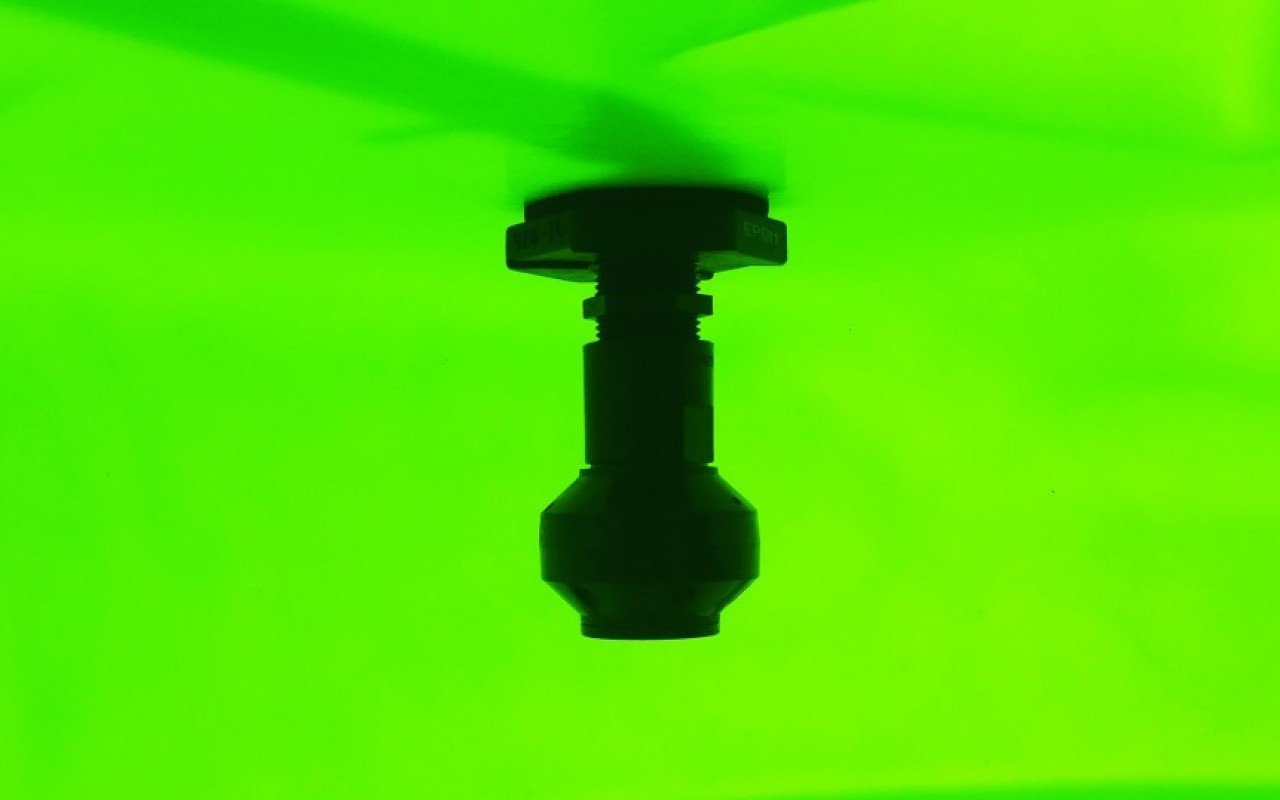

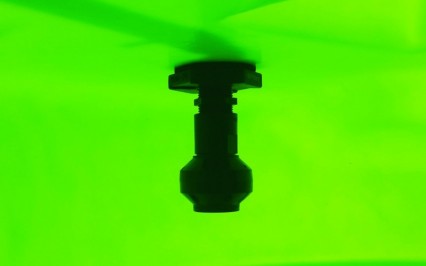

  • Easy rinse & drain process with rotary rinse system

    Easy rinse & drain process with rotary rinse system

  • Increased rate of mixing with 2 agitator jets and 4 vertical ribs

    Increased rate of mixing with 2 agitator jets and 4 vertical ribs

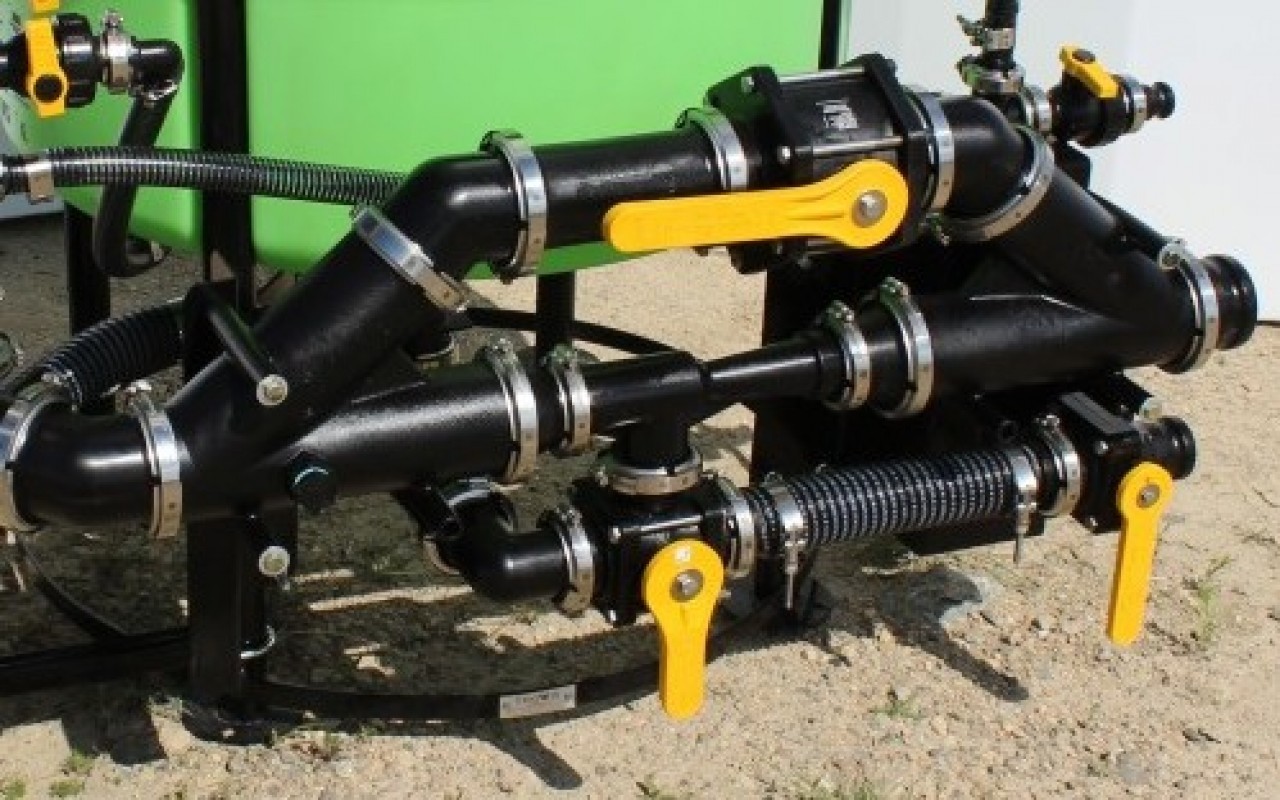

  • Plumbing available in 2" and 3"

    Plumbing available in 2" and 3"



Options

  • Chembine Dual Unit

    Chembine Dual Unit

  • Expansion Kits

    Expansion Kits



Extra Information

The Chembine Chemical Mixer incorporates all the features of a typical chemical mixer, while drastically improving in the following areas:

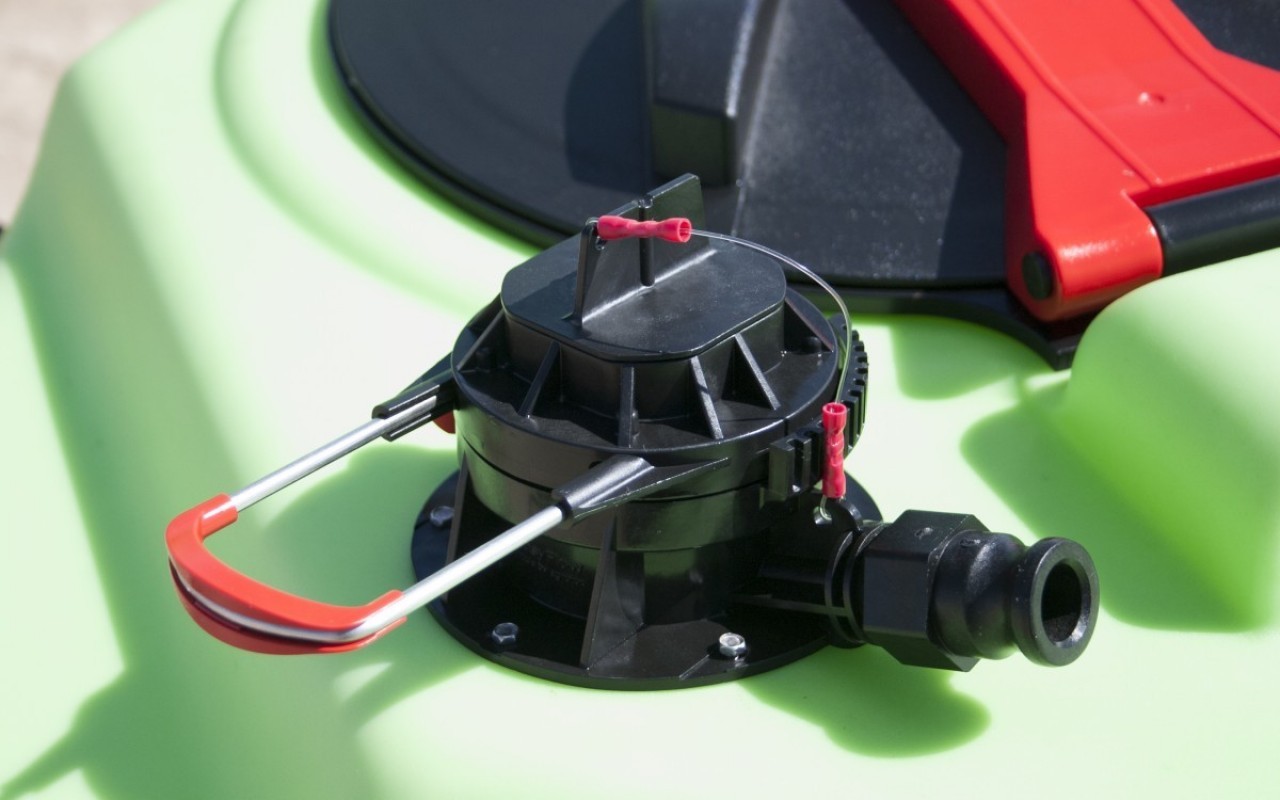

•  New knife block design provides a more efficient cut; requiring less effort, speeding up the drainage process, and making removal of the jugs easier.

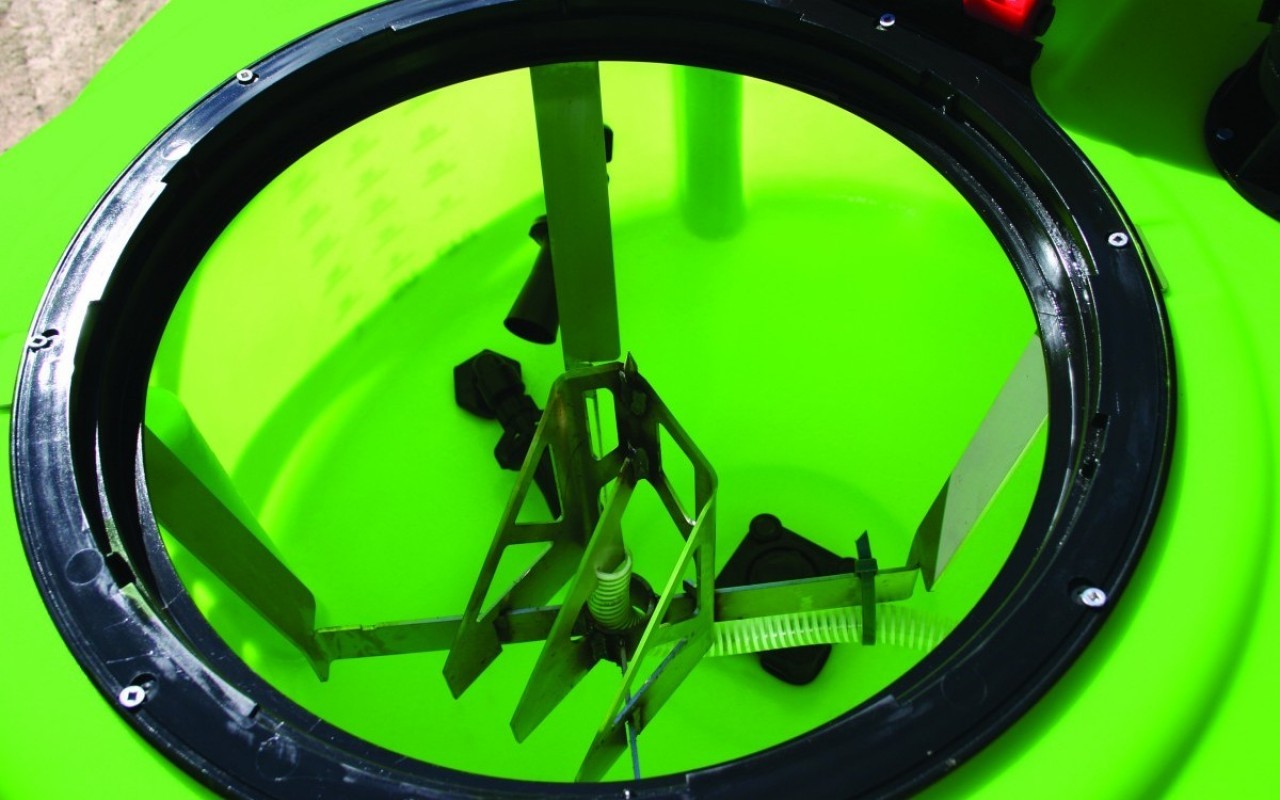

•  Increased agitation with the use of four vertically molded ribs in the tank combined with a unique vortex cycling water system virtually eliminates the chance of undissolved particles.
•  Easy rinse and drain process with the bottom drain valve, all interior surfaces sloping to the drain, and a rotary rinse system with 1” lines.
•  Improved ergonomics, better stability, and increased visibility.

Remote Throttle Kit: This kit can be added to either engine (6.5HP or 13HP) and allows operation of the throttle from the front of the unit.
Pumps: There are two optional pump kits available to create a functional and compact system (6.5HP Honda with a Wetseal Banjo Pump or 13HP electric start Honda with a Hypro Pump). Both kits include a 3-way valve that gives you the flexibility to pump from the Chembine Mixer to fill your sprayer.

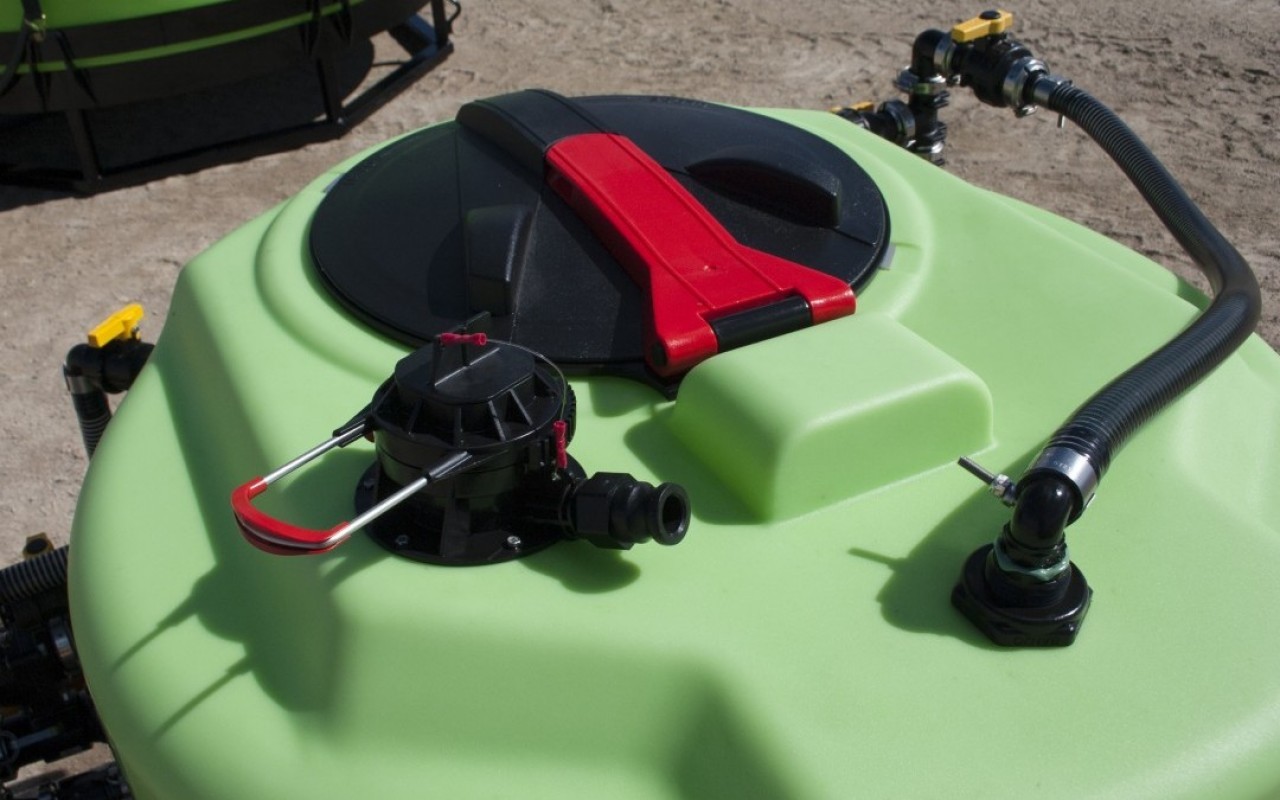

Secured Hinged Tank Lid: The lid has a raised stop to rest on when open, reducing reach and effort required to open and close the lid.
Mounting: The frame legs have large feet with pre-drilled holes to allow easy and secure fastening to a trailer or truck deck.

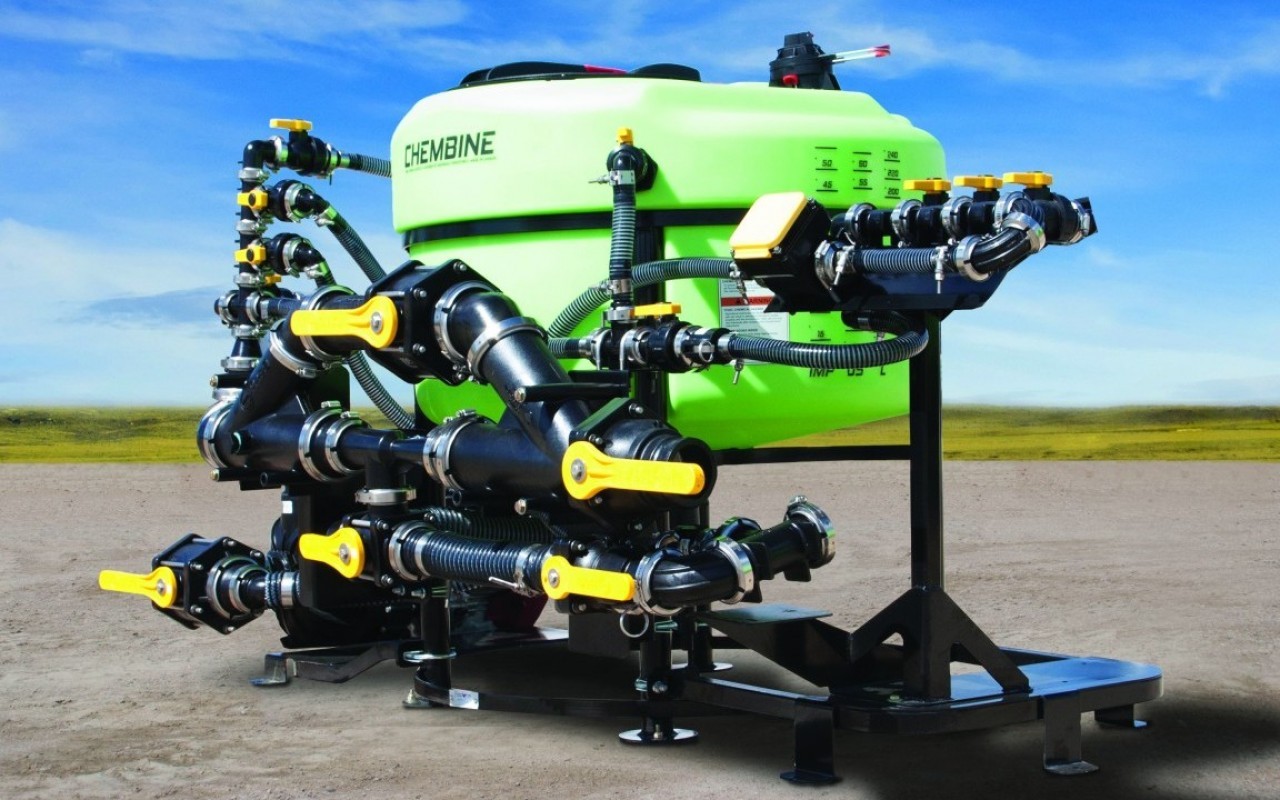

Expansion Kits: There are 2 optional kits available:
2 Tote System – allows connection of two 1” totes in addition to the original 2” tote connection. This kit also includes a Flush Hose Assembly.
3 Tote System – allows connection of three 1” totes in addition to the original 2” tote connection. This kit also includes a powder-coated stand and a 1” Banjo Magnetic Flow Meter.

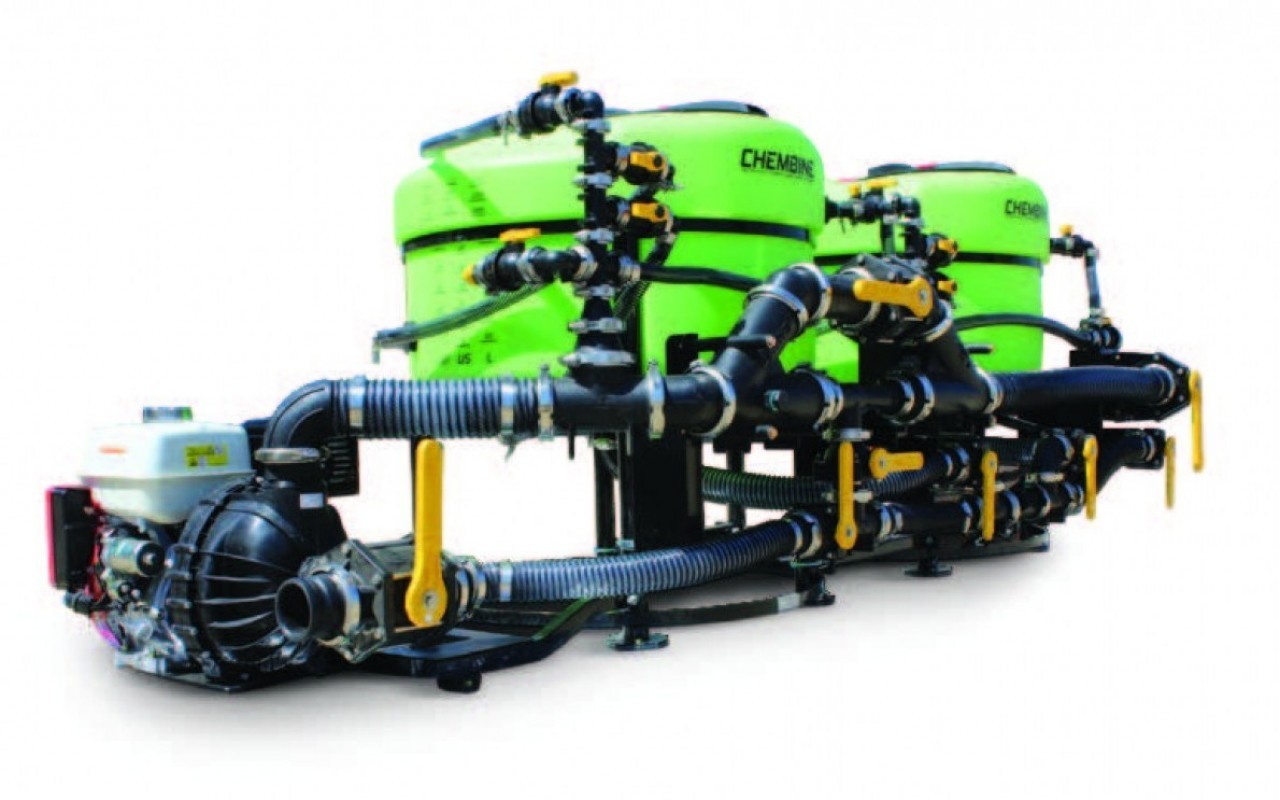

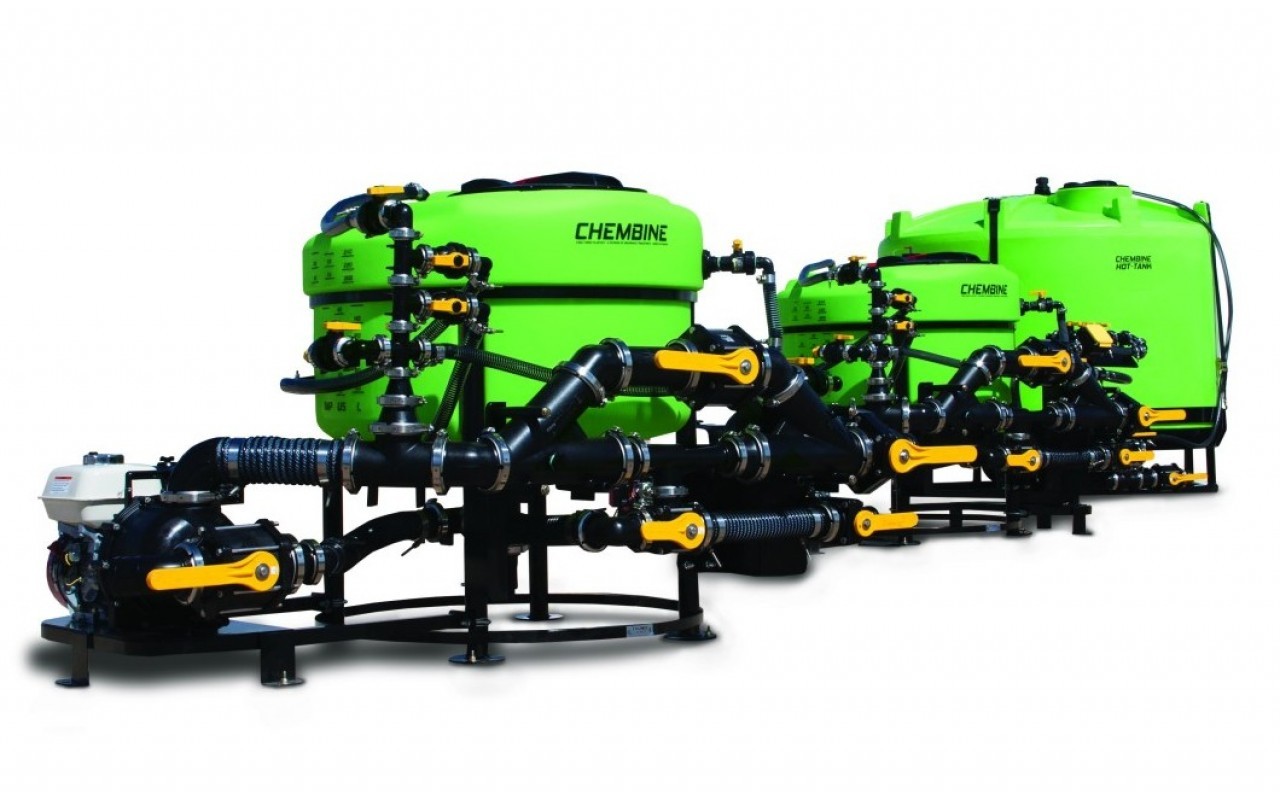

Chembine Dual Unit: Available with a side mount or rear mount setup that includes the 13HP Honda with electric start engine and Hypro pump.

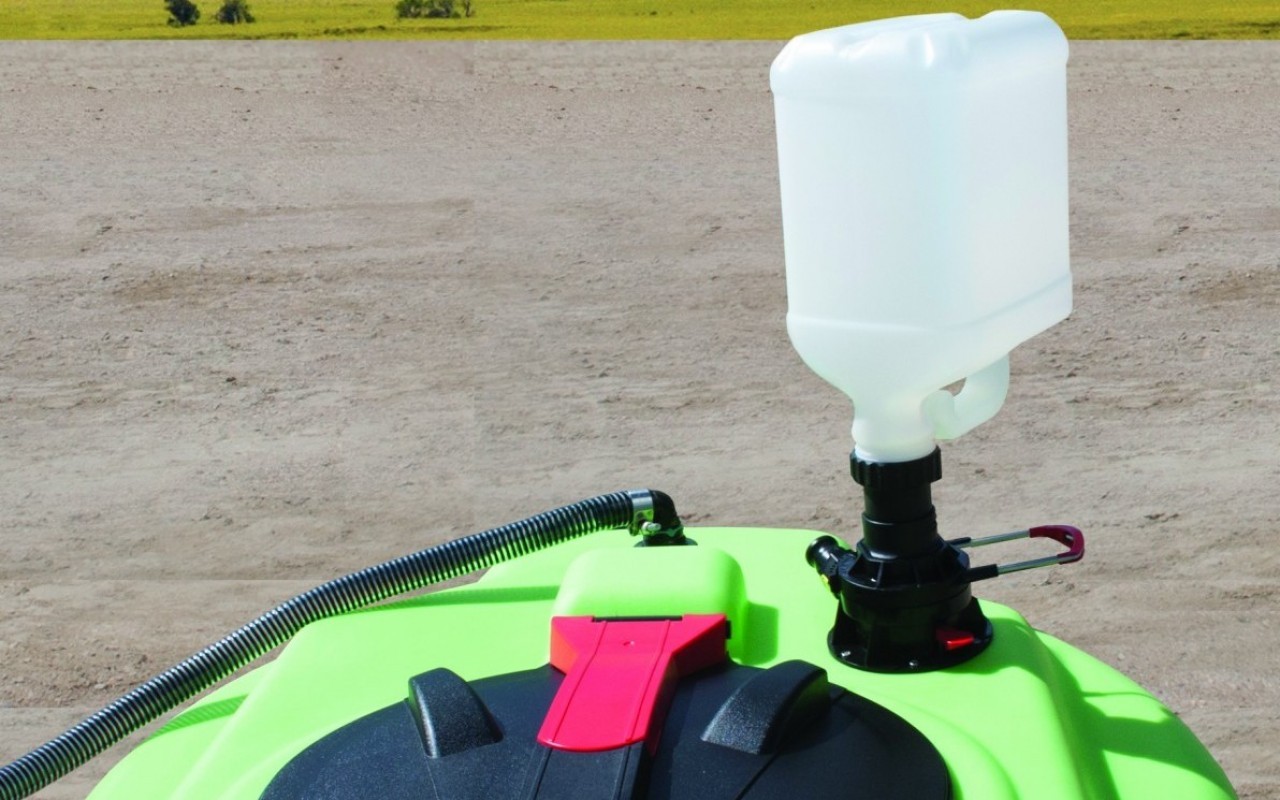

easyFlow System:
•  Self-cleaning closed transfer system that mounts to Chembine Mixer with no pump required.
•  Large diameter for speedy emptying of jugs and the ability to empty jug partially and reuse later.
•  Continuously adjustable flow rates, enabling exact transfer or partial container volumes.
•  Fast and complete rinsing of empty containers; no more contamination or manual cleaning required.



Specs

Capacity (gal) 150 US / 125 Imperial 75 US / 62.5 Imperial
Capacity (litres) 568 284
Fitting Connections 2" 2"
