Extra Information

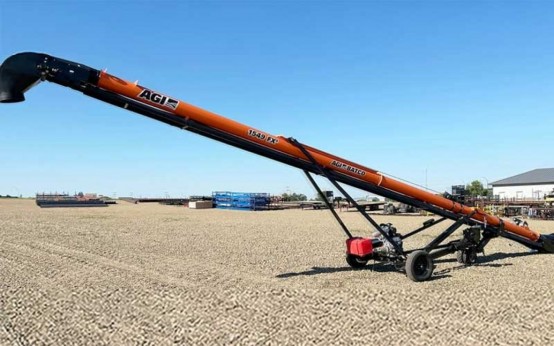

Available with electric, gas-over-hydraulic, or hydraulic drives, the FX4 is built to perform even when you have limited access to power sources. Featuring A-frame construction, 10 in tube, and 15 in chevron belt, the FX4 delivers up to 7,000 BPH capacity.

Drives: Choose from electric, gas over hydraulic, or hydraulic, so you can move grain even if you don’t have access to electricity.

Upgraded Pinch Rollers: The new design makes assembly easier, belt traction stronger, and operation more efficient.

Hopper & Under Hopper Skid Plate: A lifting handle helps guide your conveyor into place while a pivoting skid plate prevents debris damage to the bottom of the belt. It also simplifies one-person cleanout.

Efficient Discharge Hood: Commodities flow straight down from your spout.

Self-Propelled Mover Kit: Smooth hydraulic steering on all-terrain tires allows for a tighter turning radius and no-lift mobility around the yard as you move from bin to bin.

The FX4 is designed for moving grain and is therefore not suitable for handling oilseed.

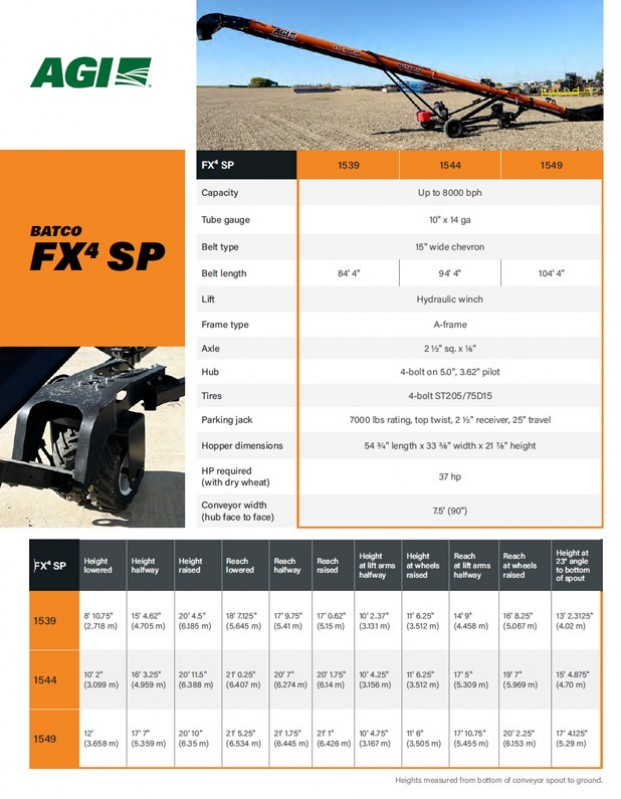

FX4 SP Features

• Parallel hopper cloth consistently maintains its width across full working length.
• Removable top plate makes accessing drive and pinch rollers easier.
• More capacity – up to 8,000 BPH.
• 37 HP Vanguard engine-powered gas-over-hydraulic drive
• Boost your power, reach, & efficiency with 49 ft length.

Upgrade your farm's grain handling efficiency this season. Contact your local Flaman Sales Rep today to request a quote for the AGI Batco FX4 1549.
