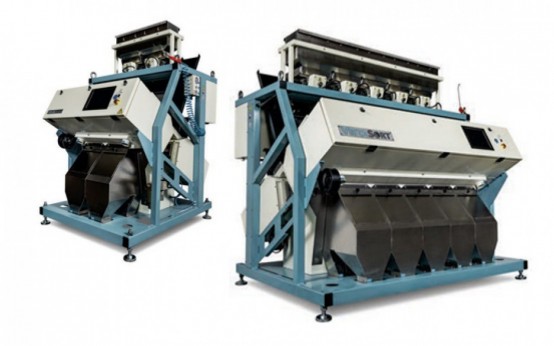

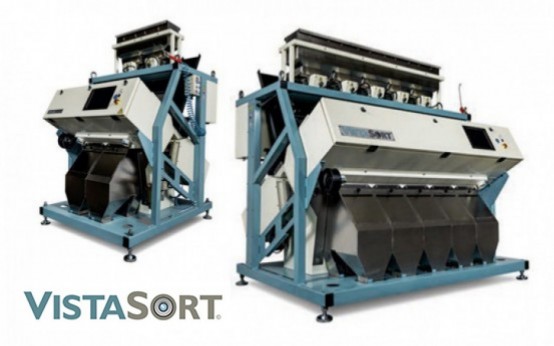

Colour sorting takes a big step forward. The LMC VistaSort sets a new signal-to-noise-ratio standard, employing cutting-edge LED lighting, optical, calibration, and camera technology. That translates to precise identification of otherwise unseen colour defects that indicate the disease, immaturity, and moisture damage you want to screen out.
Contact Us Quote Request Similar InventoryExtra Information
The VistaSort scans cereal crops for sticks, stones, hulls, contaminants like ergot, and foreign materials like wild oats. It examines lentils, beans, peas, and other cereal crops for splits and seeds still with husks attached. This machine quickly spots and removes these flaws, improving the overall quality of your commodities.
A straightforward human interface makes this advanced colour sorter easy for even novice users to operate.
FEATURES
- High-Precision, Long-Lasting Ejectors. Electromagnetic solenoid valves provide accuracy over a 10 billion ejection lifespan.
- DSP FPGA. Latest chip technology ensures accurate computer processing of high-volume sorter throughput.
- CCD Cameras. High 0.04mm resolution 2048-pixel photography informs the VistaSort’s intelligent sorting algorithm.
- IR Cameras and High-Intensity Halogen Lighting. Additional high-resolution infrared cameras and intense lighting ensure exceptional detection of minute foreign materials.
- Intense Image Processing Algorithm. Even the tiniest impurities can’t hide from the VistaSort’s complex algorithm.
- Optical System. This machine’s operator-friendly system features a compact design, precise calibration, and an intuitive machine interface.
- A 300 mm-wide Chute meets rigid specification requirements with its advanced anodizing process.
- Dust Extraction. New chute top and dust extraction design minimizes dust that can interfere with defect detection.
NUMBERS
- 99.99% or greater sorting accuracy
- Rejection BAD : GOOD (with re-sort) - 10:01
- 0.04 mm2 visible camera resolution
- 0.16 mm2 Infra-red visible camera resolution
- 120V/60Hz power supply
- 0.6 - 0.8 MPa / 90 - 115 psi air pressure
Find out how much the LMC VistaSort colour sorter can show you – and save you – by calling or visiting our Flaman Grain Systems team today.
View Specs for All 5 Models Available » Specs
| PRODUCT THROUGHPUT (Tonne/Hr) | 1-5 | -- |
| WEIGHT | 440 kg / 970 lbs. | -- |
| WIDTH | 41" | -- |
| DEPTH | 58" | -- |
| HEIGHT | 55" | -- |
| MAX POWER CONSUMPTION (Kw) | 1.5 | -- |
- PRODUCT THROUGHPUT (Tonne/Hr)
- WEIGHT
- WIDTH
- DEPTH
- HEIGHT
- MAX POWER CONSUMPTION (Kw)
-
CCD - 1 - 63
- 1-5
- 440 kg / 970 lbs.
- 41"
- 58"
- 55"
- 1.5
-
CCD - 3 - 189
- 4-9
- 789 kg. / 1739 lbs.
- 63"
- 60"
- 83"
- 2.2
-
CCD - 4 - 252
- 5-12
- 834 kg. / 1839 lbs.
- 76"
- 60"
- 83"
- 2.9
-
CCD - 5 - 315
- 6-15
- 1052 kg. / 2319 lbs.
- 88"
- 60"
- 83"
- 3.6
-
CCD -2 - 216
- 2-6
- 614 kg / 1354 lbs.
- 53"
- 60"
- 83"
- 1.5
