Meridian TL1346 Hydraulic Diesel Auger


TL1346 Hydraulic Diesel Auger

Meridian’s 13” TL1346 truck load auger marks a diesel-fueled switch to hydraulic power – eliminating cumbersome belts and pulleys. There’s no gearbox, drive shaft, or electrical or mechanical clutch to maintain.

That’s all replaced by a 74HP diesel engine, 2-stage pump, hydraulic drive, and flighting suspended by hanger bearings. These features make the TL1346 one of the quietest-running augers available.


Contact Us Quote Request Similar Inventory


Features

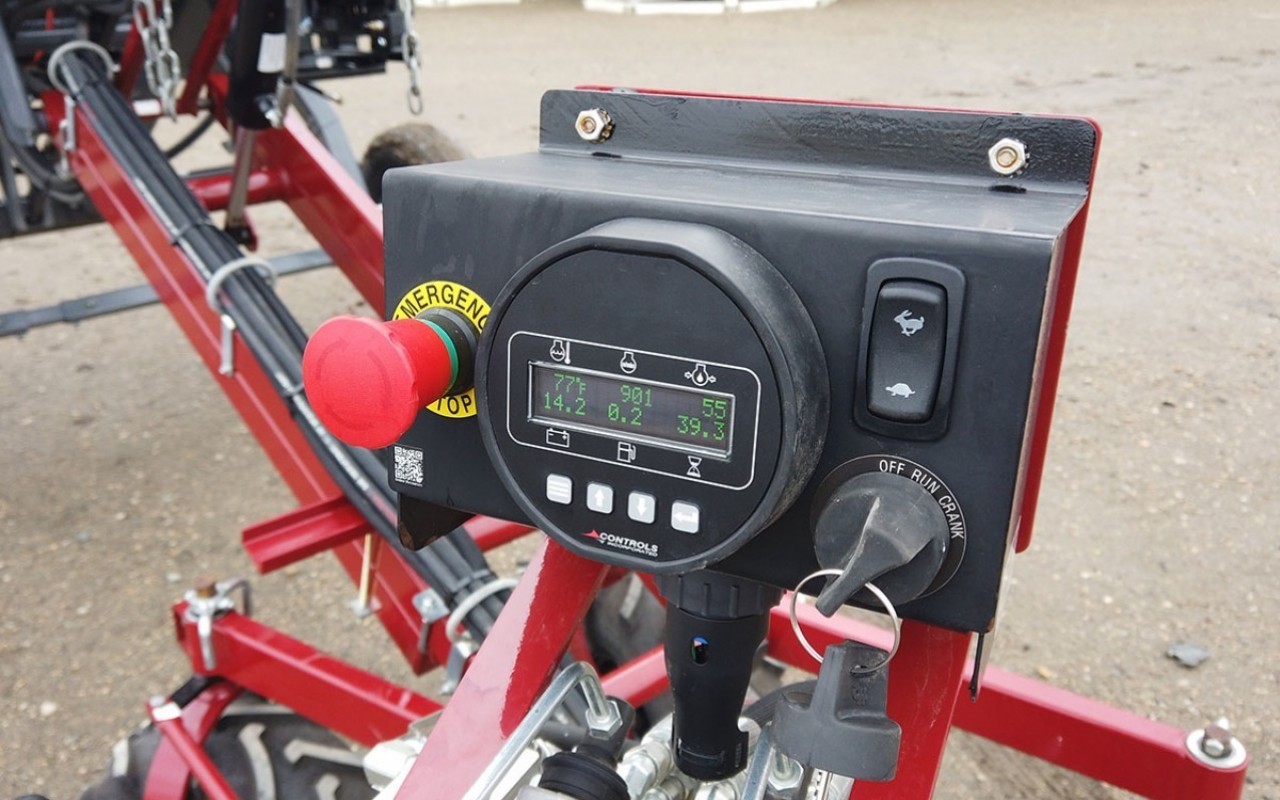

  • Engine Controls On Mover

    Engine Controls On Mover

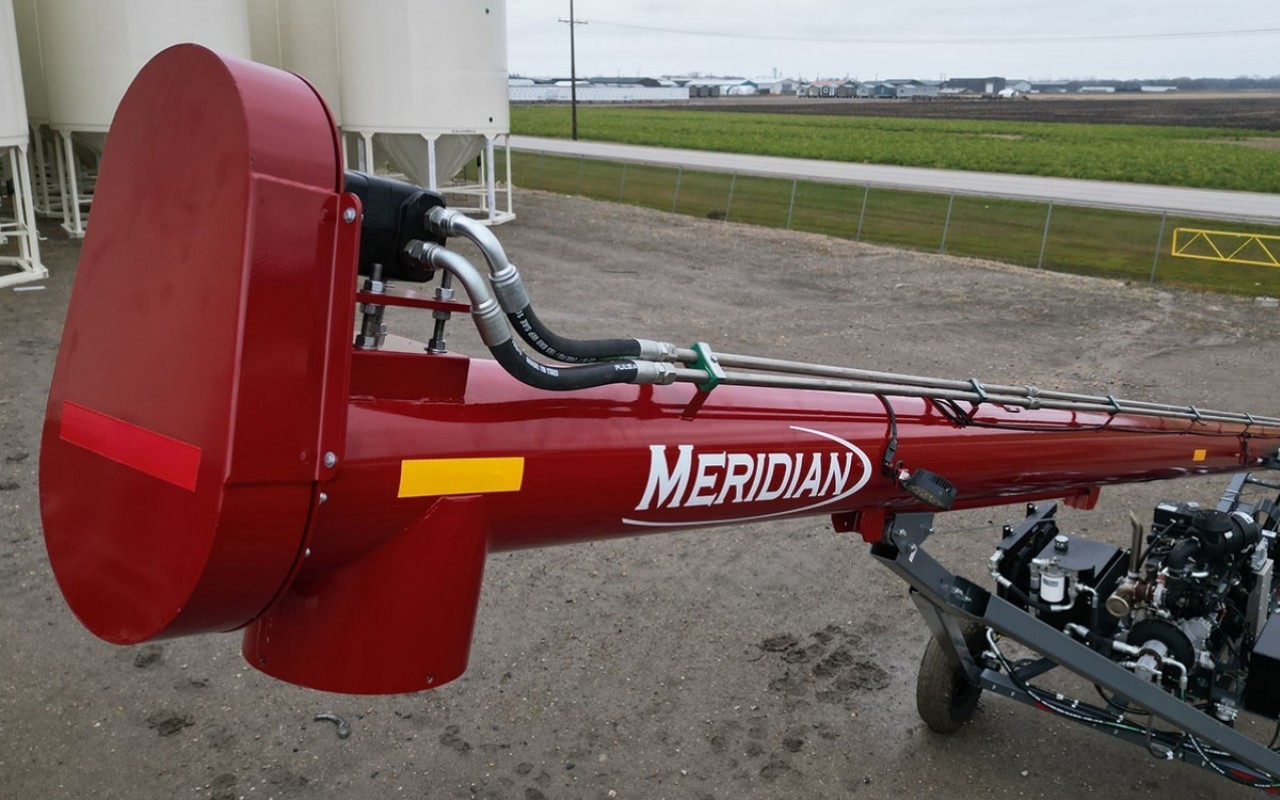

  • Hydraulic Drive

    Hydraulic Drive

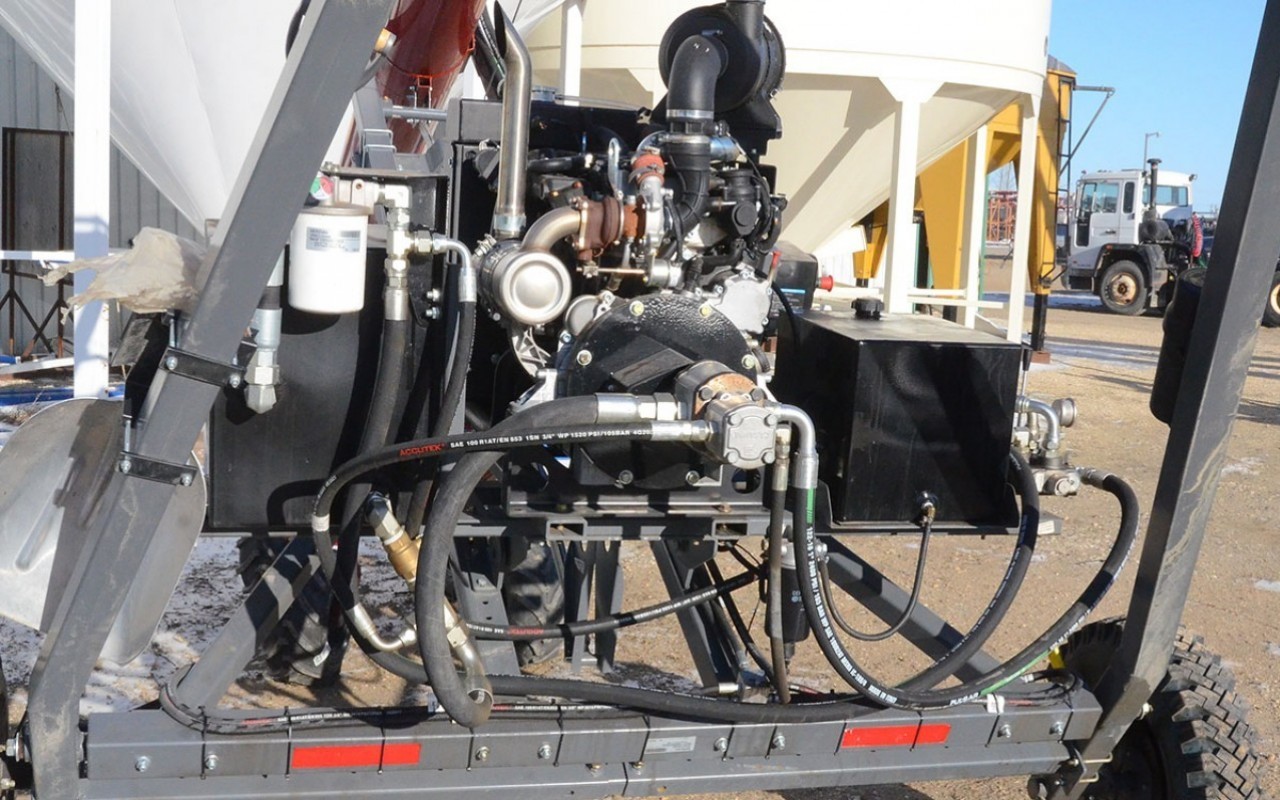

  • Hatz Diesel

    Hatz Diesel

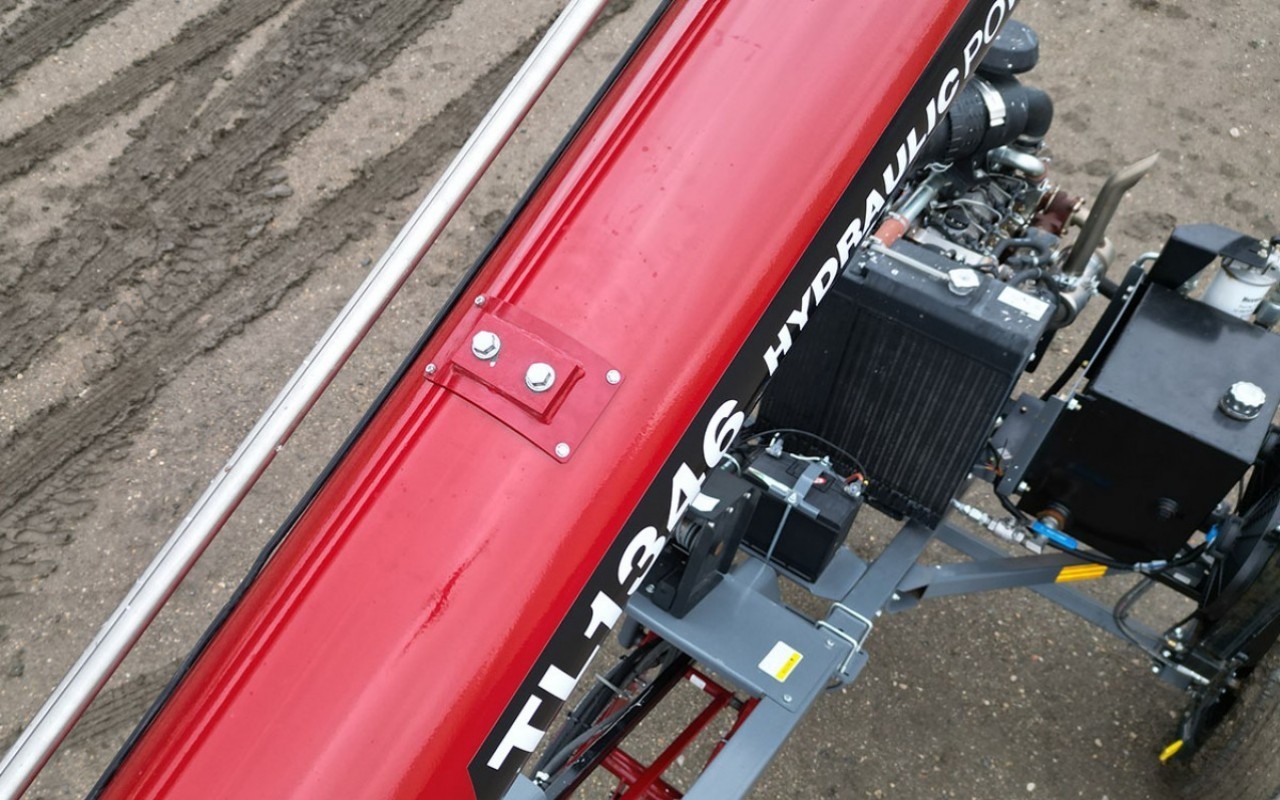

  • Hanger Bearings

    Hanger Bearings



Extra Information

Go bigger, faster, safer, and beltless!

Bigger. In fact, with its largest-diameter 13” barrel, the TL1346 is Meridian’s biggest truck load auger to date. A heavy-duty frame supports its mighty 74HP diesel engine.

Faster. Like its Hatz engine, this auger’s fully hydraulic drive and uniquely angled intake hopper are German-engineered for durability and efficiency. It’s the highest-capacity auger in the TL line.

Safer. Those hanging bearings not only make the TL1346 quieter, but they also make it safer. And with fewer moving parts, and your controls and mover handle in the same place, you’ll have fewer mechanical failures and distractions.

Features

  • Hydraulic Drive
  • Suspended Flighting with Hanger Bearings
  • 74HP Hatz Diesel
  • 4 Wheel Mover
  • Engine Controls Mounted on Mover Handle
  • 12.75'' OD x 12 Gauge Tube
  • 11.75''OD x 5/16 Continuous Cup Flight
  • 2-3/8'' x 3/16'' Auger Flighting Core
  • 3.5'' x 3.5'' Square Tubing Undercarriage
  • 16'' Wheels
  • ST235/80R16 Tires
  • Tapered Roller Bearings
  • Self-Levelling Motor Mount
  • LED Light Kit

Options

  • Straight Hopper or Forked Intake

Learn more about the innovative, powerful Meridian TL1346 Hydraulic Diesel Auger by calling or visiting your nearest Flaman Agriculture location.
