Product Information
The Meyer's manure spreader provide efficiency and longevity during operations. Built with a polyethylene plastic box, the single piece floor design resists rotting, breaking and leakage problems. It provides a self-lubricating seamless floor that virtually eliminates materials sticking.The polyethylene board front and rear gate are constructed of a single piece insert resistant to decay, which helps with freezing and chain life.
The Meyer's is belt driven and can handle large capacity loads. This means
you will use less fuel, and get the job done at a faster rate.
Features
-
Flow Control Spout
-
Top Beater Drive
-
Apron Chain
-
Automatic Clutch
-

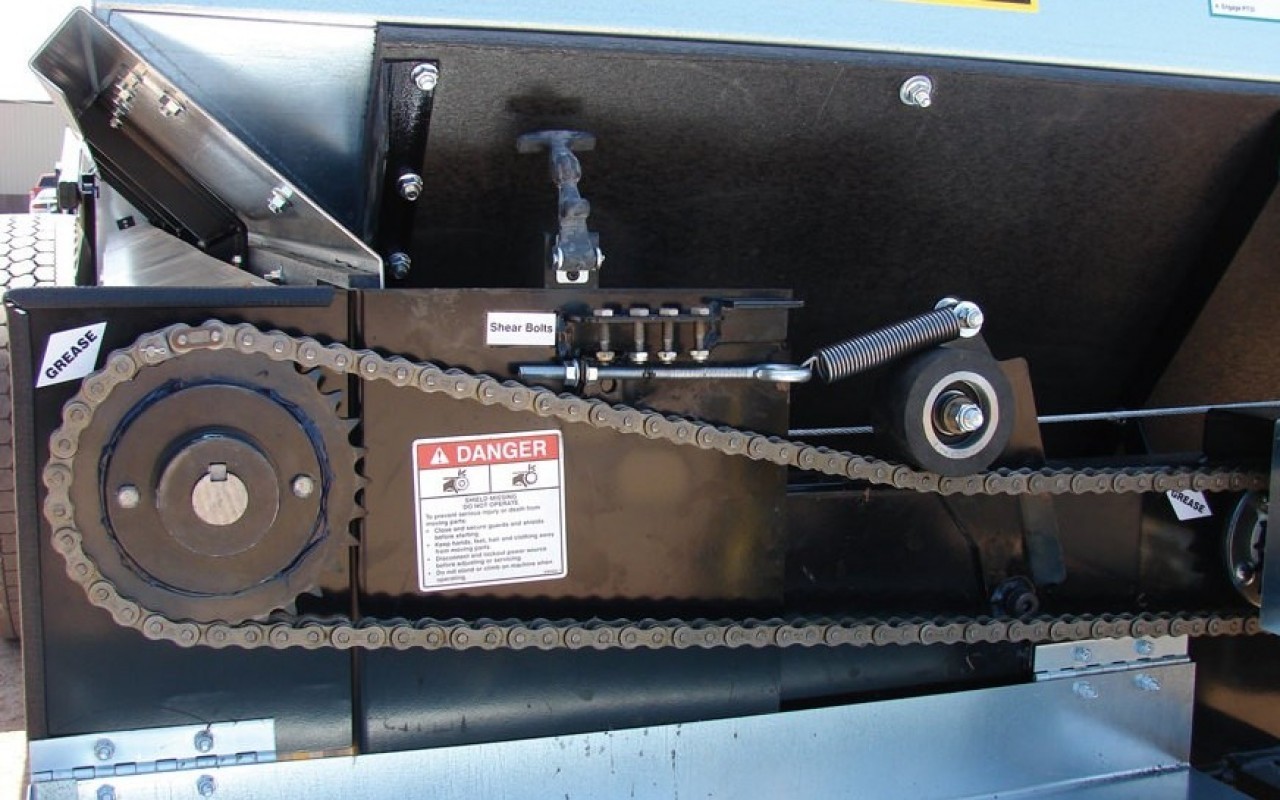

Front Drive Train
-

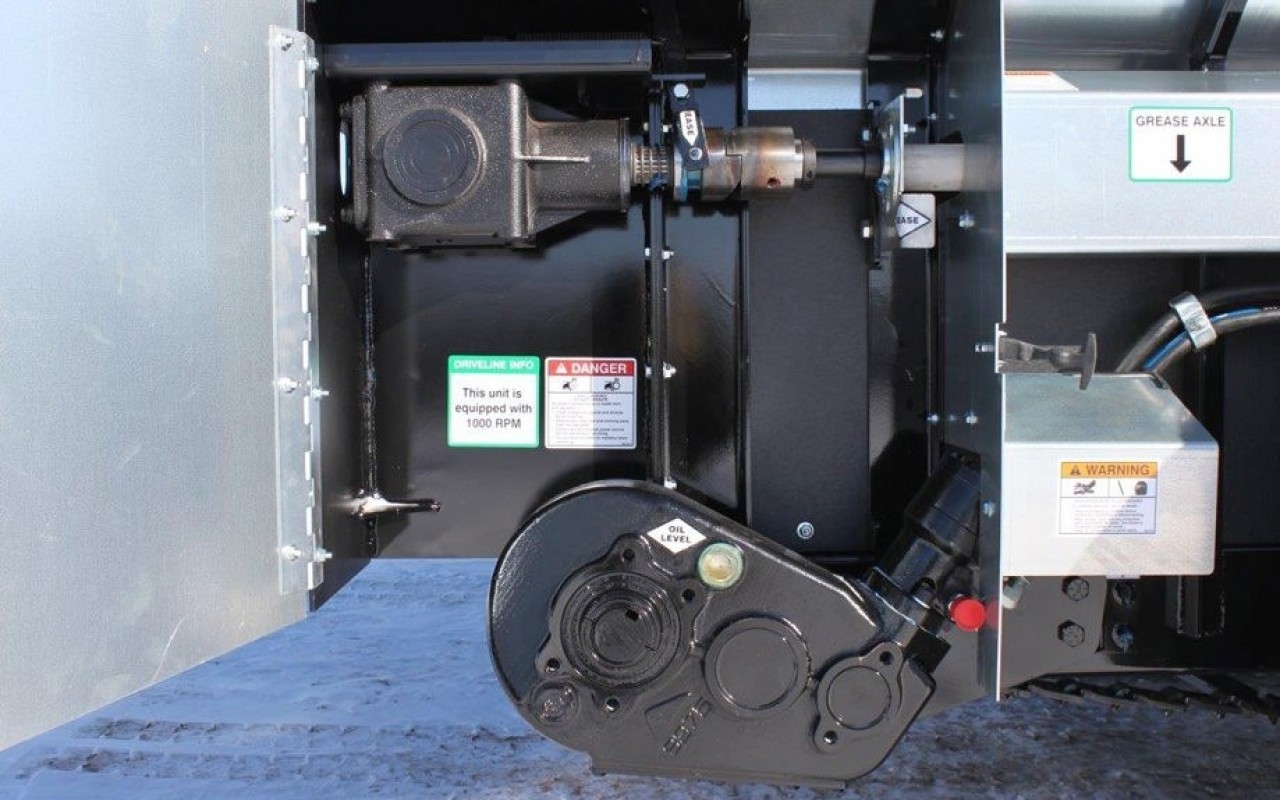

Mechanical Gear Box (225 & 300)
-
Banded Belt Drive (465-750)
-

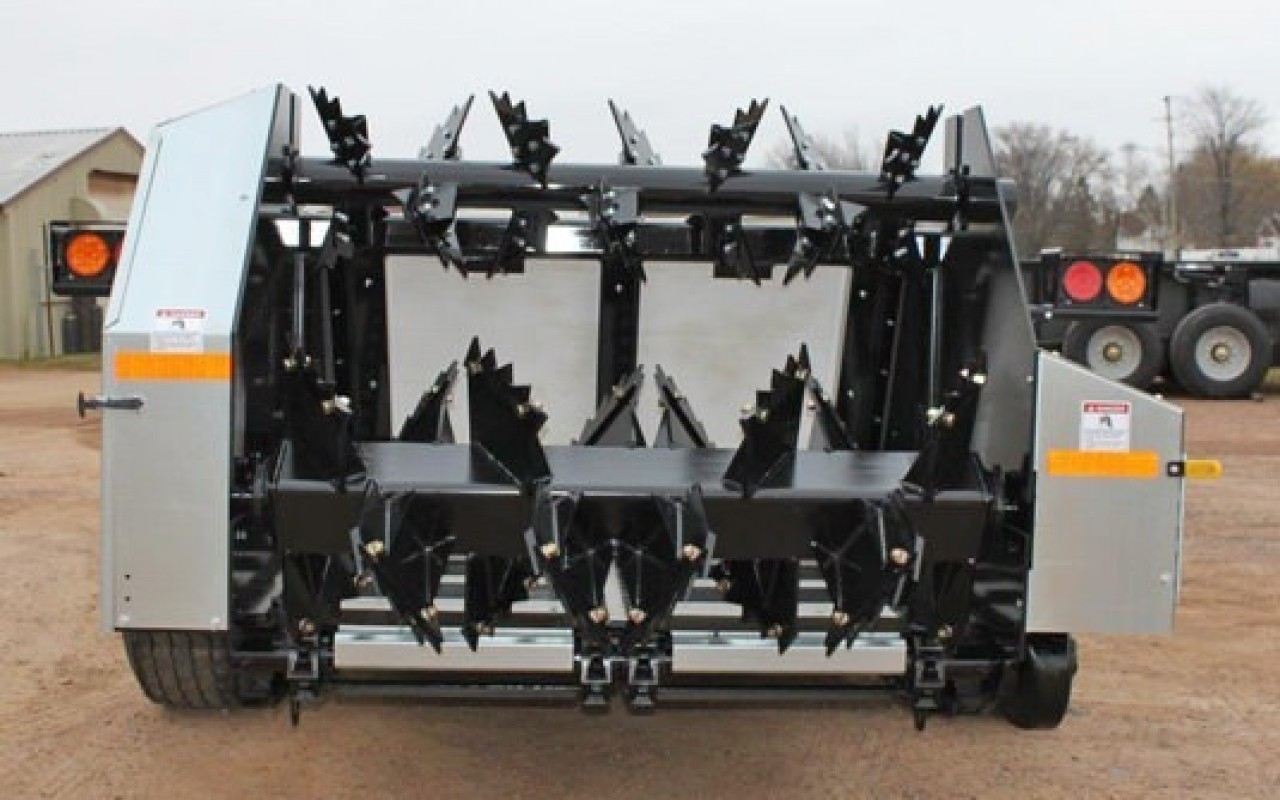

Heavy Duty Horizantal Beater
Extra Information
Detailed features:

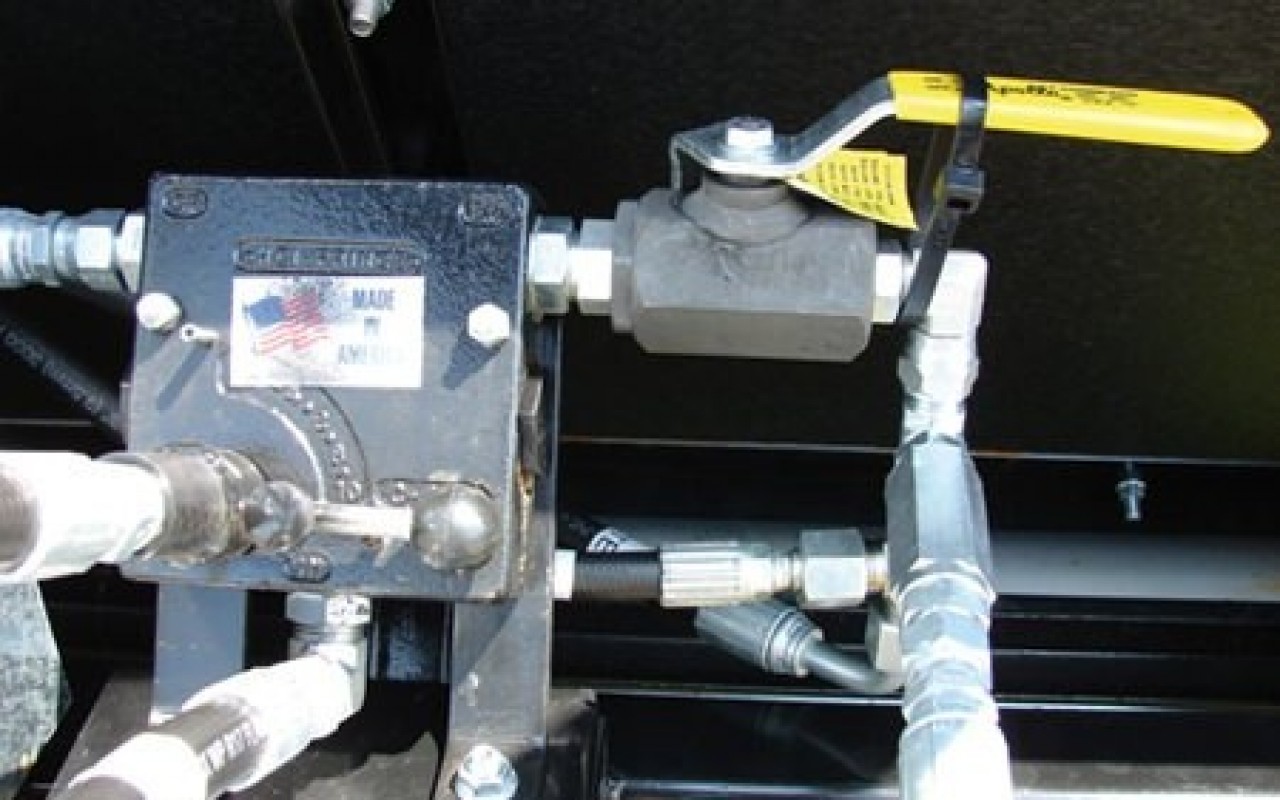

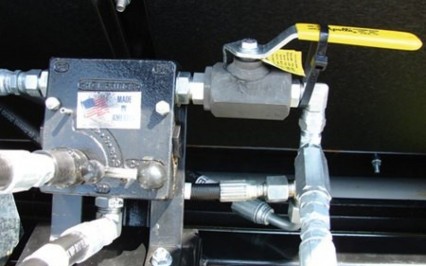

Flow Control Box: Allows the operator to match spreading rate with the pattern of manure consistency

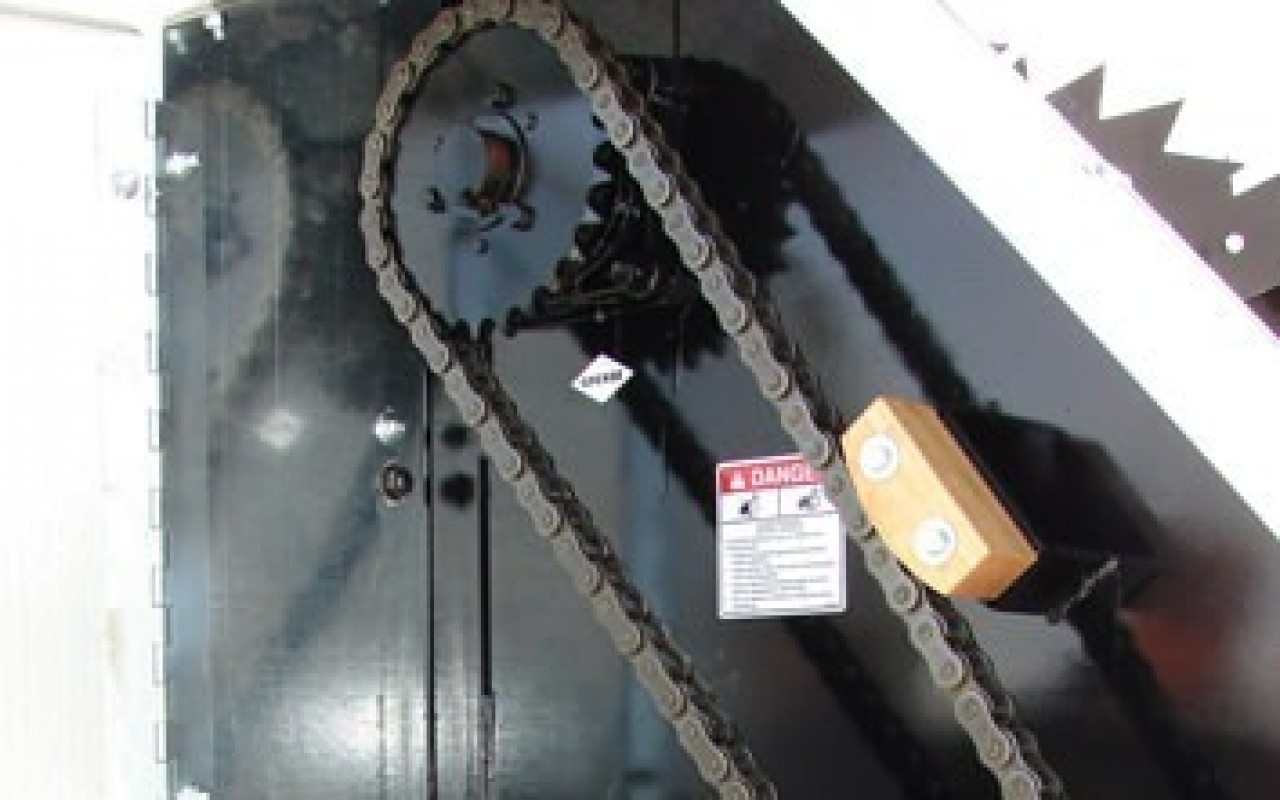

Top Beater Drive: Breaks of large chunks of manure and provides uniform spreading

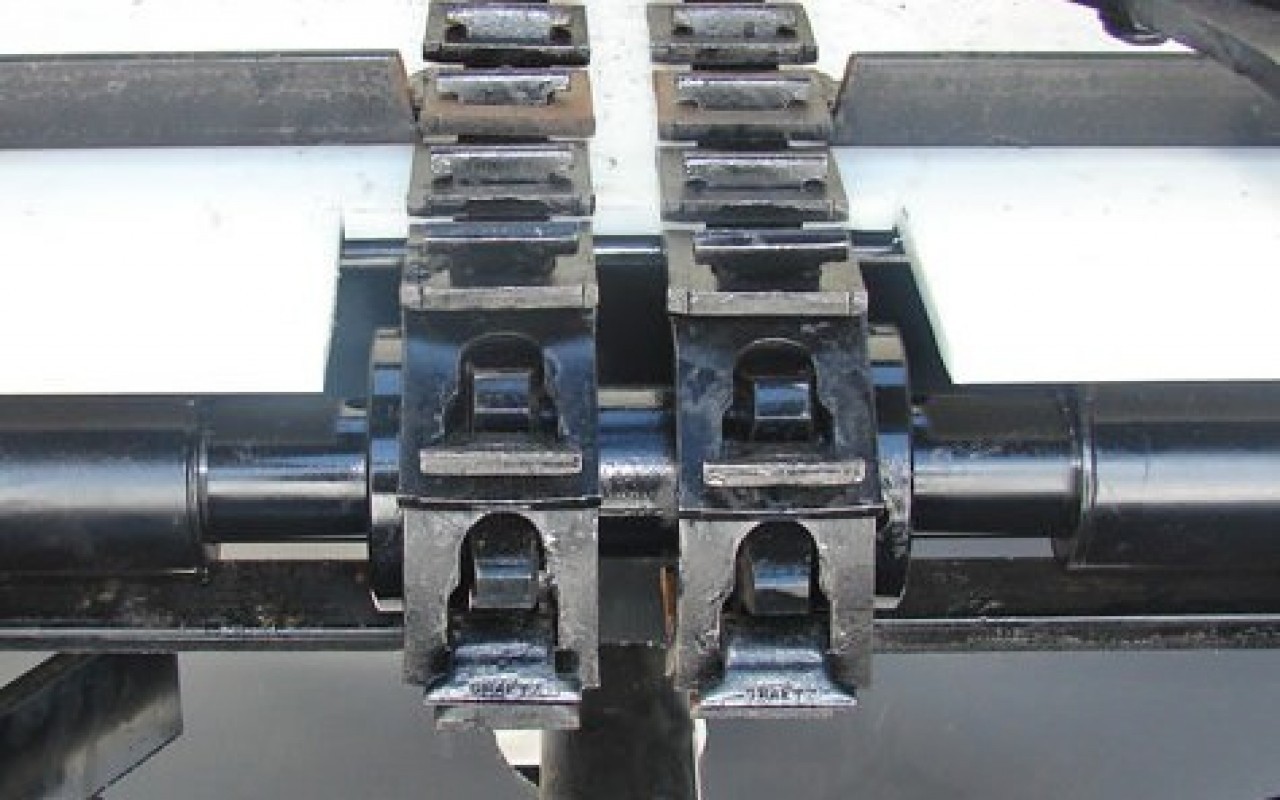

Apron Lock Chain: Made of one piece construction with no pins, ben, lock or shear

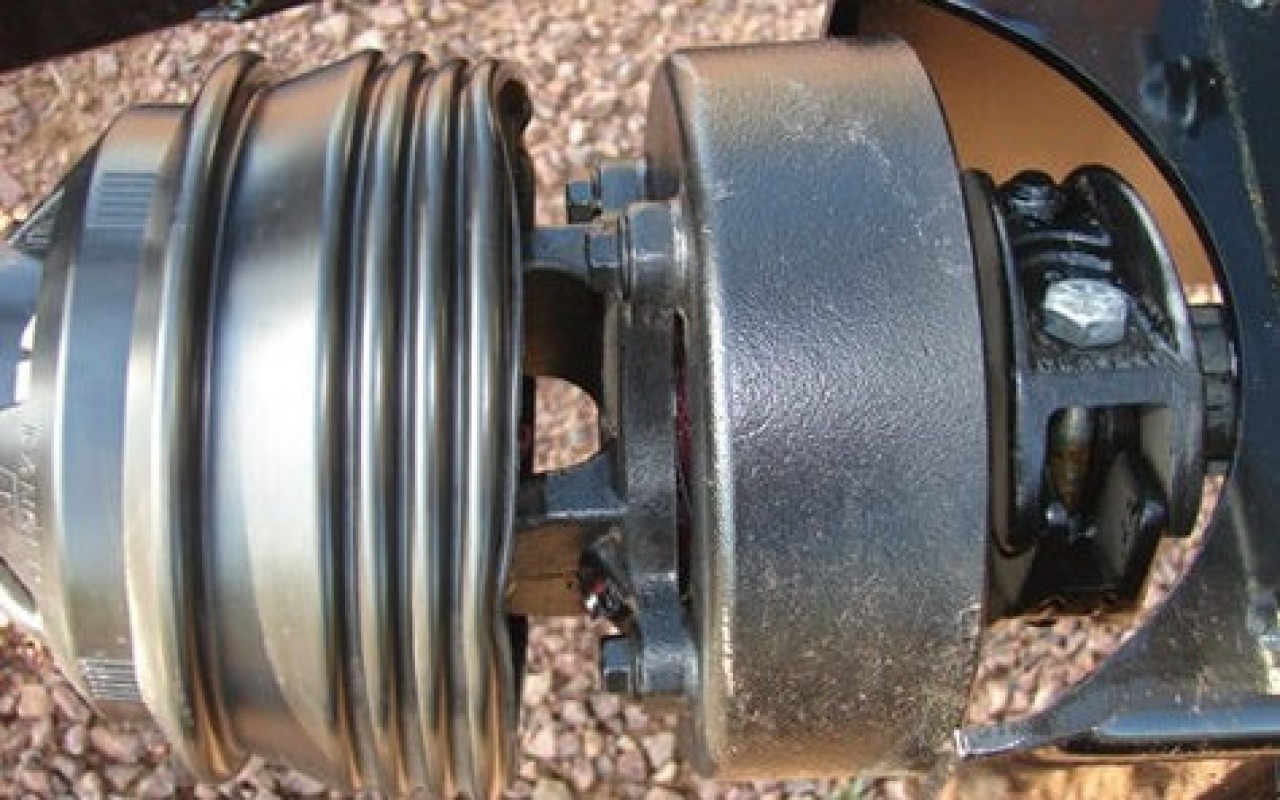

Automatic Clutch: Patented design does not allow or generate damaging torque spikes or heat

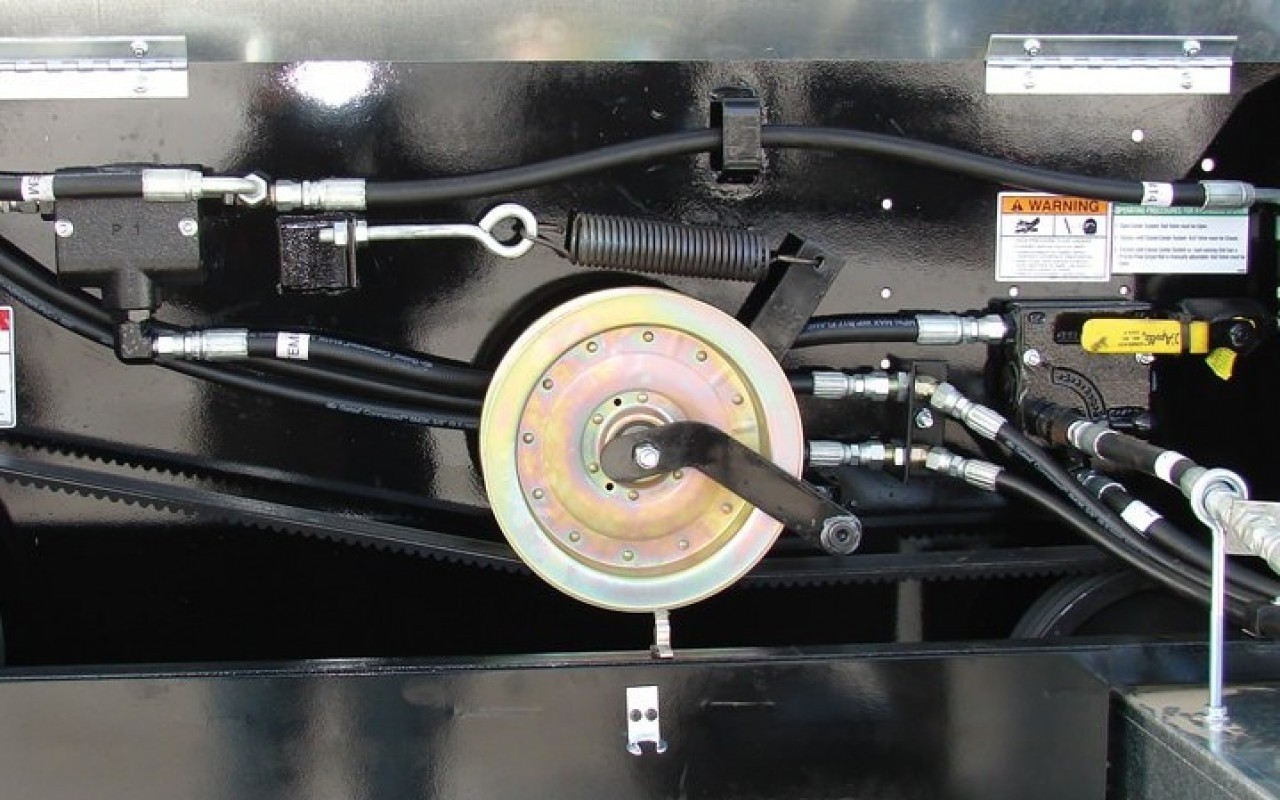

Banded Belt Drive: Developed for shock loads and extreme vibration
Twin 39” diameter vertical beaters with 10 mm thick spiral flighting
Features:
- Heavy duty hubs & spindles
- 135 HP
- Highway Light Kit Installed
- T35R Series 540 RPM CV Torque Disconnect PTO
- Scale kit
- 667 - XH pintle apron chain
- 1000 RPM CV Torque Disconnect PTO
- Horizontal 225, 300, 465, 750
- Vertical (VB Series) 440. 560, 750, 900
View Specs for All 8 Models Available » Specs
| Axle | Single | -- |
| Loading Height | 51 1/4 | -- |
| Width of Box Inside | 60" | -- |
| Length of Box Inside | 12' | -- |
| Overall Length | 18'2" | -- |
| Depth | 27" | -- |
| Capacity | 132 | -- |
| Approx Weight | 4,020 lbs. | -- |
| Apron Chain | Single | -- |
| Top Beater | Opt. | -- |
| PTO | Single Beater | -- |
- Axle
- Loading Height
- Width of Box Inside
- Length of Box Inside
- Overall Length
- Depth
- Capacity
- Approx Weight
- Apron Chain
- Top Beater
- PTO
-
225 - Horizontal Single Beater
- Single
- 51 1/4
- 60"
- 12'
- 18'2"
- 27"
- 132
- 4,020 lbs.
- Single
- Opt.
- Single Beater
-
300 - Horizontal Single Beater
- Single
- 51 1/4
- 60"
- 14'
- 20'5"
- 27"
- 158
- 4,280 lbs.
- Single
- Opt
- 540
-
465 - Horizontal Double Beater
- Tandem
- 60"
- 61 1/4"
- 213"
- 27'5"
- 37"
- 308
- 7,000 lbs.
- Twin
- Standard
- 1000 / Double Beater
-
750 - Horizontal Double Beater
- Tandem
- 72 1/2"
- 80 1/2"
- 213"
- 29' 21/2"
- 46"
- 482.5
- 11,220 lbs
- Twin
- Standard
- 1000 / Double Beater
-
440 - Vertical Beater || Twin Twister
- Tandem
- 69 1/2"
- 61"
- 159"
- 21' 6"
- 32"
- 228
- 7,200 lbs.
- Twin
- -
- -
-
560 - Vertical Beater || Twin Twister
- Tandem
- 82 1/2"
- 61 1/4"
- 213"
- 29'31/4"
- 46"
- 370
- 11,980 lbs.
- Twin
- -
- -
-

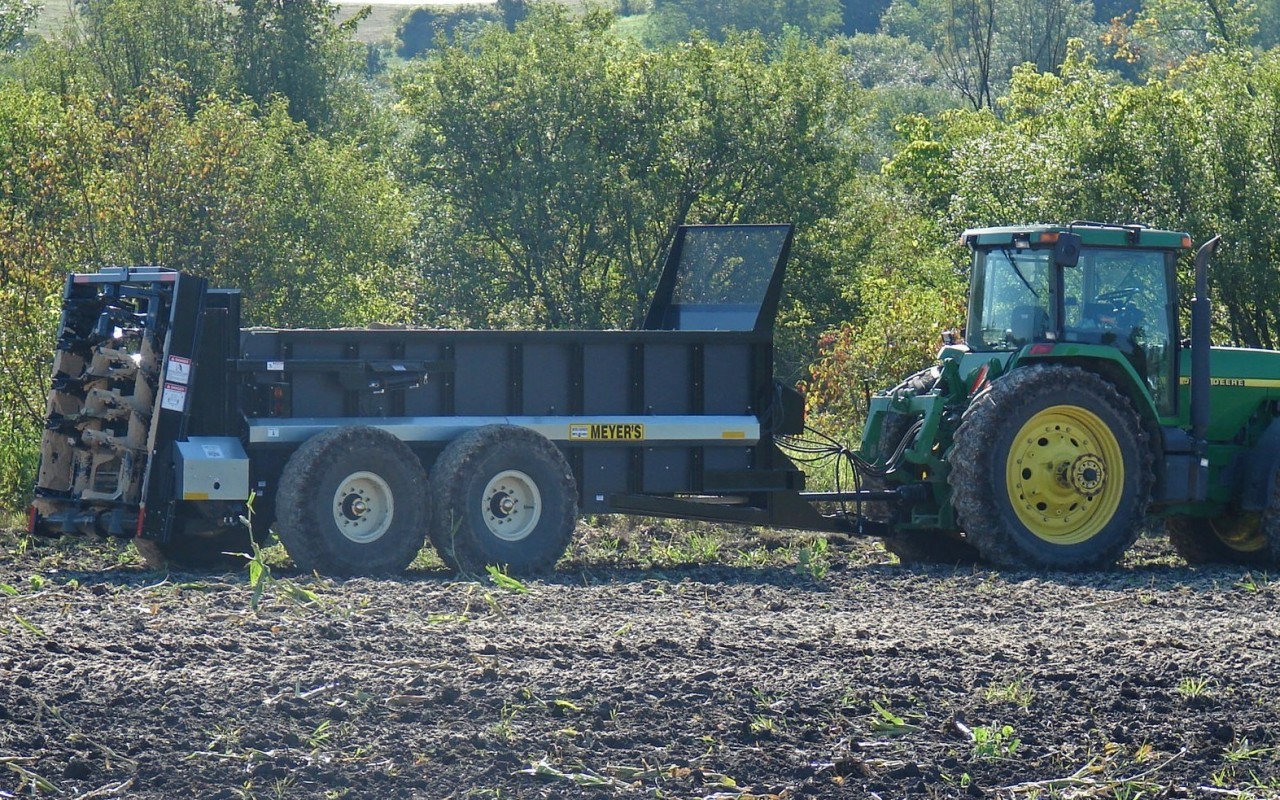

750 - Vertical Beater || Twin Twister
- Tandem
- 82 1/2"
- 80"
- 213"
- 29' 3 1/4"
- 46"
- 482
- 13,340 lbs.
- Twin
- -
- -
-
900 - Vertical Beater || Twin Twister
- Tandem
- 82 1/2"
- 80"
- 261"
- 33'
- 46"
- 615
- 17,340 lbs.
- Twin
