Product Information

Chem Handlers I, II, III, IV and V

The key to a successful spraying operation is spending less time loading and more time spraying, without sacrificing safety. The Handler enables a quick and easy process, more importantly, safe mixing and loading of chemicals into sprayers. Available in 5 convenient sizes the Chem Handler reduces the time that it takes to properly load and mix a sprayer.

New Features; Increase in the wash line from 3/4" to 1"; removal of threaded fittings; new bolted fittings for improved drainage.

Contact Us Quote Request


Features

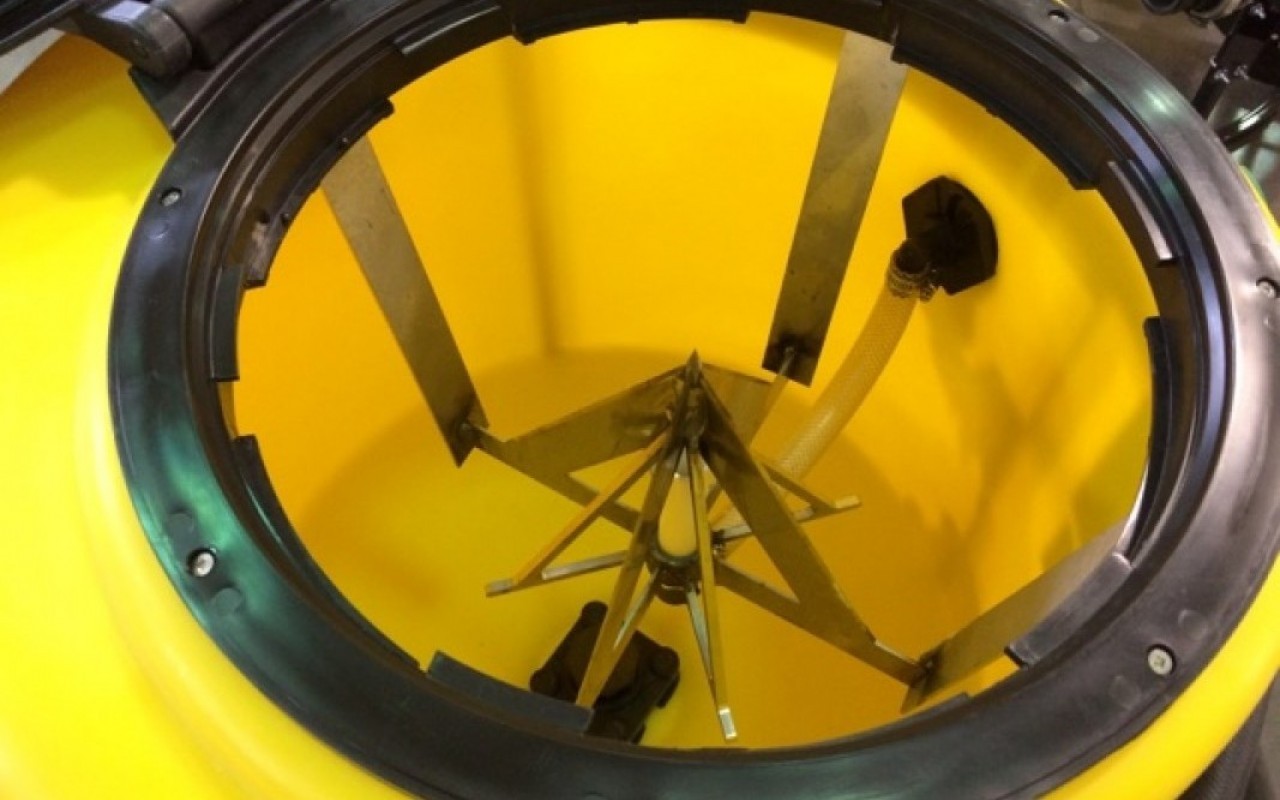

  • Cut, empty and rinse a container in seconds

    Cut, empty and rinse a container in seconds

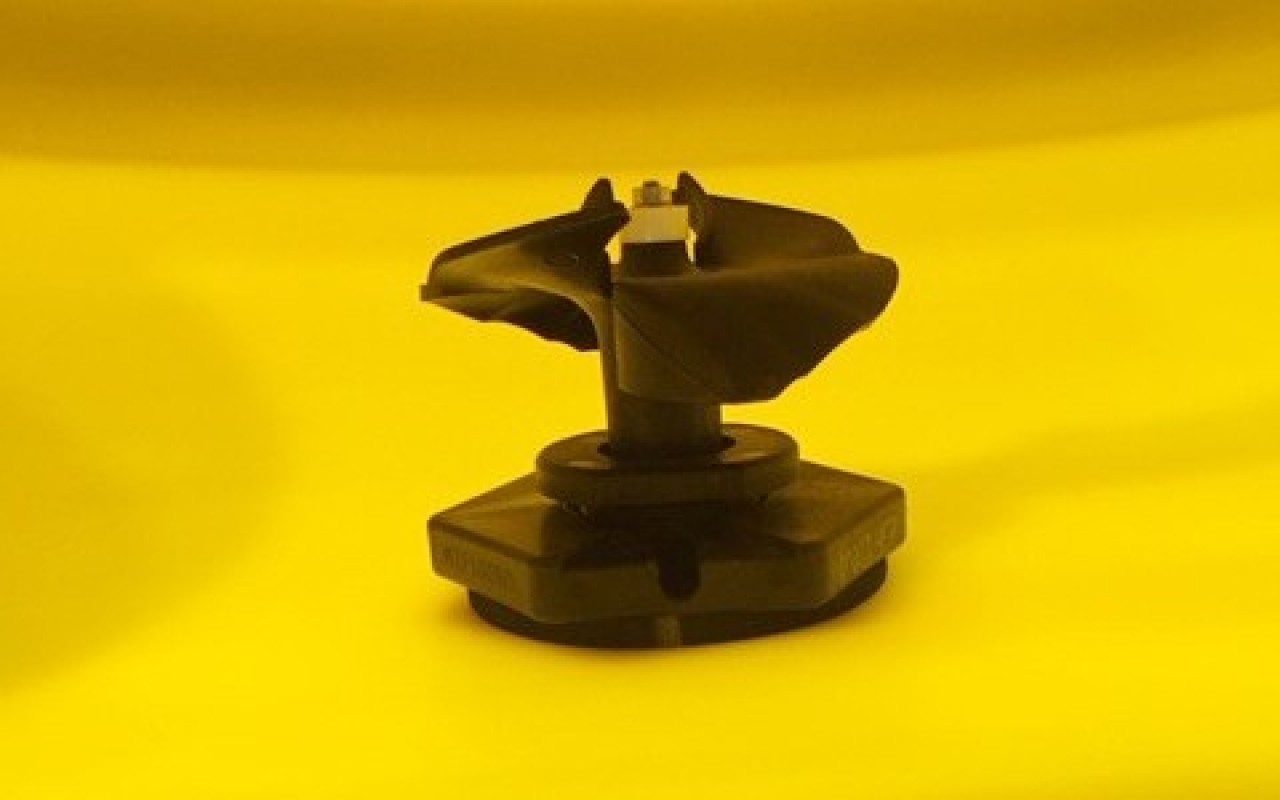

  • RotoCraft tank rinse nozzle

    RotoCraft tank rinse nozzle

  • 2 or 3 inch camlocks for easy hook -up

    2 or 3 inch camlocks for easy hook -up

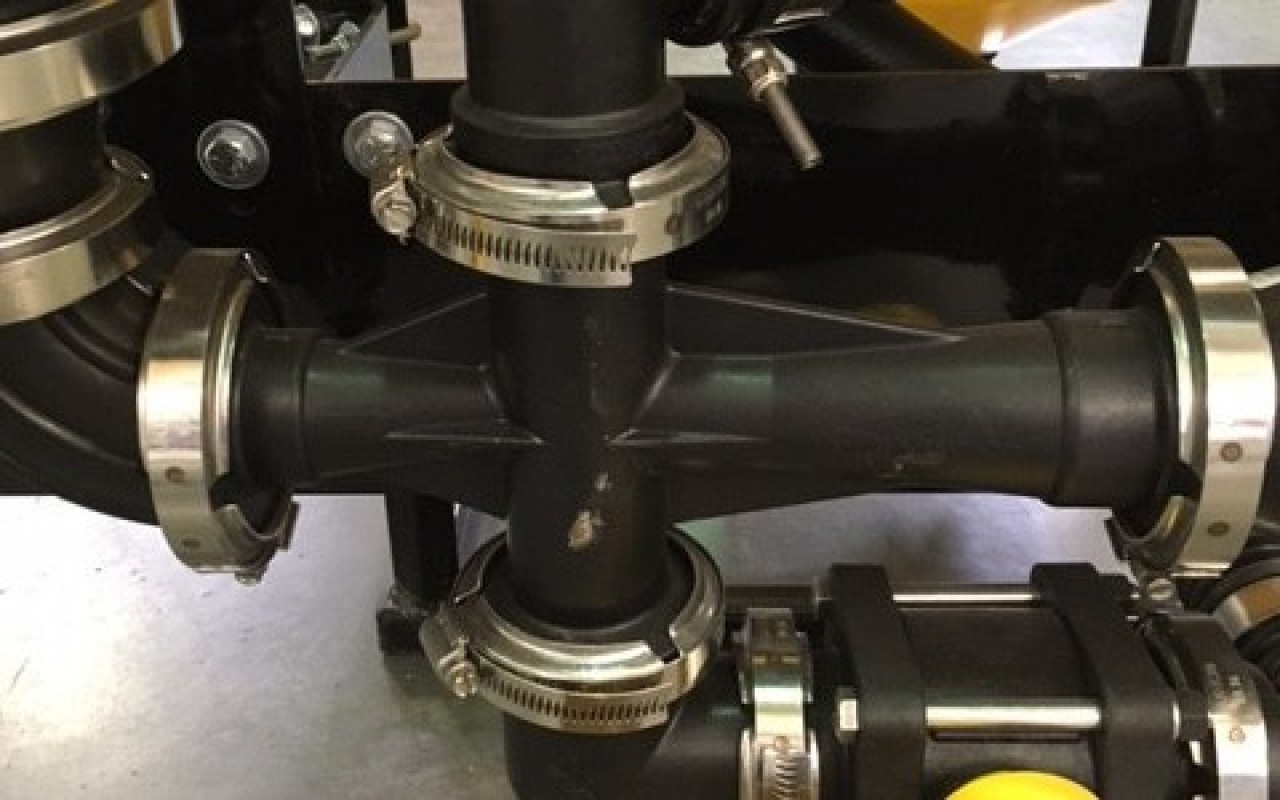

  • Double Venturi allows for seamless suction between handler and container

    Double Venturi allows for seamless suction between handler and container

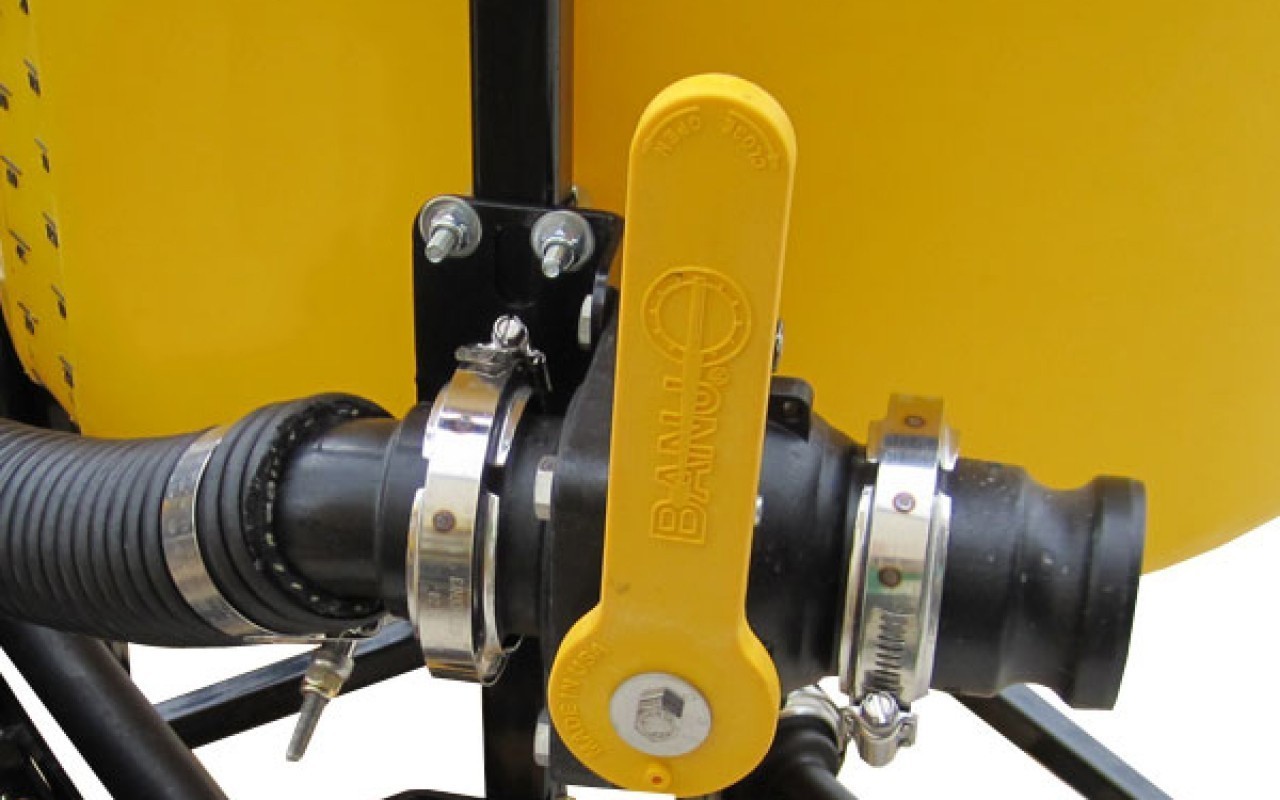

  • Bulk Ready Allowing you to utilize the speed of the venturi

    Bulk Ready Allowing you to utilize the speed of the venturi

  • Optional Banjo Magnetic Flow Meter

    Optional Banjo Magnetic Flow Meter

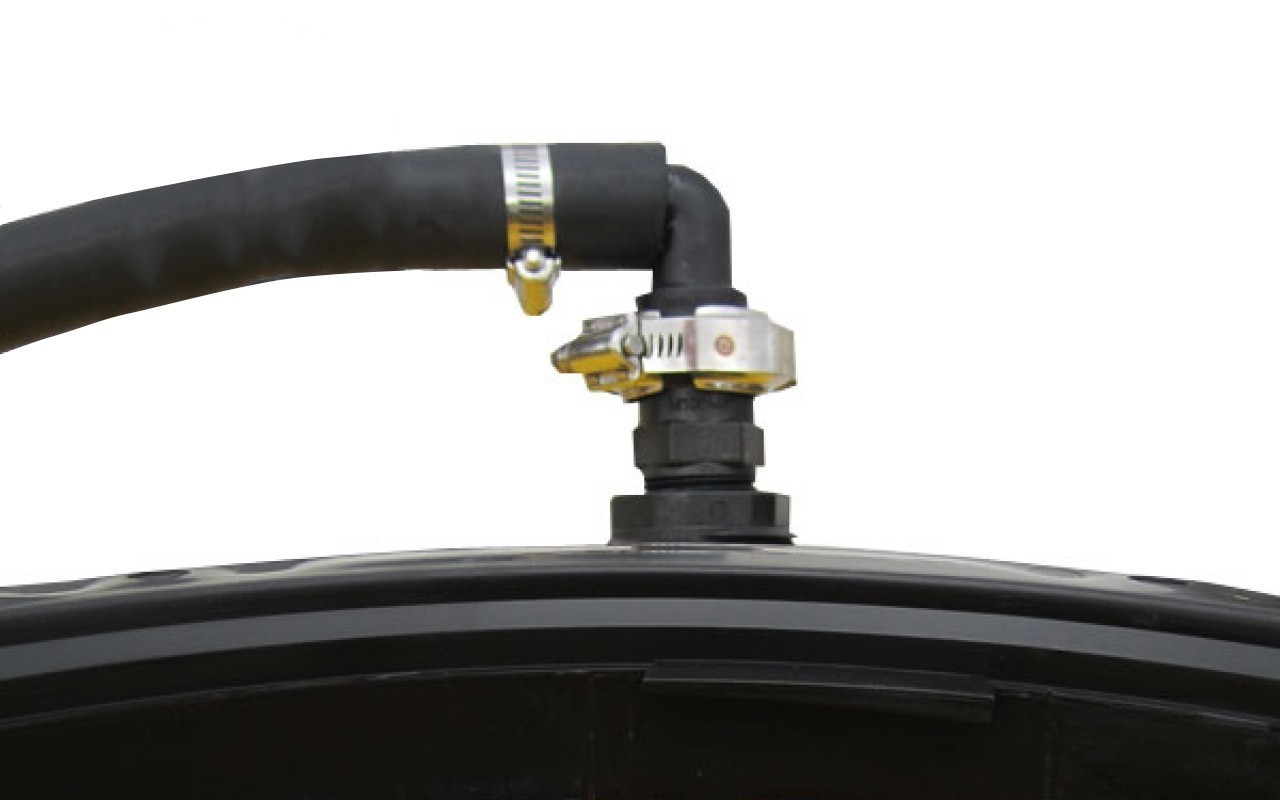

  • Rotocraft Standard with III and IV only

    Rotocraft Standard with III and IV only

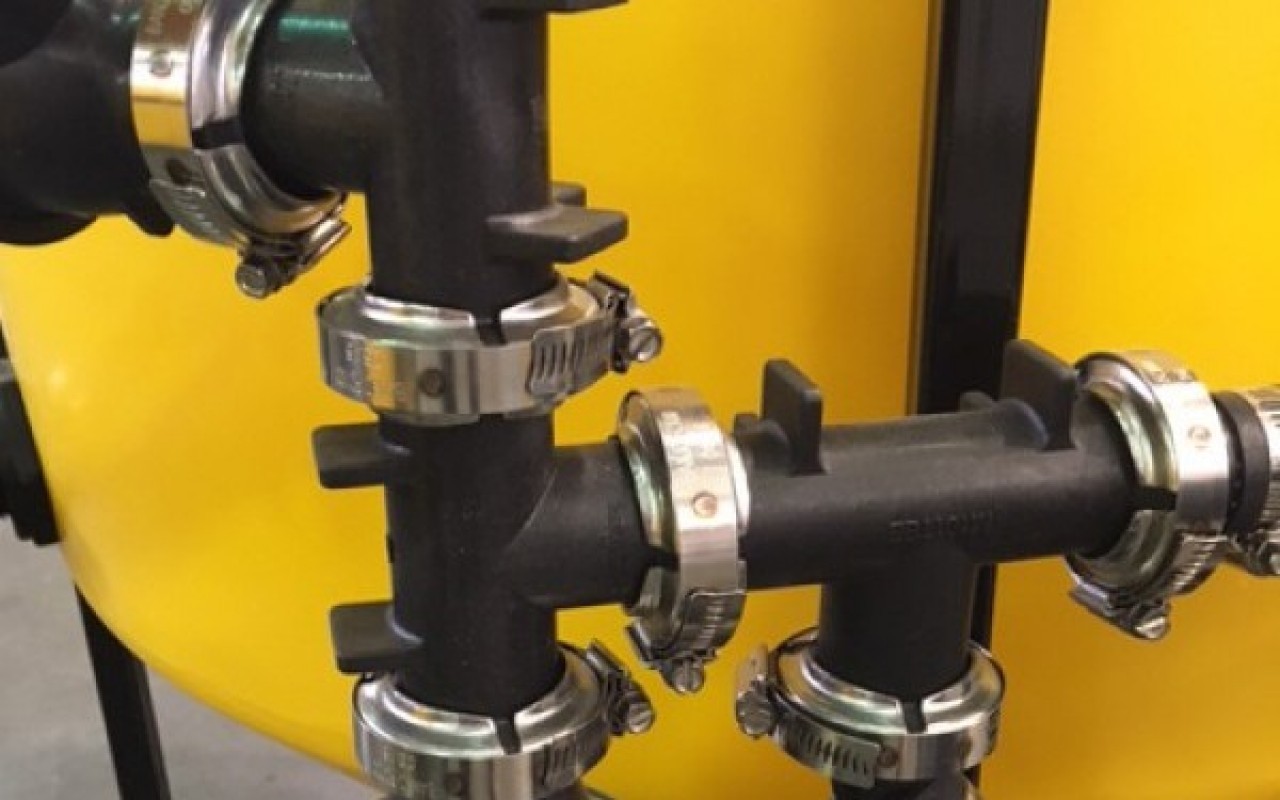

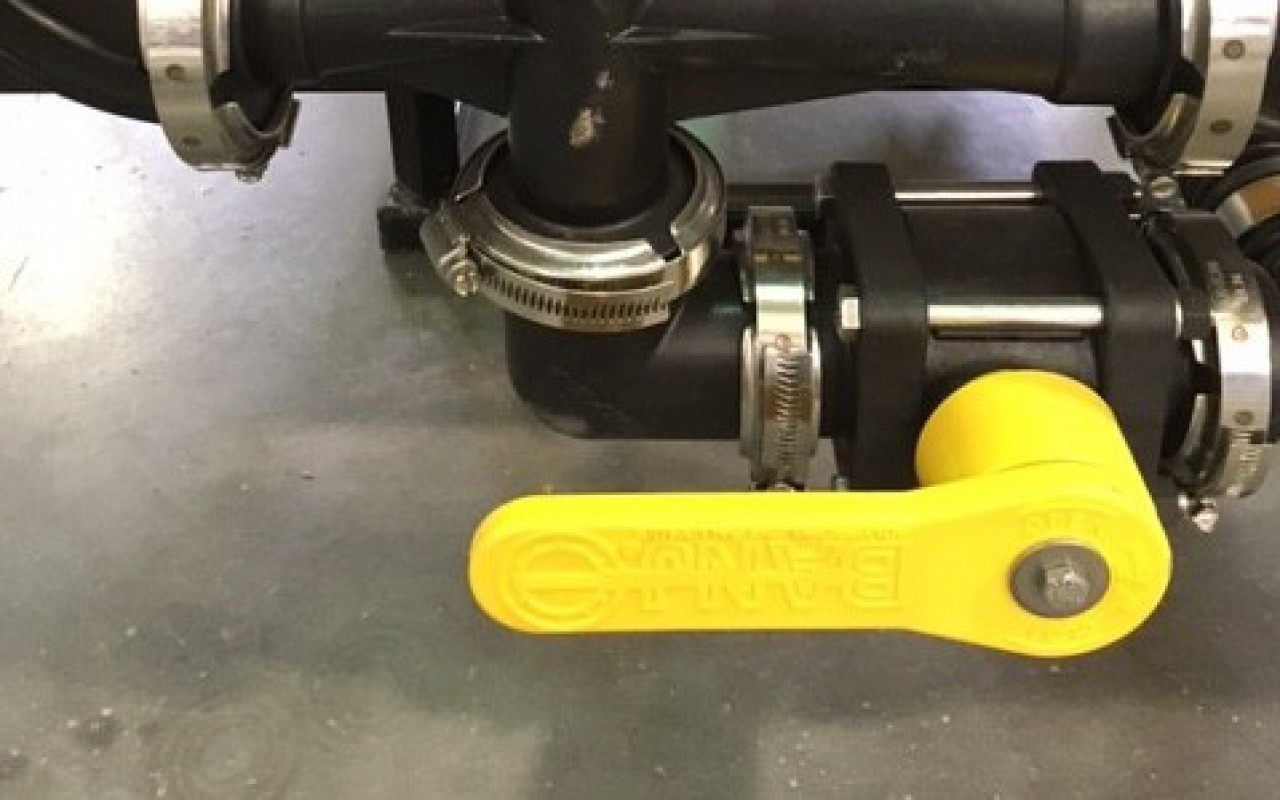

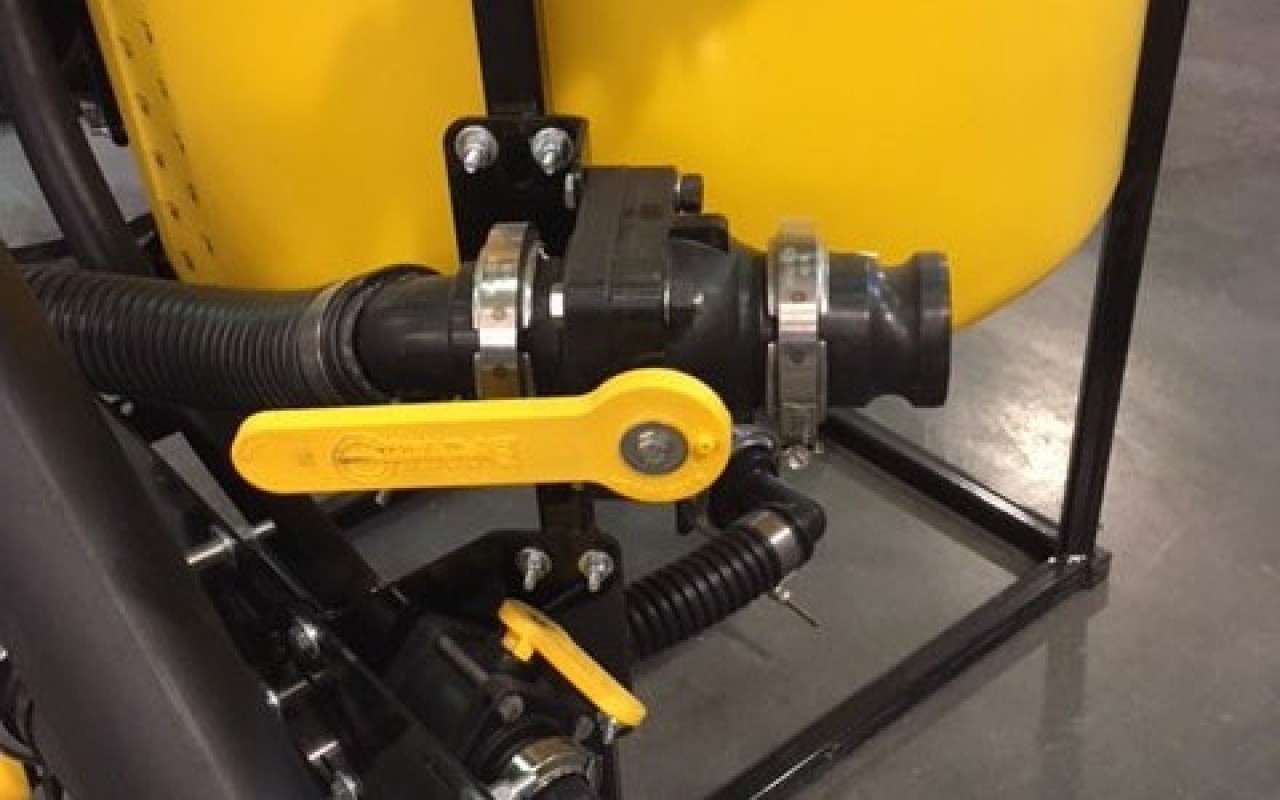

  • Banjo Manifold Threadless Fittings

    Banjo Manifold Threadless Fittings

  • Optional Pump Package

    Optional Pump Package

  • The bottom of the Handler is sloped for full drainage

    The bottom of the Handler is sloped for full drainage



Options

  • Optional frames that accommodate any 2 or 3" transfer pump (Handler II, III & IV)

    Optional frames that accommodate any 2 or 3" transfer pump (Handler II, III & IV)



Extra Information

The Handler became the top-selling specialty loading chem handler system in North America because of its ability to cut, empty and rinse a container in seconds. As spraying has changed, so has The Handler. In addition to The Handler knife, the system also mixes powders and dry products easily and quickly. It draws from bulk containers using the Handler venturi, utilizing cone-bottom, calibrated tanks to easily accommodate batch mixtures and bulk chemical metering.

The Handler was originally developed by a Canadian farmer who was tired of having to climb up into his sprayer to repeatedly dump 2 1/2 gallon jugs of chemical, only to fight with rinsing them. The Handler was designed to spearhead the evolution of total crop protection management.

Handler Models and features;

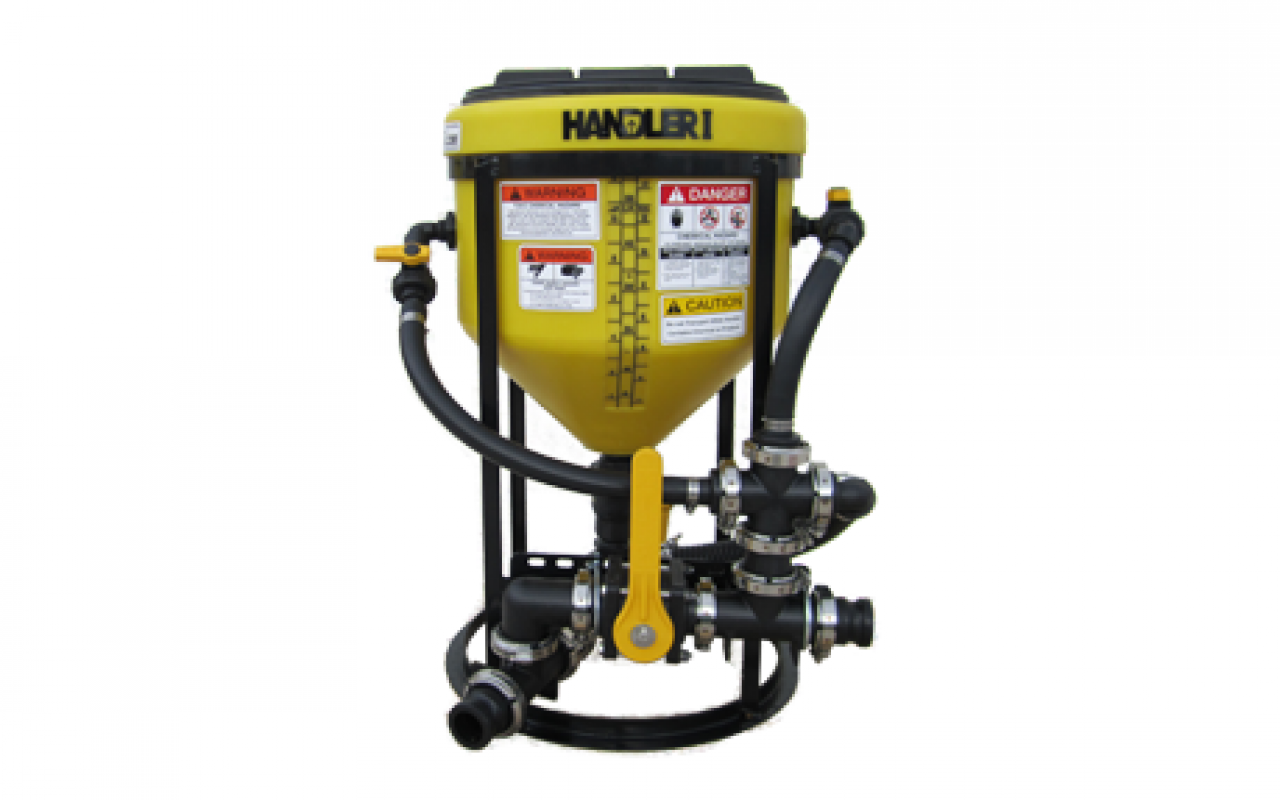

H12 (Handler I) - The most compact Handler, designed for direct induction of chemical into sprayers

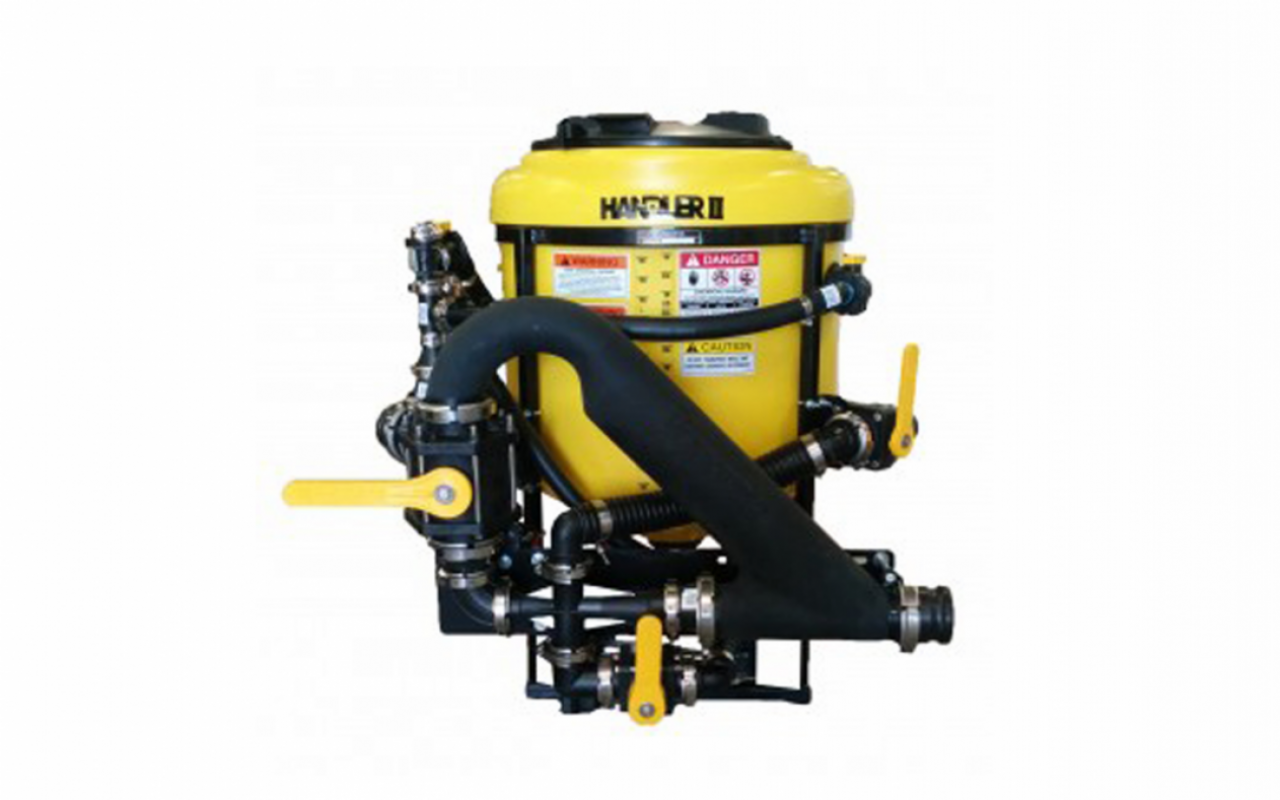

H23 (Handler II) - Suitable for everything for 10L and 20 L containers to bulk containers. This is the most compact 3" inductor system on the market

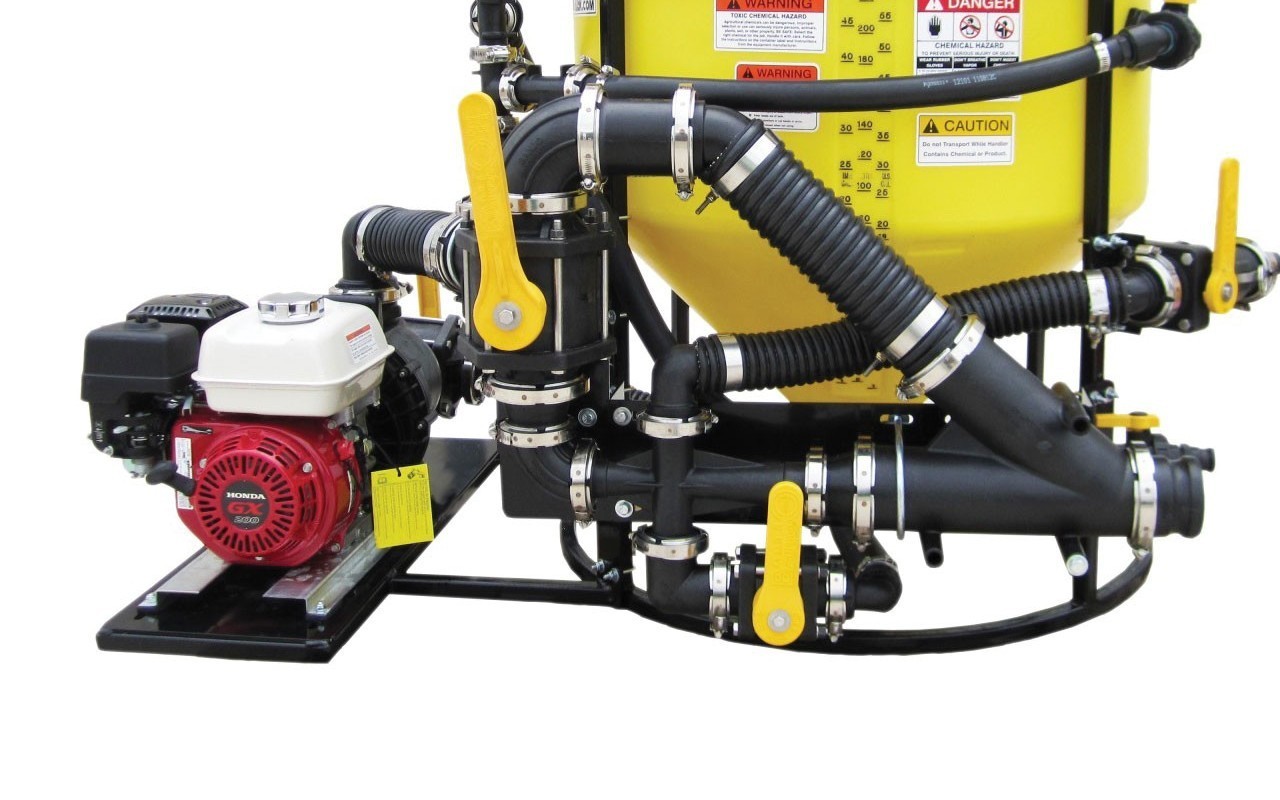

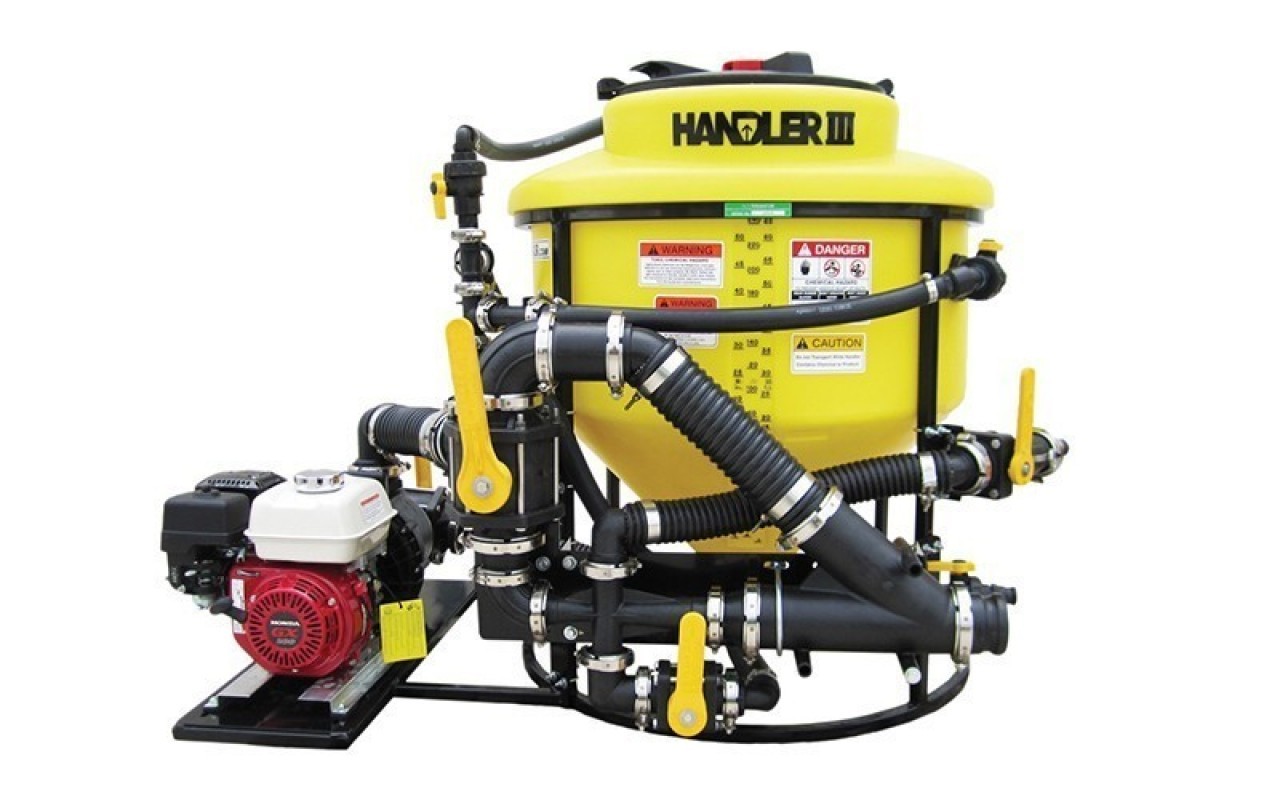

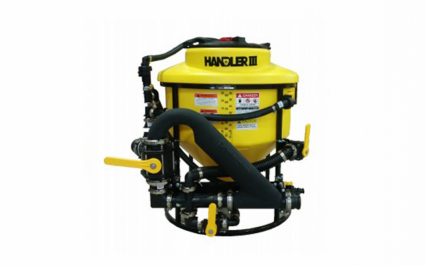

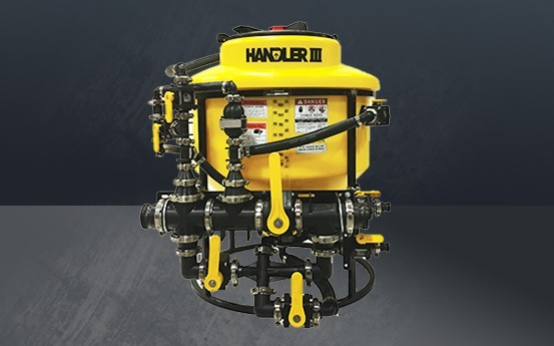

H32P55 (Handler III) -  Larger 70 US gal tank combined with cost-effective plumbing and integrated pump
H33 (Handler III) - Larger 70 US gal tank designed to handle the rigors of any pump
H23P65 (Handler III) - The first Handler model to utilize the one-piece bypass tube which improves flow by 5% (designed specifically to work with a Banjo 300PO  pump powered by a GX200 Honda Engine)

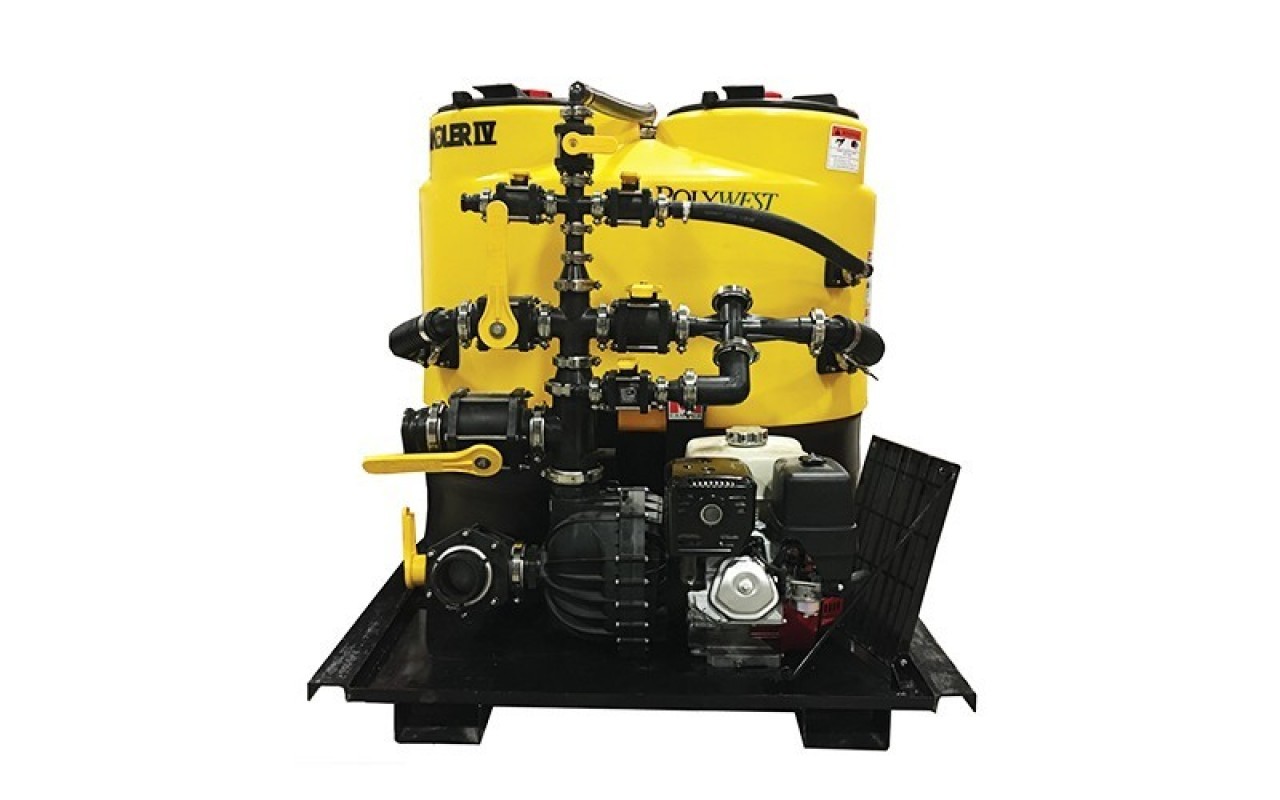

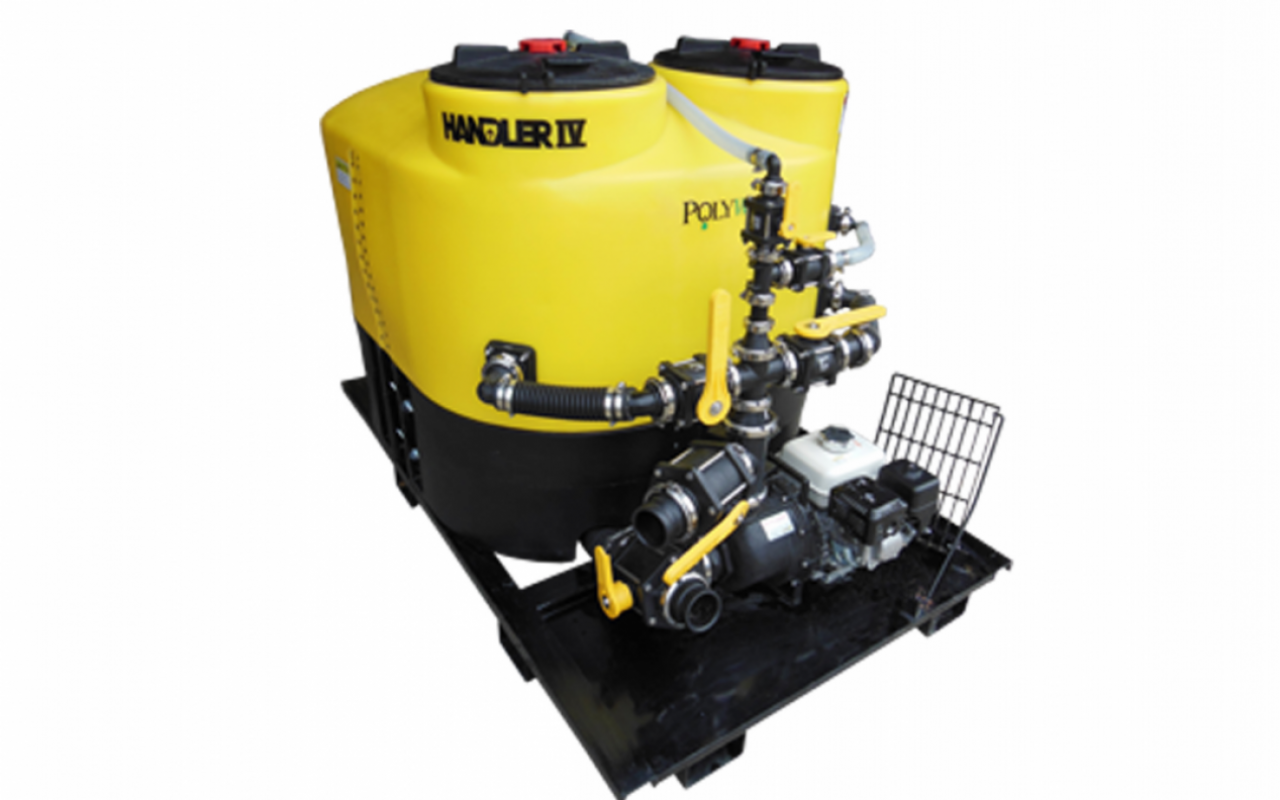

H43 (Handler IV) - Comes with or without an integrated pump - dual port venturi - able to induct bulk chemical into Handler

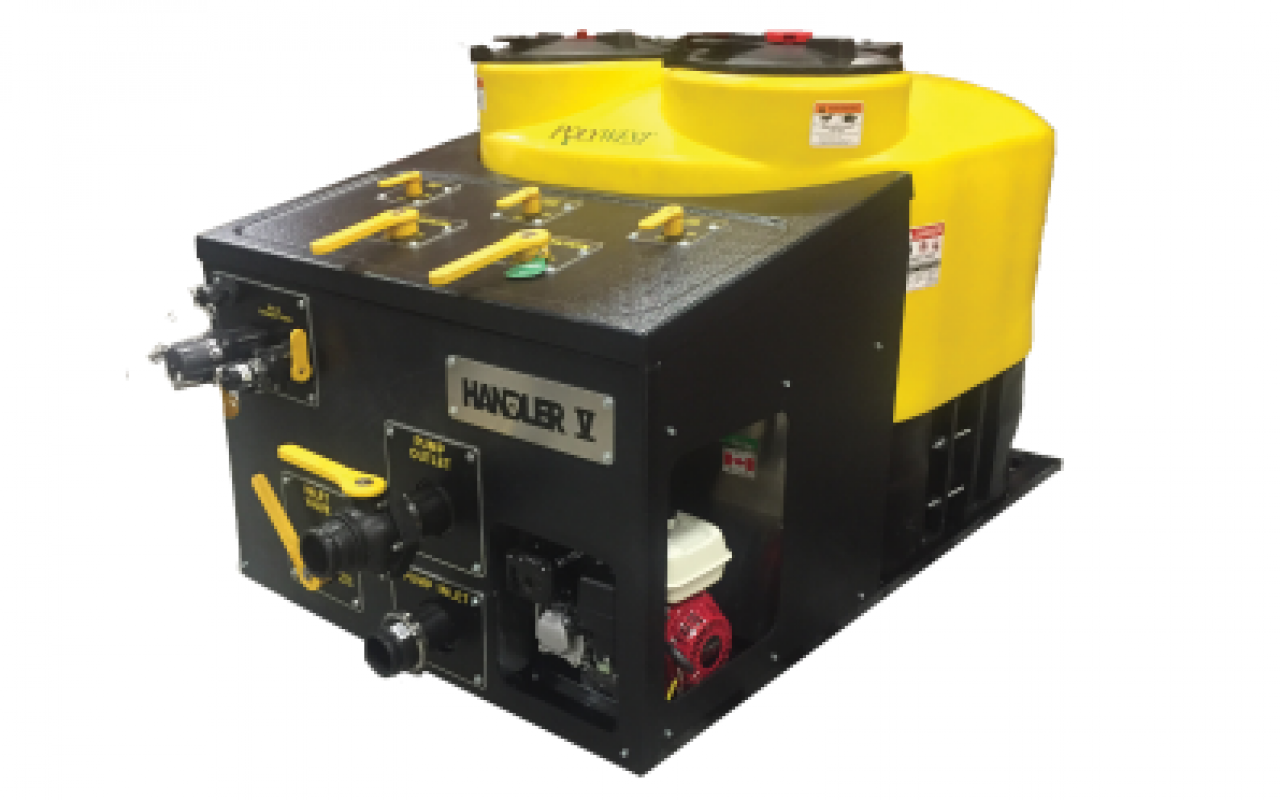

H53 (Handler V) - 230 US gal with all the functionality of Handler IV. Induct chemical from bulk containers, even while your sprayer is still in the field.



View Specs for All 5 Models Available » Specs

Size (gal) 15 --
Size (litres) 60 --
Fitting Style threadless manifold fittings --
Fitting Connections 2" --
Venturi SIze 1 1/2" single port --
Rotocraft not available --
Recirculation Kit not available --
