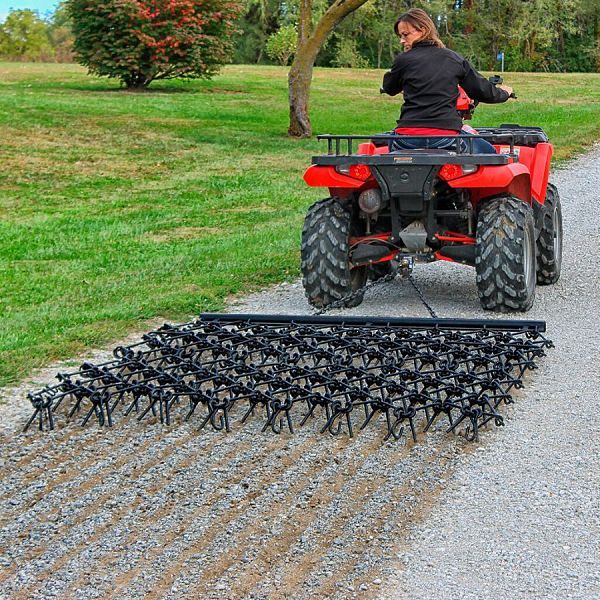

S3 Delta 3PT Harrows

They’re built with rugged materials and designed to be maintenance-free. Storage is just a matter of unhooking, so users can concentrate their time on upgrading their surroundings.

Two-way tine design allows you to use your harrow sections in three different ways:

1. With a section facing one way, the extra-long, cold-formed tines stand up at a 75-degree angle for aggressive soil penetration.
2. Rotate the section 180 degrees and the tines angle back for moderate soil penetration.
3. Flip the section over, and the tines lay flat for smoothing and leveling.

You can also create a dual-action module with aggressive tines up front and smooth tines behind.

The result is an implement that’s less expensive and complex than other available tillage options and more thorough and effective than homemade drag harrows.

Features

• Two-way Flexible Tines
• 15” Tires with Extra-long, Bolt-through Spindle and Reinforced Axle
• 1” Solid Steel Hydraulic Cylinder Mount
• Top-mounted Lift Cylinder
• Extra-long Hitch Tongue for Sharp Turning when paired with other equipment.
• Standard Heavy-duty Cast Hitch, 2000 lb. Jack, and Safety Chain

Delta’s modular design allows you to easily adjust your harrows for several tasks that make your acreage more productive and enjoyable:

• Managing Turf Conditions: Set up a small section on your 3-point hitch to break up heavy, compacted thatch, aerate soil, and bolster grass growth.
• Maintaining Driveways, Roadways, and Paths: Quickly smooth, level, dry, and manicure dirt or gravel with a tine section mounted on a garden tractor’s 3-point hitch.
• Resurfacing Arenas: Smooth, level, and condition surfaces to suit any arena activity, pulling any module configuration that fits through your gate.
• Garden Seedbed Preparation: Use your chain harrows as a finishing tool, breaking up small soil clumps, smoothing your surface soil and distributing light organic matter left by initial tillage.

• 10’ Model comes with one 4’ x 8’ mat and one 6’ x 8’ mat
• 12’ Model comes with two 6’ x 8’ mats
• 14’ Model comes with two 4’ x 8’ and one 6’ x 8’ mat
