Chembine 3" Mixing Unit with 6.5HP Honda and Banjo Pump

←Back • Inventory / Water Tanks, Pumps & Chemical Handling / Chembine 3" Mixing Unit with 6.5HP Honda and Banjo Pump

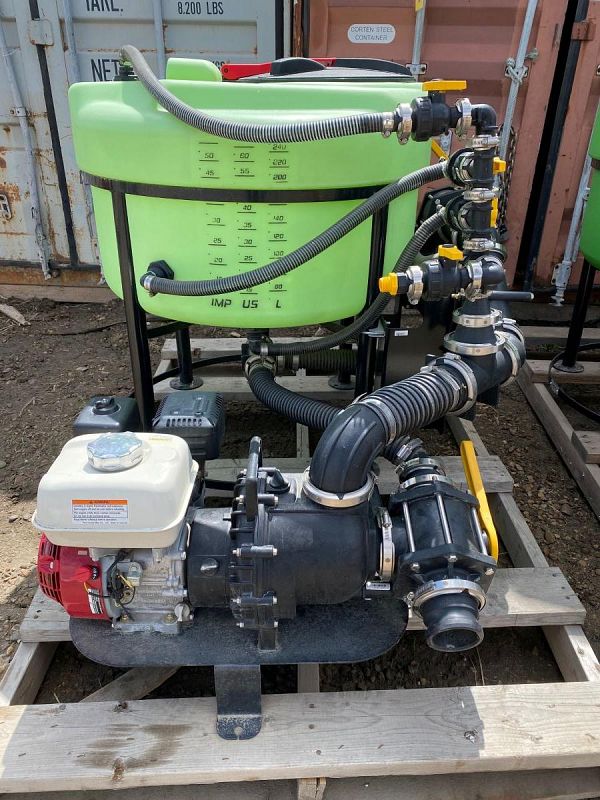

Chembine 3" Mixing Unit with 6.5HP Honda and Banjo Pump
$8,550.00
Plus Applicable Taxes
Located At
Edmonton S. (Nisku), AB
Call for Details
(780) 955-3400
Got Questions?
Product #: WATHWF100634

Product Description

 Chembine 3" Mixing Unit with 6.5HP Honda and Banjo Pump

The Chembine Chemical Mixer incorporates all the features of a typical chemical mixer, while drastically improving in the following areas:
•  New knife block design provides a more efficient cut; requiring less effort, speeding up the drainage process, and making removal of the jugs easier.
•  Increased agitation with the use of four vertically molded ribs in the tank combined with a unique vortex cycling water system virtually eliminates the chance of undissolved particles.
•  Easy rinse and drain process with the bottom drain valve, all interior surfaces sloping to the drain, and a rotary rinse system with 1” lines.
•  Improved ergonomics, better stability, and increased visibility.

Remote Throttle Kit: This kit can be added and allows operation of the throttle from the front of the unit.

Pumps: There are two optional pump kits available to create a functional and compact system. Kits include a 3-way valve that gives you the flexibility to pump from the Chembine Mixer to fill your sprayer.

Secured Hinged Tank Lid: The lid has a raised stop to rest on when open, reducing reach and effort required to open and close the lid.

Mounting: The frame legs have large feet with pre-drilled holes to allow easy and secure fastening to a trailer or truck deck.

Expansion Kits: There are 2 optional kits available:
2 Tote System – allows connection of two 1” totes in addition to the original 2” tote connection. This kit also includes a Flush Hose Assembly.
3 Tote System – allows connection of three 1” totes in addition to the original 2” tote connection. This kit also includes a powder-coated stand and a 1” Banjo Magnetic Flow Meter.

easyFlow System:
•  Self-cleaning closed transfer system that mounts to Chembine Mixer with no pump required.
•  Large diameter for speedy emptying of jugs and the ability to empty jug partially and reuse later.
•  Continuously adjustable flow rates, enabling exact transfer or partial container volumes.
•  Fast and complete rinsing of empty containers; no more contamination or manual cleaning required

Delivery options are available, ask your salesperson for details.
Finance and lease options available OAC.

Specs
  • Make: Free Form Plastics
  • Model: Chembine
  • Serial No: Available
