Product Information

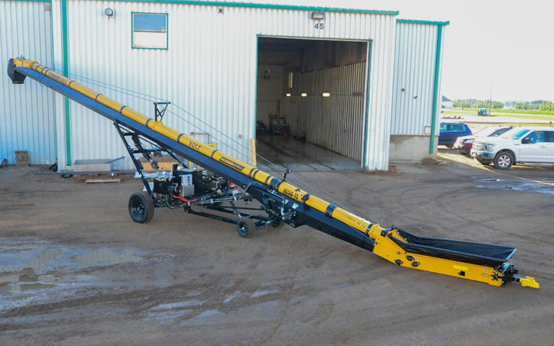

Grain handling goes electric. The Convey-All 1650-TL VOLT is the Ag Industry’s first-ever battery-powered conveyor – powering a 28HP motor for up to 2.5 hours on a single charge. It’s paired with the versatile 1650 Truck Load conveyor, so you’ll have time to load up to 10 to 12 trucks with cereals, pulses, fertilizer, or oilseeds before you need to charge again.
Features
-

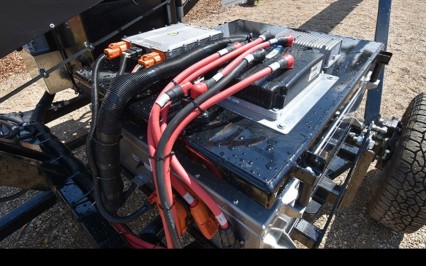

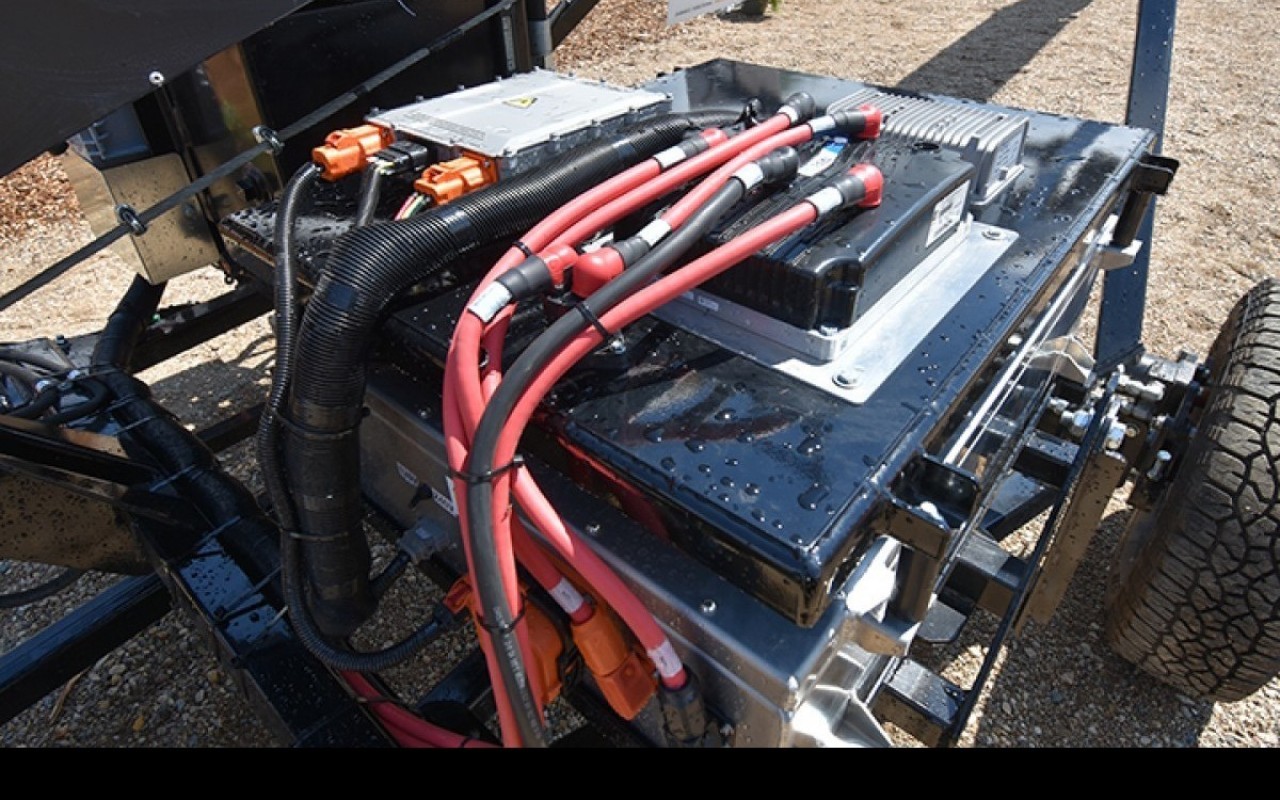

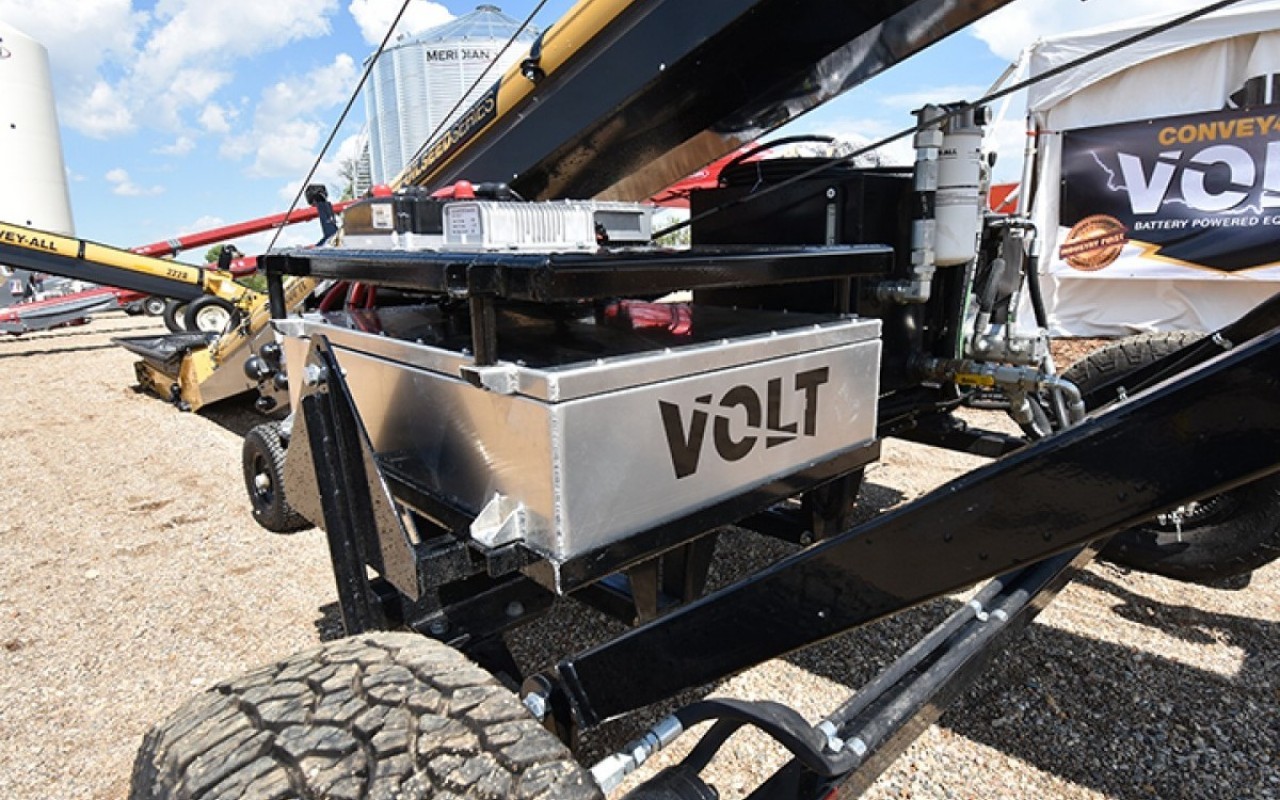

96-Volt Battery System
-
96-Volt Battery System
-

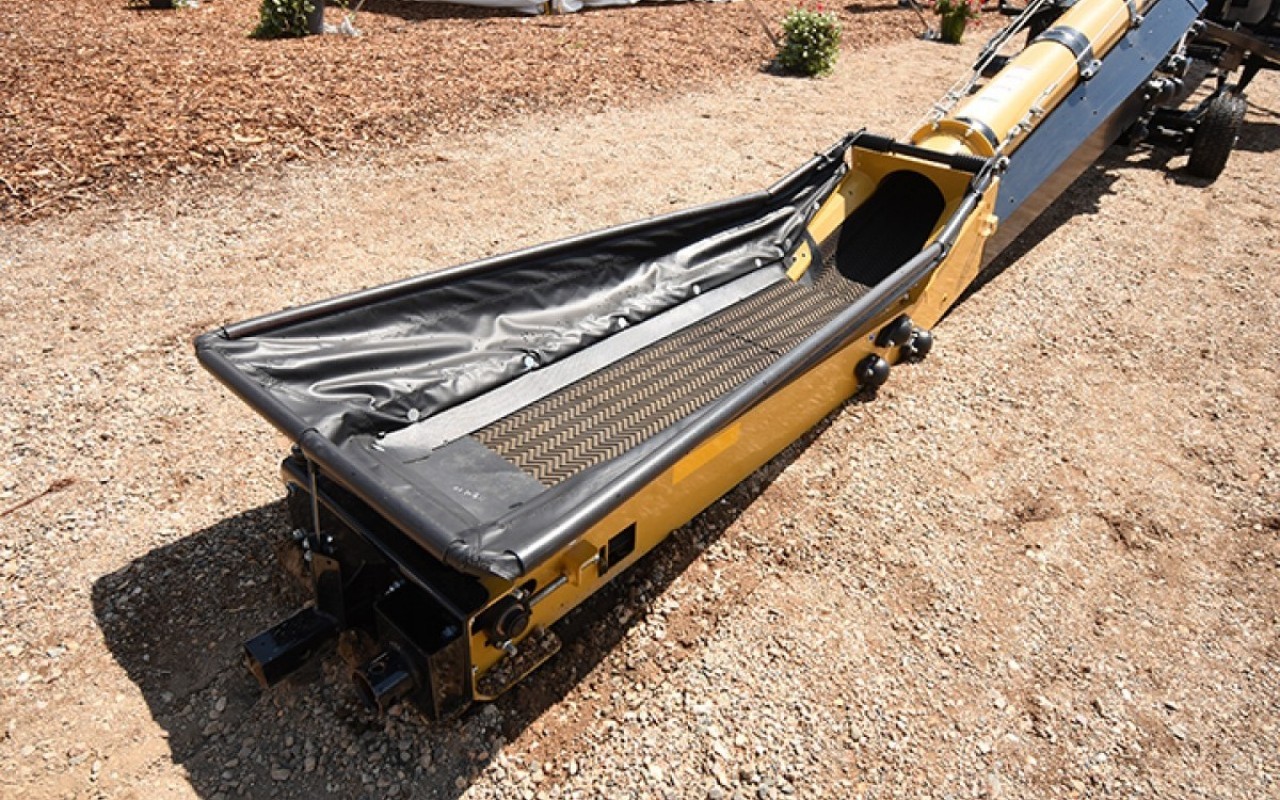

Collapsible Hopper
-

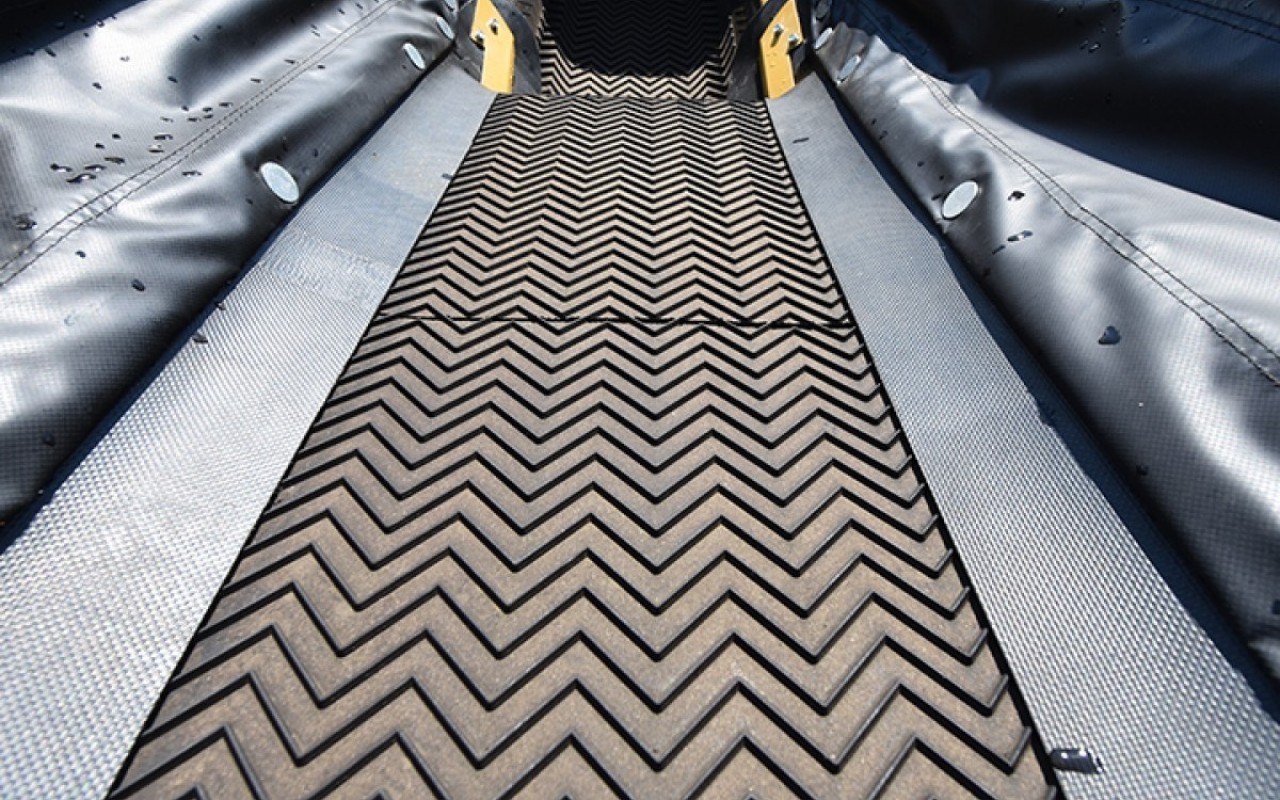

Skived Belt
-

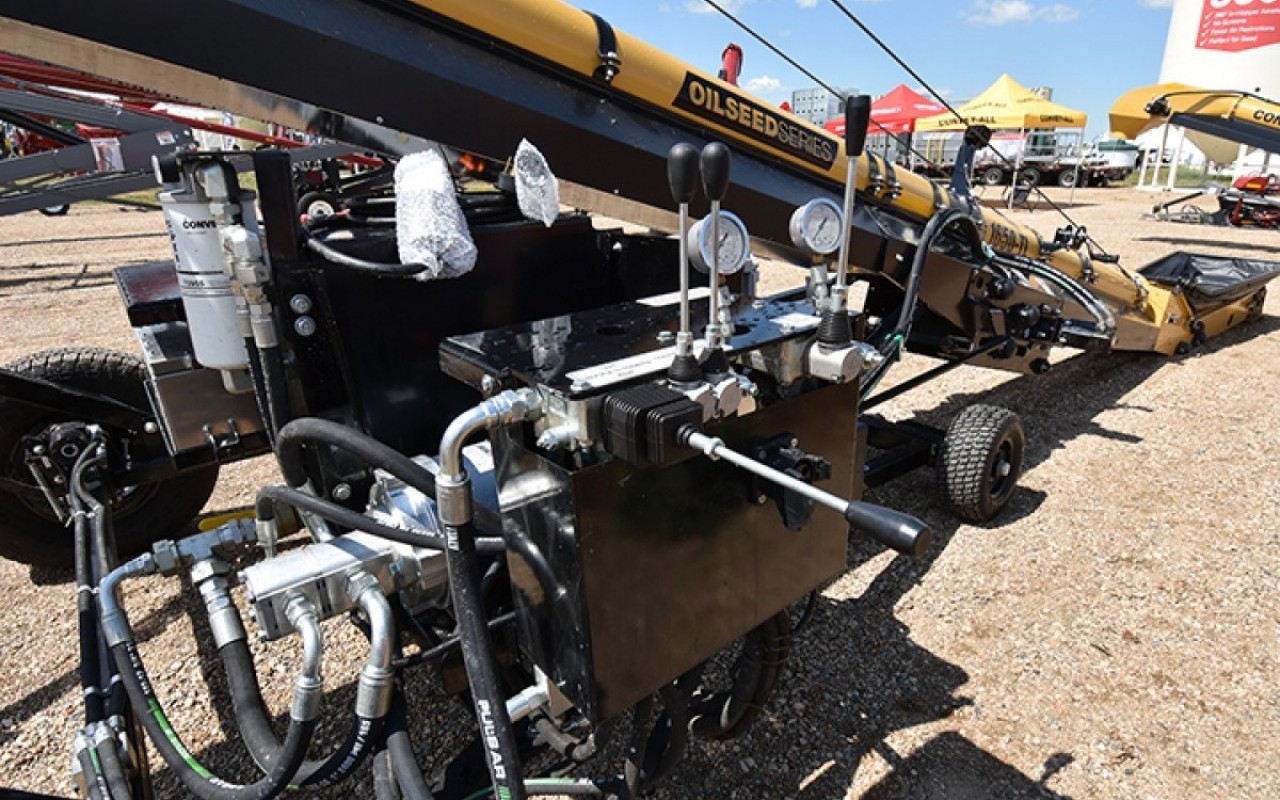

Hydraulic Controls
-

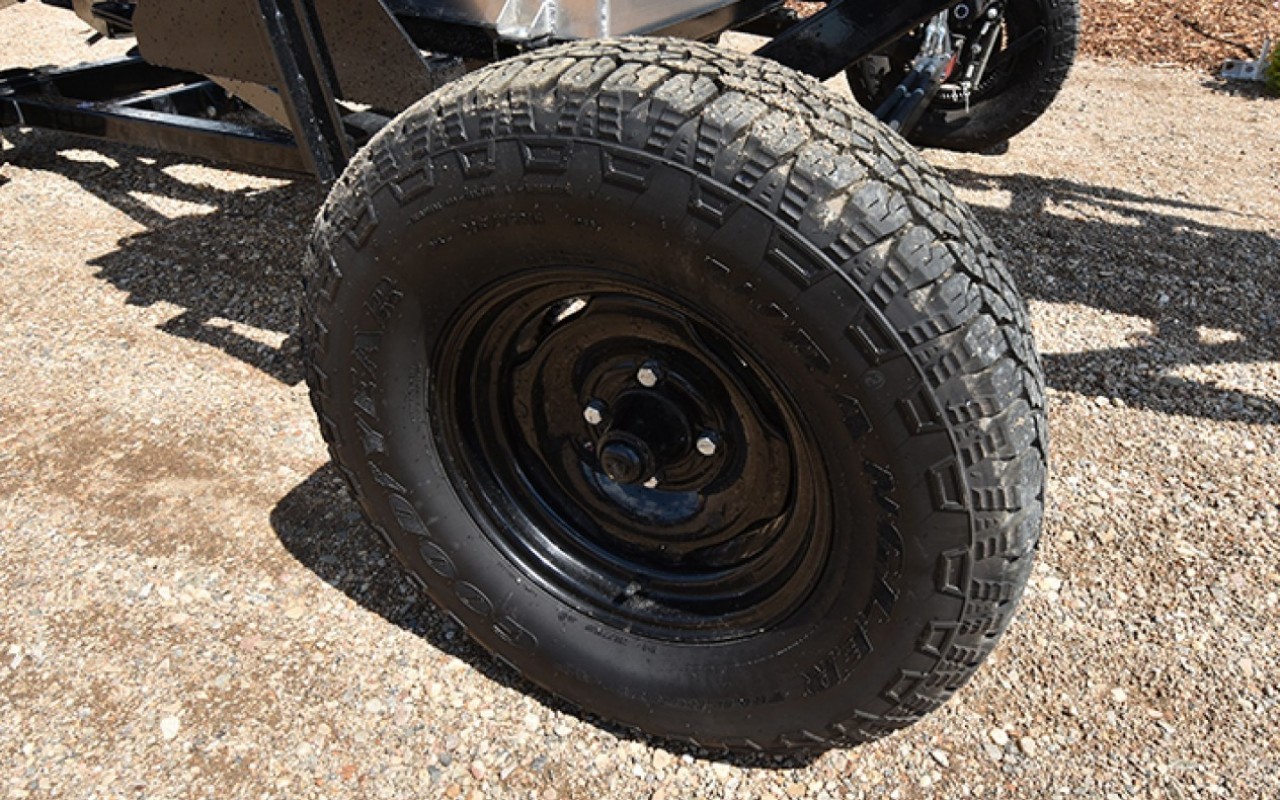

Highway Tires
Extra Information
The Electric Advantage
Requiring no fuel and producing zero emissions, the VOLT is the perfect solution for use indoors or wherever combustible engines are prohibited. Its 96-Volt 26.5kwh battery system charges in six to eight hours when connected to a 220-volt power outlet and about 12 hours at 110 volts.
The 36-unit battery pack requires less maintenance than gas or diesel motors and requires none of the warm-up time or choking that cold fuel engines do. The VOLT’s turn-key performance instantly puts your 50’ auger into quiet, efficient, environmentally friendly action.
Standard Features:
- 96-Volt system: 32kwh Battery, 3.3kw Charger, 28HP Electric Motor
- Self-Contained Drive System
- Heavy-Duty Mover Kit
- Collapsible Hpper
- Full Length Wind Guards
- Heavy-Duty Undercarriages
- Hydraulic Lift
- Spring Tension Drive Box
- Hydraulic Valves and Controls on Tow Vehicle’s Driver Side
- Steel Fuel Hydraulic Oil Reservoir
- Highway Tires
- Discharge Hood with Electric Actuator
Optional Add-Ons:
- Stainless Steel Package
- Fender and Light Package
- 2-5/16” Ball Receiver Hitch
- Quad-Adjust Hood Package
- Heavy-Duty Railcar Hopper
Specs
| Length | 50' | |
| Undercarriage | A-Frame | |
| Axle Width | 8'4" | |
| Transport Height | 11'5" | |
| Transport Length | 53'7" | |
| Belt Width | 16" | |
| Capacity | 3,500 BPH | |
| Tube Diameter | 10" |
- Length
- Undercarriage
- Axle Width
- Transport Height
- Transport Length
- Belt Width
- Capacity
- Tube Diameter
-
1650-TL VOLT
- 50'
- A-Frame
- 8'4"
- 11'5"
- 53'7"
- 16"
- 3,500 BPH
- 10"

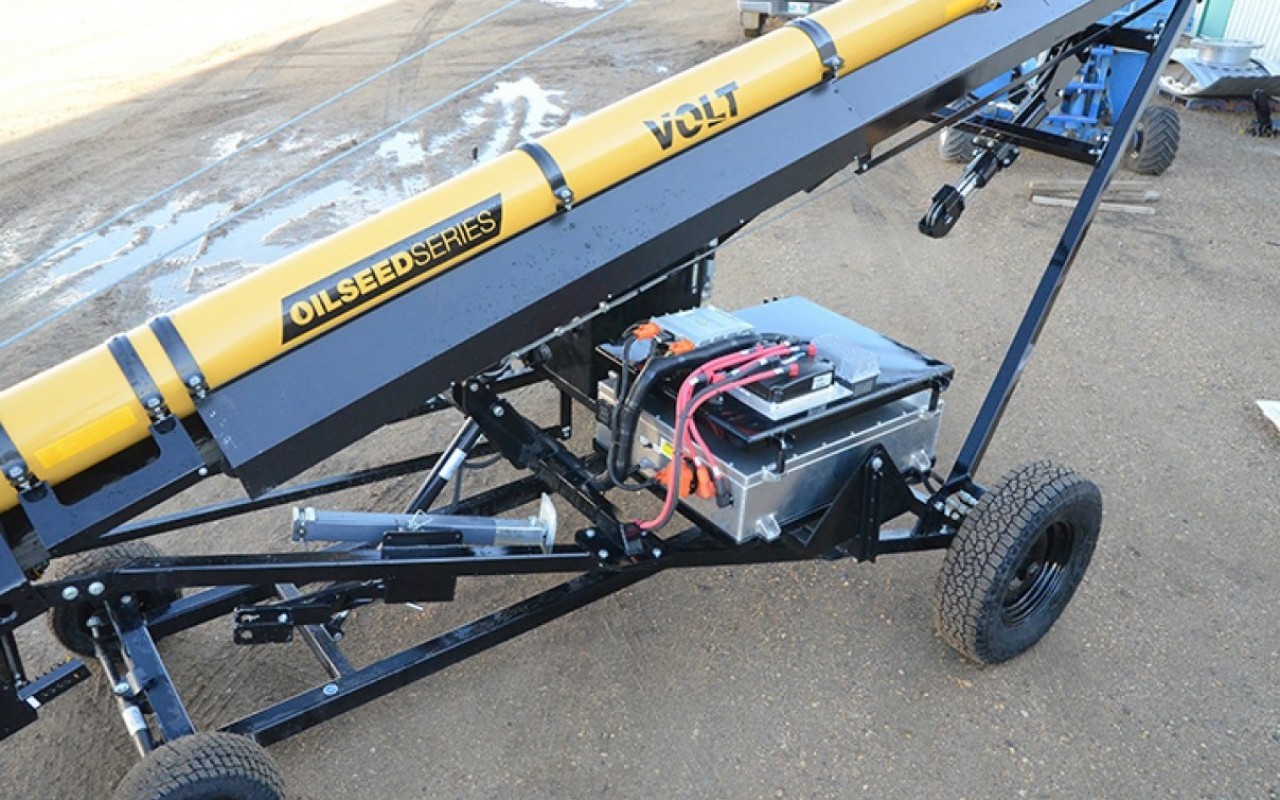

 - low res-WIjqVE.jpg "Oilseed Series VOLT")
