Extra Information

Designed for Durability

Both augers are made with leading-edge but common-sense features to greatly extend their service lifespan.

Dynamically Balanced Suspended Flighting: The Edge Agro Auger’s premier innovation uses hangers to suspend your flighting clear of the tube that houses it. This prevents metal-on-metal wear and vibration on the bearings, increasing the auger’s lifespan by up to four times. Other benefits include:

• Low Resistance Movement – in demonstrations, the entire 42’ auger (empty, drive belt off) has been moved with one finger pushing the belt pulley.
• Low Noise – with no flighting-on-tube contact, the auger runs whisper-quiet.
• Easy on Commodities – Cracking and dockage of your crop is substantially reduced.

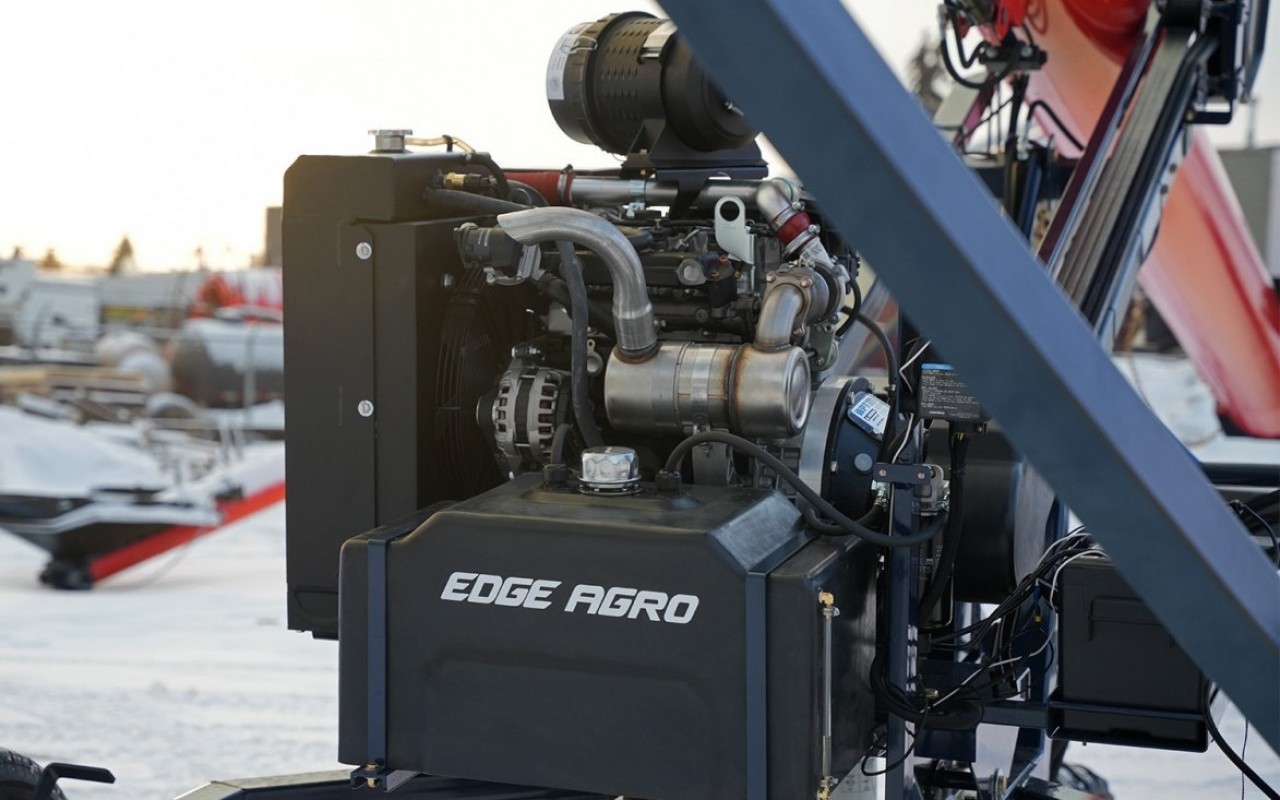

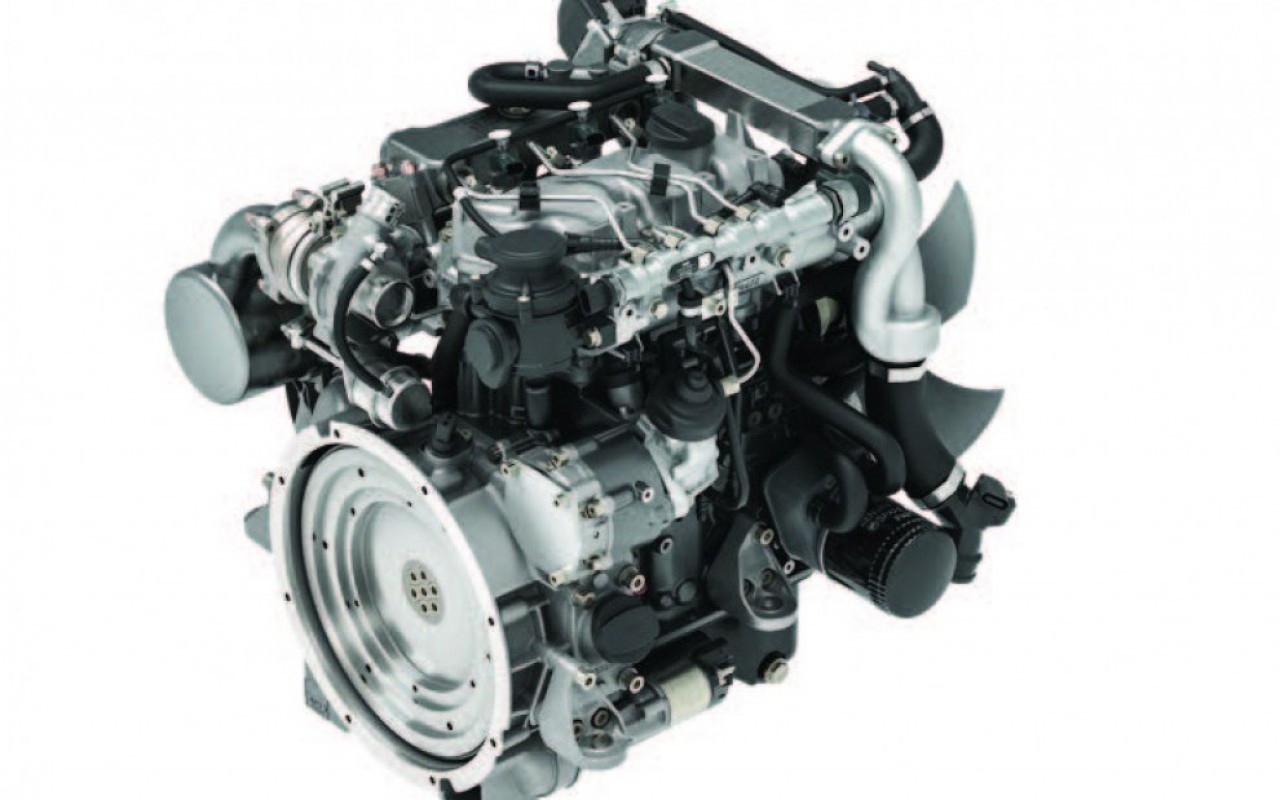

56HP German-Made Diesel Motor: The diesel-powered auger idea is an ideal solution for farmers. The powerful Tier 4 HATZ engine supplies all the power your 12” or 14” auger requires while eliminating the need for a separate tank for gasoline. This liquid-cooled unit features large-capacity fuel and oil storage plus glow plugs and a circulating block heater for cold weather starts.

Integrated Mechanical Hand Clutch (Flywheel Side of Engine): Made to handle torque levels that electric clutches can’t manage. Mechanical operation allows for gradual engagement when your auger’s full of grain. Adjusting your clutch engagement and idle speed simultaneously is gentle on your auger, increasing its longevity.

Industry’s Heaviest Frame: Made to support the weight of a 56H diesel motor and finished with powder coat paint.

More Durability Features:

• Solid tube and flighting construction
• 1 ¼" keyed line shaft

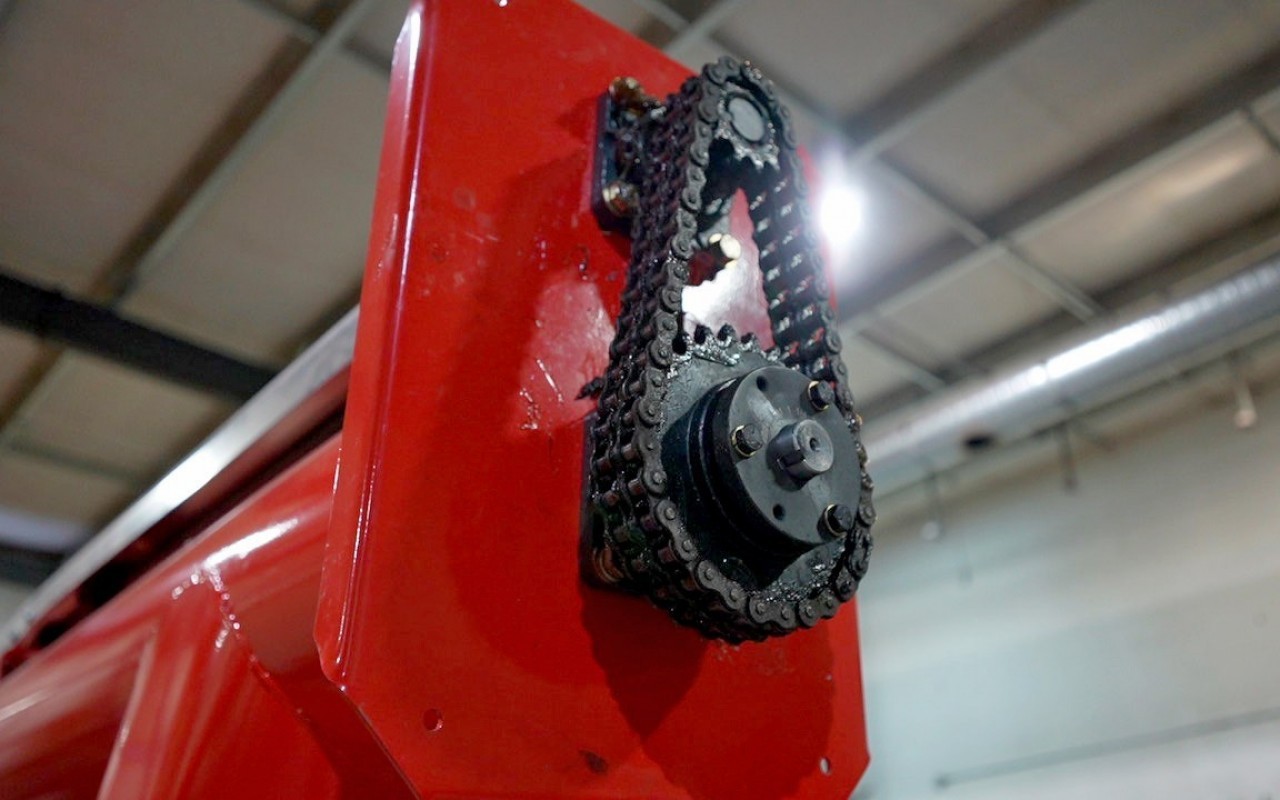

• Double 60H chain drive at top (heavier side plates for longer life and less maintenance, runs in a greaseable chain case)

Safe and Efficient Operation

Hydraulic Lift System: Your auger is raised on a long-series hydraulic cylinder, saving space and the troubles of winch-and-cable system. Safety mechanisms like restrictions and check valves assure you that your auger will lock in place if the hydraulic line should fail.

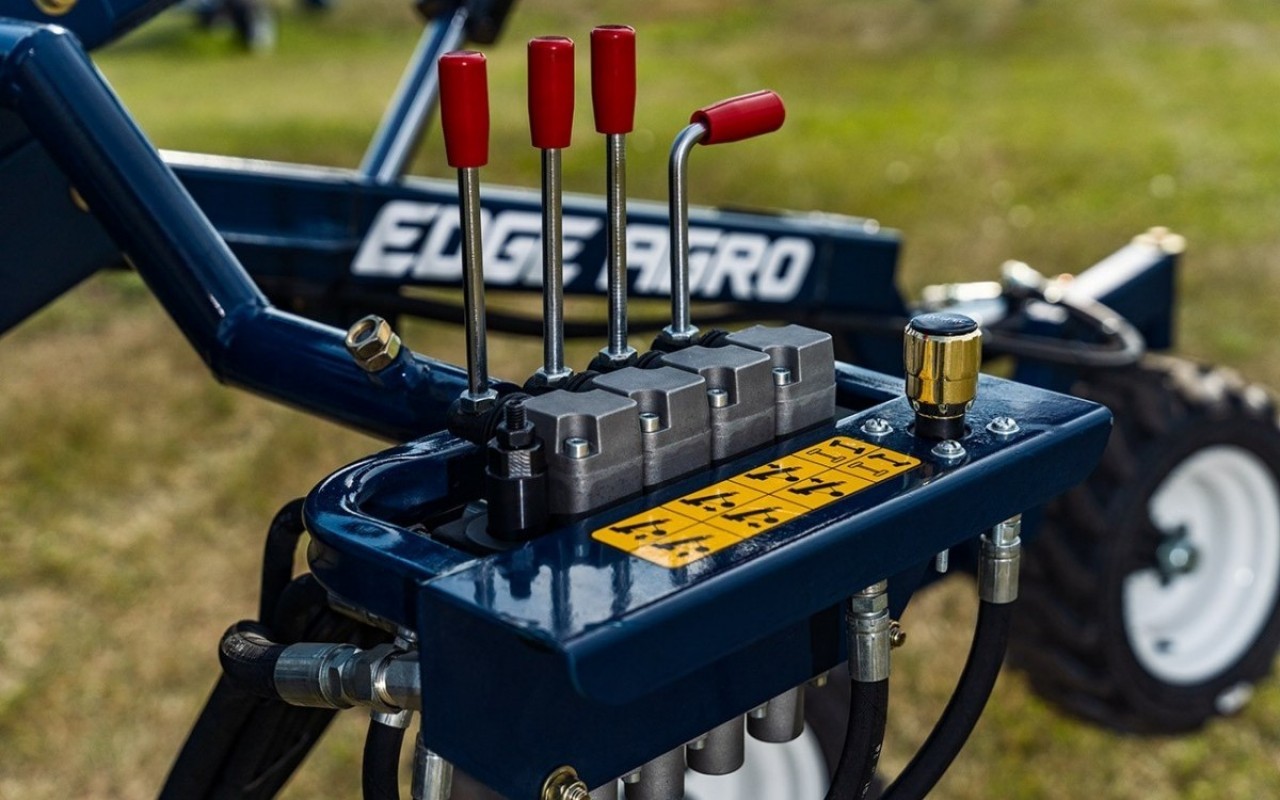

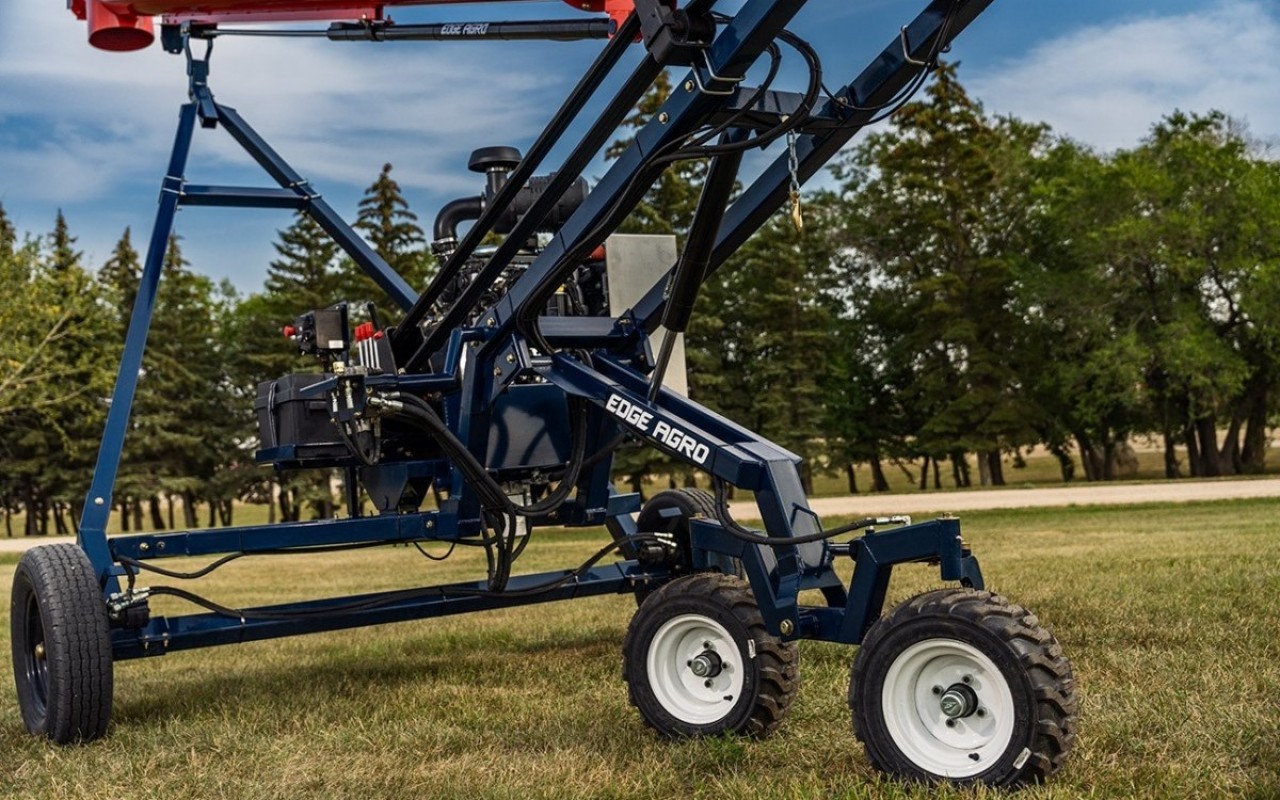

Mover Kit: Features a heavy-duty walking beam with fingertip-controlled hydraulic steering and drive wheels to negotiate a variety of conditions. Remote control option allows operator to stand clear with a full view of the move. Easy to position, raise, and lower for loading or hitching to a truck, and retractable wheels offer maximum clearance when in transit.

Heavy-Duty Reversible Gearbox: Shift between reverse, neutral, and forward gears to clear plugs or empty auger to prevent cross-contaminaton of different commodities.

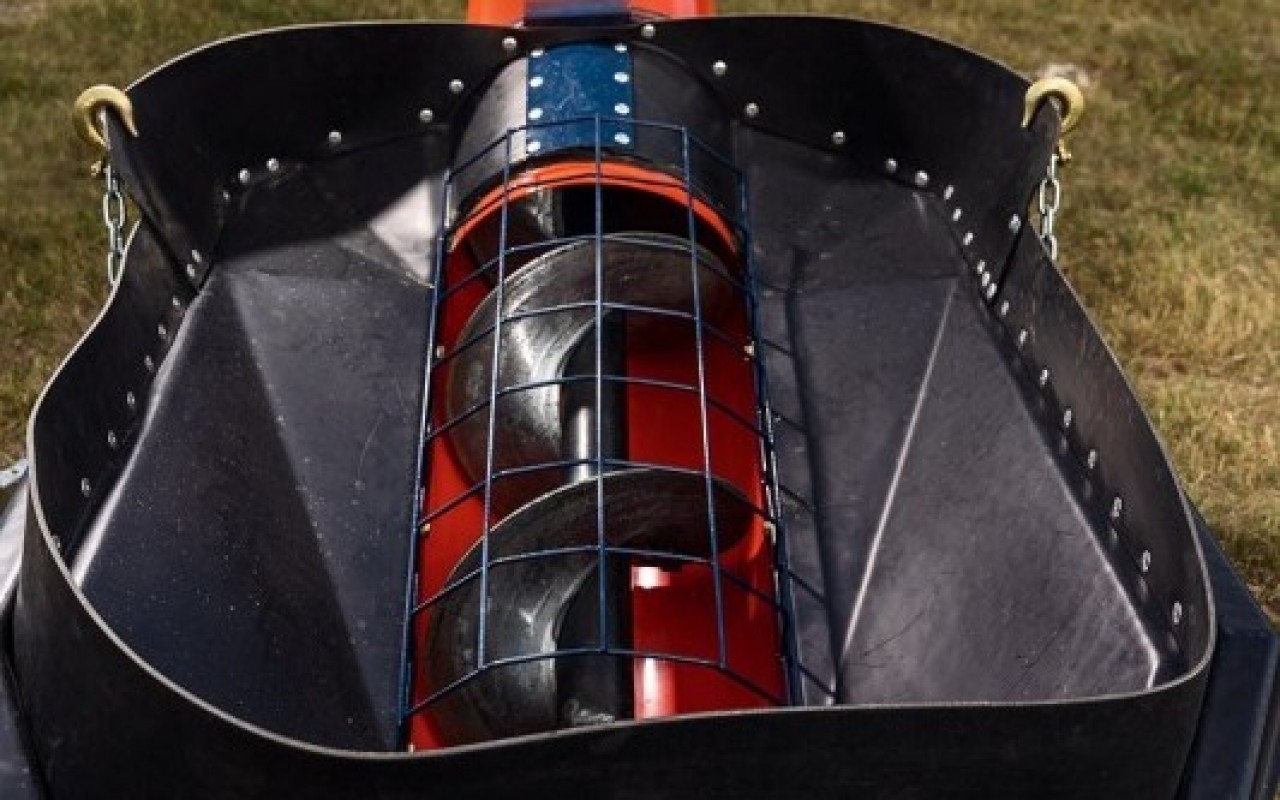

Low Profile Hopper Design: Integrated hopper design features flexible upper portion and fits easily under unloading trucks.

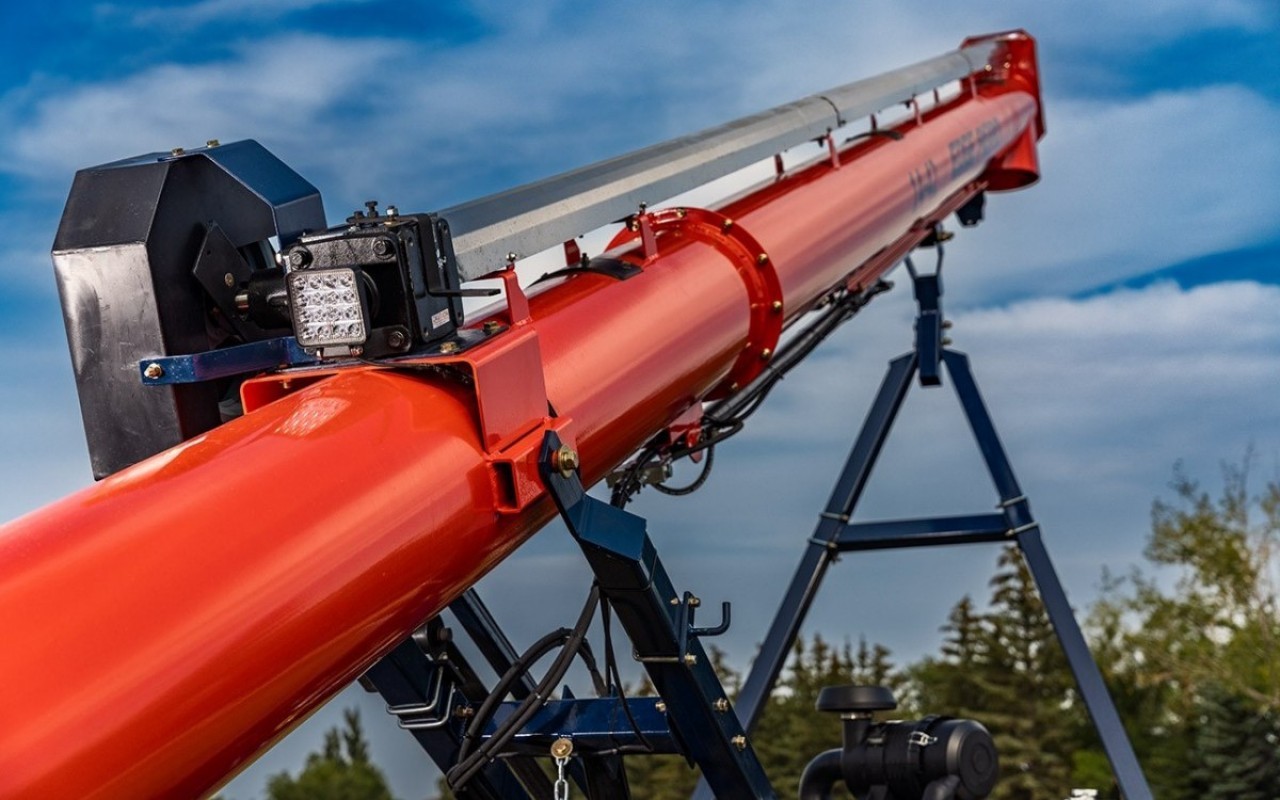

LED Light Kit
