Product Information

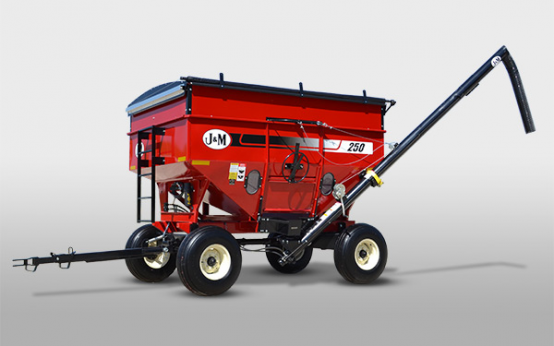

The heavy duty tank construction of J&M Gravity Wagons features steep slopes, corner valley slats and a sump design, providing fast and easy clean-out, even in high moisture grains. The front wheels feature an automotive tow setting for true-tracking. Offset runners allow you to make the tightest turns with ease. A pull through extended rear hitch eliminates the stress on the rear axle during tandem towing. Reinforced sleeved spindles provide maximum strength and durability, allowing you to hold more and travel faster in the harshest conditions without failure, while the cushion tongue smoothly activates the two or four wheel hydraulic drum brakes. The new style rocking bolster increases stability, yet provides flexibility in rough terrain.
Features
View Specs for All 5 Models Available » Specs
Door Width | 30" | -- |
Chute Height | 15" | -- |
Hopper Construction | 14 GA Steel | -- |
Understructure | 3"x6" Runners | -- |
Tail lights | Standard | -- |
Front Ladder | Standard | -- |
Center Dump Deflecter | N/A | -- |
Capacity - Running Gear | 8 Ton | -- |
Spindles | 1 3/4" Diameter | -- |
Wheels | 15x8 - 6 bolt | -- |
Tires | 11L-15 | -- |
Hydraulic Brakes | N/A | -- |
Weight (complete unit) | 1,760 lbs | -- |
Capacity - Box | 165 Bushels | -- |
- Door Width
- Chute Height
- Hopper Construction
- Understructure
- Tail lights
- Front Ladder
- Center Dump Deflecter
- Capacity - Running Gear
- Spindles
- Wheels
- Tires
- Hydraulic Brakes
- Weight (complete unit)
- Capacity - Box
-
250-7S
- 30"
- 15"
- 14 GA Steel
- 3"x6" Runners
- Standard
- Standard
- N/A
- 8 Ton
- 1 3/4" Diameter
- 15x8 - 6 bolt
- 11L-15
- N/A
- 1,760 lbs
- 165 Bushels
-
250-7SB
- 30"
- 20"
- 14 GA Steel
- 3"x6" Runners
- Standard
- Standard
- N/A
- 10 Ton
- 2" Diameter
- 15x10 - 6 bolt
- 12.5L-15
- N/A
- 2,200 lbs
- 250 Bushels
-
385SD
- 36"
- 17"
- 14 GA Steel
- 3"x6" Runners
- Standard
- Standard
- Optional
- 13 Ton
- 2 1/2" Diameter
- 22.5x8.25 or 22.5x13.5 - 8 bolt
- 11-22.5 or 15-22.5
- Opt. 2-Whl Drum
- 3,640 lbs
- 385 Bushels
-
455SD / 555SD
- 60"
- Adjustable 14" to 19"
- 12 GA Steel & 9 GA Steel
- 3"x6" Runner
- Standard
- Standard
- Optional
- 16 Ton
- 3" Diameter
- 22.5x13.5 - 8 bolt
- 15-22.5 or 15.5-22.5
- Opt. 2-Whl Drum
- 5,796 lbs or 6,030 lbs
- 450 or 550 Bushels
-
655SD / 755SD
- 60"
- Adjustable 14" to 19"
- 12 GA Steel & 9 GA Steel
- 3"x6" Runners
- Standard
- Standard
- Optional
- 24 Ton
- 3 3/8" Diameter
- 22.5x13 - 10 bolt
- 16.5-22.5 or 18-22.5
- Opt. 4-Whl Drum
- 6,800 lbs or 7,050 lbs
- 660 or 760 Bushels
